Receiver Wiring Adaptor
120 70-7306
Revision 09/14/17
STEP 1 -- MATCH & CONNECT WIRES
*120707306*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
Copyright 2017 Crutchfield Corporation
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on page 3.
A.
B.
C.
D.

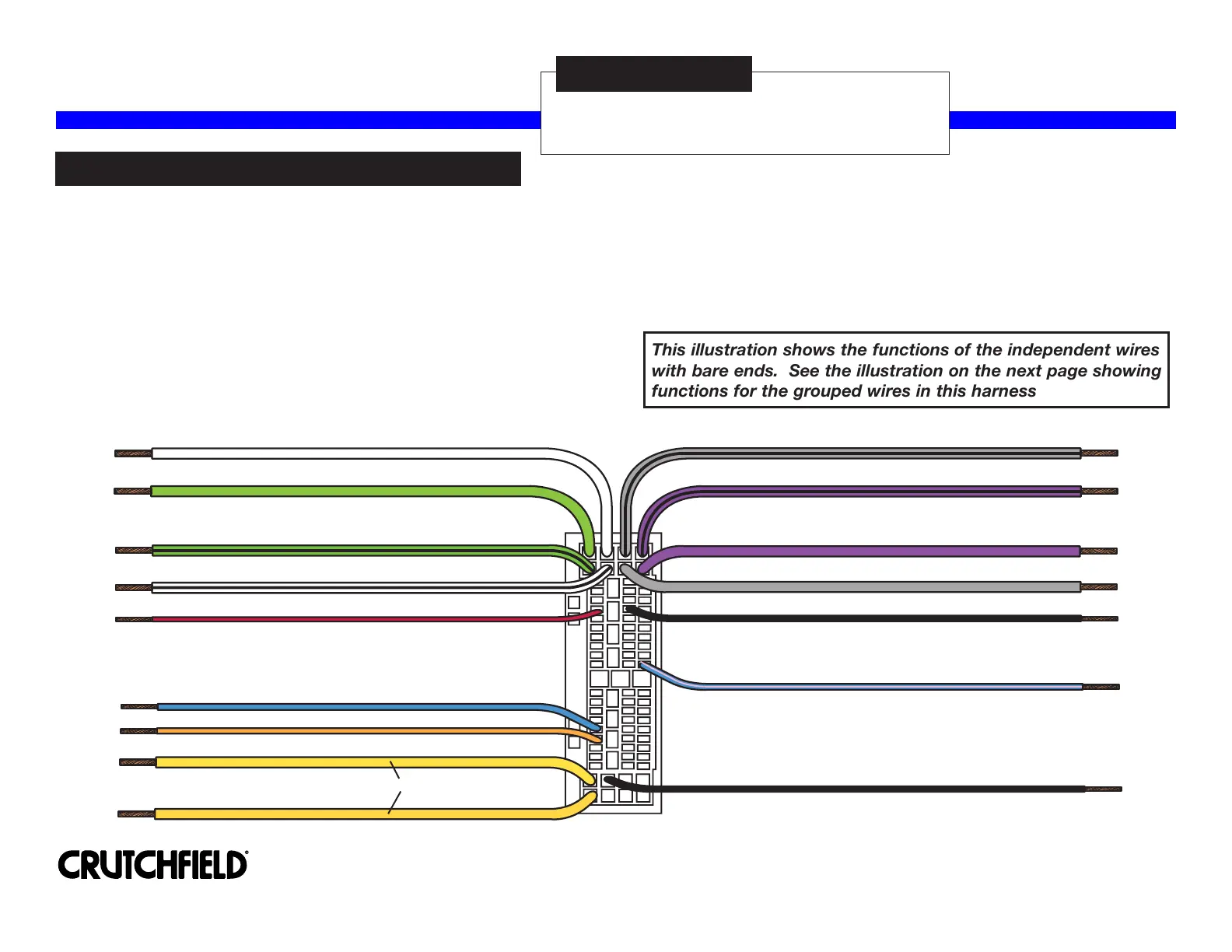

This illustration shows the functions of the independent wires
with bare ends. See the illustration on the next page showing
functions for the grouped wires in this harness.
Gray/Black - Right Front Speaker Negative
Orange - Illumination
Yellow - 12 Volts Constant Power
White - Left Front Speaker Positive
Blue - Power Antenna
Violet - Right Rear Speaker Positive
Green/Black - Left Rear Speaker Negative
Violet/Black - Right Rear Speaker Negative
Green - Left Rear Speaker Positive
Gray- Right Front Speaker Positive
White/Black - Left Front Speaker Negative
Black - Camera Ground
Black - Connect with Ground wire of receiver and
Ground wire shown on the next page.
Red - 6 Volts Camera Power
Yellow - 12 Volts Constant Power
Connect both to receiver.
Blue/Pink - Vehicle Speed Sensor
Receiver Wiring Adaptor
120 70-7306
Page 2

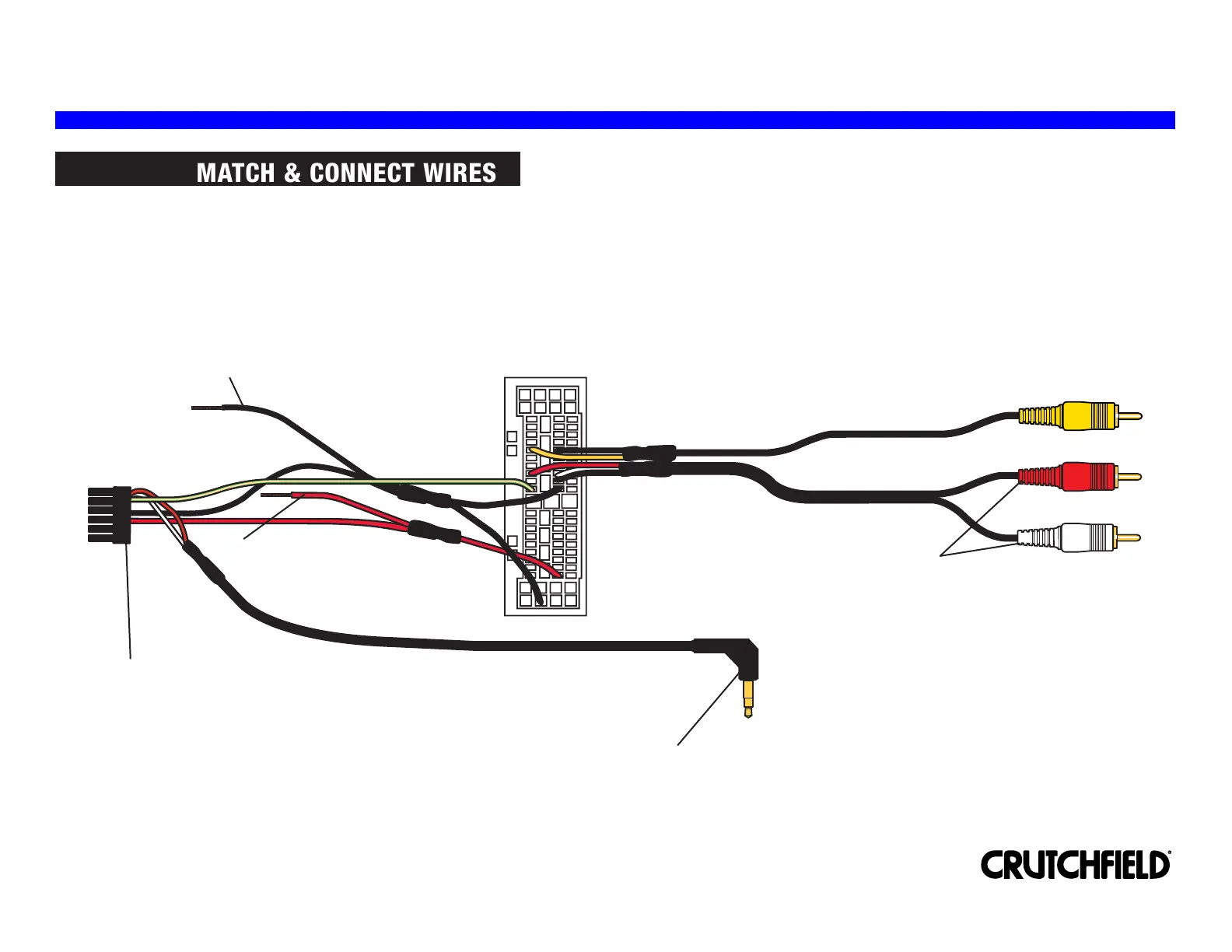

STEP 1 -- MATCH & CONNECT WIRES
Copyright 2017 Crutchfield Corporation
Red - 12 Volts Accessory Power
AUX Input (if equipped or optional)
If factory-equipped with backup camera,
connect to the reverse camera input of the
aftermarket receiver.
Connect to Steering Wheel
Control Port on receiver
Connect with Ground Wire at the
bottom of the illustration on the
previous page.
White - AUX In Left
Red - AUX In Right
Connect to the 120ASWC1, disregarding
the harness that came with the ASWC1.
It will not be used in this installation.
Use the 3.5mm 2-wire adaptor included in the 120ASWC1 for
JVC and Kenwood with the Blue/Yellow steering wheel control
input wire. Connect the Brown wire on the adaptor to the
Blue/Yellow wire.
An adaptor may be required if the
receiver's AUX Input requires a
3.5mm male connector.
