Side 1/8
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/26/24 INST109-TO8HG
INSTALLATION INSTRUCTIONS
109 -TO8HG
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• Designed for Pioneer modular radios with the 9” screen
Note – see manufacturer for current models.
• Painted high-gloss black

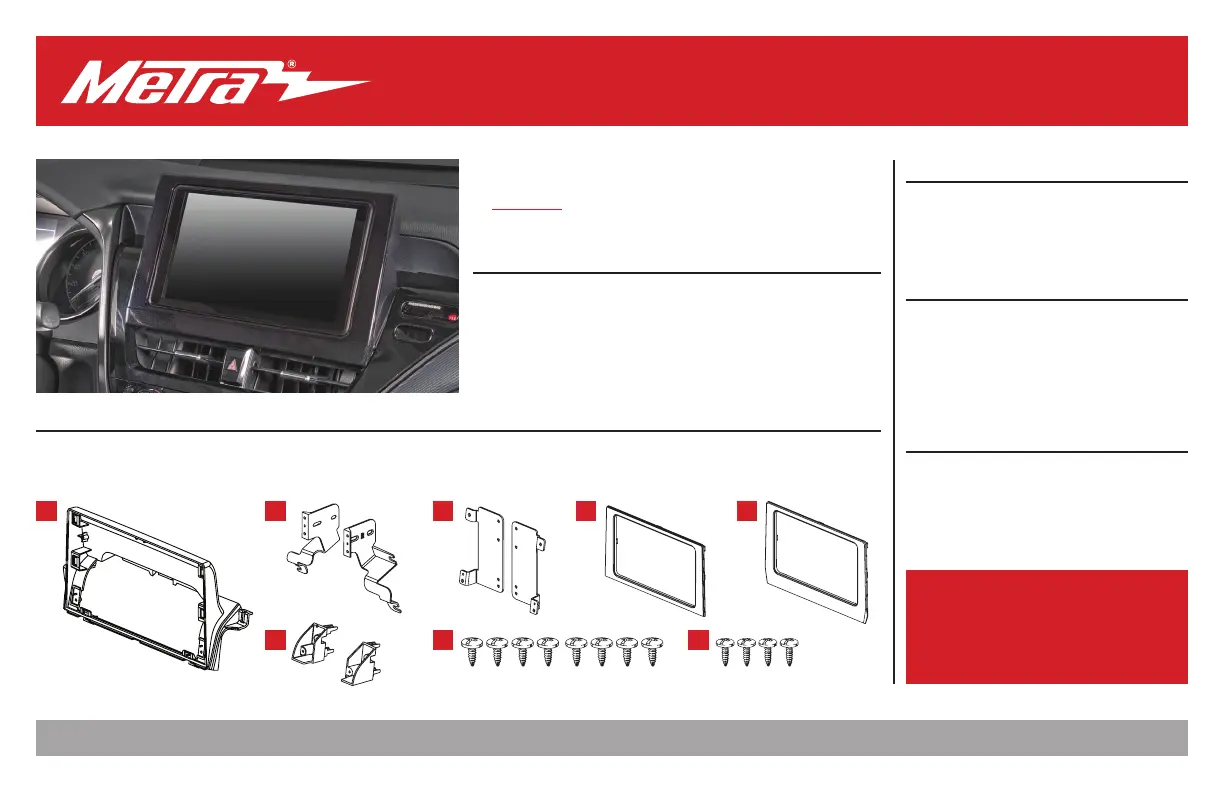

KIT COMPONENTS
• A) Radio housing back panel • B) Pioneer chassis brackets • C) Pioneer screen brackets • D) Factory 9” screen trim panel
• E) Factory 7” screen trim panel • F) Panel clip mounts • G) (8) #8 x 3/8” Phillips screws • H) (4) #4 x 3/8” Phillips screws
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench
TABLE OF CONTENTS
Dash Disassembly.............................................. 2-3
Kit Assembly ...................................................... 4-5
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness:
Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter: 40-LX11
A B
F G H
C
Toyota Camry 2021-2024
D E
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
Patent Pending
386.257.1187
|
MetraOnline.com
2

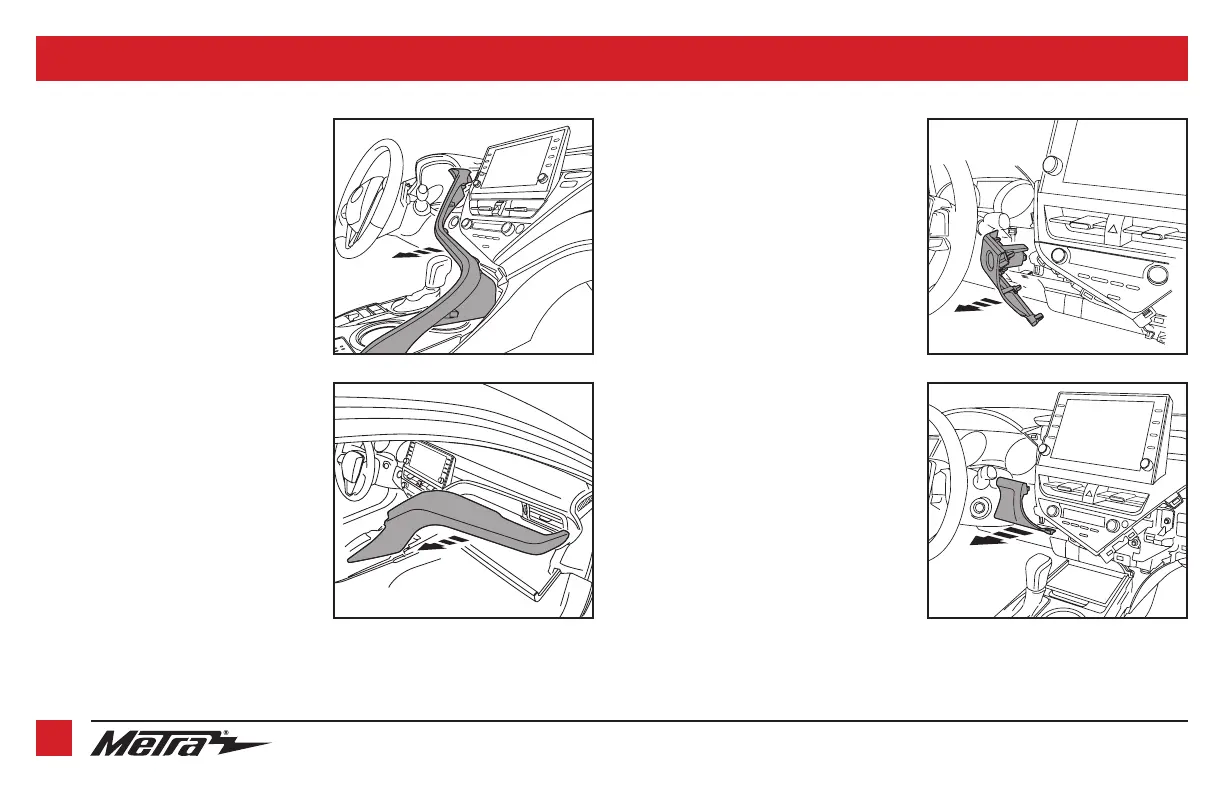

DASH DISASSEMBLY
1. Unclip and remove the dashboard
trim panel below the climate controls.
(Figure A)
2. Unclip and remove the lower dashboard
trim panel directly above the glovebox.
(Figure B)
(Figure B) (Figure D)
(Figure C) (Figure A)
2. For models with a push button start:
Unclip the Start/Stop button trim panel
and set it to the side. (Figure C)
For models without a push button start:
Unclip and remove the trim panel to the
left of the radio/climate control panel.
(Figure D)
Continued on the next page
