Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 2/15/22 INST107-KI2HG
INSTALLATION INSTRUCTIONS
107-KI2H G
Patent Pending
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• Designed specifically for Pioneer modular 6.8” radios like the
DMH-C2550NEX and DMH-C2500NEX. †
† Refer to the radio manufacturer for current models
• Both textured and painted gloss black to match the factory finish.

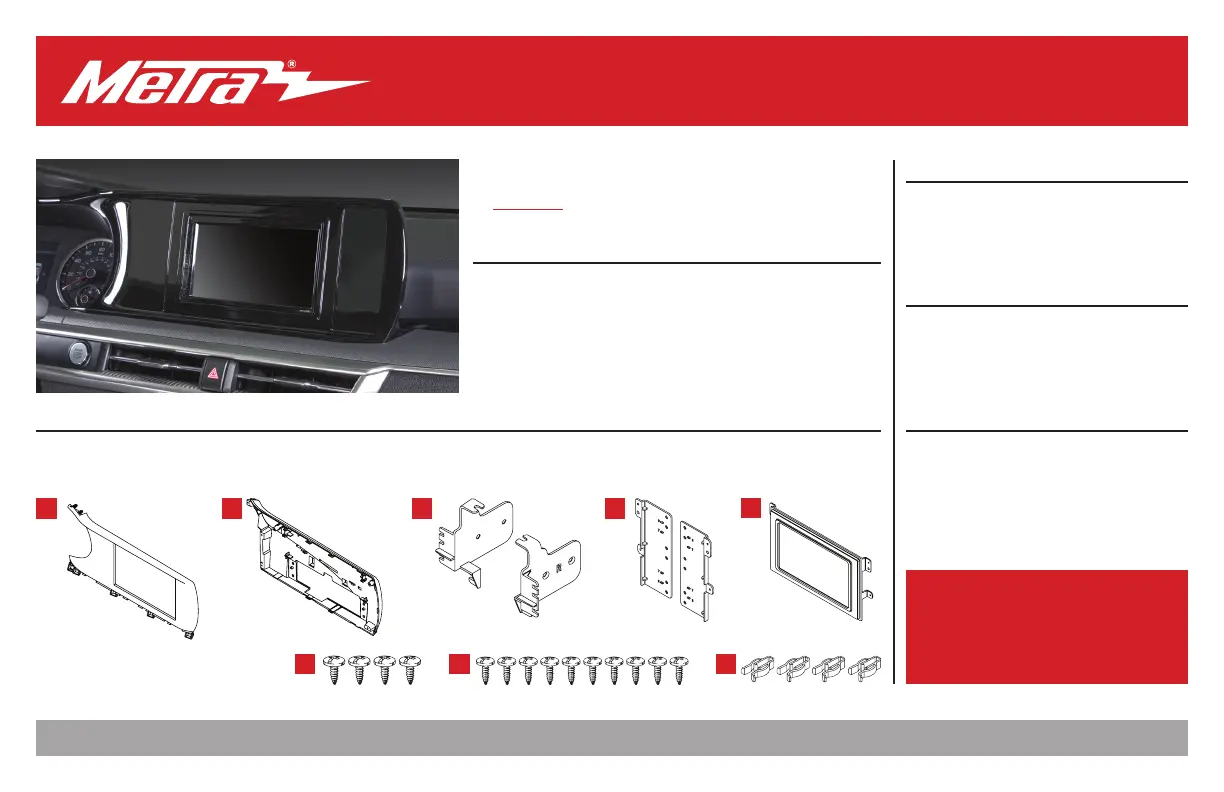

KIT COMPONENTS
• A) Front panel • B) Back panel • C) Radio chassis brackets • D) Radio display brackets • E) Display trim panel • F) #8 x 3/8” Phillips screws (4)
• G) #4 x 3/8” Phillips screws (10) • H) Panel clips (4)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly ..............................................2-4
Kit Preparation .......................................................5
Kit Assembly ...................................................... 6-7
A CB D
E
H
Kia K5 2021-Up
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness:
Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter: Not required
F G
386.257.1187
|
MetraOnline.com
2

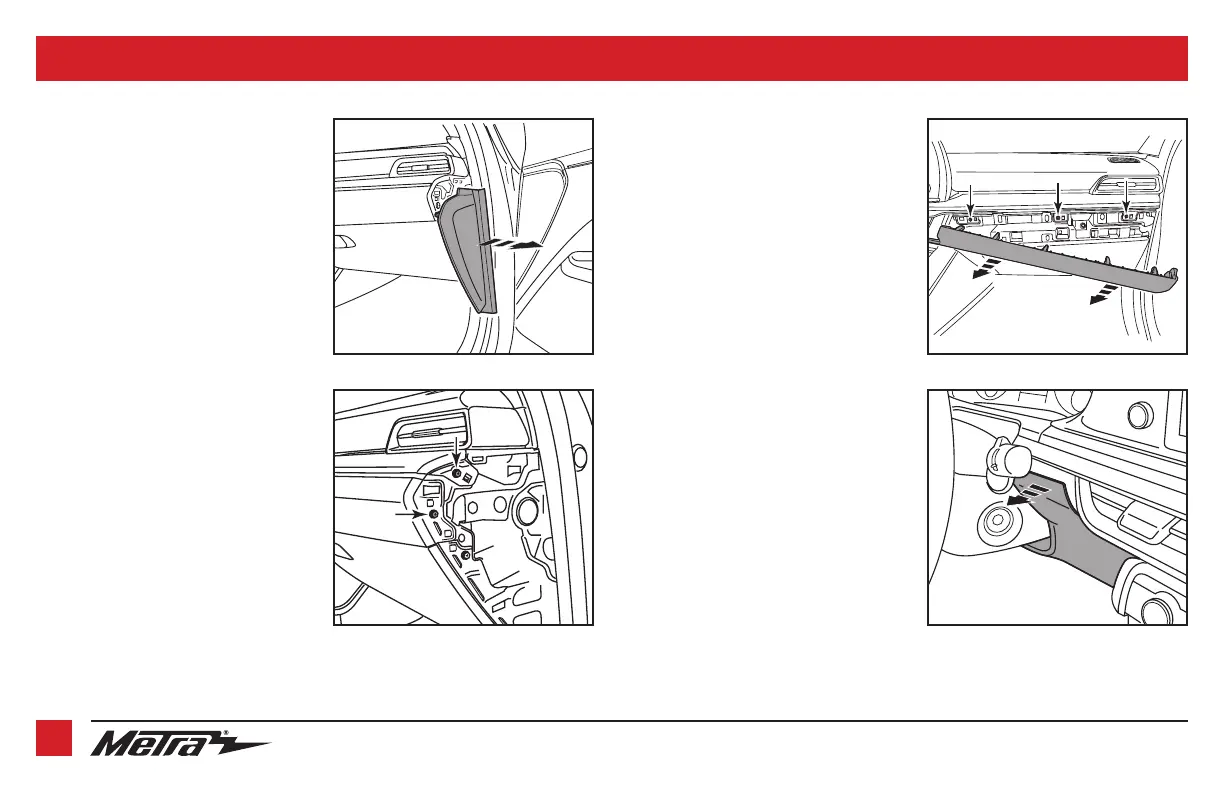

1. Unclip and remove the trim panel from
the passenger side of the dash.
(Figure A)
2. Remove (2) Phillips screws exposed
after removing side panel in step 1.
(Figure B)
DASH DISASSEMBLY
3. Unclip the trim panel above the glove
box and let hang. Note: You do not need
to remove the entire panel.
(Figure C)
4. Remove (3) Phillips screws exposed
after unclipping panel above glove box
in step 3. (Figure C)
5. For models equipped with key cylinder
start on steering column:
Unclip the right side of the trim panel to
the right of the steering column below
the instrument cluster. Note: You do not
need to remove the entire trim panel.
(Figure D)
Continued on the next page
(Figure A) (Figure C)
(Figure B) (Figure D)
