AXDIS-GM13
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 3/6/23 INSTAXDIS-GM13
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape
• Wire cutter • Zip-ties
TABLE OF CONTENTS
Connections .........................................................2-3
Installation .............................................................3
Adjusting the AXDIS-GM13.....................................3
Programming .........................................................4
Steering wheel control settings ........................5-7
- L.E.D. feedback ....................................................5
- Changing radio type ...........................................5
- Remapping ..........................................................6
- Dual assignment instructions ............................7
Troubleshooting .....................................................8
GM Data Interface with SWC 2005-2011
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Designed for amplified models
• Retains balance and fade
• Micro-B USB updatable

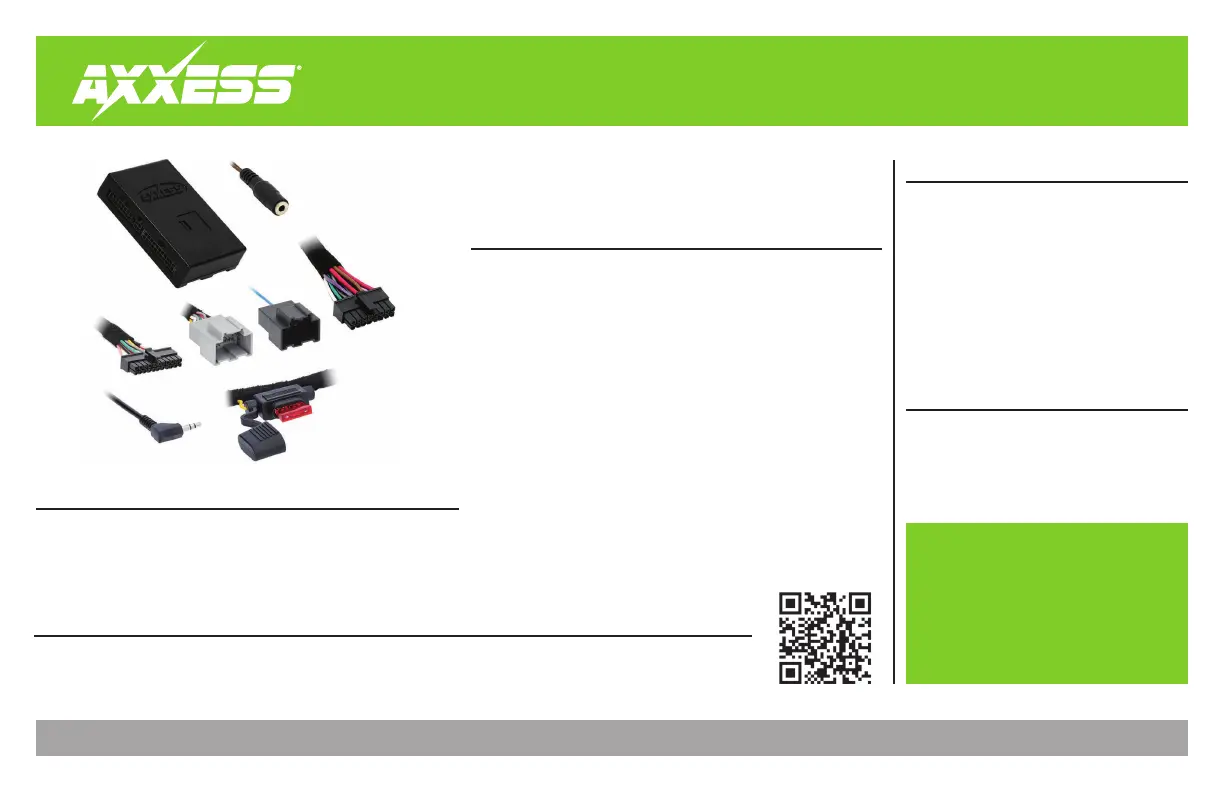

INTERFACE COMPONENTS
• AXDIS-GM13 interface
• AXDIS-GM13 harness
• 16-pin harness
• 3.5mm adapter
CADILLAC
STS ...............................................................2005-2011
APPLICATIONS
Visit AxxessInterfaces.com for up-to-date
vehicle specific applications.
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
Product Info

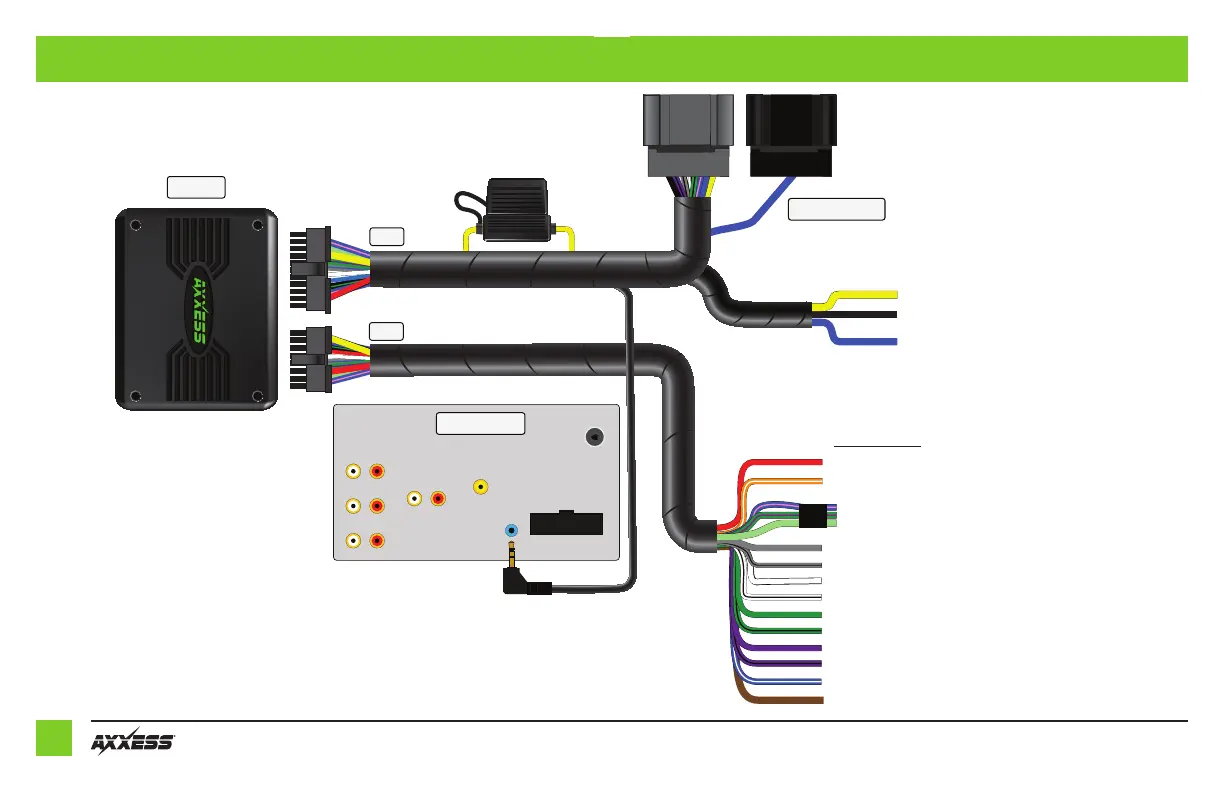

2
Front
Rear
Sub
AUX-IN
Rear View
SWC
Aftermarket Radio
Vehicle Connectors
Interface
22-Pin
16-Pin
Red - Accessory power
Orange/White - Illumination
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - (NOT USED)
Green/Black - (NOT USED)
Purple - (NOT USED)
Purple/Black - (NOT USED)
Blue/White - Amp turn on from radio
Brown - (NOT USED)
Radio Connections
Yellow wire to the battery wire
Black wire to the ground wire
Blue wire to the power antenna wire
From the AXDIS-GM13 harness to the aftermarket radio
CONNECTIONS
