Side 1/4
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
Metra. The World’s Best Kits.
®
MetraOnline.com © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 5/15/18 INST95-7526B

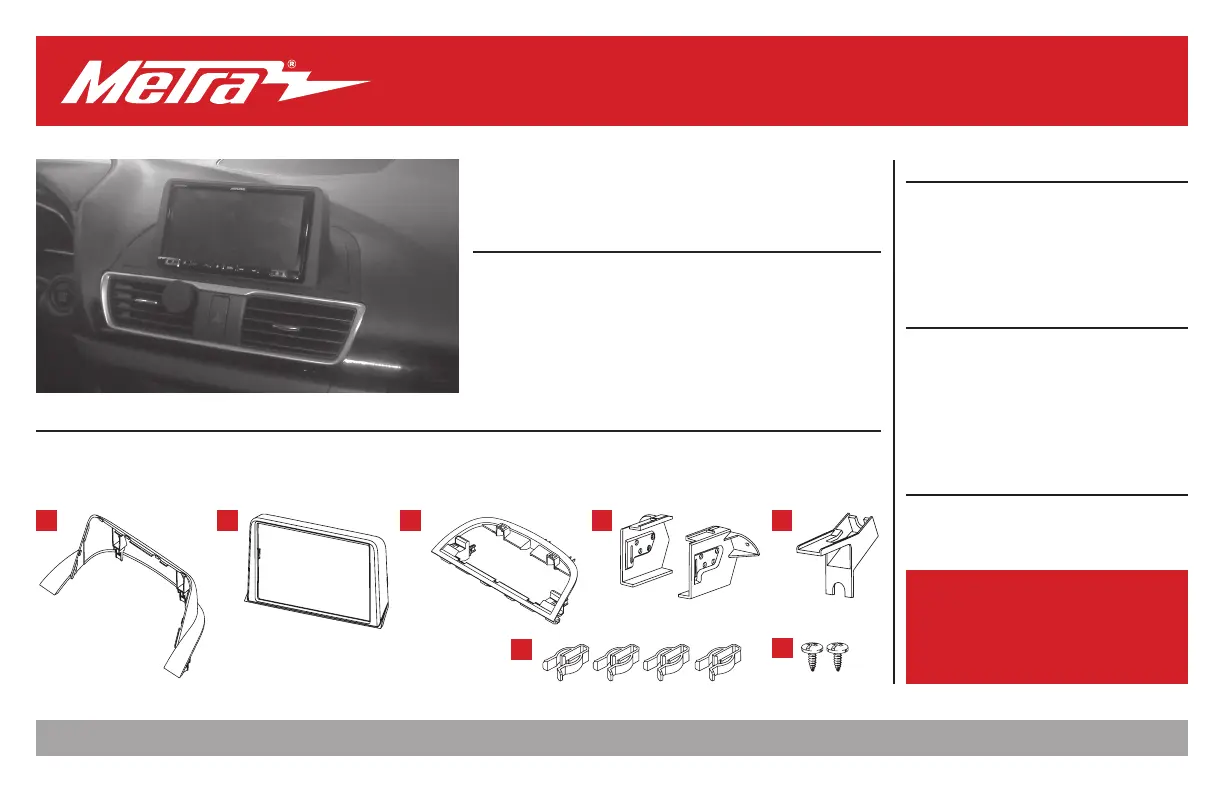

INSTALLATION INSTRUCTIONS
95-7526B
KIT FEATURES
• ISO DDIN radio provision*
• Painted matte black
*This kit can only be used with an ISO DDIN radio with an “L” shaped chassis
design, with the radio chassis at the bottom of the screen. As of this writing,
only the Alpine INE-W967HD (discontinued, replaced by INE-W977HD), iLX-107,
and iLX-207 have this design.
KIT COMPONENTS
• A) Radio trim panel (a) • B) Radio trim panel (b) • C) Radio housing base• D) Radio brackets • E) Radio support bracket • F) (4) Panel clips
• G) (2) #8 x 1/2” Phillips screws
A B C D E
Mazda 3 2014-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
G
F
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm Socket wrench • 1/8” drill bit
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-7903L (without amp)
Antenna Adapter: 40-HD10L
Steering wheel control interface: ASWC-1 & AX-
MAZ28SWC-6V (will also retain backup camera)
1.800.221.0932
|
MetraOnline.com
2
(Figure B)
(Figure A)
(Figure A)
(Figure B)
(Figure C)

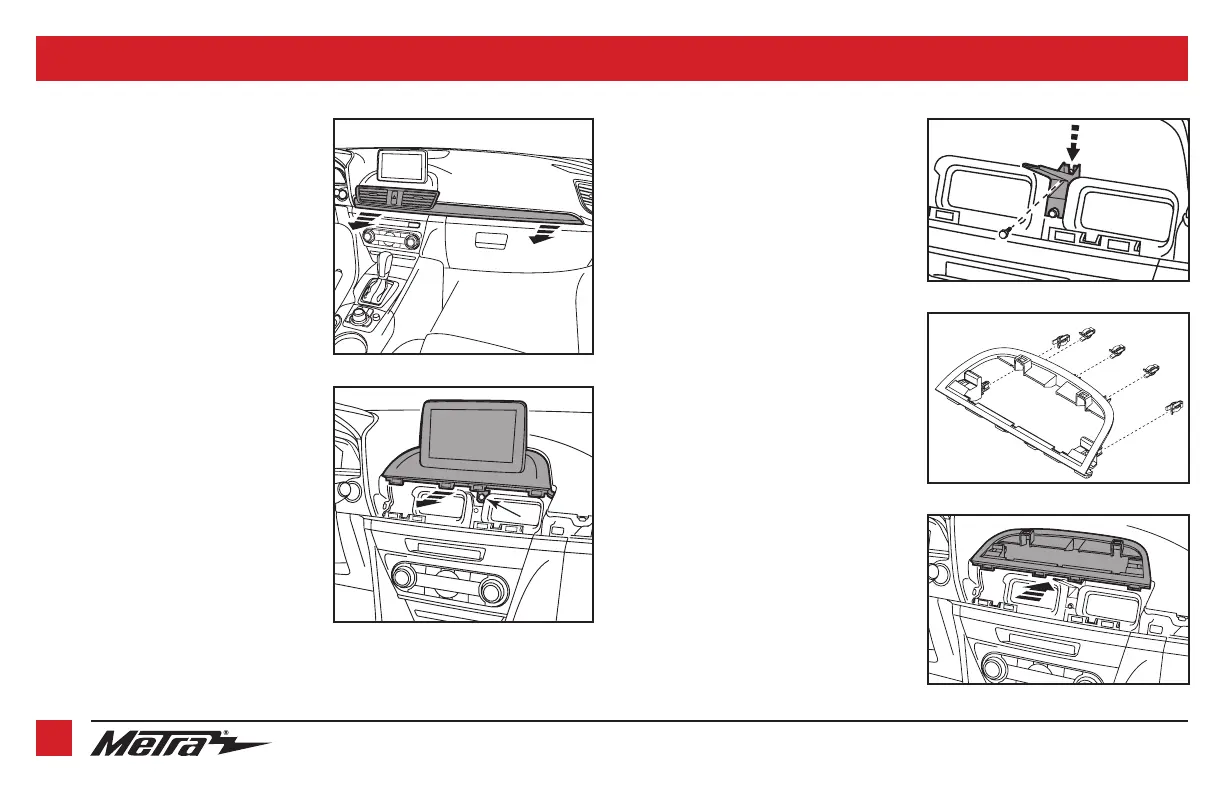

DASH DISASSEMBLY KIT PREPARATION
1. Unclip and remove the dashboard trim
panel above the glovebox. This panel
will also include the middle a/c vents.
(Figure A)
2. Remove (1) 10mm screw securing the
radio, then unclip, unplug, and remove
the radio. (Figure B)
Continue to Kit Preparation
1. Secure the
radio support bracket
to
the sub-dash using the factory 10mm
screw removed in dash disassembly.
Directly above this is the factory radio
support brace. Bend this towards the
front of the vehicle to allow room for the
aftermarket radio. (Figure A)
2. Remove the panel clips from the factory
radio, then attach them onto the
radio
housing base
. (Figure B)
3. Clip the
radio housing base
to the dash.
(Figure C)
Continue to Kit Assembly
