INSTALLATION INSTRUCTIONS FOR PART 95-8722B
APPLICATIONS
METRA. The World’s best kits.
™
metraonline.com1-800-221-0932
© COPYRIGHT 2013 METRA ELECTRONICS CORPORATION
REV. 11/6/2013 INST95-8722B
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Table of Contents
• Double DIN radio provision
• Painted matte black
• A) Radio Housing Trim Panel • B) Brackets • C) (4) #8 x 3/8” Phillips Screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-9401
Antenna Adapter: • 40-VW12
• Panel removal tool • Phillips screwdriver
• Socket Wrench • Torx driver
TOOLS REQUIRED
Mercedes-Benz:
C-Class 2001-2004
CLK55 AMG and CLK500 2003-2004, CLK 2004
G-Class 2002-2006
95-8722B
A
B C
Dash Disassembly
– Mercedes-Benz C-Class 2001-2004 .................... 2
– Mercedes-Benz CLK55 AMG, CLK500 2003-2004
– Mercedes-Benz CLK 2004 .................................... 3
– Mercedes-Benz G-Class 2002-2006 .................... 3
Kit Assembly
– Double DIN radio provision ................................... 4
95-8722B
Mercedes-Benz C-Class

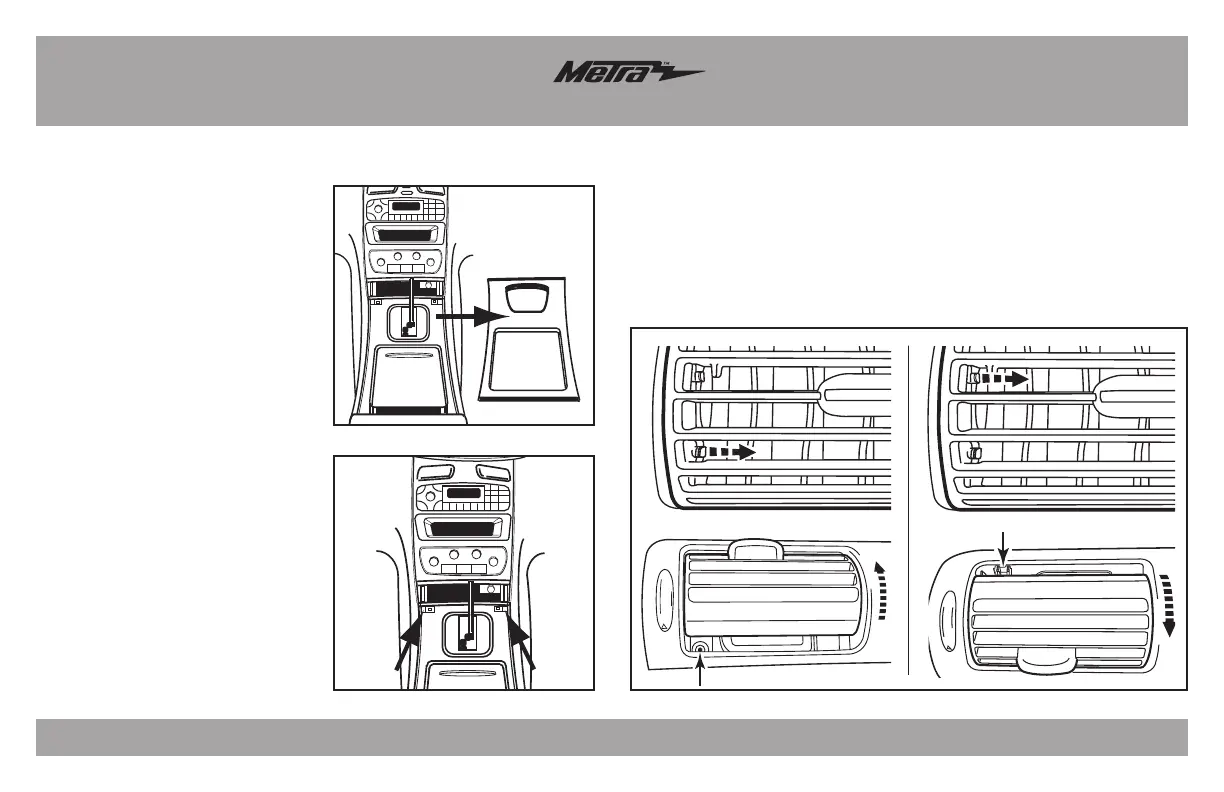

1. Unclip but do not remove shifter
trim (small piece with gear
indicators and chrome trim).
2. Unclip the center console trim
panel and twist around the smaller
shifter trim to remove. (Figure A)
3. Remove the ashtray insert by
releasing (2) plastic clips on the
bottom lip of the ashtray assembly.
(Figure B)
4. Inside each vent, using a small
flat screwdriver push the lower
tab inward toward the center of
the vent and then rotate each vent
up to expose (1) Torx head screw.
Loosen the Torx screws (It is not
necessary to remove the screws.)
Push the upper clip inward and
rotate the vent downward to
expose (1) spring clip in the top of
the vent assembly. (Figure C)
Dash Disassembly
(Figure A)
(Figure B)
2
5. Unclip the (2) metal clips at the
bottom edge of the climate control/
radio trim panel and remove
trim panel.
6. Push down on the spring clips to
remove the vent assembly. Remove
(4) Phillips screws securing factory
radio then unplug and remove
the radio.
Continue to kit assembly on back
(Figure C)
