Side 1/16
METRA. The World’s best kits.
™
metraonline.com
© COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
REV. 7/30/2015 INST99-6518B
Installation instructions for 99-6518B
Table of Contents
CAUTION!
Metra recommends disconnecting the negative bat
-
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con
-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
KIT COMPONENTS
• ISO DIN radio provision with pocket
• Painted matte black
• Note: Modifications to factory radio cavity
is required for this installation
KIT FEATURES
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • XSVI-6523-NAV • AX-LCD
Antenna Adapter: • 40-EU55
• Panel removal tool • Phillips screwdriver
• 9/32 Socket removal tool
TOOLS REQUIRED
A CB
Dash Disassembly
– Chrysler 200 LX
(with a 3.0” screen) 2015-up ..... 2
– Jeep Cherokee Sport 2014-up ......................3-4
– Ram Trucks 2013-up........................................ 5
Kit Assembly
– ISO DIN radio provision with pocket .................. 6
• A) Radio housing • B) Brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
Chrysler 200 LX (with a 3.0” screen) 2015-up
Jeep Cherokee Sport 2014-up
Ram Trucks
(without 8.4 inch touchscreen) 2013-up
99-6518B
D
99-6518B
2

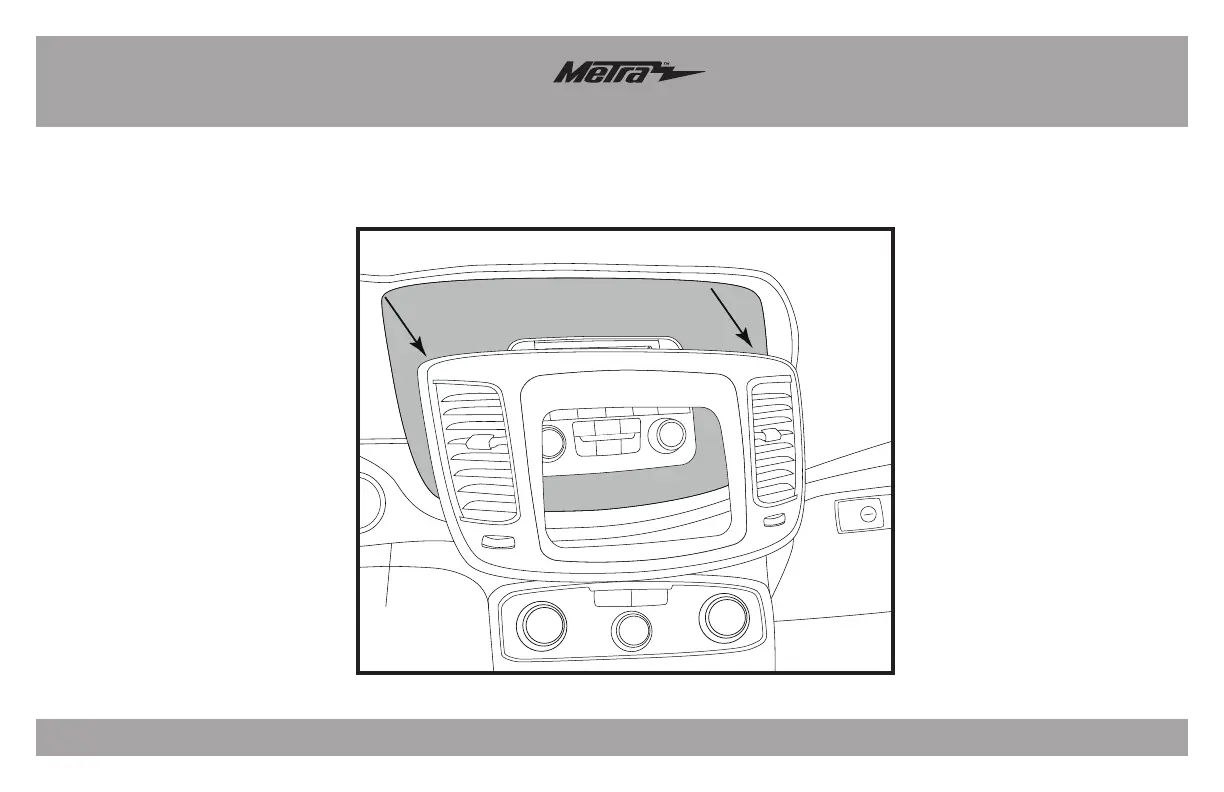

1. Unclip the radio trim bezel from the
vehicle. (Figure A)
2. Remove (4) screws securing the radio
to the dash, disconnect the connectors
attached, and then remove the radio.
Continue to kit assembly
(Figure A)
Chrysler 200 LX (with a 3.0” screen) 2015-up
Dash Disassembly
