Metra 99-8251B Bruksanvisning
Les nedenfor 📖 manual på norsk for Metra 99-8251B (4 sider) i kategorien Bilsett. Denne guiden var nyttig for 2 personer og ble vurdert med 4.6 stjerner i gjennomsnitt av 1.5 brukere
Side 1/4
APPLICATIONS
REV. 1/21/2016 INST99-8251B
INSTALLATION INSTRUCTIONS FOR PART 99-8251B
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.
METRA. The World’s best kits.
™
metraonline.com
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
• ISO DIN radio provision with pocket
• ISO DDIN radio
• Painted matte black
• A) Radio trim panel (with Entune 6.1” display) • B) Radio trim panel (with Entune 7.0” display)
• C) Radio trim panel brackets • D) Pocket • E) (8) #8 x 3/8” Phillips screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-1761 • TYTO-02 Amplified interface
Antenna Adapter: • 40-LX11
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
TOOLS REQUIRED
Toyota Tacoma 2016-up
99-8251B
A
Table of Contents
B DC E
Dash Disassembly ................................................. 2
Kit Assembly
– ISO DIN radio provision with pocket ...................... 3
– ISO DDIN radio provision ...................................... 3
99-8251B
2

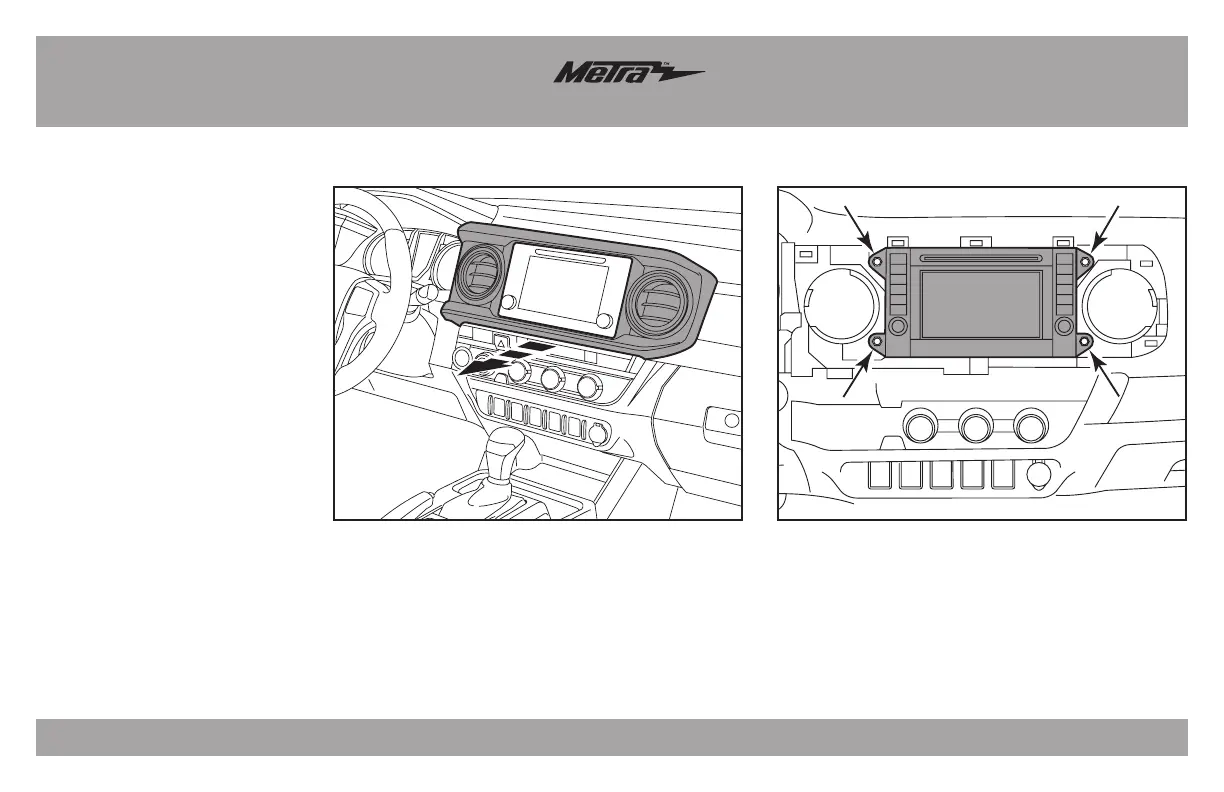

Dash Disassembly
1. Unclip and remove the panel
surrounding the radio including the
a/c vents. (Figure A)
2. Remove (4) 10mm bolts securing
the factory radio. (Figure B)
Continue to kit assembly
(Figure A) (Figure B)
Produkspesifikasjoner
| Merke: | Metra |
| Kategori: | Bilsett |
| Modell: | 99-8251B |
