Side 1/26
midea.com
USER MANUAL
en
MSmartHome
Air Conditioner
and Dehumidifier
Instructions
IMPORTANT NOTE:
Read the manual carefully before
installing or connecting your air
conditioner.
Make sure to save this manual
for future reference.
version A - 03 - 2023 (PREVIEW03)
Page 2
CONTENTS
Create your Account ......................................................................................... 3
Connect your Device ........................................................................................ 4
Bluetooth Local Control Setup ...................................................................... 8
How To Use the App ........................................................................................ 11
Special Functions ............................................................................................. 16
Third-Party Services ....................................................................................... 20
Other MSmartHome Features ...................................................................... 21
Scene Control .................................................................................................... 22
Page 3
CREATE YOUR ACCOUNT

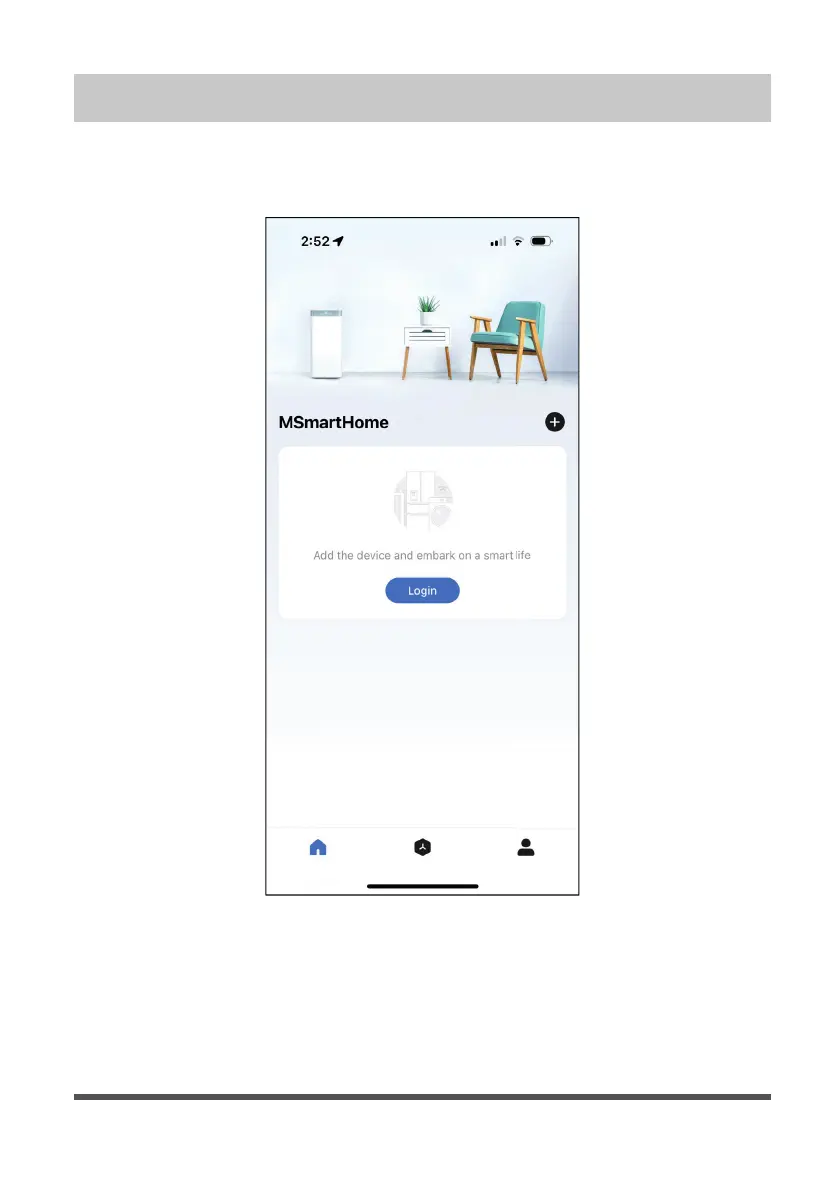

Open the MSmartHome app and follow the on-screen instructions to create a new
account, or login with your existing account.
Page 4
CONNECT YOUR DEVICE

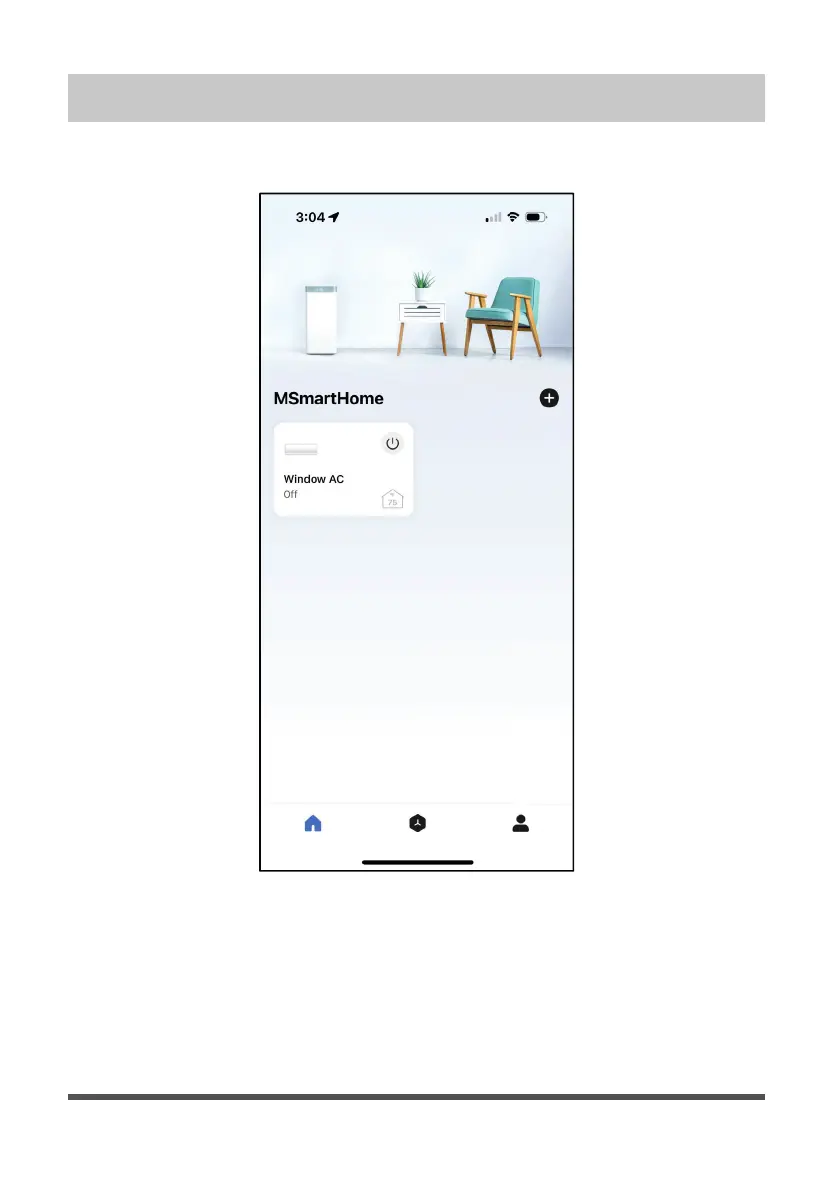

After logging in, you can add devices from the home screen. Use the “+” to add
appliances.
Page 6
CONNECT YOUR DEVICE

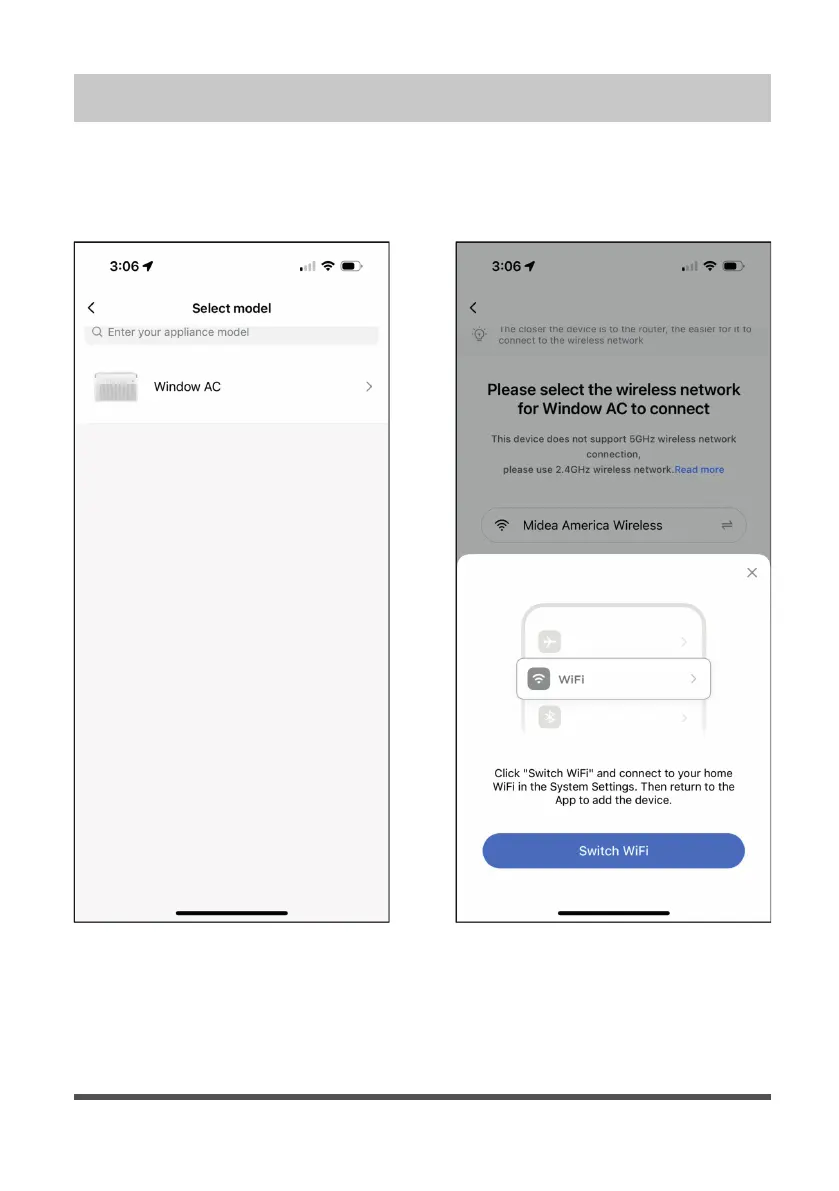

3. Select your model from the list.
4. Choose your desired wireless network and enter the password. Ensure your mobile
device is connected to the wireless network you will use for the appliance.
Page 7
CONNECT YOUR DEVICE

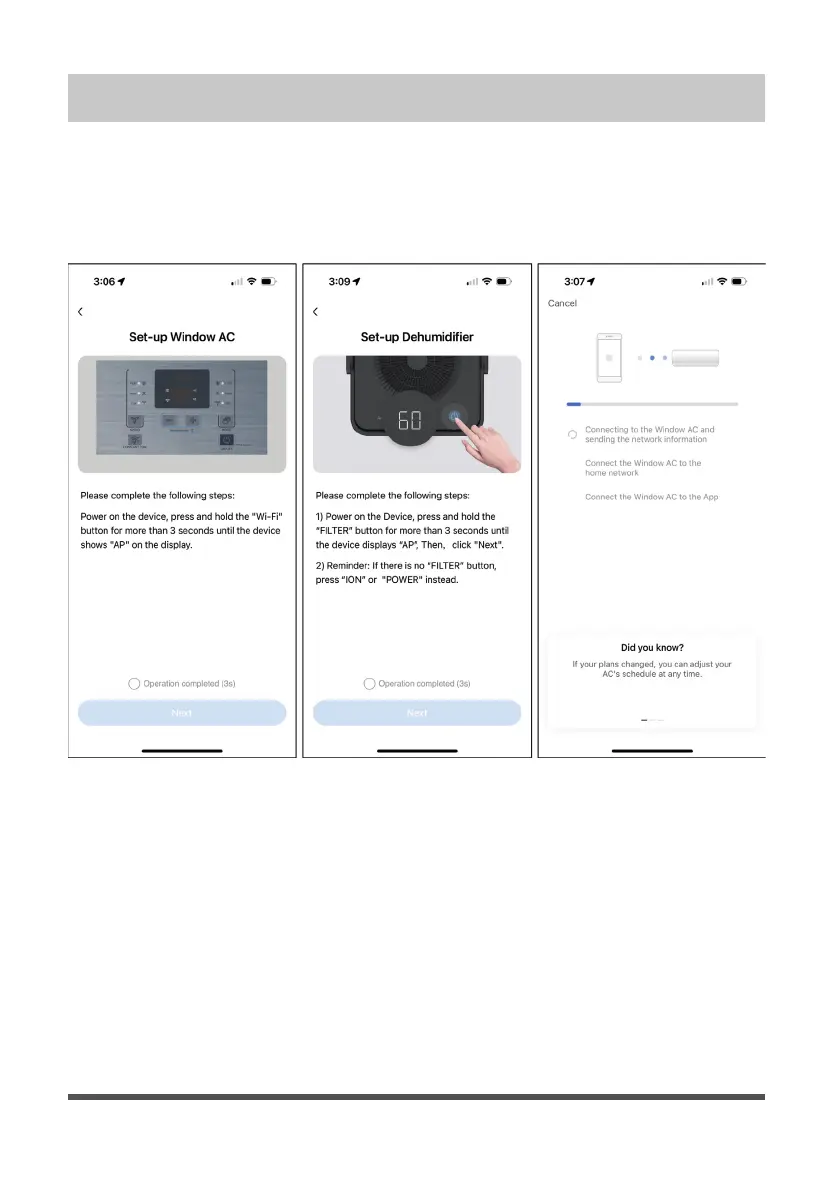

5. Follow the in-app instructions for how to set your device to “AP” or connection mode.
6. Wait for the connection steps to finish and your device is ready to use. If you
experience any issues, consult the “Help and Feedback” section under the account
tab within the app.
Page 8
BLUETOOTH LOCAL CONTROL SETUP

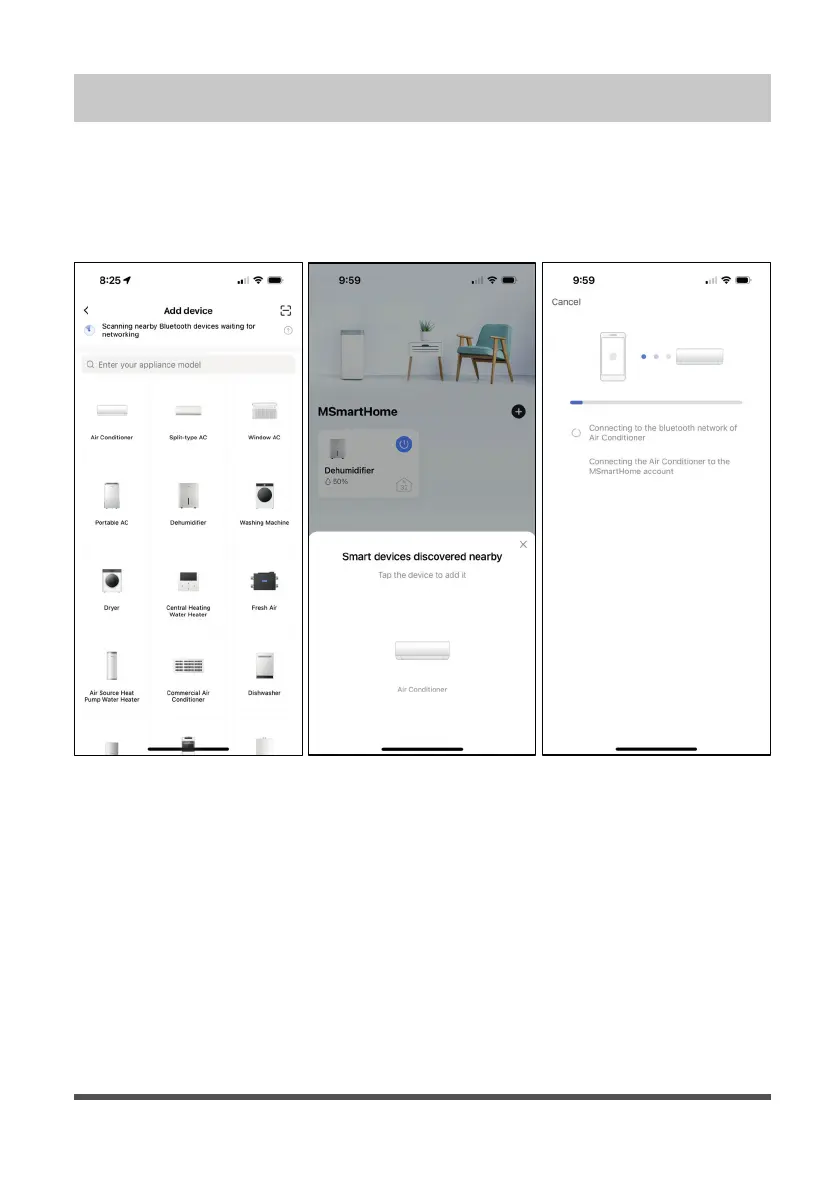

Some devices also allow local control via Bluetooth. If available for your appliance, it
will appear at the bottom of your screen when plugged in and powered on, or at the
top of the add device screen under “scanning nearby Bluetooth devices waiting for
networking”. Select your device and wait for the connection process to finish.
Page 9
BLUETOOTH LOCAL CONTROL SETUP

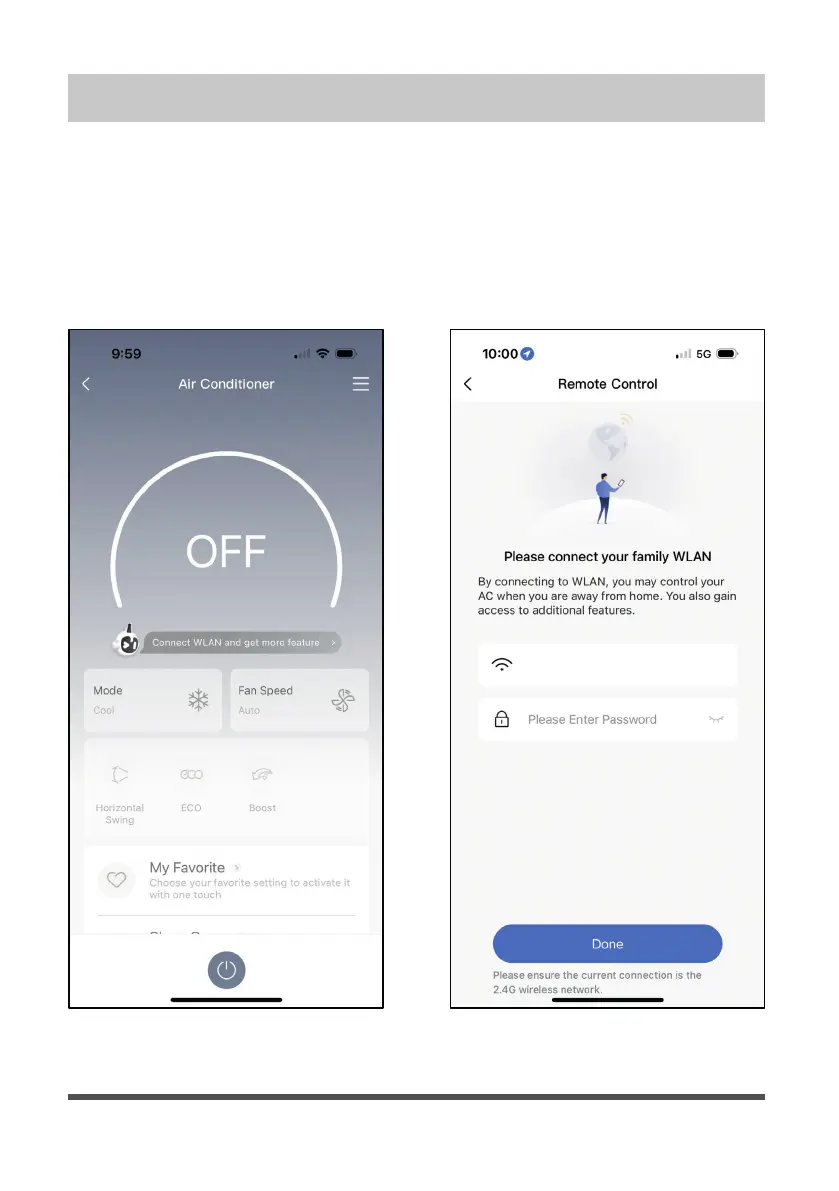

After the connection is complete, you will see the device control screen. Click on
the “Connect WLAN and get more features” bubble to add wifi connected controls
for your device. This will allow you to control the device while you are not within
Bluetooth control range.
To complete Wireless network setup, ensure your mobile device is on the desired
network. Enter the credentials and wait for the connection. Once complete, you can
control your device wirelessly even if you are not near the device.
Page 10
BLUETOOTH LOCAL CONTROL SETUP

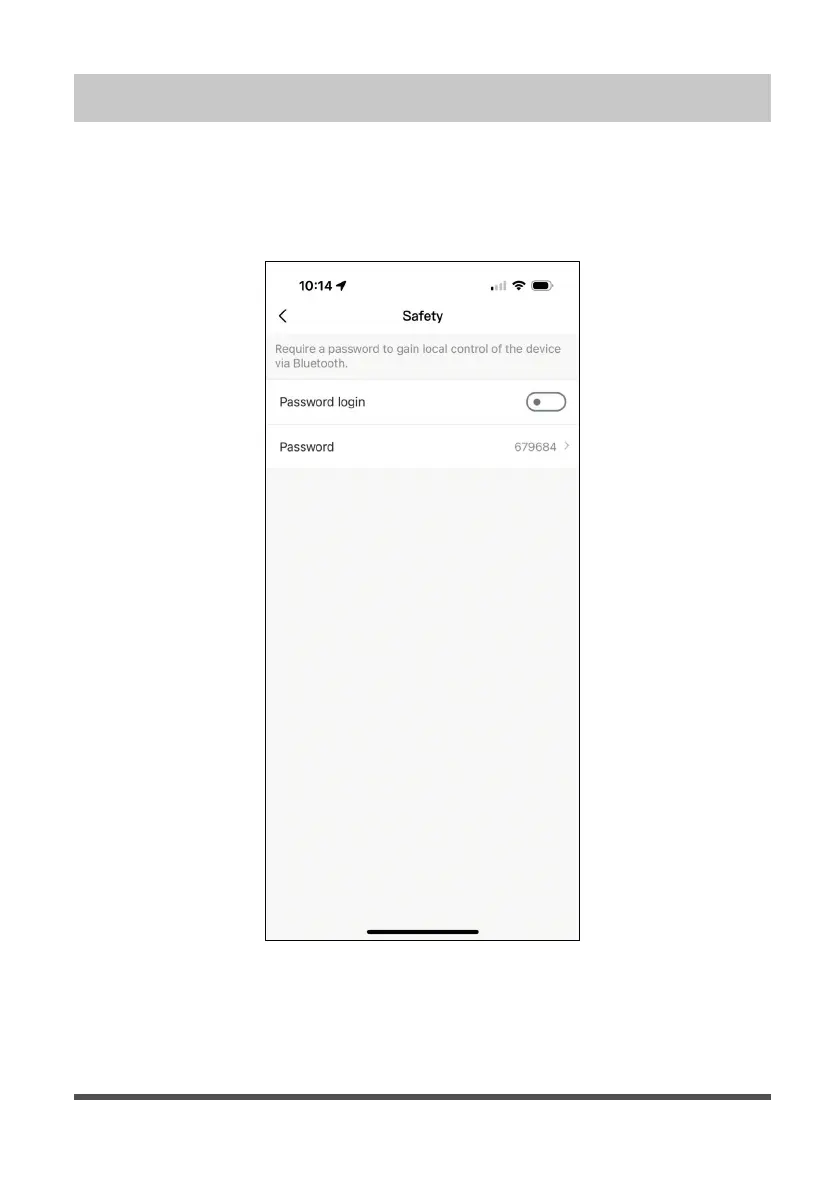

Another feature of Bluetooth local control is the ability to add a password for others
to locally control the device. This can be enabled within the device’s function menu.
Just toggle the password login switch and enter your desired password. Now the
device can be securely shared with others using the password.
Page 11
Log in and select your unit to control it from wherever you are, using your smart phone.
HOW TO USE THE APP
Page 12
Using the App
NOTICE
• Every function may not be supported by your model. Please refer to your
product’s user manual for more details.
Additional functions can be accessed if you swipe up on the bottom menu.
BACK ARROW:
Use this arrow to
take you back to the
main screen.
1
MODE: Use these buttons to switch
between modes. Modes may include:
Auto, Cool, Dry, Fan, and Heat. The
background color will also change
based on the current mode.
7
UNIT NAME:
This is the name
of the unit you are
currently controlling.
2
FAN SPEED:
Use this button to
switch between fan
speeds. Fan speeds
include: AUTO, LOW,
MEDIUM, and HIGH.
8
SLEEP CURVE:
Use this button to turn
the SLEEP CURVE
mode on and off.
11
MY FAVORITE:
Use this button to set
your favorite mode
with one touch.
9
HORIZONTAL SWING:
Use this button to
start and stop the
horizontal louver
movement.
14
ECO:
Use this button to turn
Eco Mode on and off.
10
LED:
Use this button to
turn the display on
or off.
12
SOUND:
Use this button to
turn the UI beep on
or off.
13
FUNCTION:
Use this button to
access functions such
as express run, sleep
curve, and schedule.
3
TEMPERATURE AND
MODE DISPLAY:
This display shows
what temperature
and mode the air
conditioner is set to.
4
POWER:
Use this button to turn
the unit on and off.
6
TEMPERATURES:
This display
shows the current
temperature
readings at the unit.
5
2
4
6
5
3
9
10
11
1312
1
87
Air Conditioner Display
14
