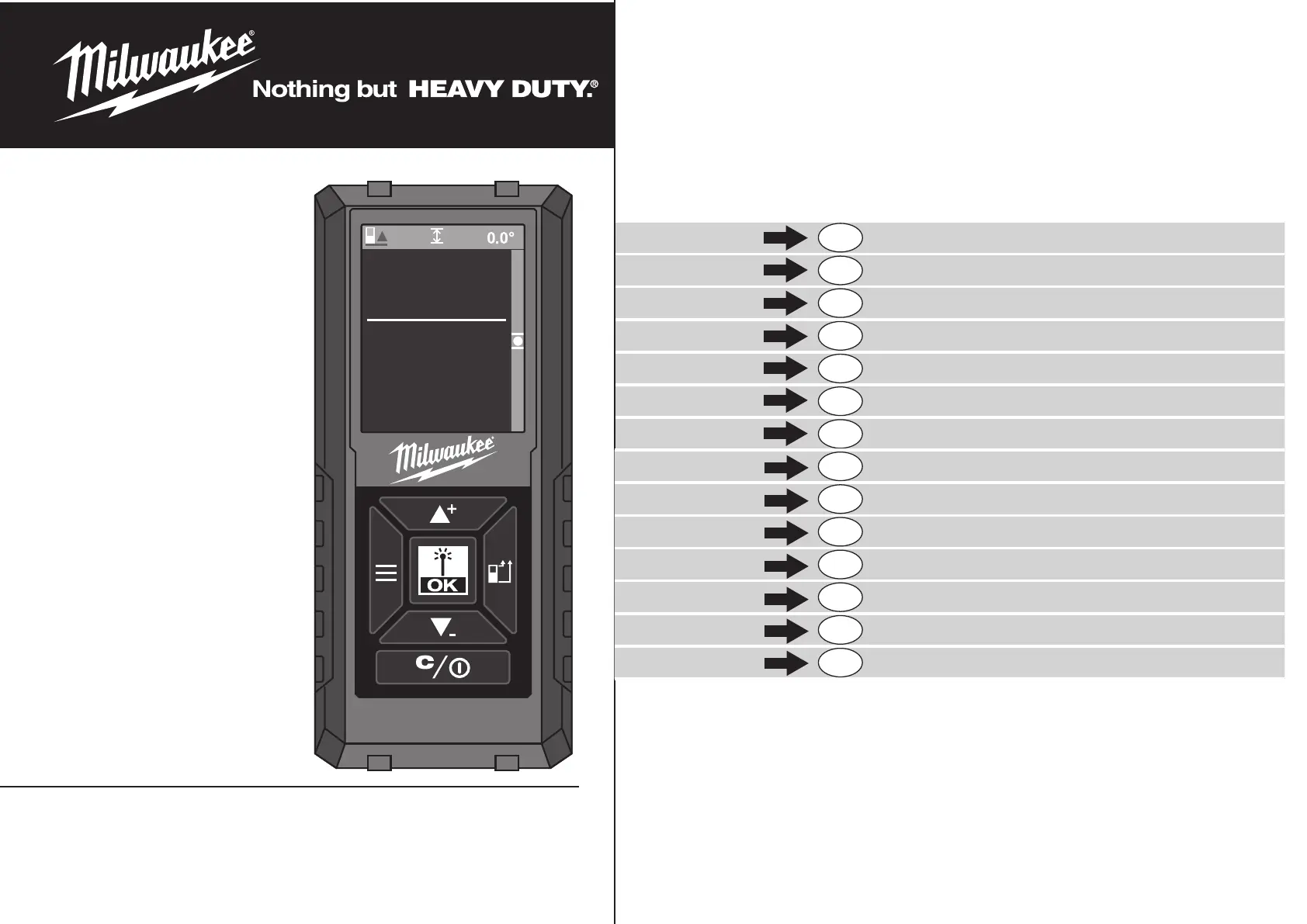

LDM 50
2.243
m
3.563
m
4.115
m
1ENGLISH
I

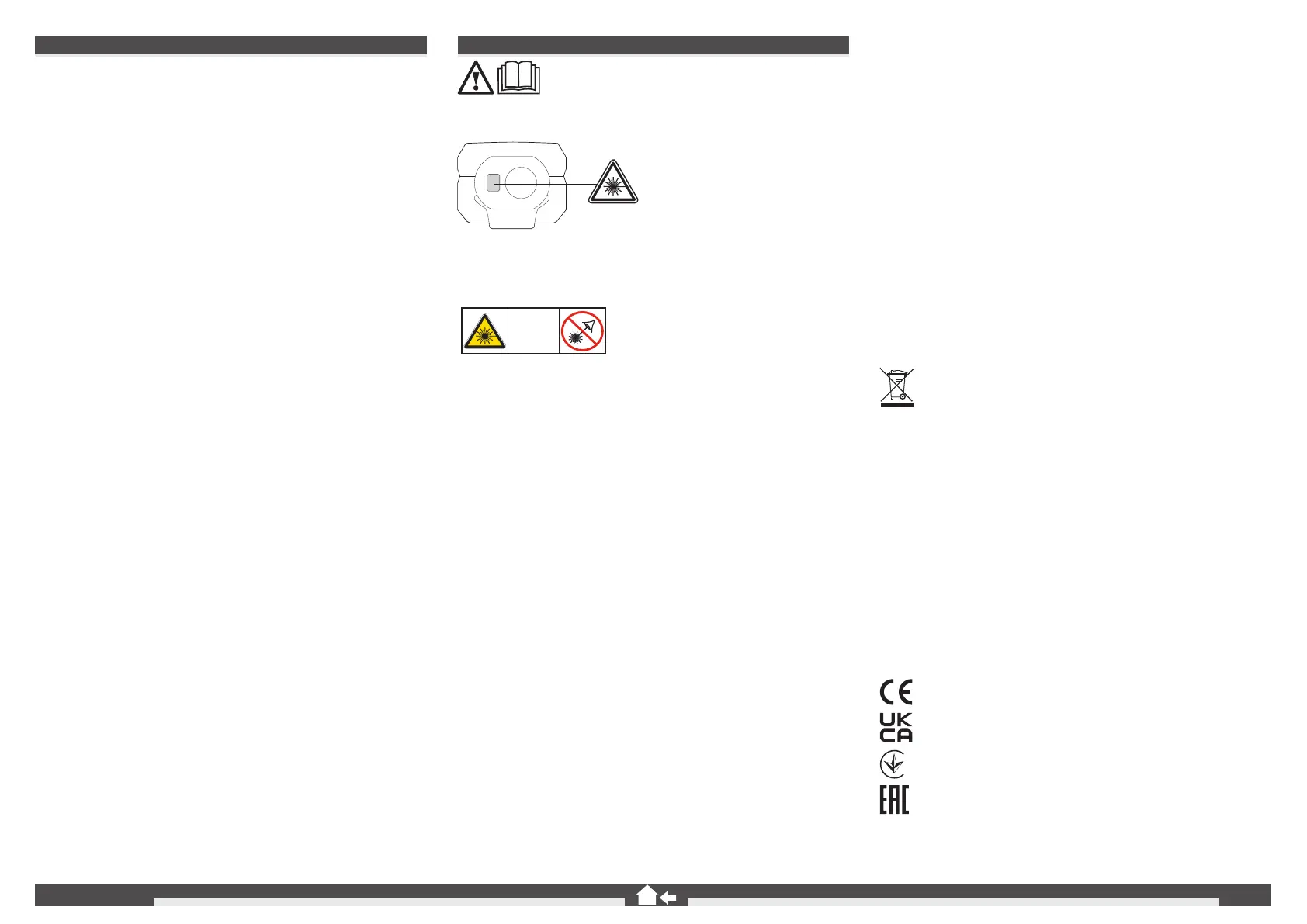

MPORTANT SAFETY INSTRUCTIONS
Do not use the product before you have studied
the Safety instructions and the User Manual.
Laser Classication
WARNING:
It is a Class 2 laser product in accordance
with EN60825-1:2014.
LASER
2
λ 650 nm P<1 mW
WARNING:
Avoid direct eye exposure. The laser beam can cause ash
blindness.
Do not stare into the laser beam or direct it towards other
people unnecessarily.
Don't dazzle other individuals.
WARNING:
Do not operate the tool around children or allow children to
operate the tool.
The reective surface could reect the beam back at the
operator or other persons.
Keep extremities in a safe distance from the moving parts.
Carry out periodic test measurements. Particularly before,
during and after important measurements.
Watch out for erroneous measurements if the product is
defective or if it has been dropped or has been misused or
modied.
WARNING: Use of controls, adjustments, or the performance
of procedures other than those specied in the manual may
result in hazardous radiation exposure.
The laser distance measurer has limits of use. (Refer to the
“Technical data” section). Attempts to measure outside the
maximum and minimum range will cause inaccuracy. Use in
adverse conditions including too hot, too cold, very bright
sunlight, rain, snow, fog, or other vision restricting conditions
will result in inaccurate readings.
When the laser distance measurer is brought into a warm
environment from very cold conditions, or vice versa, allow it to
come to the surrounding temperature before use.
Always store the laser distance measurer indoors, avoid
exposing the tool to shock, continuous vibration or extreme
temperatures.
Always keep the tool away from dust, liquids and high humidity.
These may damage internal components or aect accuracy.
Do not use aggressive cleaning agents or solutions. Use only a
clean, soft cloth for cleaning.
Avoid heavy impact to or dropping of the measuring tool. The
accuracy of the tool should be checked before use if it has
been dropped or subjected to other mechanical stresses.
Any repair required on this laser product should be performed
only by authorised service personnel.
Do not operate the product in explosion hazardous areas or in
aggressive environments.
Only use chargers recommended by the manufacturer to
charge the batteries.
Do not dispose of waste batteries, waste electrical and
electronic equipment as unsorted municipal waste.
Waste batteries and waste electrical and electronic
equipment must be collected separately.
Waste batteries, waste accumulators and light sources have to
be removed from equipment.
Check with your local authority or retailer for recycling advice
and collection point.
According to local regulations retailers may have an obligation
to take back waste batteries and Waste electrical and
electronic equipment free of charge.
Your contribution to re-use and recycling of waste batteries and
waste electrical and electronic equipment helps to reduce the
demand of raw materials.
Waste batteries, in particular containing lithium and waste
Electrical and electronic equipment contain valuable, recyclable
materials, which can adversely impact the environment and the
human health, if not disposed of in an environmentally
compatible manner.
Delete personal data from waste equipment, if any.
European Conformity Mark
British Confomity Mark
Ukraine Conformity Mark
EurAsian Conformity Mark
CONTENTS
I
mportant safety instructions ...................................................1
Specied Conditions of Use
...................................................2
Error Code Table
....................................................................2
Overview.................................................................................3
Change batteries
....................................................................4
Corner Pin
..............................................................................4
Belt Clip
..................................................................................4
Function Switch, Measuring Reference, Pythagoras..............5
Single Distance Measuring
.....................................................6
Permanent / Minimum-Maximum Measuring
..........................7
Add / Subtract Measuring
.......................................................8
Area Measuring
......................................................................9
Volume Measuring
................................................................10
Indirect Measuring (Pythagoras 1)
.......................................11
Indirect Measuring (Pythagoras 2)
.......................................12
Indirect Measuring (Pythagoras 3)
.......................................13
Wall Area Measuring (Scenario 1)
......................................14
Wall Area Measuring (Scenario 2)
......................................15
Timer
....................................................................................16
Memory
.................................................................................16
Basic Description on example of Area measuring (1)...........17
Basic Description on example of Area measuring (2)...........18
2ENGLISH
TECHNICAL DATA
Dust and Water resistance IP54
Receiving Lens 14 mm
Focus 35 mm
Maximum Measuring Range 50 meters (Tolerance : 55m)
Minimum Measuring Range 0.05 meters
Absolute Accuracy @ < 10m ± 1.5 mm (Max)
Repeatability Accuracy @ < 10m ± 1.5 mm (Max Typical, 2σ)
Repeatability Accuracy @ > 10m Increase ± 0.25 mm / meter (Max Typical, 2σ)
Measurement Time 0.5 s
Display Type LCD ( 22.7 mm x 31 mm )
Power Type AAA 2x (Alkaline Battery)
Battery Life 10000 (Single Measure)
Laser Output Power 0.6 mW ~ 0.95 mW (Class 2, 650nm )
Laser Spot Size 25 x 30 mm @ 16 m (Max)
Laser Class 2
Laser Type 650 nm, < 1 mW
Laser Radiation Vertical Angle +1 degree
Laser Radiation Horizontal Angle ±1 degree
Device auto o time 180 seconds
Laser auto o time 30 seconds
Operating Temperature Range -10°C to +50°C
Storage Temperature Range -25°C to +70°C
Weight without Battery 80 g
SPECIFIED CONDITIONS OF USE
The laser distance measurer can be used for measuring distances and tilts.
Do not use this product in any other way as stated for normal use.
ERROR CODE TABLE
Code Description Solution
Err01 Out of measuring range Measure in a proper range
Err02 Reect signal is too weak Choose a better surface
Err03 Out of display range (max value:
99.999) e.g. result of area or volume
is out of display range
Check and verify values and steps
are correct
Err04 Pythagorean calculation error Check and verify values and steps
are correct
Err05 Battery is low Install new batteries
Err06 Out of working temperature Measure in an environment with the
specied working temperature
Err07 Ambient light is too strong Measure in a darker place (shadow
target)
