Cat. No. / No de cat.

2323-20, 2324-20

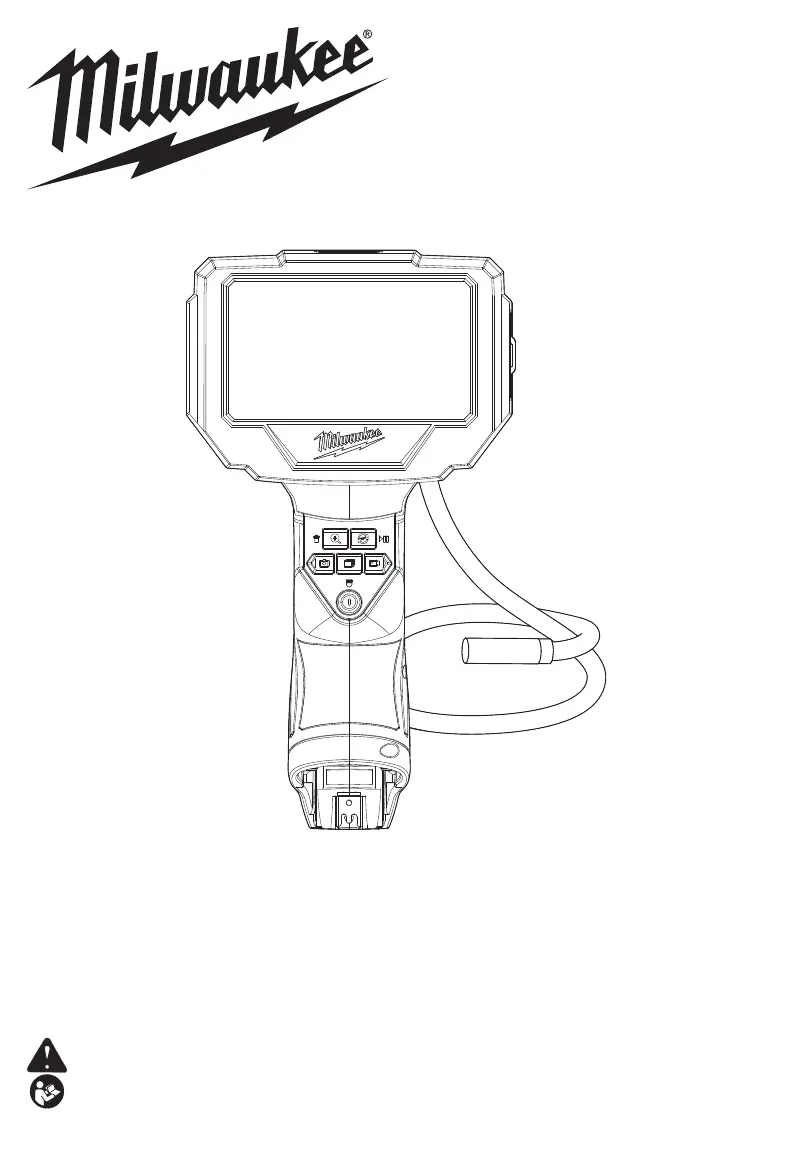

M12™ M-SPECTOR™ 360 INSPECTION CAMERA

CAMÉRA D’INSPECTION M12™ M-SPECTOR™ 360

CÁMARA DE INSPECCIÓN M12™ M-SPECTOR™ 360

OPERATOR'S MANUAL

MANUEL de L'UTILISATEUR

MANUAL del OPERADOR

WARNING To reduce the risk of injury, user must read and understand operator's manual.

AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien

comprendre le manuel.

ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.

GENERAL POWER TOOL

SAFETY WARNINGS

WARNING

Read all safety warnings and all

instructions, illustrations and

specications provided with this power tool.

Failure to follow all instructions listed below may

result in electric shock, re and/or serious injury.

Save all warnings and instructions for future

reference. The term "power tool" in the warnings

refers to your mains-operated (corded) power tool or

battery-operated (cordless) power tool.

WORK AREA SAFETY

• Keep work area clean and well lit. Cluttered or

dark areas invite accidents.

• Do not operate power tools in explosive atmo-

spheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks

which may ignite the dust or fumes.

• Do not operate power tool in an area where it

could contact electrical wiring or an electrically

charged object. Contact with a "live" wire or

object will make exposed metal parts of the tool

"live" and shock the operator.

• Do not operate power tool near moving ma-

chinery. The cable can be tangled in moving parts,

pulling in the power tool and your hands and arms.

• Do not use near any heat sources such as ra-

diators, heat registers, stoves, or other apparatus

(including ampliers) that produce heat.

• Keep children and bystanders away while oper-

ating a power tool. Distractions can cause you to

lose control.

ELECTRICAL SAFETY

• Do not expose power tools to rain or wet condi-

tions. Water entering a power tool will increase the risk

of electric shock. Dry hands before turning tool on or

o󰀨 and before removing or installing the battery pack.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use

common sense when operating a power tool. Do

not use a power tool while you are tired or under

the inuence of drugs, alcohol or medication. A

moment of inattention while operating power tools

may result in serious personal injury.

• Use personal protective equipment. Always

wear eye protection. Protective equipment such

as dust mask, non-skid safety shoes, hard hat, or

hearing protection used for appropriate conditions

will reduce personal injuries.

• Do not overreach. Keep proper footing and bal-

ance at all times. This enables better control of the

power tool in unexpected situations.

POWER TOOL USE AND CARE

• This Inspection Scope is not intended for medi-

cal use or personal inspection.

• Store idle power tools out of the reach of chil-

dren and do not allow persons unfamiliar with

the power tool or these instructions to operate

the power tool. Power tools are dangerous in the

hands of untrained users.

• Maintain power tools. Check for misalignment or

binding of moving parts, breakage of parts and

any other condition that may a󰀨ect the power

tool operation. Do not use if power tool smokes

or gives o󰀨 fumes. If damaged, have the power

tool repaired before use. Many accidents are

caused by poorly maintained power tools.

• Use the power tool, accessories and tool bits

etc., in accordance with these instructions,

taking into account the working conditions and

the work to be performed. Use of the power tool

for operations di󰀨erent from those intended could

result in a hazardous situation. Only use accessories

specically recommended for this tool. Others may

be hazardous.

• Clean only with dry cloth. Certain cleaning agents

and solvents are harmful to plastics and other

insulated parts. Some of these include: gasoline,

turpentine, lacquer thinner, paint thinner, chlorinated

cleaning solvents, ammonia and household deter-

gents containing ammonia. Clean dust and debris

from vents. Keep the apparatus handle clean, dry

and free of oil or grease.

BATTERY USE AND CARE

• Always remove the battery pack before cleaning.

• This tool is designed to be powered by a 12 volt

MILWAUKEE battery pack. Do not attempt to use

with any other voltage or power supply.

• Recharge only with the charger specied by the

manufacturer. A charger that is suitable for one type

of battery pack may create a risk of re when used

with another battery pack.

• Use power tools only with specically designated

battery packs. Use of any other battery packs may

create a risk of injury and re.

• When battery pack is not in use, keep it away

from other metal objects like paper clips, coins,

keys, nails, screws, or other small metal objects

that can make a connection from one terminal

to another. Shorting the battery terminals together

may cause burns or a re.

• Under abusive conditions, liquid may be ejected

from the battery, avoid contact. If contact ac-

cidentally occurs, flush with water. If liquid

contacts eyes, additionally seek medical help.

Liquid ejected from the battery may cause irritation

or burns.

SERVICE

• Contact a MILWAUKEE service facility for ALL

repairs. Have your power tool serviced by a

qualied repair person using only identical re-

placement parts. This will ensure that the safety

of the power tool is maintained.

• Never disassemble the power tool or try to do any

rewiring on the power tool’s electrical system.

SPECIFIC SAFETY RULES FOR

INSPECTION CAMERA

• Do not store the tool in an area of high heat or

humidity. Do not expose the tool to extended

high heat from the sun (such as on a vehicle

dashboard.) Damage to the product or the battery

pack can result.

• Maintain labels and nameplates. These carry

important information. If unreadable or missing,

contact a MILWAUKEE service facility for a free

replacement.

Federal Communications Commission

WARNING

Changes or modications to

this unit not expressly ap-

proved by the party responsible for compliance could

void the user's authority to operate the equipment.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful in-

terference in a residential installation. This equipment

generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance

with the instructions, may cause harmful interference

to radio communications.

However, there is no guarantee that interference will

not occur in a particular installation. If this equipment

does cause harmful interference to radio or televi-

sion reception, which can be determined by turning

the equipment o󰀨 and on, the user is encouraged to

try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Consult the dealer or an experienced radio/TV

technician for help.

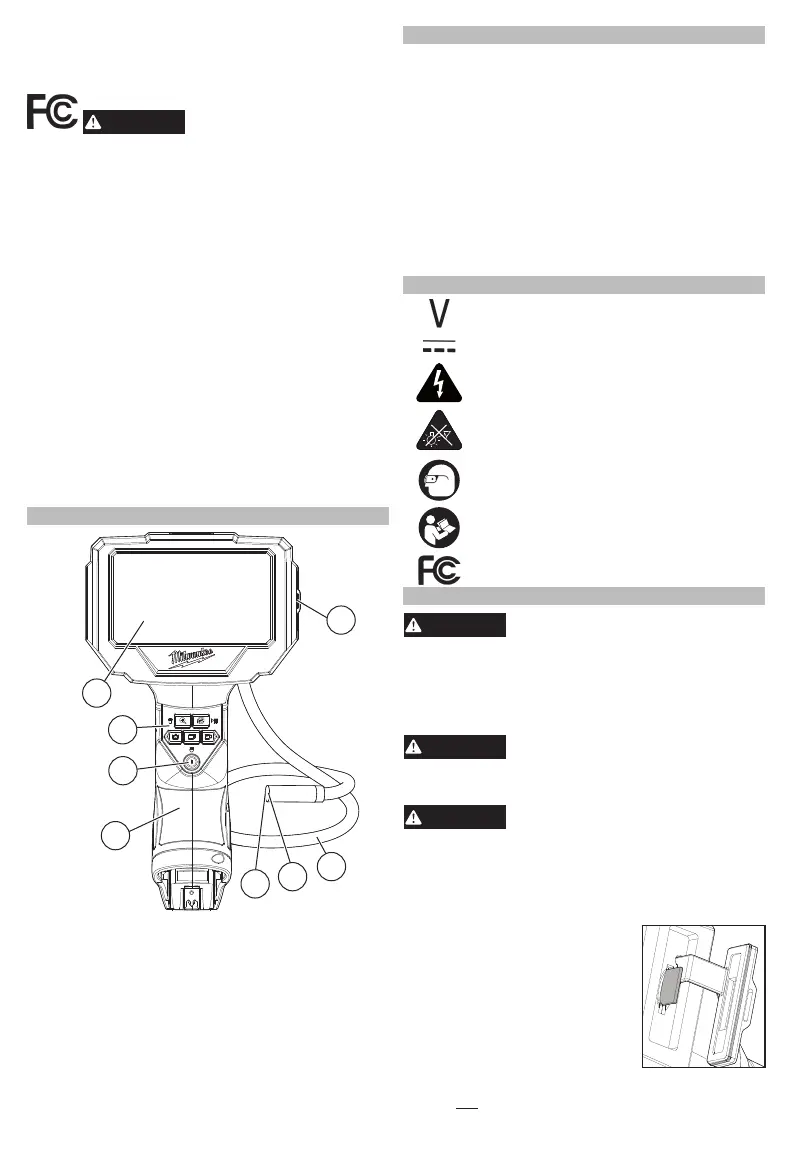

FUNCTIONAL DESCRIPTION

1. LCD

2. Zoom/Rotate Capture/Playback buttons

3. Power button/camera LED brightness selector

4. Handle

5. Camera LEDs

6. Camera

7. Cable

8. Memory card slot

SPECIFICATIONS

Cat. No. ...................................... 2323-20, 2324-20

Volts.............................................................. 12 DC

Battery Type .................................................M12™

Charger Type................................................M12™

Cable Length ....................................... 4' (2323-20)

10' (2324-20)

Memory Card .............................................microSD

Display Size ...................................................... 4.3"

Camera Resolution .........................................720 p

Camera Head Diameter................................10 mm

Digital Image Rotation ..................................... 180º

Drop Rating .......................................................1 m

Storage Temperature

..........................-4°F to 140°F

Operating Temperature

......................14°F to 104°F

SYMBOLOGY

Volts

Direct Current

To prevent electric shock, do not allow

product to contact live electrical parts

Do not stare at the operating light

source

Wear eye protection

Read Operator's Manual

Federal Communications Commission

ASSEMBLY

WARNING

Recharge only with the charger

specied for the battery. For spe-

cic charging instructions, read the operator’s

manual supplied with your charger and battery.

Removing/Inserting the Battery

To remove the battery, push in the release buttons

and pull the battery pack away from the tool.

WARNING

Always remove the battery pack

any time the tool is not in use.

To insert the battery, slide the pack into the body

of the tool. Make sure it latches securely into place.

WARNING

Only use accessories specically

recommended for this tool. Others

may be hazardous.

Inserting/Removing the Memory Card

The number of photos/videos that can be saved is

based on the size of the memory card.

1. Open the protective cover to access the memory

card slot.

2. Slide the memory card into the

slot, the top of the card should

face away from the LCD screen.

Press in the card securely. It

should click in place.

3. Close the protective cover.

4. To remove the memory card,

press it in and release. It will

pop out.

NOTE: To save photos/videos to the memory card,

it must not be "locked" with the write-protection tab

in the lower position.

Produkspesifikasjoner

Merke:	Milwaukee
Kategori:	Ikke kategorisert
Modell:	M12 2323-21

Trenger du hjelp?

Hvis du trenger hjelp med Milwaukee M12 2323-21 still et spørsmål nedenfor, og andre brukere vil svare deg

Ditt navn*

Din e-post*

Skriv spørsmålet ditt her

Ikke kategorisert Milwaukee Manualer

Milwaukee M12 2323-21 Bruksanvisning

14 August 2025

Milwaukee M18 HAMMERVAC 2712-DE Bruksanvisning

14 August 2025

Milwaukee M12 Fuel 2519-21 Bruksanvisning

14 August 2025

Milwaukee M12 2571-20 Bruksanvisning

14 August 2025

Milwaukee M12 2456-20 Bruksanvisning

14 August 2025

Milwaukee 6101 Bruksanvisning

14 August 2025

Milwaukee M12 2471-20 Bruksanvisning

14 August 2025

Milwaukee M12 2579-20 Bruksanvisning

14 August 2025

Milwaukee M12 3150-20 Bruksanvisning

13 August 2025

Milwaukee M12 2525-20 Bruksanvisning

13 August 2025

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer

Danby 461.992 Bruksanvisning

14 August 2025

Crestron CLTI-2DIMU8 Bruksanvisning

14 August 2025

Krups Ovomat Super F23070 Bruksanvisning

14 August 2025

Advantech IDK-1110R-23SVA1E Bruksanvisning

14 August 2025

Danby DPG37G Bruksanvisning

14 August 2025

Danby DAS120GAHWDB Bruksanvisning

14 August 2025

Krups Precision Timer KM611T Bruksanvisning

14 August 2025

Moulinex Maestro IM3166 Bruksanvisning

14 August 2025

Advantech LEO-S572-TP Bruksanvisning

14 August 2025

Danby DBC121A1BLP Bruksanvisning

14 August 2025
