Side 1/11
Cat. No. / No de cat.
2903-20, 2904-20
M18 FUEL™ 1/2" DRILL/DRIVER AND HAMMER DRILL/DRIVER
PERCEUSE-VISSEUSE ET PERCEUSE À PERCUSSION DE
M18 FUEL™ 13 mm (1/2")
TALADRO DESTORNILLADOR Y TALADRO DE PERCUSIÓN
DE 13 mm (1/2") M18 FUEL™
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
2
3
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings, instruc-
tions, illustrations and specica-
tions provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, re and/or serious injury. Save all
warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
• If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of an GFCI reduces
the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch
is in the o-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewelry. Keep your hair and clothing away from
moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which
it was designed.
• Do not use the power tool if the switch does not
turn it on and o. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
• Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
• Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may aect the power tool’s operation. If damaged,
have the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations dierent from those intended could
result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
• Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
• When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals together
may cause burns or a re.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact ac-
cidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
• Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 265°F (130°C) may cause explosion.
• Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied
range may damage the battery and increase the risk
of re.
SERVICE
• Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SPECIFIC SAFETY RULES FOR
DRILL / DRIVERS
Safety instructions for all operations
•Wear ear protectors when impact drilling.
Exposure to noise can cause hearing loss.
•Use the auxiliary handle(s). Loss of control can
cause personal injury.
•Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory or fasteners may contact
hidden wiring. Cutting accessory or fasteners
contacting a “live” wire may make exposed metal
parts of the power tool “live” and could give the
operator an electric shock.
Safety instructions when using long drill bits
•Never operate at higher speed than the maximum
speed rating of the drill bit. At higher speeds, the
bit is likely to bend if allowed to rotate freely without
contacting the workpiece, resulting in personal injury.
• Always start drilling at low speed and with the
bit tip in contact with the workpiece. At higher
speeds, the bit is likely to bend if allowed to rotate
freely without contacting the workpiece, resulting in
personal injury.
• Apply pressure only in direct line with the bit
and do not apply excessive pressure. Bits can
bend causing breakage or loss of control, resulting
in personal injury.
•
WARNING
To reduce the risk of injury, when
working in dusty situations, wear
appropriate respiratory protection or use an
OSHA compliant dust extraction solution.
• Always use common sense and be cautious when
using tools. It is not possible to anticipate every
situation that could result in a dangerous outcome.
Do not use this tool if you do not understand these
operating instructions or you feel the work is beyond
your capability; contact Milwaukee Tool or a trained
professional for additional information or training.
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
•
WARNING
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive
harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated
lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
lter out microscopic particles.
SYMBOLOGY
Volts
Direct Current
No Load Revolutions per Minute (RPM)
Blows per Minute Under Load (BPM)
C
US
UL Listing for Canada and U.S.
SPECIFICATIONS
Volts.............................................................. 18 DC
Battery Type .................................................M18™
Charger Type................................................M18™
Recommended Ambient
Operating Temperature ......................0°F to 125°F
Cat. No. ..................................................... 2903-20
No Load RPM ........... Low 0 - 500 High 0 - 2100
Peak Torque ..........................................1400 in-lbs
Steel ................................................................. 1/2"
Wood Flat Bit ..............................................1-1/2"
Auger Bit ........................................... 1-1/2"
Hole Saw .......................................... 3-1/2"
Screws (dia.)........................................ 5/8"
Self Feed Bits ................................. 2-9/16"
Cat. No. ..................................................... 2904-20
No Load RPM ........... Low 0 - 500 High 0 - 2100
BPM ................................................High 0 - 33,000
Peak Torque ..........................................1400 in-lbs
Steel ................................................................. 1/2"
Wood Flat Bit ..............................................1-1/2"
Auger Bit ........................................... 1-1/2"
Hole Saw .......................................... 3-1/2"
Screws (dia.)........................................ 5/8"
Self Feed Bits ................................. 2-9/16"
Masonry ............................................................ 5/8"
4
5
2. To remove the side handle, loosen the side handle
grip until the side handle can be removed. Reposi-
tion and tighten securely.
Correct
Incorrect
WARNING
Always remove battery pack before
changing or removing accesso-
ries. Only use accessories specically recom-
mended for this tool. Others may be hazardous.
Installing Bits
Always remove the battery before inserting or remov-
ing bits. Select the proper style and size bit for the job.
This tool is equipped with a spindle lock. The chuck
can be tightened with one hand, creating higher grip
strengths on the bit.
1. To open the chuck jaws, turn the sleeve in the
counterclockwise direction.
When using drill bits, allow the bit to strike the
bottom of the chuck. Center the bit in the chuck
jaws and lift it about 1/16" o of the bottom.
When using screwdriver bits, insert the bit far
enough for the chuck jaws to grip the hex of the bit.
2. To close the chuck jaws, turn the sleeve in the
clockwise direction. The bit is secure when the
chuck makes a ratcheting sound and the sleeve
can not be rotated any further.
3. To remove the bit, turn the sleeve in the counter-
clockwise direction.
NOTE: A ratcheting sound may be heard when the
chuck is opened or closed. This noise is part of the
locking feature, and does not indicate a problem with
the chuck’s operation.
OPERATION
WARNING
To reduce the risk of injury, always
wear proper eye protection marked
to comply with ANSI Z87.1.
When working in dusty situations, wear appro-
priate respiratory protection or use an OSHA
compliant dust extraction solution.
Selecting Drill or Drive Action
(Cat. No. 2903-20)
1. To use the drilling mode, rotate
the torque selector collar until the
drill symbol appears in line
with the arrow.
2. To use the driving mode rotate
the torque selector collar until the
desired clutch setting appears in
line with the arrow.
The adjustable clutch, when
properly adjusted, will slip at a
preset torque to prevent driving
the screw too deep into dierent
materials and to prevent damage to the screw or
tool.
Selecting Hammer, Drill or Drive Action
(Cat. No. 2904-20 )
1. To use the hammer-drilling
mode, rotate the torque selector
collar until the hammer symbol
appears in line with the ar-
row. Apply pressure to the bit to
engage the hammering mecha-
nism.
NOTICE
When using carbide bits, do not use
water to settle dust. Do not attempt
to drill through steel reinforcing rods. This will
damage the carbide bits.
2. To use the drilling only mode,
rotate the torque selector collar
until the drill symbol appears
in line with the arrow.
3. To use the driving screws
mode, rotate the torque selector
collar until the desired clutch set-
ting appears in line with the
arrow.
The adjustable clutch, when
properly adjusted, will slip at a
preset torque to prevent driving the screw too deep
into dierent materials and to prevent damage to
the screw or tool.
The torque specications shown here are approximate
values obtained with a fully charged battery pack.
TORQUE SPECIFICATIONS
Clutch
Setting
in. lbs Applications
1-4
5-8
9-12
13-16
15-27
31-42
47-60
63-75
Small screws in softwood.
Medium screws in softwood
or small screws in hardwood.
NOTE: Because the settings shown in the table are
only a guide, use a piece of scrap material to test
the dierent clutch settings before driving screws
into the workpiece.
Selecting Speed
The speed selector is on top of the motor housing.
Allow the tool to come to a complete stop before
changing speeds. See “Applications” for recom-
mended speeds under various conditions.
1. For Low speed, push the speed selector to display
“1”.
2. For High speed, push the speed selector to display
“2”.
Using the Control Switch
The control switch may be set to three positions:
forward, reverse and lock. Always allow the motor
to come to a complete stop before using the control
switch to avoid damage to the tool.
Forward
LOCK
Push to CENTER
Reverse

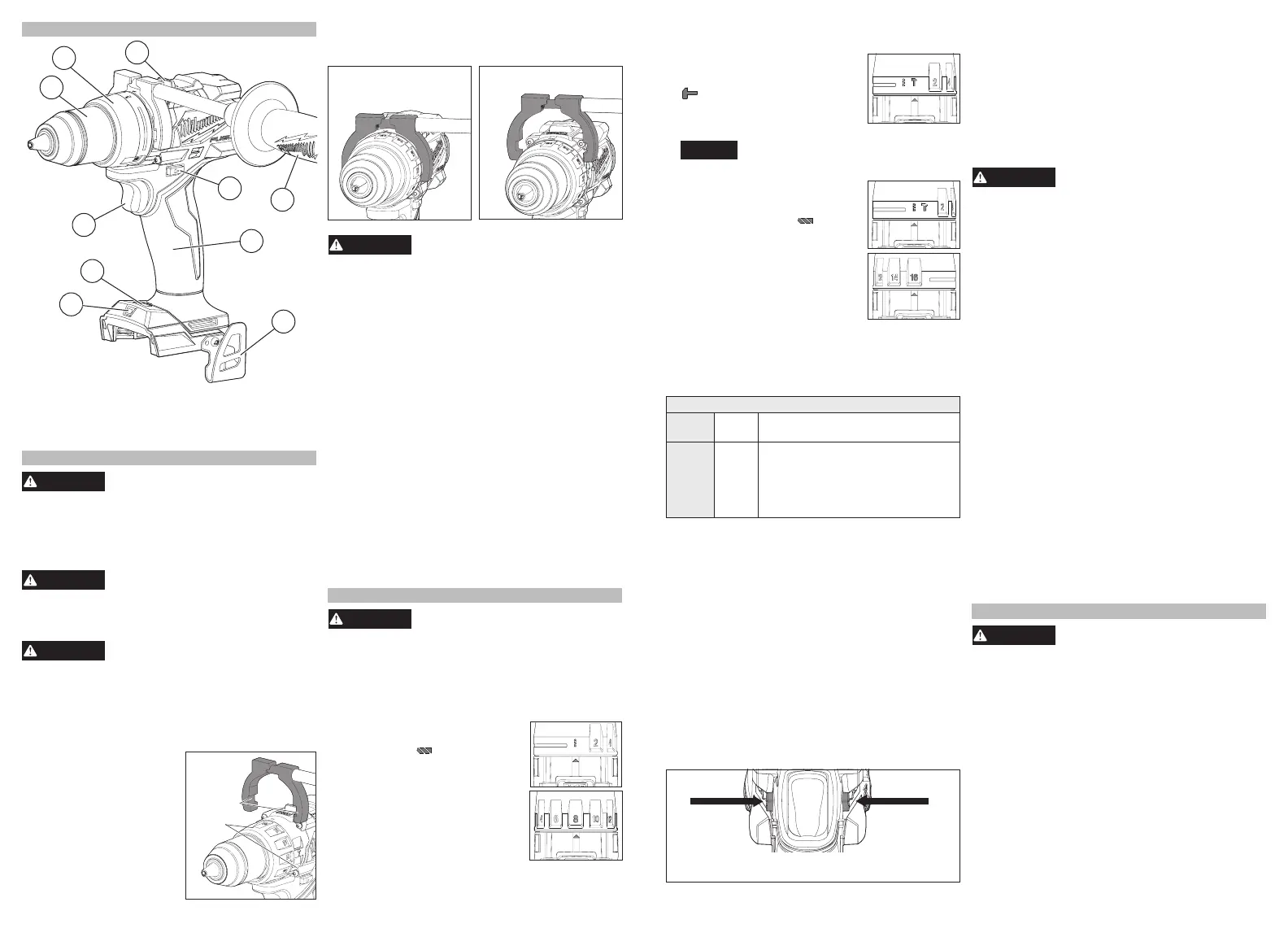

FUNCTIONAL DESCRIPTION
1. LED
2. AUTOSTOP™ light
3. Trigger
4. Keyless chuck
5. Torque selector collar
6. Speed selector
7. Side handle
3
4
5
6
8
1
7
9
10
8. Control switch
9. Handle
10. Belt hook
2
ASSEMBLY
WARNING
Recharge only with the charger
specied for the battery. For spe-
cic charging instructions, read the operator’s
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
WARNING
Always lock the trigger or remove
the battery pack any time the tool
is not in use.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
WARNING
Only use accessories specically
recommended for this tool. Others
may be hazardous.
To reduce the risk of injury, always use a side
handle when using this tool. Always brace or
hold securely. Ensure side handle is tightened
securely before each use.
Installing the Side Handle
1. To install the side handle,
Hooks
Slots
loosen the side handle
grip until the hooks are far
enough apart to t into the
slots on the gear case
ring. Position the side
handle on the top, pointing
to the left or right. Tighten
the side handle grip until
it is secure.
1. For forward (clockwise) rotation, push in the con-
trol switch from the right side of the tool. Check
the direction of rotation before use.
2. For reverse (counterclockwise) rotation, push in
the control switch from the left side of the tool.
Check direction of rotation before use.
3. To lock the trigger, push the control switch to the
center position. The trigger will not work while
the control switch is in the center locked position.
Always lock the trigger or remove the battery pack
any time the tool is not in use.
WARNING
To reduce the risk of injury, always
hold or brace securely.
Starting, Stopping and Controlling Speed
1. To start the tool, grasp the handle(s) rmly and
pull the trigger.
NOTE: An LED is turned on when the trigger is
pulled and will go o shortly after the trigger is
released.
2. To vary the speed, increase or decrease the pres-
sure on the trigger. The further the trigger is pulled,
the greater the speed.
3. To stop the tool, release the trigger. Ensure the
tool has come to a complete stop before laying
the tool down.
Selecting AUTOSTOP™ Mode
The AUTOSTOP™ helps prevent over rotation in
the case of bit binding. The tool is shipped with
AUTOSTOP™ mode already turned on.
1. To turn AUTOSTOP™ mode o, push the control
switch to the center position. Pull the trigger ve
times. The AUTOSTOP™ light will light, then dim
until it is o. This indicates it has been disabled.
2. To turn AUTOSTOP™ mode on, push the control
switch to the center position. Pull the trigger ve
times. The AUTOSTOP™ light will ash to indicate
that the mode has been enabled.
3. AUTOSTOP™ mode can be checked by rotat-
ing the tool with your hand to test the feature. If
AUTOSTOP™ mode is on, the AUTOSTOP™ light
will ash and the tool will shut o.
NOTE: AUTOSTOP™ mode will remain in the last-
selected mode regardless of battery change or state
of charge, until changed by the operator.
APPLICATIONS
WARNING
To reduce the risk of electric shock,
check work area for hidden pipes
and wires before drilling or driving screws.
Drilling
Place the bit on the work surface and apply rm pres-
sure before starting. Too much pressure will slow the
bit and reduce drilling eciency. Too little pressure
will cause the bit to slide over the work area and dull
the point of the bit.
If the tool begins to stall, reduce pressure slightly to
allow the bit to regain speed. If the bit binds, reverse
the motor to free the bit from the workpiece.
