Cat. No. / No de cat.
2772-20
M18™ FUEL™ DRAIN SNAKE WITH CABLE-DRIVE™ LOCKING
FEED SYSTEM
SONDE SPIRALE M18™ FUEL™ AVEC SYSTÈME DE
VERROUILLAGE D'ALIMENTATION CABLE-DRIVE™
SONDA FLEXIBLE PARA DESAGÜES M18™ FUEL™ CON SISTEMA
DE ALIMENTACIÓN CON BLOQUEO CABLE-DRIVE™
OPERATOR'S MANUAL
MANUEL de L'UTILISATEUR
MANUAL del OPERADOR
WARNING To reduce the risk of injury, user must read and understand operator's manual.
AVERTISSEMENT An de réduire le risque de blessures, l'utilisateur doit lire et bien
comprendre le manuel.
ADVERTENCIA Para reducir el riesgo de lesiones, el usuario debe leer y entender el manual.
2
3
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings, instruc-
tions, illustrations and specica-
tions provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, re and/or serious injury. Save all
warnings and instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-oper-
ated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
• Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
• Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose
control.
ELECTRICAL SAFETY
• Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
• Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the
risk of electric shock.
• Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
• When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
• If operating a power tool in a damp location is
unavoidable, use a ground fault circuit interrupter
(GFCI) protected supply. Use of an GFCI reduces
the risk of electric shock.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
• Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on
the switch or energizing power tools that have the
switch on invites accidents.
• Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
• Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or
jewelry. Keep your hair and clothing away from
moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
• If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
POWER TOOL USE AND CARE
• Do not force the power tool. Use the correct power
tool for your application. The correct power tool
will do the job better and safer at the rate for which
it was designed.
• Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
• Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
• Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands
of untrained users.
• Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
• Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
• Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
• Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
4
5
• Inspect the drain to be cleaned before use. If pos-
sible, determine the access point(s) to the drain, the
size(s) and length(s) of the drain, distance to mainlines,
the nature of the blockage, presence of drain clean-
ing chemicals or other chemicals, etc. If chemicals
are present in the drain, it is important to understand
the specic safety measures required to work around
those chemicals. Contact the chemical manufacturer
for required information.
• If needed, place protective covers in the work area.
The drain cleaning process can be messy.
• Make sure cable is fully retracted inside of the drain
cleaner. This will prevent whipping at start up.
• Place the drain cleaner at a distance no greater
than six inches from drain opening. If the drain
cleaner cannot be placed within six inches from
the drain opening, the drain opening will need to
be extended using a similar size pipe and ttings.
Greater distances can cause control problems leading
to twisting, kinking, breaking or whipping of the cable.
• One person must control both the trigger switch
and cable. If the tool stops rotating, the user must be
able to turn the tool off to prevent twisting, kinking,
breaking or whipping of the cable.
• Do not operate the drain cleaner in reverse rota-
tion except as described in this manual. Running
the tool in reverse, while in a clog or with cable bound,
can cause damage to the cable and accessories.
• Maintain labels and nameplates. These carry im-
portant information. If unreadable or missing, contact
a MILWAUKEE service facility for a free replacement.
•
WARNING
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such
as those dust masks that are specially designed to
lter out microscopic particles.
SPECIFICATIONS
Cat. No. ........................................................ 2772-20*
Volts ...................................................................18 DC
Cable Spin No Load RPM ................................0 - 600
Cable Feed Speed Inches/Second ..................... 0 - 8"
Battery Type ..................................................... M18™
Charger Type .................................................... M18™
Recommended Ambient
Operating Temperature ......................0°F to 125°F
*
The added letter in the catalog number signies the cable(s)
included.
SYMBOLOGY
Volts
Direct Current
No-Load Revolutions per Minute (RPM)
C
US
UL Listing Mark for
Canada and U.S.
Only wear leather gloves
• When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal
to another. Shorting the battery terminals together
may cause burns or a re.
• Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact ac-
cidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
• Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
• Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 265°F (130°C) may cause explosion.
• Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied
range may damage the battery and increase the risk
of re.
SERVICE
• Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
• Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SPECIFIC SAFETY RULES FOR
DRAIN SNAKE
• Only grasp the rotating cable with gloves recom-
mended by the manufacturer. Latex or loose tting
gloves or rags can become wrapped around the cable
and may result in serious personal injury.
• Do not allow the cutter to stop turning while the
cable is turning. This can overstress the cable and
may cause twisting, kinking or breaking of the cable
and may result in serious personal injury.
• Use latex or rubber gloves inside the gloves rec-
ommended by the manufacturer, goggles, face
shields, protective clothing, and respirator when
chemicals, bacteria or other toxic or infectious sub-
stances are suspected to be in a drain line. Drains
may contain chemicals, bacteria and other substances
that may cause burns, be toxic or infectious or may
result in other serious personal injury.
• Practice good hygiene. Do not eat or smoke while
handling or operating the tool. After handling or
operating drain cleaning equipment, use hot, soapy
water to wash hands and other body parts exposed
to drain contents. This will help reduce the risk of health
hazards due to exposure to toxic or infectious material.
• Only use the drain cleaner for the recommended
drain sizes. Using the wrong size drain cleaner can
lead to twisting, kinking or breaking of the cable and
may result in personal injury.
• Inspect cable for wear and damage before use.
Replace a worn or damaged cable before using the
drain cleaner.
• Do not twist, kink or over bend cables. Breaking of
the cable may result in serious personal injury.
48-53-2562
5/16" x 25' Inner Core Rust Resistant
Drop Head Cable
1-1/4" to 2-1/2"
48-53-2673
5/16" x 35' Inner Core Rust Resistant
Bulb Head Cable
1-1/4" to 2-1/2"
48-53-2674
5/16" x 50' Inner Core Rust Resistant
Bulb Head Cable
1-1/4" to 2-1/2"
48-53-2676
3/8" x 25' Inner Core Rust Resistant
Coupling Cable
2" to 3"
48-53-2675
3/8" x 35' Inner Core Rust Resistant
Coupling Cable
2" to 3"
Cable Attachments for Use with
Milwaukee 3/8" Coupling Cables
Cat. No. Description
Pipe
Diameter
48-53-2681 Small Bulb Head 2" to 3"
48-53-2682 Small Drop Head 2" to 3"
48-53-2683 1" Spade Bit 2" to 3"
48-53-2684 1" C-Cutter 2" to 3"
48-53-2685 5 pc. Small Drain Line Kit 2" to 3"
CAUTION
To prevent damage to the cable, do not
use in larger diameter pipes.
Cable Installation
WARNING
To reduce the risk of injury, wear
safety goggles or glasses with side
shields. Always wear leather gloves. The cable is
under pressure and can uncoil unexpectedly. Cable
tip may be sharp.
Remove the cable for cleaning after each use. Differ-
ent size and types of cables are available for different
applications.
To remove the cable:
1. Remove the battery pack and set the front handle to
the feed position according to the instructions in
"Controlling the Cable".
2. Pull the cable out through the front handle until the
end of cable indicator is reached .
NOTE: Cable will appear stuck once the end of cable
indicator is reached.
3. Set the front handle to the neutral position and pull
out the remaining cable.
To install the cable:
1. Remove the battery pack and set the front handle to
the locked position according to the instructions
in "Controlling the Cable".
2. Insert the cable through the nose of the tool until the
cable catches.
3. Set the front handle to the feed position and
continue feeding the cable through the front handle.
4. Remove the protective tip cover from new cables
before use.
Cable Attachment Installation
To install the attachment:
Snap the attachment coupler into the cable coupler.
Test the cable before inserting into the drain to make
sure the attachment does not fall off during use.
To remove the attachment:
Insert the pin key into the coupling hole and pull attach-
ment off of cable.

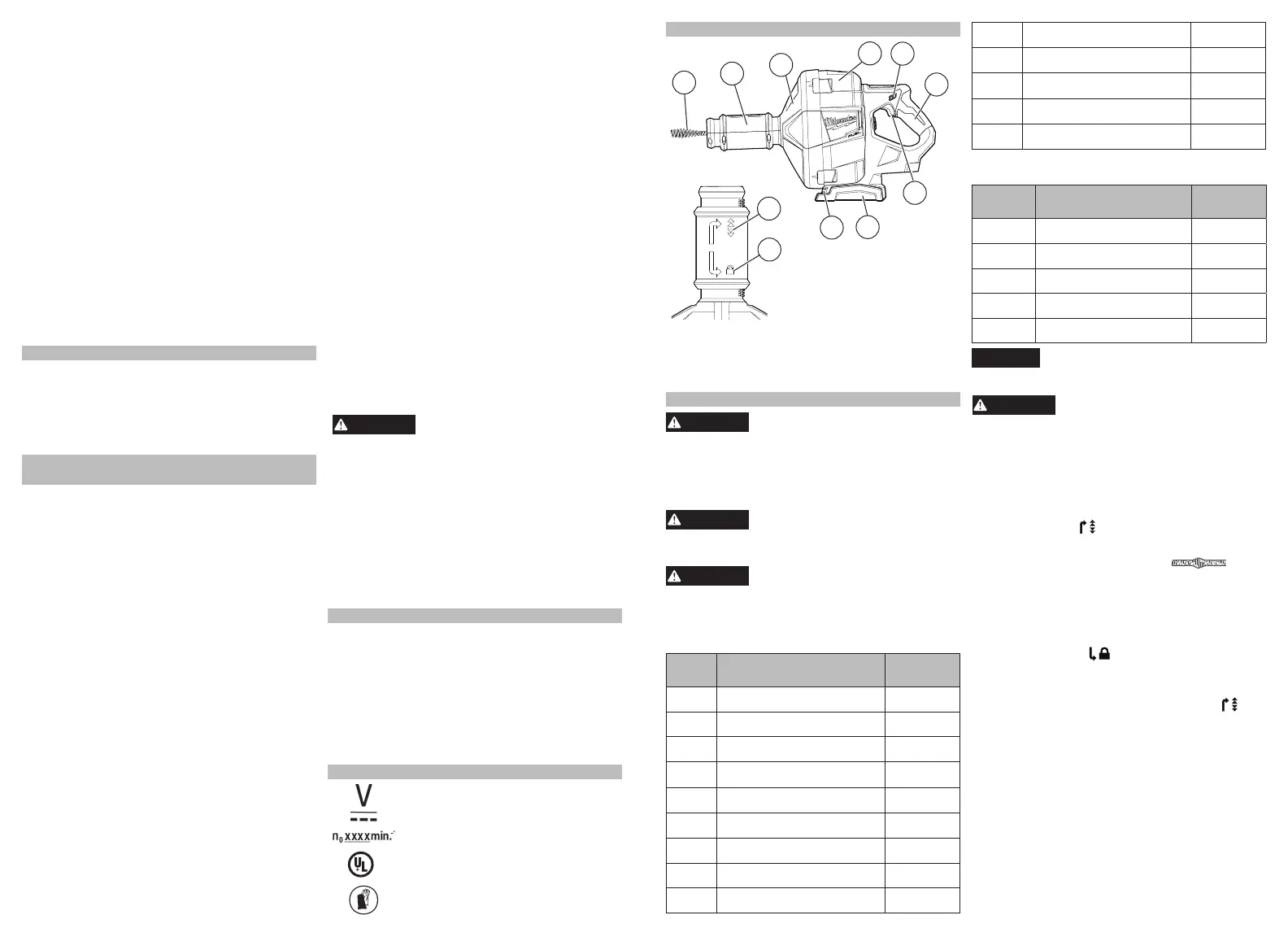

FUNCTIONAL DESCRIPTION
6
8
5
7
1
3
4
9
11
1. Cable
2. Front handle/Twist lock
3. Rubber drum shield
4. Drum cover
5. Forward/reverse switch
6. Handle
7. Trigger switch
8. Flat tool base
9. LED
10. Cable feed icon
11. Cable lock icon
2
10
ASSEMBLY
WARNING
Recharge only with the charger
specied for the battery. For spe-
cic charging instructions, read the operator’s
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons and
pull the battery pack away from the tool.
WARNING
Always remove battery pack before
changing or removing accessories.
To insert the battery, slide the pack into the body of the
tool. Make sure it latches securely into place.
WARNING
Only use accessories specically
recommended for this tool. Others
may be hazardous.
Always store tool in its bucket to avoid damage
to the cable.
Selecting the Proper Cable
Cat. No. Description
Pipe
Diameter
48-53-2573 1/4" x 25' Inner Core Bulb Head Cable 1-1/4" to 2"
48-53-2574 1/4" x 25' Inner Core Drop Head Cable 1-1/4" to 2"
48-53-2563
1/4" x 25' Inner Core Rust Resistant
Bulb Head Cable
1-1/4" to 2"
48-53-2564
1/4" x 25' Inner Core Rust Resistant
Drop Head Cable
1-1/4" to 2"
48-53-2671
1/4" x 35' Inner Core Rust Resistant
Bulb Head Cable
1-1/4" to 2"
48-53-2672
1/4" x 50' Inner Core Rust Resistant
Bulb Head Cable
1-1/4" to 2"
48-53-2571 5/16" x 25' Inner Core Bulb Head Cable 1-1/4" to 2-1/2"
48-53-2572 5/16" x 25' Inner Core Drop Head Cable 1-1/4" to 2-1/2"
48-53-2561
5/16" x 25' Inner Core Rust Resistant
Bulb Head Cable
1-1/4" to 2-1/2"

Produkspesifikasjoner

Merke: Milwaukee
Kategori: Ikke kategorisert
Modell: M18 Fuel Cable Drive 2772B-21XC

Trenger du hjelp?

Hvis du trenger hjelp med Milwaukee M18 Fuel Cable Drive 2772B-21XC still et spørsmål nedenfor, og andre brukere vil svare deg


Ikke kategorisert Milwaukee Manualer

Milwaukee

Milwaukee 48-22-8546 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee 48-22-3522 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee 48-54-0100 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee M12 FUEL 2567-22 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee 2978-20 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee M18 Fuel Cable Drive 2772B-21XC Bruksanvisning

4 August 2025
Milwaukee

Milwaukee 4005 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee M12 Fuel Propex 2532-22 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee 48-22-8590 Bruksanvisning

4 August 2025
Milwaukee

Milwaukee M18 Force Logic 2677-21 Bruksanvisning

4 August 2025

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer

Nikon

Nikon Nikkormat FT3 Bruksanvisning

4 August 2025
Nikon

Nikon F50 Bruksanvisning

4 August 2025
Nikon

Nikon Nikkor AF-S 500mm f/5.6E PF ED VR Bruksanvisning

4 August 2025
Joy-it

Joy-it COM-ZY12PDN Bruksanvisning

4 August 2025
Bestway

Bestway 24071 Bruksanvisning

4 August 2025
Bestway

Bestway 21062 Bruksanvisning

4 August 2025
Bestway

Bestway 24021 Bruksanvisning

4 August 2025
Bestway

Bestway SaluSpa 60064 Bruksanvisning

4 August 2025
Bestway

Bestway 25039 Bruksanvisning

4 August 2025
Bestway

Bestway Hydro-Force 65343 Bruksanvisning

4 August 2025
