Side 1/2

1080P HD CCTV Camera

AHD CVBS HDCVI HDTVI

Specifications

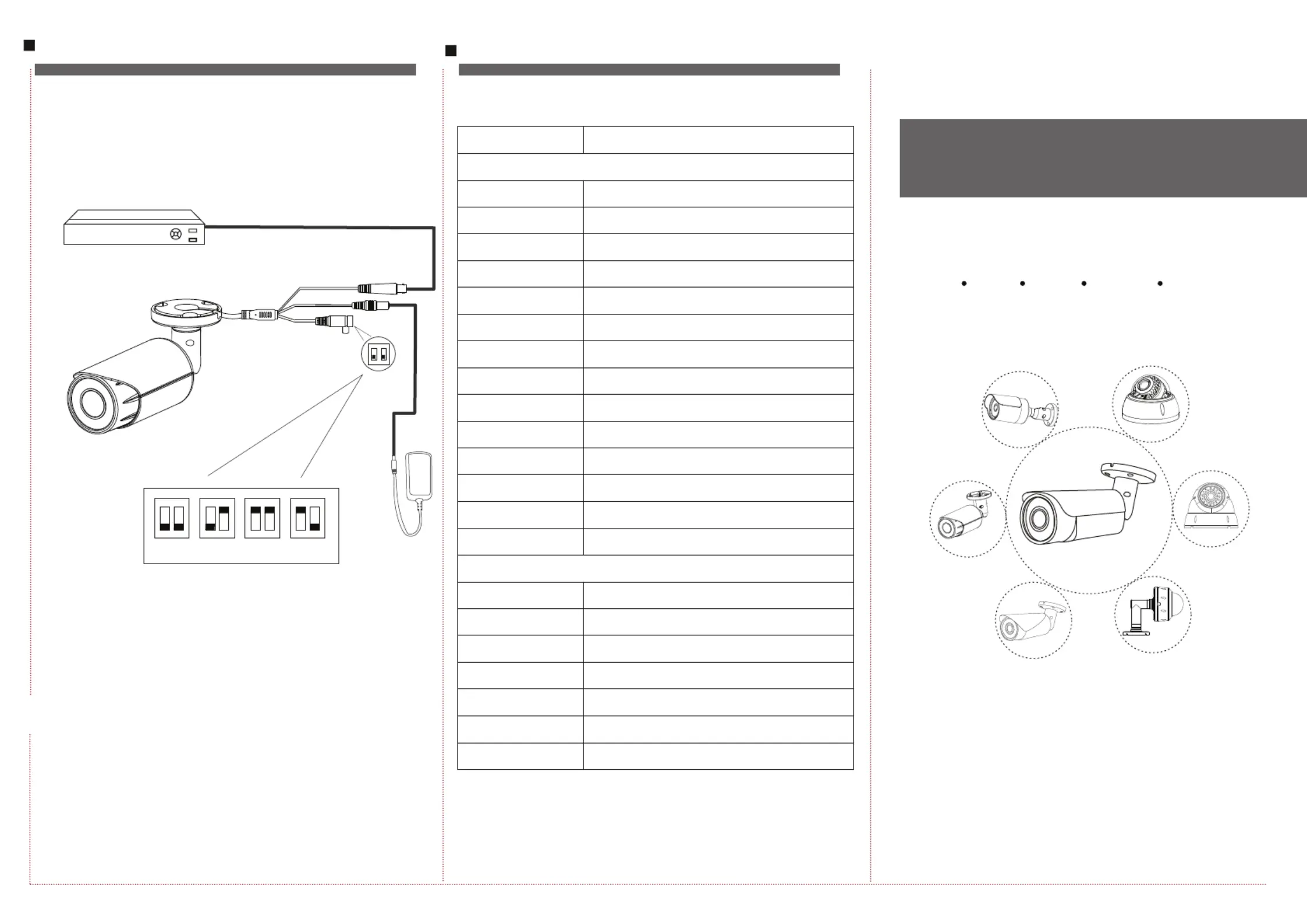

Connection diagram

1080P DVR

video out

12V DC

mode swich

1 2

HD TVI HD CVI Analog AHD

Thank you for purchasing our product. If there are any questions,

please read this user manual at first, and do not hesitate to contact us.

Note:

This manual may contain some incorrect places, even though it was

published with our carefully proofreading. The news updates will be

added to the next release without notice. Your valuable advice is really

appreciated.

Cautions:

Make sure the power supply is matched with the camera power

input to avoid damage. Neither of the power adapter nor video

cable should not be beyond the longest transportation limit.

Model

Image Sensor

Chipset

Effective Pixels

Lowest illumination

Electronic Shutter

Video System

Video Frame Rate

Video Output

Video Switch

Smart IR Control

Day/Night

WDR

OSD Menu

Other Function

Power Supply

Power Consumption

Working Environment

IR LED

IR Distance

Lens

Transmission Distance

1080P 4-in-1 HD Camera

1/2.7" 2.1 Mega pixels CMOS

AR0230+FH8536

1928(H)×1088 (V)

0.02Lux@ F1.2,AGC ON , 0 Lux with IR（）

1/50s~1/60,000s

PAL/NTSC

25/30fps@1920×1080P

1 channel, HDCVI / HDTVI/AHD/CVBS optional

2 bit switch

Support

Auto(ICR) / Color / B/W

D-WDR

Support, coaxial cable control via DVR directly (UTC)

AWB, AGC, BLC

DC12V±10%

< 5W

-30°C~+60°C / Less than 95%RH

24/30/36/48/72 pcs selectable

10/15/20/30/50/80 meters selectable

3.6/6/8/12/16/25 mm selectable

Over 300m via 75-3 coaxial cable

Camera

General

4-in-1

1.Image black/white, roll over

1) check the camera rear mode switch cable, adjust it and

make sure the video output is matched for your DVR.

2) go to the camera menu and change the PAL/NTSC mode.

2.Video signal shows horizontal ribbon disturbed area

1) check the power supply cable , it should not be too long,

or change a high quality power adapter to replace.

2) Make sure the DVR BNC port connected stable and the

DVR housing GND grounded.

3.Camera keep white/black , IR led not working or keep on,

glass cover broken, etc.

1) Call the franchiser to repair. Please do not open or try

repairing it without permission.

power adapter

coaxial cable

OSD Menu Control

Functions brief

OSD Menu Control

HD CMOS sensor

Within high sensitivity CMOS image sensor, 1080P video

output , very low illumination Prefect image quality emerge

both on day and night environment

4-in-1 Multiply Video modes output

Support 4 HD signals switch output, AHD/HDCVI/HDTVI/

CVBS, easy to use switch cable

OSD menu control up the coaxial cable(UTC)

Camera parameters can be setup via built-in menu. All the

configuration can be changed by back-end DVR directly

up the coax. No need press the cable button

Over 300 meters long distance video signal transportation

Smart IR control, AGC, D-WDR, DNR

Wide range voltage adaptation, Lightning protection

Strong and pretty housing, installations angles can be

adjusted

This series HD camera can support OSD menu coaxial control

by reusing the video cable. It means user can configure,

without menu button, the camera parameters via DVR directly.

( the DVR also should support UTC ) It’s immensely

convenient for site adjustment.

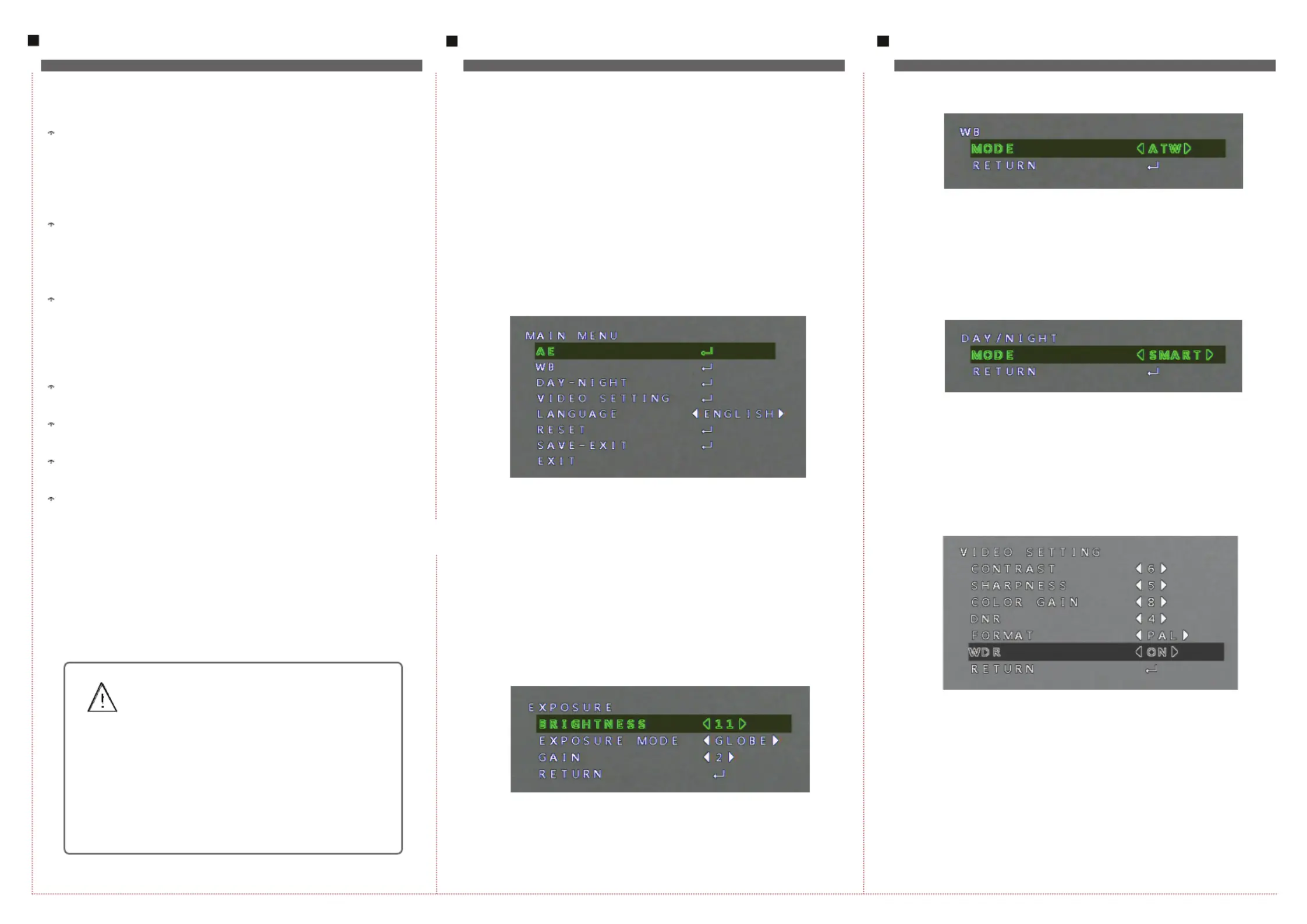

How to enter to the camera menu ?

In general, the DVR must have the coaxial control feature. Go

to the PTZ control window and click the “+ iris -” to call out the

camera menu.

The menu contents is listed as below:

AE: auto image enhancement

WB: white and black balance mode

DAY-NIGHT: day and night switch mode

VIDEO SETTING: video basic parameters, PAL/NTSC, WDR,

DNR adjustment

LANGUAGE: menu language select

RESET: reload factory default

SAVE-EXIT: save all settings and exit menu.

ATW: auto tracking white balance -- default mode

Color: keep color

WB: keep white and black mode

Smart: auto change to color and WB

DNR: digital noise reduce -- reduce the image noise points in

dark environment

WDR: wide dynamic range -- pick up a balance image when

working in back-light environment

Please install this device in appropriate temperature,

-30 - 60 or -22 - 140 , keep away from ℃ ℃ ℉ ℉

corrosive gas and liquid.

Don’t put the camera direct to the sunlight, it is

recommended installing it under a sun shade.

Caution :

Produkspesifikasjoner

Merke:	Monacor
Kategori:	Sikkerhetskamera
Modell:	ELAX-2812BV
Vekt:	844 g
Bredde:	83 mm
Dybde:	277 mm
Høyde:	81 mm
Bruksanvisning:	Ja
Bluetooth:	Nei
Wi-Fi:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	1920 x 1080 piksler
Strømkildetype:	DC, PoE
Antall kameraer:	1
LED-type:	IR
Dag/natt-modus:	Ja
Antall linser:	1
Antall sensorer:	1
Wide Dynamic Range (WDR):	Ja
Digital Wide Dynamic Range (DWDR):	Ja
Bildefrekvens:	30 fps
Sensortype:	CMOS
Produktfarge:	Hvit
Analogt signalformatsystem:	NTSC, PAL
Brennviddeområde:	2.8 - 12 mm
Strømforbruk (vanlig bruk):	5 W
Støttede videofunksjoner:	1080p
Driftstemperatur (T-T):	-10 - 50 °C
Lukkerhastighet:	1/50 s
nattsyn:	Ja
Formfaktor:	Kule
CCD-sensorstørrelse:	1/2.9 "
Modell/Type:	IP-sikkerhetskamera
DC utgangsstrøm:	0.6 A
Innebygd harddisk:	Nei
Internasjonal beskyttelses (IP)-kode:	IP66
Minimumsbelysning:	0.02 lx
Ethernet/bredbåndsforbindelse:	Nei
Støttede plasseringer/plasseringer som kan benyttes:	Utendørs
Montasjetype:	Tak/Vegg
Totale megapiksler:	2 MP
DC-ut, volt:	12
Effektiv distanse for nattsyn:	40 m
Panoreringskontroll:	Nei
Vippekontroll:	Nei
Baklyskompensasjon (BLC):	Ja
BNC-utgangsporter:	1
Værbestanding:	Ja
Kamelukkertype:	Elektronisk
Antall lysende LED:	20
Justering av lukkerhastighet:	Manuell
