User Manual

7495/7496

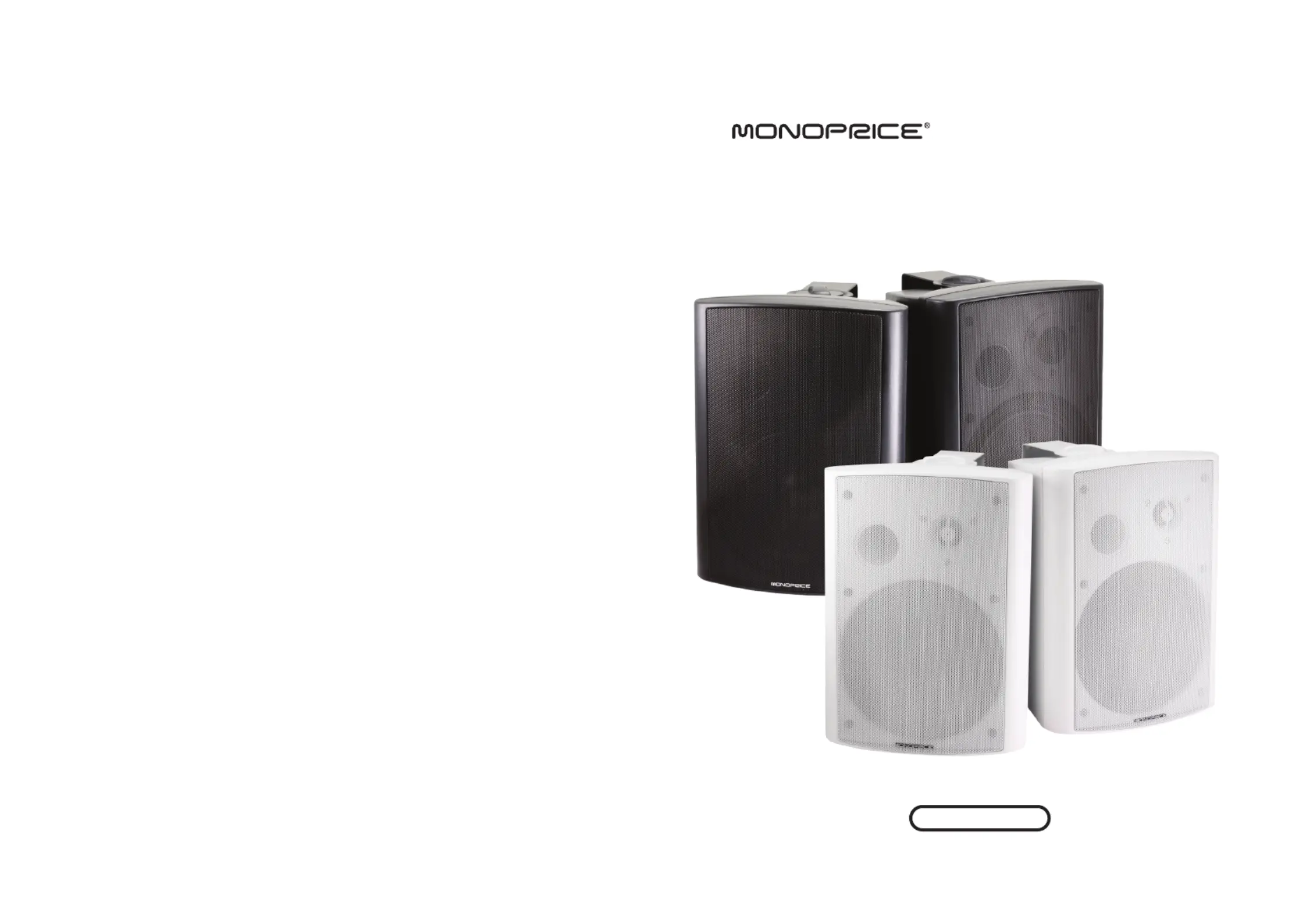

2-Way Active Wall Mount Speakers

(Pair) - 25W

Introduction

Thank you for purchasing these Monoprice Active Speakers!

For best results, please read this manual completely before

attempting to install or use these speakers. Pay extra attention to

the Safety Tips and Warnings below to ensure both your own

personal safety and the long-term service from of these speakers.

Safety Tips and Warnings

Do not expose these speakers to water or moisture of any kind.

They are not waterproof and exposure could result in fire, electrical

shock, and damage to the speakers and surrounding property.

Take care to ensure that the power cords do not become worn or

damaged. Inspect the power cord for damage prior to plugging it

into a live electric circuit. If the cord is damaged replace it with a

standard PC power cord (IEC 60320 C13 plug to NEMA 5-15 plug).

When plugging or unplugging the power cord, grip the connector

head and not the cord itself. Pulling on the cord can result in

damage to the cord, which could in turn lead to an electric short

and/or fire.

Never touch the power cord or speaker with wet hands or when

standing in water. Doing so could lead to electric shock.

Avoid installing or using the speakers in a humid or dusty environ-

ment.

FREQUENCY RESPONSE

RMS

OUEPUT SENSITIVIT Y

25Wx2@8

0.7V

DIMENSION(mm)

GROSS WEIGH T

0220X196X29

TREBLE CONTROL

AC POW SUPPLY E R

10db

MODEL

, b20Hz~20KHz/1W 0.5d

BASS CONTROL

10db

10.1Kg

MPA-25-BK

AC120V/50Hz~60Hz

SPECIFICATIONSDIMENSION

INSTALLATION

220 mm

1 96 m m

2 90 mm

220 mm

235 mm

100 mm

AC 2 20 V~ 240 V /50 Hz ~60 Hz

10 mm

4m m

13 m m.5

12 5m m

1 2

Wal Wall l

W all

Wa ll

1. Ensure that the mounting surface can

support the speaker weight of Speaker weight

of 22.3 lbs (10.1 Kg).

3. You can mount the bracket using the

two keyholed mounting points or with a

single screw through the hole in the

center.

4. Insert the speaker into the speaker

bracket and secure it in place using the

two bracket mounting screws.

5. Your speaker is now mounted correctly.

Repeat the process with the other

bracket and speaker.

2. Using the speaker bracket, mark the installation with a pencil. Use a

carpenter's level to ensure the bracket will be correctly aligned.

(Figure: Bracket dimensions)

Power Supply

Power Switch

R/Speaker output

Power indicator

R/S indicator

L/S indicator

Right balanced input

Mode switch

Left balanced input

3.5mm stereo jack input

L/R unbalanced input

Volume control

Treble control

Bass control

Produkspesifikasjoner

Merke:	Monoprice
Kategori:	Høyttaler
Modell:	7496
Vekt:	10100 g
Bredde:	220 mm
Dybde:	245 mm
Høyde:	290 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Anbefalt bruk:	Universell
Impedans:	8 Ω
Høyttalerplassering:	Vegg.monterbar
Basshøyttaler:	Ja
Peak Music Power Output (PMPO):	30 W
Forsterker:	Innebygget
Diskanthøyttaler:	Ja
Produktfarge:	Hvit
Signal-til-støy-forhold (SNR):	95 dB
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	25 W
Antall drivere:	1
Høyttaler type:	2-veis
Frekvensrekkevidde:	20 - 20000 Hz
Kanalseparering:	75 dB
Audio RCA-inngang:	1
3,5 mm inn:	Ja
