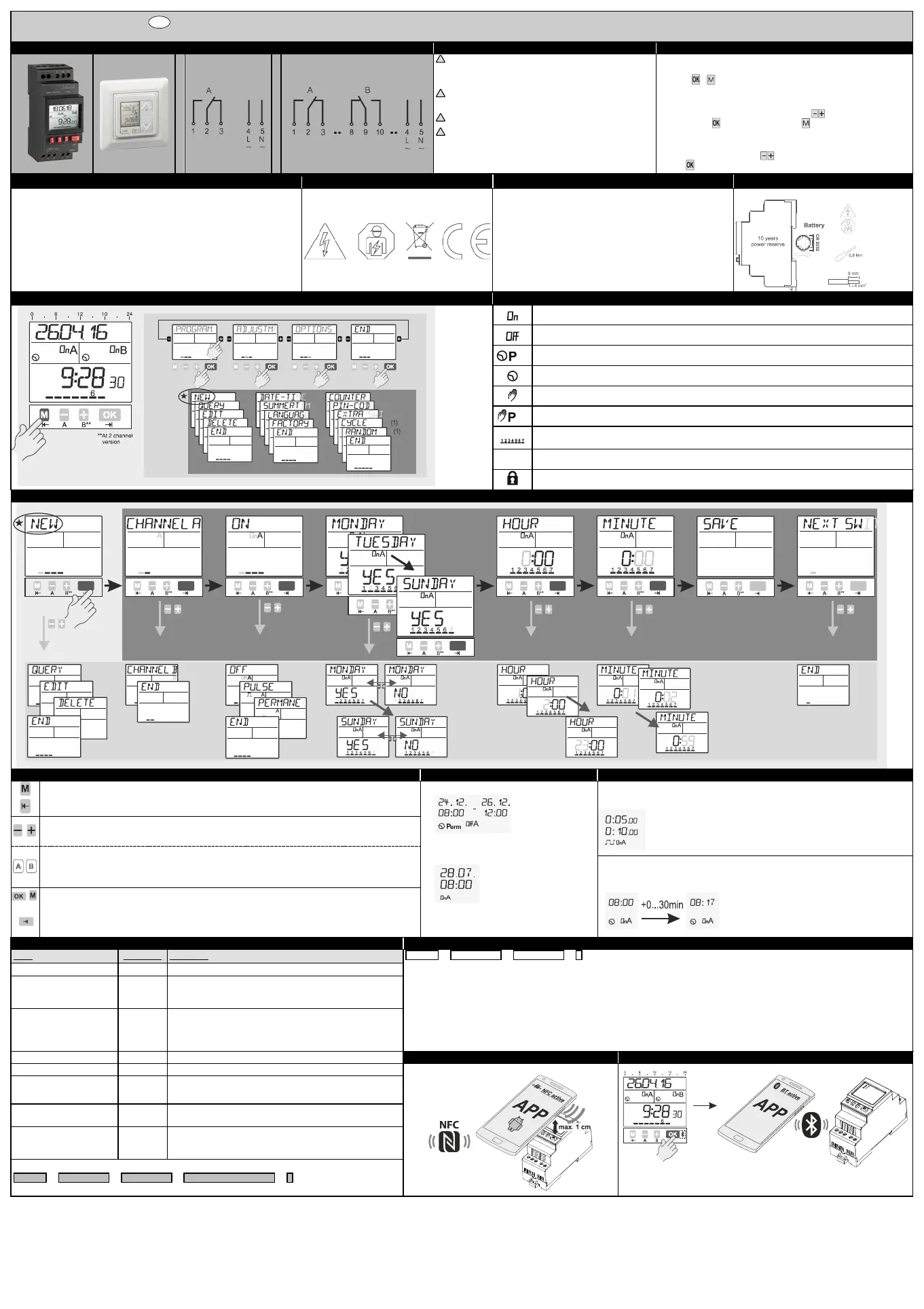

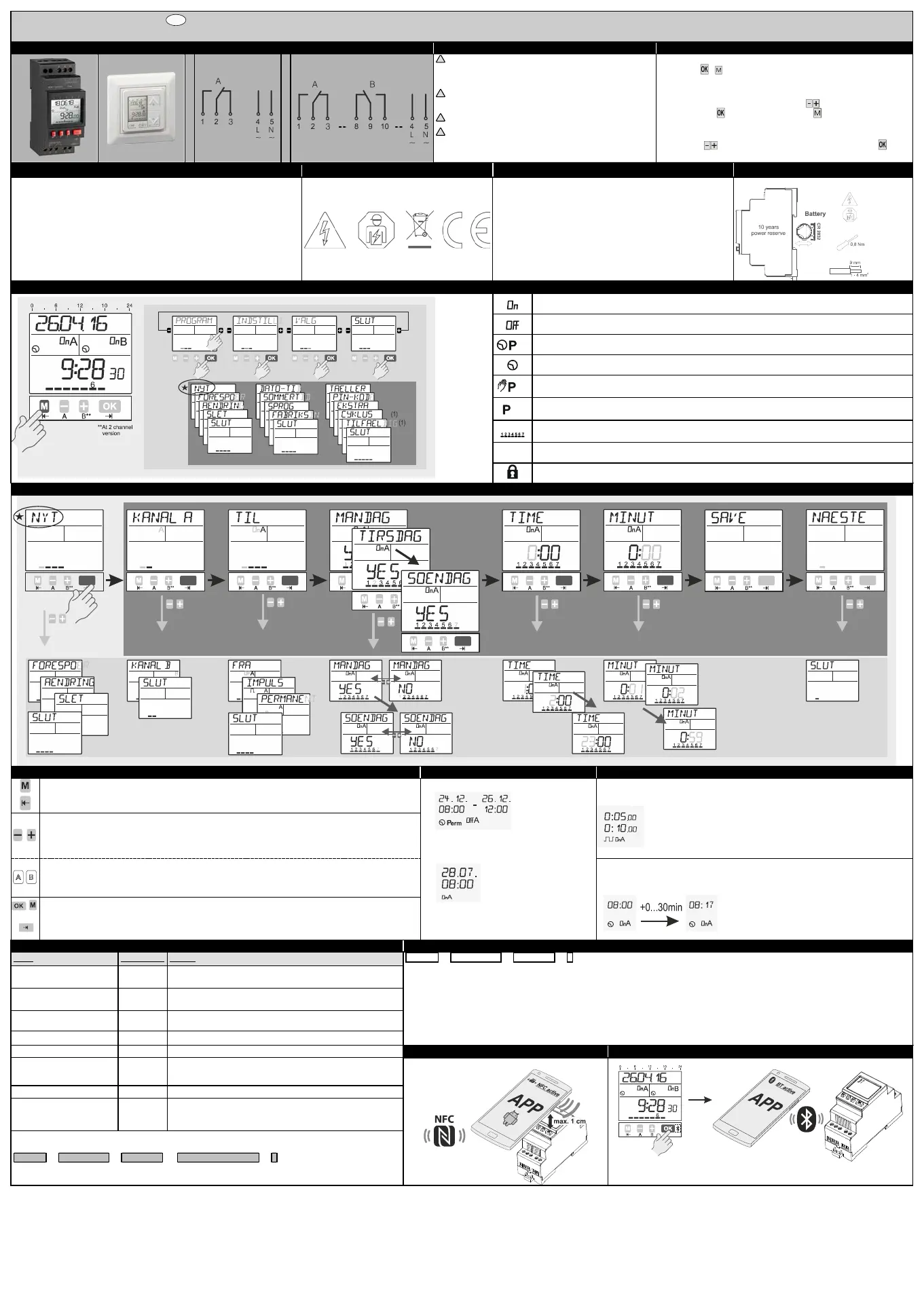

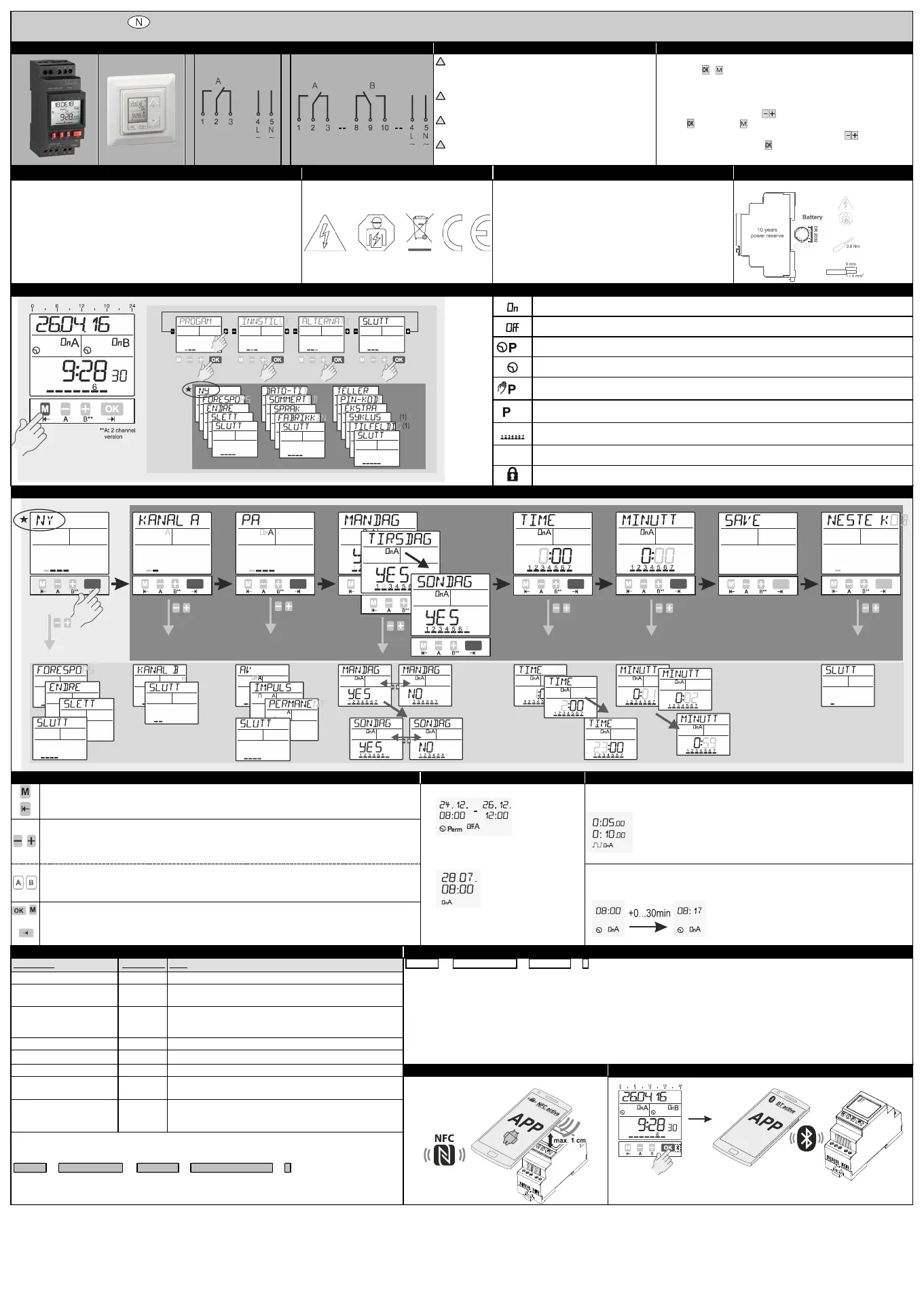

BA SC18x0easy SC28x1pro4 N;en,da,no,fi –23695- 2020.02V04
(1) Option
Instruction Manual
GB
Time switch
Connection diagram
1. Safety instructions
2. Initial operation
1 channel
2 channels
!
The installation and assembly of electrical equipment must
be only carried out only by a skilled Person! Otherwise fire
danger or danger of an electric shock exists!
!
Connect the supply voltage/frequency as stated on the
product label!
!
Warranty void if housing opened by unauthorised person!
!
The electronic circuit is protected against a wide range of
external influences. Incorrect operating may occur if
external influences exceed certain limits!
The time switch is delivered in sleep-mode, the display is switched
off.
Press -/ button to wake it up.
The current date and time is already programmed and European
daylight savings time is activated.
Select the desired language by pressing -buttons and confirm it
by pressing . (Remark: By pressing you move one step
backwards from the current position)
If required, date, time and daylight savings time mode can be
adjusted also by pressing -
buttons and a subsequent confirmation
with .
3. Technical data
4. Service
5. Intended use
6. Battery
Supply voltage
See device
Contact material (115V / 230V)
AgSnO
2
Contact material (12V / 24V)
AgNi
Type of protection
IP 20 to DIN EN 60529
Permitted ambiet temperature
-30°…+55°
Mode of operation
1 BSTU
Degree of contamination
2
Rated surge voltage
4 kV
Standard
DIN EN 60730-1/DIN EN 60730-2-7
CFL, LED
Ideal for modern lamps
The device fits for the particular use of the following tasks: Illumination
of private and industrial areas, street and shop-window lightening,
regulation of air conditioning, flushing, motors, pumps, plants and
machinery as well as to simulate presence etc.
Operate the device in a dry room only! The installation must be in
accordance with the instruction manual. The device is not qualified for
security relevant tasks such as emergency doors, fire protection
equipment
DIN-rail mounting product:
7. Menu overview
8. Symbol legend
Channel is switched ON
Channel is switched OFF
erm
For the current date the “holiday program” / “permanent by date” is activated
Standard programming step
Current state is based on a manual over-ride. The state will be cancelled with the next programming step.
erm
Current state is based on a manual over-ride. The state is permanent until terminated manuall.
Days of the week Monday, Tuesday, ... Sunday;
The underscores indicate if the program is active for the days above.
I
Current state is based on a switching time with pulse function
The time switch is locked; to unlock the device the PIN has to be entered.
9. New Program
OK
OK
OK
**At 2 channel
version
OK
OK
OK
OK
OK
OK
erm
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
OK
Automatic Mode
10. Key function
11. Permanent / Extra switching times
12. Cycle / Random (1)
1. To access the Enter-mode (program, adjustments, options) from the automatic-mode.
2. To revert to the beginning of the current (sub-) menu.
Permanent On / Off
Extra switching times
optionally selectable
Cycle
optionally selectable
h:mm:ss on-time (0:00:01 … 9:59:59)
h:mm:ss off-time (0:00:01 … 9:59:59)
1. To adjust the flashing digit.
2. To scroll through a choice
1. Automatic-mode: To switch the channel ON or OFF until the next programming step occurs.
2. Automatic-mode: A push longer than 3 sec. = Permanent switching status.
Random
optionally selectable
no yes
/
1. To activate the time switch when operated without power supply.
2. To confirm the selection or the entered data.
13. Additional adjustments
14. Pulse
Menu
Main menu
Application
Program -> New program -> Channel A/B -> …
The pulse function provides you the opportunity of programming a switching time with a defined duration.
As soon as the pulse-duration has expired the time switch switches OFF automatically (the duration of the pulse is up to 59:59 mm:ss).
The programming is carried out like a standard switching time (see point 8 / 9) with following differences
Choose Pulse function (9F).
Define the duration of the pulse (pulstime minute / pulstime second).
Program the days of the week
Program the switching time (time hour / time minute)
Validation: Confirm the blinking summary of the pulse program
Program query
Program
To query the programming steps and remaining memory locations
Program delete
Program
Deletion of switching time(s). The program for all channels, single
channels and single programming steps within on channel can be
deleted.
Date-Time
Adjustment
Adjustment of date and time
Summertime
Adjustment
Adjustment of the daylight saving time mode (ON/OFF)
15. Programming via NFC (1)
16. Programming via Bluetooth (1)
Language
Adjustment
Choice of languages
Factory Defaults
Adjustment
Reset to the state of delivery.
Counter
Options
Displays the hour counter and pulse counter for each channel and
the time switch itself.
PIN-Code
Options
The time switch can be locked with a 4-digit PIN-Code. The code
can be adjusted, activated and deactivated. If you have forgotten
the Code please call customer service.
Extra switching time:
Program -> new program -> channel A/B -> Extra switching time -> …
These programming steps are single switching times by date.
