Neff B2CCJ7AK0B Bruksanvisning
Les nedenfor 📖 manual på norsk for Neff B2CCJ7AK0B (3 sider) i kategorien ovn. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/3
N 30, Built-iN oveN, 60 x 60 cm, Black
B2ccJ7ak0B
Included accessories
2 x combination grid, 1 x universal pan
Optional accessories
Z11AB15A0 Baking tray, non-stick ceramic coated, Z11AU15A0
Universal pan, non-stick ceramic coated, Z11CR10X0 Baking and
roasting grid (standard), Z11GU20X0 Glasspan, Z11TI15X0
Cliprails, Z12CB10A0 Baking tray, enamelled, Z12CL10A0 Lid for
professional pan, enamelled, Z12CM10A0 Moussaka pan,
enamelled, Z12CN10A0 Professional pan, enamelled, Z12CP10A0
Pizza pan, enamelled, Z12CU10A0 Multipurpose pan, enamelled,
Z1365WX0 Wireless food thermometer, Z13CV06S0 Decor strip,
Z1608BX0 Full ext rails, level independent, Z1650BE0 Half tray,
Z1655CA0 Air Fry & Grill tray, Z1913X0 Baking Stone
Optimal cooking results: CircoTherm® hot air system and
Pyrolytic Self-Cleaning.
√ LED Touch Control - user friendly and intuitive navigation via
touch buttons.
√ Dual cleaning options: Pyrolytic cleaning programmes - just let
the oven interior clean itself. EasyClean - the quick and easy
option for day to day maintenance.
√ CircoTherm® – Smart hot-air solution that lets you bake on up to
three levels at once.
√ Automatic programmes - Your kitchen helper with just the right
default settings.
√ Energy Efficiency Class A+: Energy efficient cooking, more joy,
less fuss.
Features
Technical Data
Built-in / Free-standing: ...................................................... Built-in
Integrated Cleaning system: ............................Pyrolytic+Hydrolytic
Required niche size for installation (HxWxD): 585-595 x 560-568 x
550 mm
Dimensions: ...................................................... 595x594x548 mm
Dimensions of the packed product (HxWxD): . 675 x 660 x 690 mm
Control Panel Material: .......................................................... Glass
Door Material: ....................................................................... Glass
Net weight: ........................................................................ 36.3 kg
Usable volume of cavity: ...........................................................71 l
Cooking method: ................. Full width grill, Hotair gentle, Hot Air,
Conventional heat, Pizza setting, Hot air grilling
Length electrical supply cord: ............................................. 120 cm
EAN code: ............................................................4242004290629
Number of cavities (2010/30/EC): ...............................................1
Energy efficiency rating: ............................................................ A+
Energy consumption per cycle conventional (2010/30/EC): 0.94
kWh/cycle
Energy consumption per cycle forced air convection
(2010/30/EC): ...................................................... 0.69 kWh/cycle
Energy efficiency index (2010/30/EC): ................................81.2 %
Connection Rating: ............................................................ 2990 W
Fuse protection: ......................................................................13 A
Voltage: .........................................................................220-240 V
Frequency: ......................................................................50; 60 Hz
Plug type: .......................................................................... no plug
(electrical connection by electrician)
Included accessories: ..........2 x combination grid, 1 x universal pan
1 /
N 30, Built-iN oveN, 60 x 60 cm, Black
B2ccJ7ak0B
Features
Features
• Oven with Multifunction oven with 6 cooking functions: heating
methods: CircoTherm®, Top/bottom heat, Circo-roasting, Full
surface grill, CircoTherm® intensive, CircoTherm® gentle
• Temperature range 30 °C - 275 °C
• Cavity volume: 71 litre
• Shelf support rails, Smooth cavity interior
Level independent telescopic rails
• 4 shelf positions
• Available as an accessory
Design
• Touch control With steel trim
• Cavity inner surface: enamel anthracite
Cleaning
• Pyrolytic cleaning
• EasyClean
• Full glass inner door
Programmes/functions
• Electronic clock timer
• Temperature proposal
• Actual temperature display Heating up indicator automatic
programmes:
• Number of automatic programmes: 10 PC
• Bar handle
• Automatic programmes
• Rapid heat
• Interior halogen light, On/off button
• Cooling fan
Accessories
• 2 x combination grid, 1 x universal pan
Features
• 30 °C - Very low door temperature
• Low door temperature during pyrolitic cleaning
• Quadruple glazed door glazed CoolTouch door
• Door lock during pyrolytic cleaning
• Control panel lock Automatic safety switch off Start button
Technical information
• 120 cm Cable length
• Nominal voltage: 220 - 240 V
• Total connected load electric: 2.99 KW
• Energy efficiency rating (acc. EU Nr. 65/2014): A+
• Energy consumption per cycle in conventional mode:0.94 kWh
• Energy consumption per cycle in fan-forced convection mode:0.69
kWh
• Number of cavities: Main cavity Heat source: electrical Cavity
volume:71 litre
Performance/technical information
• Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
• Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x
550 mm
• “For-details-on-installation-and-ventilation requirements – please
refer to the installation manual prior to fitting.”
2 /
N 30, Built-iN oveN, 60 x 60 cm, Black
B2ccJ7ak0B
N 30, Built-iN oveN, 60 x 60 cm, Black
B2ccJ7ak0B

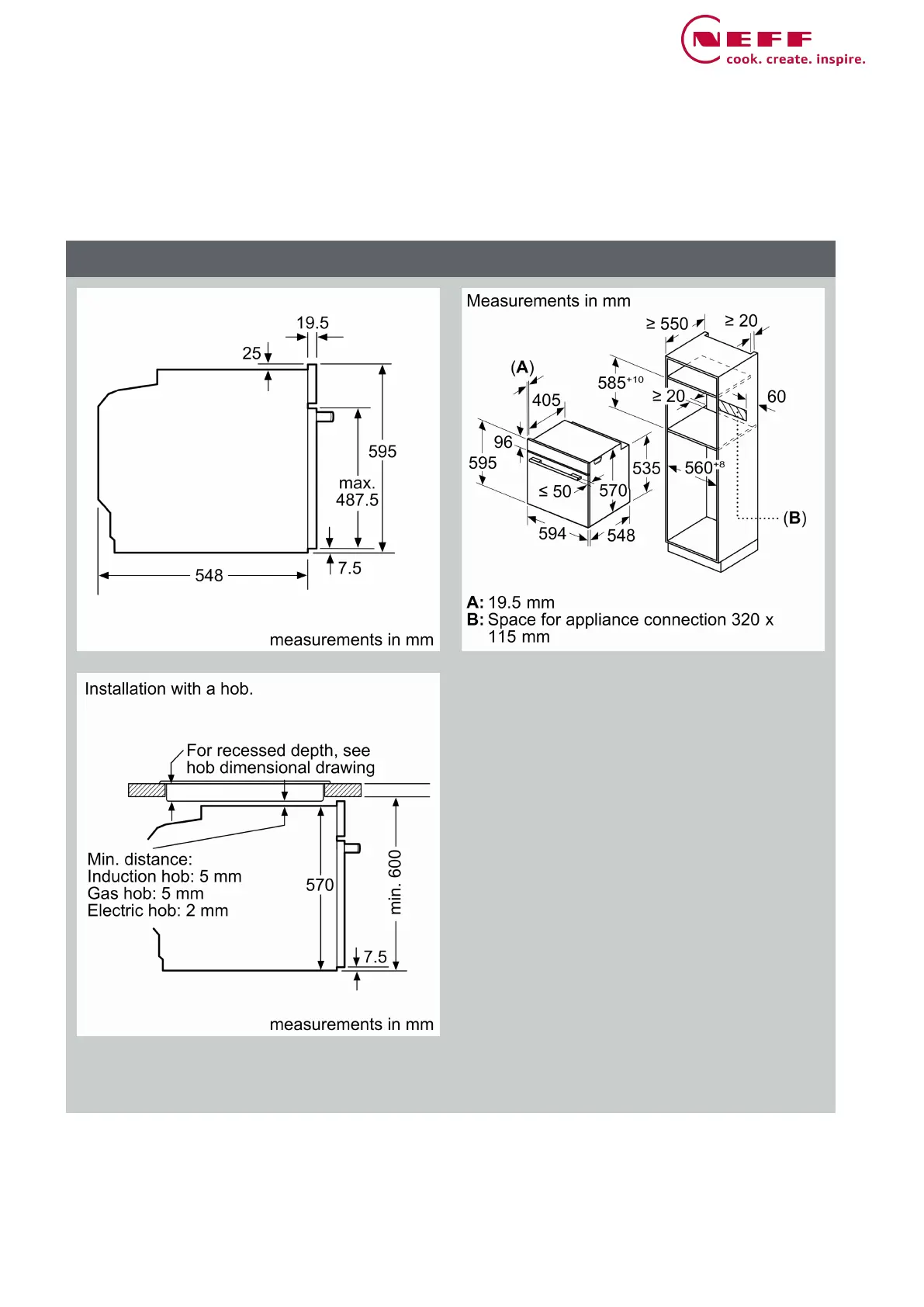

Dimensioned drawings
3 /
