Nubert warrants the Nubert product described in this manual to the purchaser under the following terms and conditions.
The purchaser‘s statutory warranty claims, in particular for subsequent performance and, if applicable, damages in the event of defects, shall remain unrestrictedly with the
purchaser and shall be fully available to our customers.
1. The warranty period for the passive (no active electronic components) Nubert loudspeaker described in this manual is 5 years from the date of delivery.
In the fi rst two years, this applies without restriction. After the second year, the warranty is limited to the functionality of the drivers, connectors and crossover. In particu-
lar, optical changes to surfaces (e.g. in the case of foil-coated, painted, veneered, anodized or plastic surfaces) are no longer covered after the second year. Your proof of
purchase is the proof of guarantee.
2. Contents of the warranty claim
The guarantee applies to all parts and labour costs from delivery. It includes and is limited to the free repair or replacement of the defective part in the event of a material
defect in the goods (e.g. Material defect or manufacturing defect). In addition, Nubert shall bear the costs of the return shipment of the affected product from or to the curb
in the case of justifi ed warranty claims, provided that the goods are within the countries of the European Union and the shipment was previously agreed with Nubert. Ad-
ditional services are possible as a gesture of goodwill in accordance with Nubert’s free discretion. For the duration of the guarantee, it is assumed that the material defect
was already present at the time of transfer of risk. Replaced parts become the property of Nubert. Warranty services do not extend the warranty period, nor do they set a
new warranty period in motion. The warranty period for installed spare parts ends with the warranty period for the entire device. The promise or the execution of warranty
services is made without recognition of a performance obligation according to statutory warranty law.
3. The warranty claim does not apply in the case of
• repair attempts of any kind not previously agreed upon with Nubert
• improper operating environment or improper storage (e.g. damage due to moisture or particularly high or low temperatures)
• improper transport packaging (the original transport packaging, correctly used, provides suffi cient protection)
• improper transport, if the transport was not previously agreed upon with Nubert (Nubert organizes the transport for you with Nubert selected
Transport company. You will receive return tickets with the corresponding postage paid returns).
• improper mechanical effects on the goods (e.g. on housing, switches, connection sockets or antennas)
• improper operation, improper mounting (e.g. switches, antennas) or improper connection (e.g. operation on defective or unsuitable amplifi ers or other source devices
with DC voltage or unusually high hum voltage at the source device output).
4. Disassembled components
Do not disassemble any components from our equipment and do not send in any such individual parts until you have contacted Nubert Service and agreed on this measure.
5. What to do in the event of a warranty claim
If possible, pack the defective device in its original carton with a copy of the purchase receipt and a meaningful description of the defect. Please note our shipping instruc-
tions. Please contact the Nubert team for a return or refund:
• Telephone +49 7171 8712-0 • Fax: +49 7171 8712-345 • E-mail: info@nubert.de
Of course, you can also return your defective product to the Nubert Service in Schwäbisch Gmünd:
Nubert electronic GmbH, Goethestr. 69, D-73525 Schwäbisch Gmünd, Germany.
Shipping information: We recommend that you always keep the original carton, along with the protective foam inserts. Tip: Folding saves space! This is the only way to
ensure a safe return shipment in the worst-case scenario. If, in exceptional cases, you use a different packaging, it should protect professionally against the typical dangers
of shipping and have special protective cushions or equivalent protective devices. We would like to draw your attention to the fact that we accept no liability for damage
caused by improper packaging for which you are responsible!
Disposal and battery return
Environmental protection: Ingredients, e.g. chemical pollutants in old appliances, can damage the environment and health if stored improperly, in particular if they are
not shatterproof or disposed of properly by persons not authorised to do so. Especially in the case of illegal exports, there is no guarantee that the environment and human
health will be protected from damage. Old appliances can also contain recyclable raw materials, old appliances can be repaired or parts can be reused and thus considera-
bly protect the environment. Old appliances must therefore not be disposed of with normal household waste or exported illegally. As an end user, you are legally obliged to
return or properly dispose of electrical equipment.
Batteries:
Ingredients, e.g. chemical type of batteries, can damage the environment and health if not stored and disposed of properly. At the same time, recyclable raw materials may
also be included. Batteries must therefore not be disposed of with normal household waste. As an end user, you are legally obliged to return used batteries. You can return
batteries after use to the seller or in the designated collection points (e.g. in public collection points in your municipality or in the trade) free of charge or send them back
free of charge. You can also send the batteries back to the seller free of charge by post, whereby any requirements of the dangerous goods law must be observed. The sale
at points of sale is limited to the quantities customary for end users for disposal as well as used batteries which the distributor carries or has carried in its product range.
• Battery return
The symbol with the crossed-out dustbin reminds you not to put batteries in the household waste.
Under this symbol you can also fi nd the following symbols with the following meaning about ingredients:
Pb = battery contains more than 0.004 mass percent lead, Cd = battery contains more than 0.002 mass percent cadmium,
Hg = battery contains more than 0.0005 mass percent mercury.
• Old appliances
Electrical and electronic equipment is also marked with the crossed-out wheelie bin symbol. The symbol indicates that you,
as the owner of this appliance, may not dispose of it with your household waste (grey bin, yellow bin, organic waste bin, paper or glass).
You can send the device to the municipal collection points to be collected separately from unsorted municipal waste for reuse. Used batteries and accumulators which are
not enclosed by the waste equipment shall be separated from it at a collection point prior to delivery.
Old appliances can also be returned to us directly in our shops or shipped back to us for disposal. Please send an Email to info@nubert.de for a free return shipping label.
You can also request this by calling +49 7171 8712-0. Please then send the old device to the following address:
Nubert electronic GmbH, Goethestr. 69, D-73525 Schwäbisch Gmünd, Germany.
Please ensure that the old appliance is properly packaged for shipment so that breakage is avoided as far as possible and mechanical compaction or breakage can be ruled
out. The acceptance of waste equipment may be refused if there is a risk to human health and safety due to contamination.
Please note: You are responsible for the deletion of personal data on the waste equipment to be disposed of.
As of: 26.7.2019
Technical changes, errors and misprints excepted. You will fi nd our General Terms and Conditions (AGB) on our website: www.nubert.de/agb.htm
Nubert electronic GmbH
Goethestr. 69
73525 Schwäbisch Gmünd
Germany
Warranty terms
Your provider and contractual partner:
Nubert electronic GmbH, Goethestr. 69, 73525 Schwäbisch Gmünd, Germany
Phone: +49 7171 8712-0 · Fax: +49 7171 8712-345 · E-Mail: info@nubert.de
Managing Directors: Günther Nubert, Bernd Jung · Register court AG Ulm, HRB 700296
Tax ID No.: DE 16758584 · WEEE Reg. No. DE 48888173
For questions and individual advice, please dial our special number:
+49 7171 8712-0
Our hotline is available from:
Monday to Friday from 10:00-18:00 and Saturdays from 9:00-13:00.
E-Mail: info@nubert.de
Hotline: +49 (0)7171 8712-0
www.nubert.de
nuLine RS-54
CERTIFIED
Compact Speaker
Rear Speaker
Dolby Atmos
®
Enabled
up-firing speaker
Safety instructions
Operating manual
Technical data
Warranty terms
22
Thank you very much for choosing
Nubert loudspeakers.
You will be able to set up your system
without any problems if you read these
operating instructions carefully.
We will explain the operation, connection
and installation so that you can achieve
optimum sound quality and fully enjoy
your new speakers!
The Nubert team wishes you
happy listening!
Mounting the Speaker Grille
First, mount the spacers on the grille (see the separate grille mount-
ing instructions!), then carefully mount the grille on the speaker by
lining up the spacers of the grille with the matching rubber receivers
on the loudspeaker and pushing the grille in place. Be careful not to
scratch the speaker!
Licensing information:
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Atmos, and the “double-D“ symbol are
trademarks of Dolby Laboratories.
Low Temperatures and Sound
When speakers are shipped and delivered during the cold months
of the year, it is imperative that they adapt to the temperature of
the living area. Low temperatures have a considerable inuence on
the moving parts of a loudspeaker such as diaphragm, voice coil,
bead and spider. The ability of these components to follow rapid
oscillations or to perform large excursions is thus signicantly re-
stricted. This is not dangerous, but “frozen” speakers are far from
their acoustic peak.
Hence our tip: When your new speakers arrive on a cold winter’s
day, just give them a few hours to acclimatise. Your Nubert speakers
will thank you with the superior sound quality you have come to
expect from us.
Safety Instructions
• Turn off your amplier before connecting the speaker cables
• Make sure the speaker cables are rmly attached
• Place the speaker in a dry location
• Do not place the speaker in direct sunlight
• Overload protection: the nuLine RS-54 has an internal automa-
tic overload protection fuse, but please be aware that small am-
pliers can damage your speakers too. At high sound pressure
levels, small ampliers can start to distort which can damage the
tweeters. If the speakers begin to sound harsh or distorted, turn
down the amplier to avoid damage to your speakers.
Elastic Bumpers (bumpons)
The bumpons provide rm, no-slip footing for your speakers and do
not leave marks or dents.
Do not mount the adhesive elastic bumpers until you are certain
you want to keep the speakers. The supplied brand-name bumpers
use a strong adhesive and are difcult to remove, especially if they
have been attached to the loudspeaker for a longer period of time.
If you wish to remove them, warm them up with a hairdryer or
similar before removing them carefully.
Whether you should use the larger or the smaller bumpers de-
pends on the application. Please see page 4 “Setup”.
2x

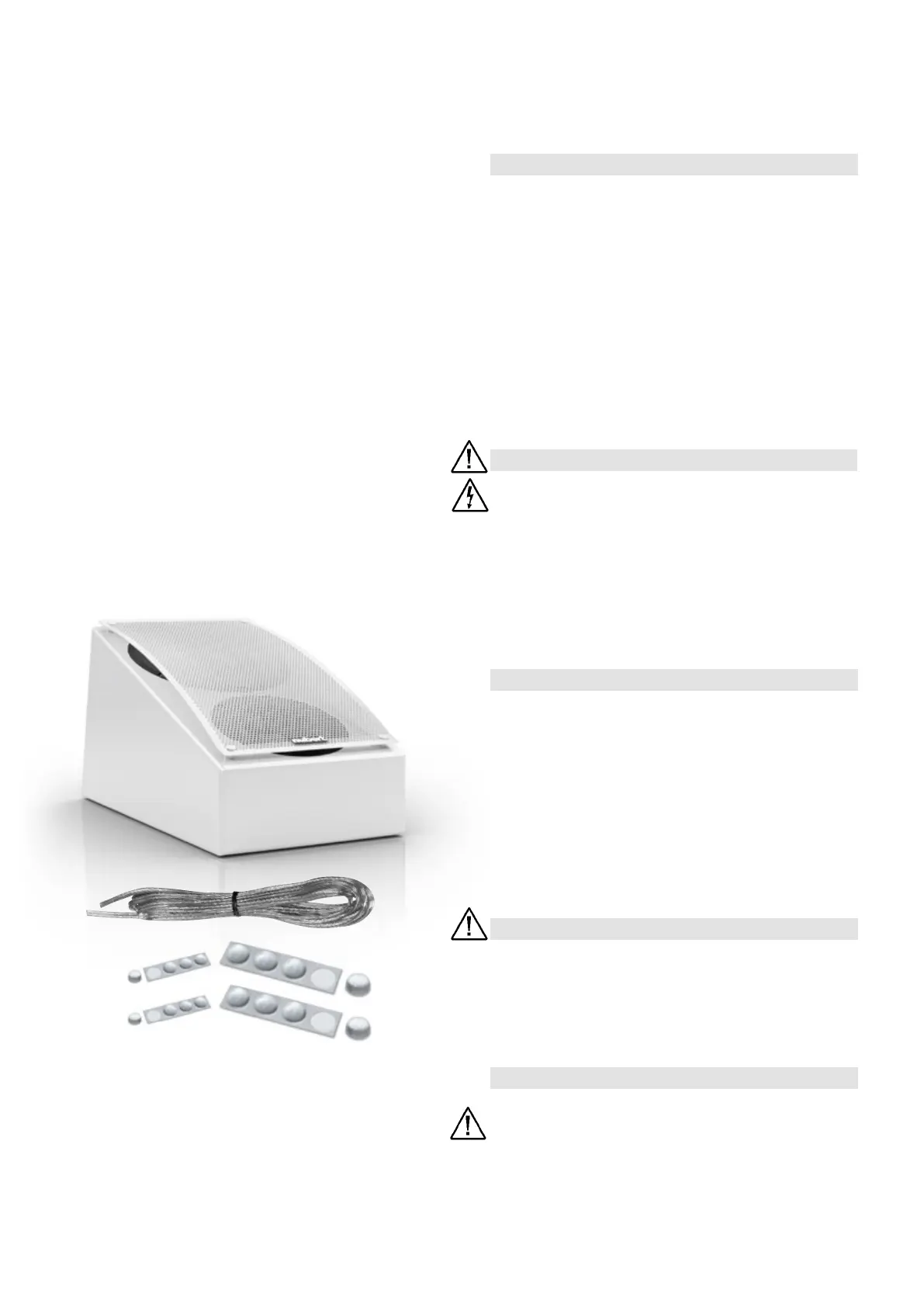

Unpacking and Scope of Delivery
Unpacking
When unpacking your speaker, do not use sharp or pointed ob-
jects to avoid possible damage to the enclosure. Please keep the
packaging in a safe place in case you need to transport the speak-
er at a later date.
Scope of Delivery
If the delivery is complete, it contains the following parts:
• 2 speakers
• 2 metal grilles with mounting kit
• 2 loudspeaker cables 0,75 mm
2
(consider these as „backup“-
cables in case you want to get started and don‘t have any
speaker cables)
• 8 large adhesive bumpers
• 8 small adhesive bumpers
nuLine RS-54
· 09/2020 EN
3 3

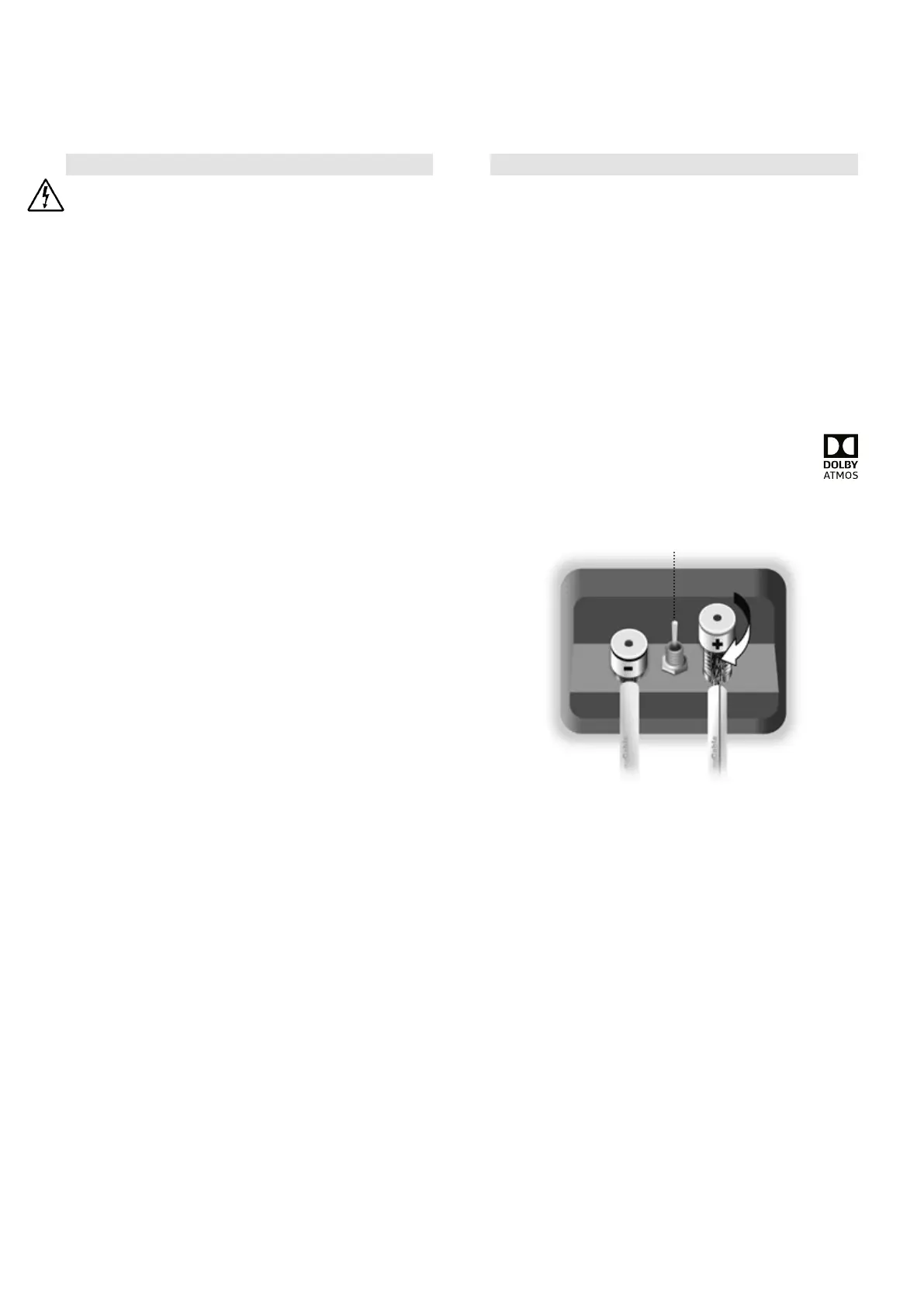

Connections
Please make sure that your amplier/receiver is switched off
before connecting your speakers. For how to connect the speak-
ers to the amplier/receiver, please refer to the equipment‘s user
manual.
Terminal
You will nd the terminal for the speaker cable on the rear of the
speaker (when used in reective mode). The terminal has two bind-
ing posts, one with a red marking for plus and one with a black
marking for minus. Always make sure that plus on the loudspeaker
is connected to plus on the amplier and minus on the loudspeaker
to minus on the amplier. Reversing polarity will not harm your equip-
ment in any way, but the sound will be diffuse and bass-response
and imaging will be very poor. Most loudspeaker cables are marked
to make it easy to discern between plus and minus.
If you want to connect the speaker cable directly without any con-
nectors, remove 8 – 15mm of insulation from the end of the cable
and twist it so that no individual copper-strands stick out (caution:
danger of short-circuit). Loosen the binding post and insert the cable
from below. Tighten the binding post rmly!
Speaker Cables
Thin speaker cables are not a good way to transport the electrical
signal between amplier and speaker.
As such, the supplied speaker cables are to be considered an interim
solution, in case you didn’t order speaker cables with your speakers
and do not have quality cables available.
For the RS-54, we recommend using our nuCable LS 2,5 Studioline
2 x 2,5 mm
2
speaker cable for cable lenghts under 10 m. For longer
cable runs, we recommend the 2 x 4 mm2 nuCable LS 4 Studioline.
Mode Switch
Between the binding posts, you will nd a two-position switch. With
this switch, you optimize the sound of the speaker to either the
direct-radiating compact speaker- or the Dolby Atmos Enabled up-
ring role.
With the switch In the Direkt (direct) position, the RS-54 is a
normal, direct-radiating compact 2-way loudspeaker. Use this
setting if you want to use the RS-54 as your main- or surround-
loudspeakers. (more on page 4 and 5)
Setting the switch to Reektierend (reecting) is recommended
when using the speaker as a ceiling-reecting speaker for immersi-
ve audio formats. This setting changes the frequency response and
dispersion characteristics of the speaker to fulll all Dolby Labo-
ratories requirements for Dolby Atmos enabled up-ring speakers
with Dolby Speaker Technology. The RS-54 is fully tested and cer-
tied by Dolby Laboratories
▲ Direkt (direct)
▼ Reektierend (reecting)
Direct / Reecting mode-switch
EN 09/2020 · nuLine RS-54

Produkspesifikasjoner

Merke: Nubert
Kategori: Høyttaler
Modell: nuLine RS-54

Trenger du hjelp?

Hvis du trenger hjelp med Nubert nuLine RS-54 still et spørsmål nedenfor, og andre brukere vil svare deg


Høyttaler Nubert Manualer

Nubert

Nubert nuZeo 15 Bruksanvisning

11 Februar 2025
Nubert

Nubert nuBoxx A-125 pro Bruksanvisning

11 Februar 2025
Nubert

Nubert nuLine RS-54 Bruksanvisning

1 Februar 2025

Høyttaler Manualer

Nyeste Høyttaler Manualer

JBL

JBL Control 426LP Bruksanvisning

9 April 2025
Crestron

Crestron SAROS ICE4T Bruksanvisning

8 April 2025
Crestron

Crestron SAROS ICI6T Bruksanvisning

8 April 2025
Crestron

Crestron SAROS IC8T Bruksanvisning

8 April 2025
LD Systems

LD Systems STINGER G3 TMB Bruksanvisning

8 April 2025
JBL

JBL Conceal C83 Bruksanvisning

8 April 2025
Focal

Focal K2 Power M FRAK Bruksanvisning

6 April 2025
Turbosound

Turbosound PQ12-SB Bruksanvisning

4 April 2025
Savio

Savio BS-033 Bruksanvisning

4 April 2025
Match

Match UP C42BMW-FRT.3 Bruksanvisning

3 April 2025
