Side 1/8

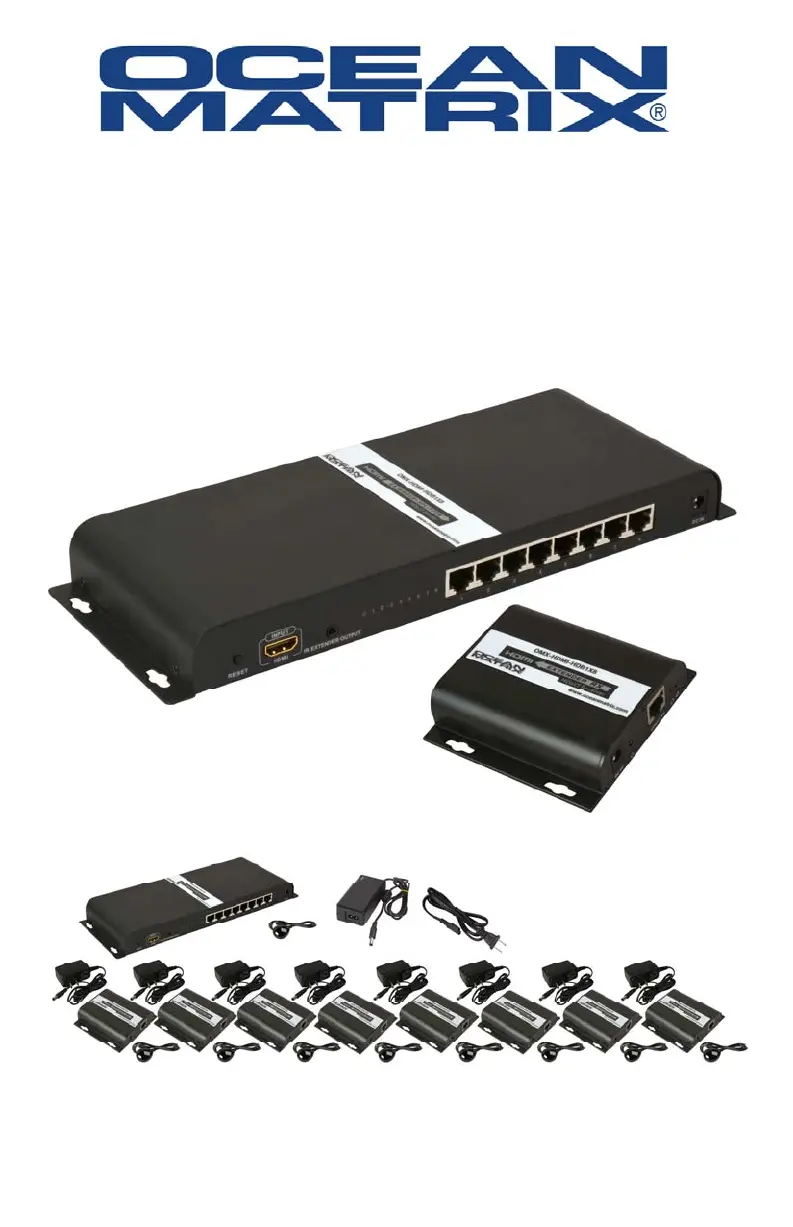

USER MANUAL
OMX-HDMI-HDB1X8
8-port HDMI Splitter Extender over Single Cat5/Cat5e/Cat6
using HDbitT Technology with 8 Receivers
Ocean Matrix
812 Kings Highway · Saugerties, NY 12477
www.oceanmatrix.com
OMX-HDMI-HDB1X8
8-port HDMI Splitter Extender
The Ocean Matrix OMX-HDMI-HDB1X8 Splitter Extender System over
Single Cat6 distributes 1 HDMI source to 8 HDMI displays simultane-
ously. This system extends high definition audio/video transmission be-
yond the standard distances for HDMI cable limitations via HDbitT tech-
nology. The OMX-HDMI-HDB1X8 delivers full 1080P HDMI signal up to
394feet over a single Cat6 network cable. An IR signal transmission
allows for remote control of the source at a secondary location with IR
extension cables.
Includes
One Extender Splitter
Eight Receivers—each receiver includes one IR receiver extension
cable and one 5VDC/1A power adapter
One IR blaster extension cable, connects to transmitter
12VDC/3A power adapter
Specifications
Supported Resolutions 480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz,720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Transport Protocol HDbitT
Transmission Range Full 1080P HDMI signal up to 394 feet
IR Remote Control Supports 20-60kHz standard IR remote controls
Power Supply TX: 12VDC/3A, RX:5VDC/1A
Power Consumption TX: 24W, RX: 3W
Working Temperature 32°F - 140°F (0℃- 60℃)
Dimensions (LxWxH) TX: 11.77x4.36x1.17in(299x110.7x29.6mm)
RX: 3.81x3.70x0.93in (96.8x94x 23.7mm) per unit
Weight Transmitter 0.95 lb., Receiver 0.31 lb. (142g /430g)
HDMI Signal
Compatible with HDCP
Ocean Matrix OMX-HDMI-HDB1X8 Page 2
