INSTRUCTION / INSTALLATION SHEET
evōQ™ 3000 In-Ceiling and In-Wall
Speakers
IS-0242 Rev. D
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 1 of 3
1. Introduction

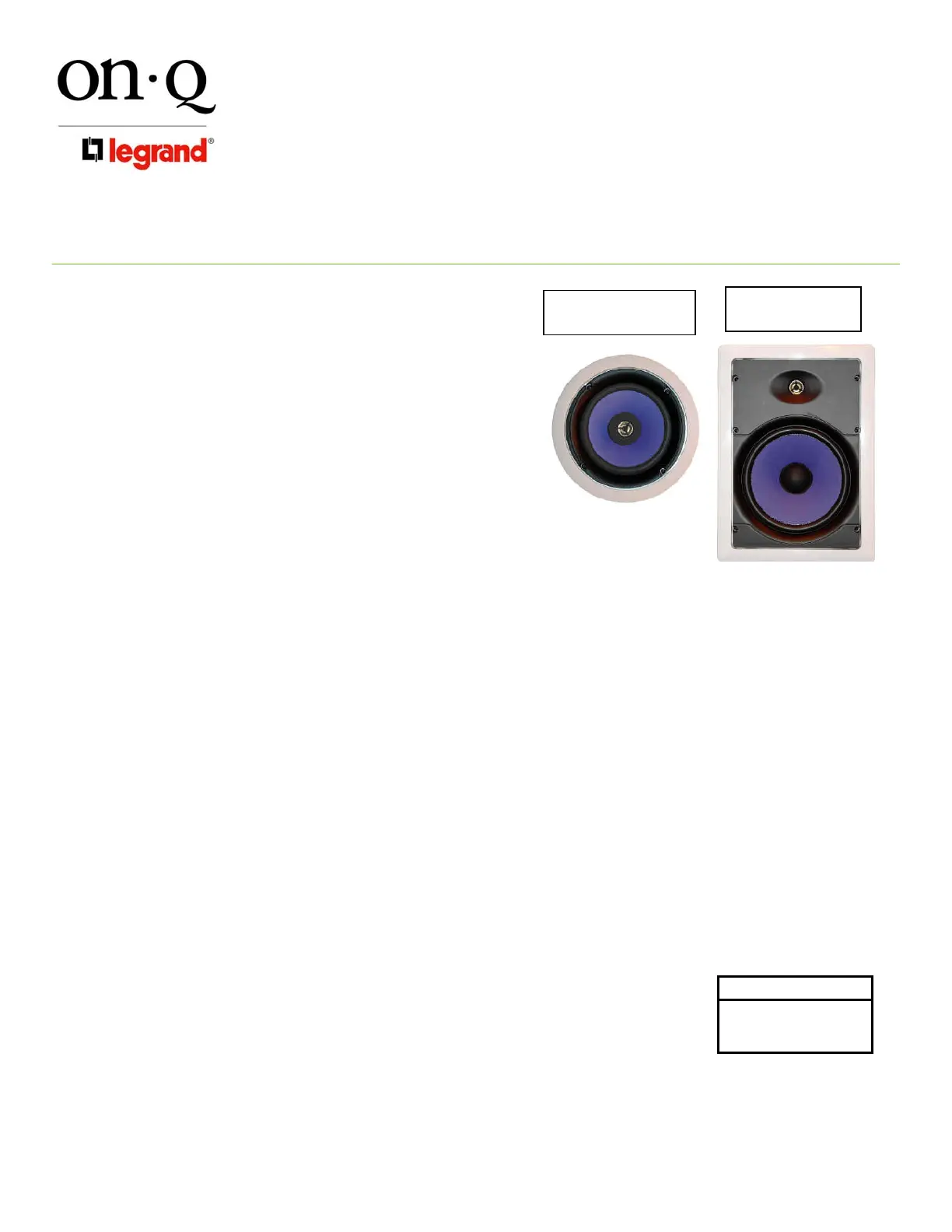

On-Q/Legrand offers both in-ceiling and in-wall styles of
evōQ™ 3000 speakers. These two styles encompass two
(2) sizes and five (5) part numbers (as shown in Figure 1
to the right). The speakers are optimized for audio
distribution (central sound). All models are 2-way speakers
that feature Mica-Fiber woofers and PEI (Polyetherimide)
Mylar tweeters. These speakers come with dual templates
with center markings and paint rings. Optional speaker
pre-construction brackets are available for all models.
(*P/N MS3652, 6.5” In-Ceiling Dual Voice Coil Speaker, is
for reference only and NOT part of this instruction sheet.)
Disclaimer: Make sure you are in compliance with local
building codes before installing these speakers. On-Q
evōQ™ 3000 In-Wall and In-Ceiling Speakers are
suitable for moisture rich environments such as
bathrooms, saunas and outdoor applications.
2. Description
The On-Q/Legrand evōQ™ 3000 speakers are made of a tough semi-flexible plastic frames that feature a
built in foam gasket to minimize vibration and maximize seal-ability. They also feature a perforated metal grill
with an acoustically transparent scrim cloth to enhance the speakers appearance once installed
. All evóQ
speakers, except sub woofers, are paint-able. They also come with painting shields to protect the drivers
while painting. These speakers are suitable for moisture rich environments. They also feature flip out tabs for
easy installation and removal.
3. Installation
Installation of the evōQ™ 3000 speakers is best accomplished at multiple times during new construction, at
“Rough-in” before the drywall is installed, and at “Trim-out” after the drywall is installed and painted.
A. “Rough-in” steps:
NOTE: It is recommended that a minimum of 16 gauge, 2 conductor wire be
used for most applications from the amplifier or volume control to the speaker.
Different gauges can, and should, be used based upon the distance of the
intended run or quality of installation (see Figure 2).
NOTE: All On-Q/Legrand lyriQ™ Audio components accommodate wire gauges
from 18 to 14.
1. Run x/2 conductor (x=gauge preference) stranded speaker wire from the distribution/volume control
to the speaker location (pre-wiring).
Distance Gauge
<10 Feet 18
10-50 Feet 16
>50 Feet 14
Speaker Wire
Gauge Selection Chart
Figure 2
In-Ceiling Style
(
shown w/o
g
rill
)
In-Wall Style
(
shown w/o
g
rill
)
6.5” – P/N MS3650 (pair)
8” – P/N MS3800 (pair)
* 6.5” Dual Voice Coil –
P/N MS3652 (each)
6.5” – P/N MS3651 (pair)
8” – P/N MS3801 (pair)
Figure 1
INSTRUCTION / INSTALLATION SHEET
evōQ™ 3000 In-Ceiling and In-Wall
Speakers
IS-0242 Rev. D
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 2 of 3

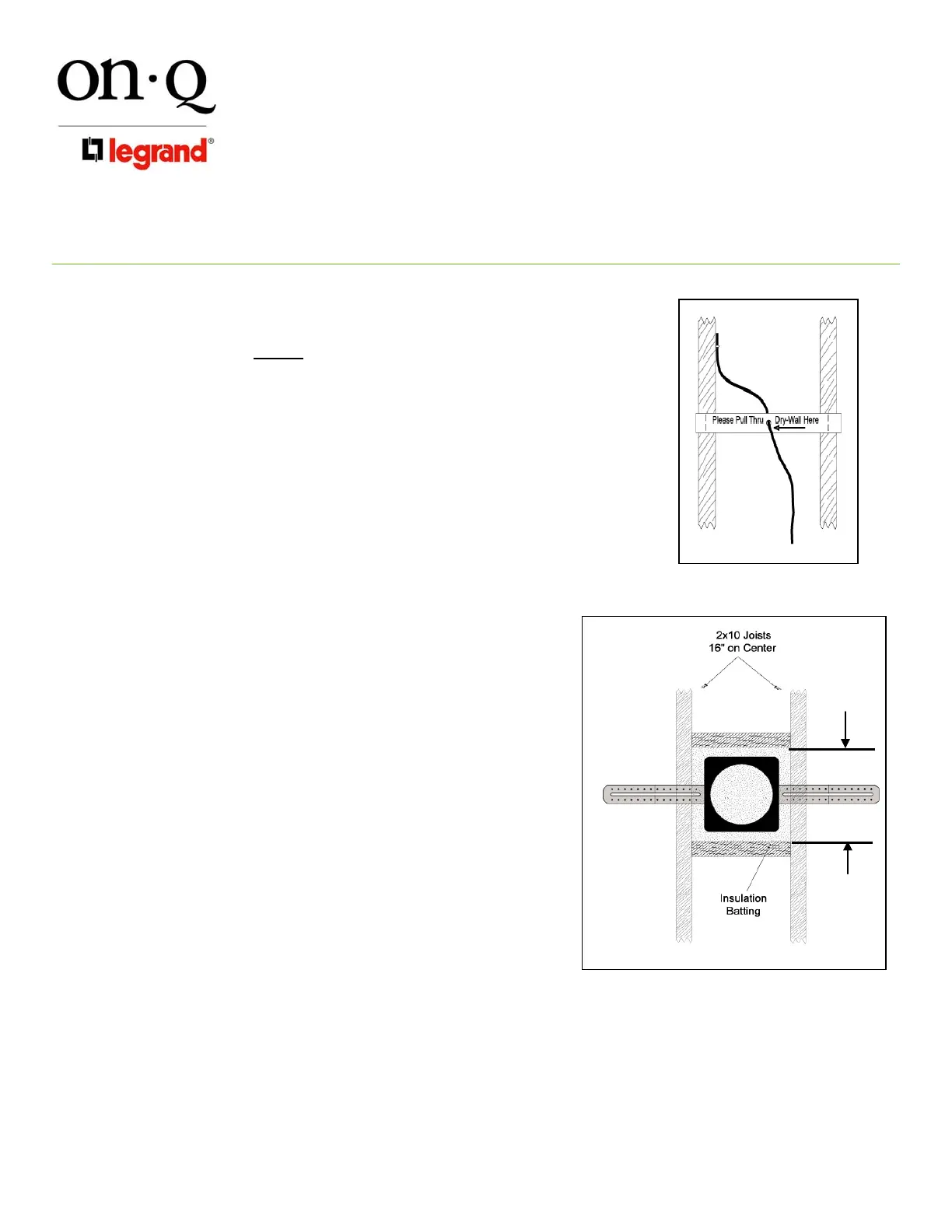

2. If an On-Q Speaker Pre-Construction Bracket is to be used, skip to
Step “5” and refer to IS-0243 for detailed instructions.
3. If pre-wiring without
using the On-Q Pre-Construction Speaker
Brackets, leave 4 to 6 feet of wire at the speakers intended location.
Use a strip of cardboard stapled to the joints/studs with a hole
through it as a wire place holder for the drywall installers if
installation of the speakers is intended (see Figure 3).
4. After drywall and/or painting is complete, push wire through hole,
center template over hole, mark with a pencil and cut out with a dry-
wall knife.
5. When using the On-Q Pre-Construction Bracket (see
Figure 4), leave a coil of speaker wire on top of the
bracket coiled around the speaker mounting hole. There
are clips on the corner of the bracket to secure the
speaker wire. Leave enough speaker wire to be able to
pull the wire through the bracket and comfortably
connect the wire to the speaker after the drywall is
installed. Strip off 3 inches or so of the speaker cable
jacket to expose the positive and negative insulated
wires. Strip 3/8-1/2 inch of insulation off of these
conductors.
6. It is recommended to place insulation behind the
speaker to provide some damping for the woofer driver.
This will yield the best possible sound. On-Q
recommends using poly-encapsulated insulation such as
Johns Manville Comfort Therm®. If a defined, consistent
sound is desired from both speakers in a space, blocking
can be installed to yield the ideal cubic footage for each
driver. Insulation would then be put in this space during
speaker installation. Refer to blocking chart for
details.
7. If installing speakers in a space with an attic above it is
recommended that the speakers be boxed in with 1/2 inch
MDF (medium density fiber board) or plywood with
insulation installed. This will provide a defined acoustic
space and protect the speaker. The best possible sound
will be achieved by doing this. Refer to the blocking
chart for details.
Note: Make sure you are in compliance with local building codes before installing this speaker in
an attic space.
Figure 4
Figure 3
Blocking
Distance
INSTRUCTION / INSTALLATION SHEET
evōQ™ 3000 In-Ceiling and In-Wall
Speakers
IS-0242 Rev. D
301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 3 of 3
B. “Trim-out” steps:
1. After drywall and/or painting is complete, push the speaker wire
through hole, center template over hole, mark with a pencil and cut
out with a dry-wall knife.
2. Hold the speaker with one hand, (if speaker grill is off, pay careful
attention not
to push on the woofer’s cone, this can cause
permanent contortion of the voice coil, thus producing a
mechanical rubbing sound or speaker failure), push in the speaker
terminal connectors and insert wires; remove speaker grill. Be
sure to have the positive wire in the RED terminal and the negative
wire in the BLACK terminal.
NOTE: Wiring both speakers identically as the above instruction
states will yield speakers that are “in phase”. If one speaker is
wired opposite of the other, the speakers will be “out of phase”
with one another. If the speakers are “out of phase” the sound
might appear smeared (canned) and a significant loss of bass
might be noticeable due to phase cancellation. Make sure every
installed speaker is correctly phased.
3 Use one hand to push the speaker into the cut out (again, pay
careful attention not to push on the woofer’s cone, this can cause
permanent contortion of the voice coil, thus producing mechanical
rubbing sound or speaker failure) and the other to turn the screws
that engage the installation tabs (see Figure 5). Tighten the tabs in
a cross or X-pattern until “snug”. Be careful not to over tighten the
tabs or damage could result. The speaker should appear flush to
the surface.
NOTE: If using a cordless drill/screwdriver, it is suggested that
the screws be turned until almost tight, then finish tightening via
a hand screwdriver.
NOTE: A strip of grill adhesive is provided to more securely
attach the speaker grills on final installation. Simply insert several
short strips evenly around the grill slot prior to insalling the grill
cover.
6.5" Speaker (0.7 CuFt) Blocking Distance
16" on Center, 2x4 24.00"
16" on Center, 2x6 15.25"
16" on Center, 2x8 11.50"
16" on Center, 2x10 9.00"
16" on Center, 2x12 7.50"
24" on Center, 2x4 15.50"
24" on Center, 2x6 10.00"
8" Speaker (2.1 CuFt) Blocking Distance
16" on Center, 2x4 71.50"
16" on Center, 2x6 45.50"
16" on Center, 2x8 34.50"
16" on Center, 2x10 27.00"
16" on Center, 2x12 22.25"
24" on Center, 2x4 46.00"
24" on Center, 2x6 29.50"
evōQ™ Speaker Blocking
Chart
Figure 5
evōQ™ 3000 evōQ™ 3000 evōQ™ 3000 evōQ™ 3000
Size/Type 6.5" In-Ceiling 6.5" In-Wall 8" In-Ceiling 8" In-Wall
Efficiency 91dB 91dB 91dB 91dB
Power (RMS/Peak) 50W/100W 50W/100W 75W/150W 75W/150W
Frequency
Response
60-20K 60-20K 50-20K 50-20K
Woofer Type Mica Fiber Mica Fiber Mica Fiber Mica Fiber
Tweeter Type PEI Mylar PEI Mylar PEI Mylar PEI Mylar
Drywall Hole Size 7.75” dia. 7.5” x 10.75” 9.5” dia. 8.75” x 12.75”
Speaker
S
p
ecifications

Produkspesifikasjoner
