Side 1/4

OSRAM

PICOLINE

FREEDOM FOR NEW IDEAS

THERE IS LIGHT. AND THERE IS OSRAM.

LIGHT FOR THE TIGHTEST OF SPACES.

ECONOMICAL, VARIABLE

PICOLINE

EL batten

luminaires with energy-

saving fluorescent lamps

can be easily installed

in the tightest of spaces

thanks to their compact

super-slim format. The

ECG and lamp form a fixed

unit that is integrated in

the luminaire. They are

mounted in their holders

so they can rotate, which

means you can change

from direct to indirect light

in an instant.

The luminaires come

complete with switch,

cable and Euro connector,

ready for connection.

HIGH-QUALITY LIGHT

Fully electronic operation

thanks to the integrated

ECG provides a high level of

lighting comfort with instant

flicker-free starting and

flicker-free light at all times

with no annoying hum.

The LUMILUX

INTERNA

light colour provides a

pleasant light with good

colour rendering properties.

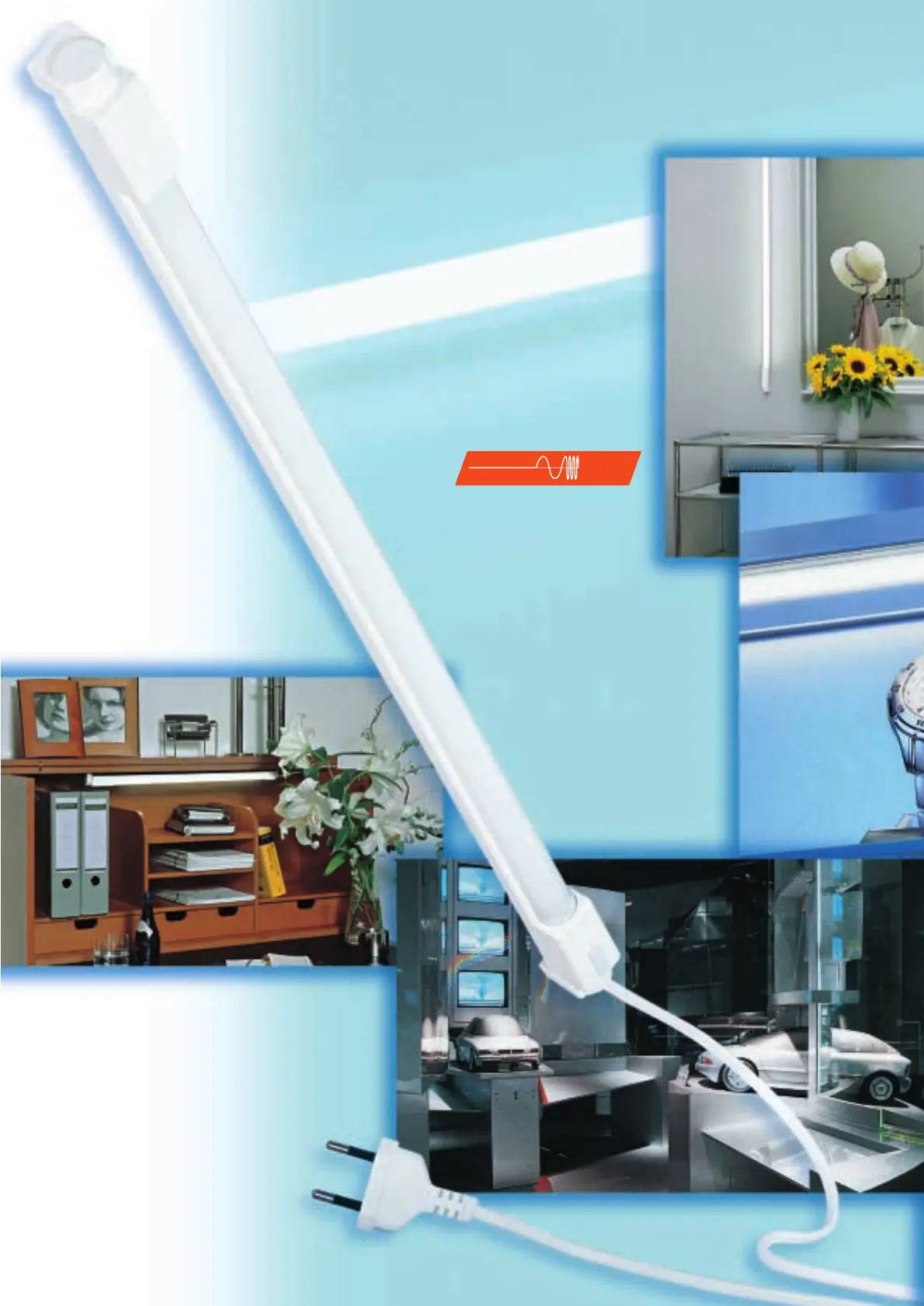

SO EASY TO INSTALL

The PICOLINE

EL batten

luminaire is held in place

by two clips. Simply use the

drilling template supplied

to mark and drill two holes,

fit the mounting clips,

clip the luminaire in place

and plug in the mains

connector – done!

r la

life

rt lig

tro

y s

vin

lic

r fre

k s

AND EASY ON THE EYE.

PICOLINE

EL 21 W – SLIM

AND EASY TO INSTALL.

IDEAL FOR PROFESSIONAL

APPLICATIONS

PICOLINE

EL 21 W is

equipped with the innova-

tive OSRAM FH

T5 fluores-

cent lamp system.

lamps are up to 20%

more economical than

conventional T8 fluorescent

lamps. With a rating of just

21 W, the FH

lamp in

PICOLINE

can produce a

luminous flux of 2100 lumen.

And as an added benefit it

has an extremely long life

of up to 20,000 hours.

Because it is so compact

and can provide a lot of light

in the tightest of spaces it is

ideal for cabinets, shelving,

display panels and much

more. The PICOLINE

21 W has a cross-section

of just 22.5 x 24 mm.

At 990 mm long it will fit the

usual 1 m grid. This slimline

batten luminaire is therefore

perfect for professional

applications such as shop

fitting, trade fair displays,

retail shelving and office

furniture.

PICOLINE

EL 8 AND 13 W –

MINIATURE BATTEN LUMI-

NAIRES FOR THE HOME

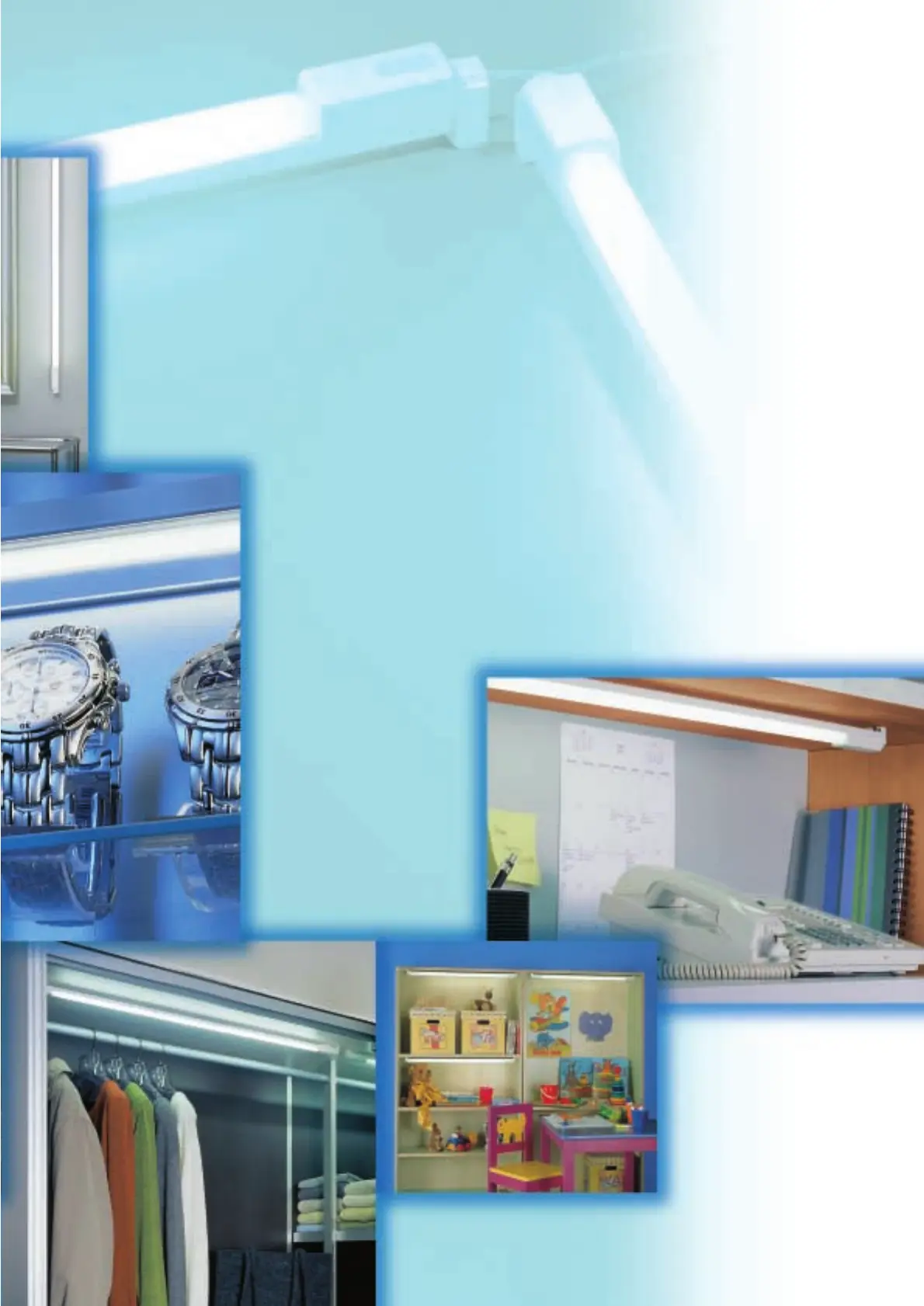

Wherever you need light

in your home but space is

at a premium, PICOLINE

8 W and 13 W and their

LUMILUX

INTERNA fluore-

scent lamps provide plea-

sant warm light. The 8 W

model is just 374 mm long,

and the 13 W model is only

602 mm long. Both have a

very small cross-section of

21 x 24 mm so they will fit

in such tight spaces as

bookcases, wall units, hi-fi

racks, display cabinets

and so on.

Produkspesifikasjoner

Merke:	Osram
Kategori:	belysning
Modell:	PICOLINE EL 8 W
Bredde:	21 mm
Dybde:	- mm
Høyde:	30 mm
Pakkevekt:	220 g
Lengde:	37.4 cm
Lysstrøm:	450 lm
Fargetemperatur:	2700 K
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Hvit
Pakkehøyde:	63 mm
Pakkebredde:	25 mm
lys farge:	Varm hvit
Antall pærer:	1 ampuller
Kroppsmateriale:	Polykarbonat (PC)
Internasjonal beskyttelses (IP)-kode:	IP20
Av/på-bryter:	Ja
Beskyttelsesklasse:	II
Montasjetype:	Skap
Lampestyrke:	8 W
Levetid, pære:	8000 timer
Kompatibel pære type:	Fluorescent
Pære(r ) inkludert:	Ja
Etterbehandlingstype:	Matte
Erstatningspære med maks. wattstyrke:	8 W
