Side 1/2
Radio Replacement Interface for
Select Toyota / Lexus / Scion Vehicles
RP3.2-TY11
© 2017 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
C
Page 1
Rev. 103117
Introduction & Features
Important Notes
The RP3.2-TY11 allows for replacement of the factory radio in select Toyota / Lexus / Scion vehicles and will retain the
factory amplier. The harness also provides connections for: vehicle speed signal (VSS), reverse trigger, parking brake,
and plug-n-play connection (SWI-DIRECT) for the addition of a steering wheel control interface (SWI-RC or SWI-CP2).
1. These instructions only apply to R.2.1.1.4 or later revisions of the product. The revision info can be found on a small white
sticker on the interface and packaging.
2. The VSS, Reverse, and Parking Brake wires will only provide signals if the vehicle’s harness is equipped with these wires.
3. Adjustment of the vehicle settings through the original radio’s vehicle settings menu will be disabled after installation of your
new radio. It is advised to make sure all settings are as you desire prior to removal of the original radio.
4. Does not retain the ability to fade through the aftermarket radio. The fade setting is only controlled by a dial on the interface.
5. Does not retain Rear Seat Entertainment.
6. The CAM-TY11 or CAM-TY12 must be purchased in order to retain the factory reverse camera. Please refer to www.pac-
audio.com to see which harness you will need. If the required harness is not available, it is possible to hardwire the reverse

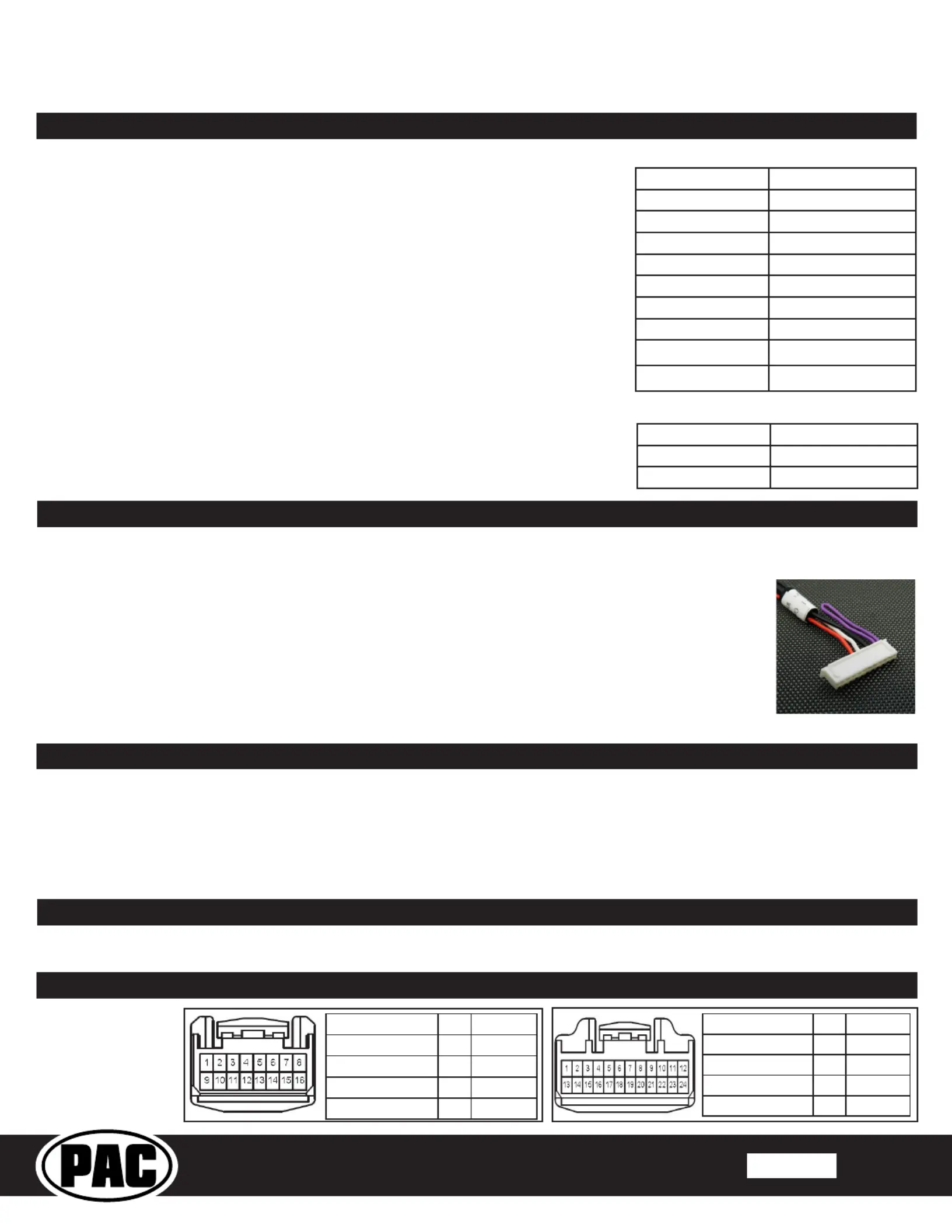

camera using the information provided in Appendix A on Page 2.
Vehicle Connectors
Module Layout
Vehicle Connector
Interface Port
USB Port
Factory Amplier
Gain Adjustment
Factory Amplier
Fade Adjustment
Status LED
The RP3.2-TY11 requires connections of 2 of the 4 vehicle connectors. The additional connectors will remain unused on the
harness. Any additional radio harnesses in the vehicle that do not plug into one of the vehicle connectors shown above, will
not be used. Below you will nd the typical combinations needed for most vehicles.
Combination 1
Typical 2004 to 2013
Vehicle Connector 1 Vehicle Connector 3
Combination 2
Typical 2014 to 2017
Vehicle Connector 2 Vehicle Connector 4
Vehicle Connector 4
Vehicle Connector 1
Vehicle Connector 2 Vehicle Connector 3
