Side 1/11
User manuals in various languages (français, italiano, español, português, nederlands,
türk, polski) can be found via our product search on:
www.pce-instruments.com

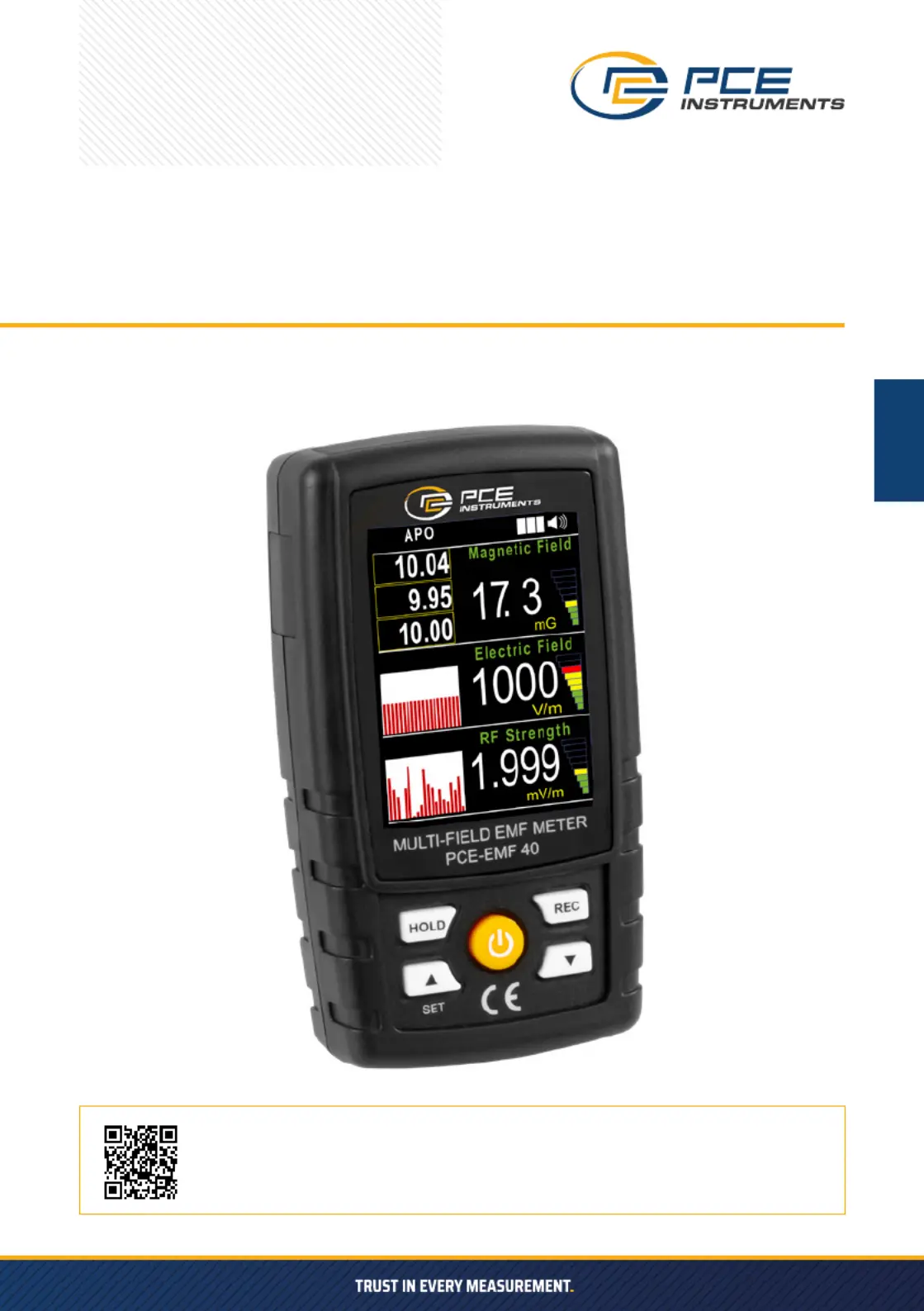

PCE-EMF 40
USER MANUAL
ENGLISH
MAGNETOMETER
2
»RF application :
For electromagnetic eld strength measurement including mobile phone base station antenna radiation,
RF power measurement for transmitters, wireless LAN ( Wi-Fi ) detection/ installation, wireless
communication applications ( CW, TDMA, GSM, DECT ) and microwave leakage.
»RF power measurement Range/Resolution :
Frequency range : 50 MHz to 3.5 GHz.
30.0 mV/m to 11.00 V/m, 0.1 mV/m, 0.01 V/m.
0.02 uW/cm2 to 32.09 uW/cm2 0.01 uW/cm2, 0.1 uW/cm2.
2.3 µW/m2 ~ 320.9 mW/m2, 0.1, 1 µW/m2 0.1 mW/m2
0.07 mA/m to 29.17 mA/m 0.01 mA/m 0.1 mA/m.
»LF application :
The EMF tester ( LF ) is designed to provide user a quick reliable and easy way to measure
electromagnetic eld radiation levels around power line , home appliances and industrial devices.
»Magnetic Fields Measurement range/Resolution :
Frequency range : 50 Hz to 60 Hz.
mG : 200.0 to 2000, 0.1 mG, 1 mG.
uT: 20.00 to 200.0, 0.01 uT, 0.1 uT.
»Electric Fields Measurement range/Resolution :
Frequency range : 50 Hz to 60 Hz.
50 V/m to 2000 V/m, 1 V/m.
»2.4“ TFT LCD display to easy reading :
Light weight and small size case design are suitable for handling with
one hand.
»Wristlet design provides extra protection to the instrument especially for user one hand operation.
»Built- in microprocessor circuit assures excellent performance and accuracy.
»Concise and compact buttons arrangement, easy operation.
»Memorize the maximum and minimum value with recall.
»Hold function to freeze the current reading value
»Power Supply DC 1.5V, UM4-AAA battery x 3 PCs.
1. FEATURES
3
2-1 General Specications
2. SPECIFICATIONS
Display LCD view size : 2.4 TFT LCD
Measurement EMF ( Electromagnetic eld tester )
Band width RF:50...3.5 MHz, LF: 50/60 Hz
Number Axes Single Axis
Operating
Humidity
Max. 80% RH
Operating
Temperature
0 to 50 °C ( 32 to 122 °C )
Over Input
Display
Indication of „- - - - „
Data Hold Freeze the display reading
Memory Recall Maximum & Minimum value
Sampling Time of Display Approx. 1 second
Power Supply DC 1.5V ,UM4-AAA battery X 3 PCs ( DC 4.5 V
battery )
Power
Consumption
Approx. DC 26 mA...49 mA
( 0-3rd-order LCD Backlight brightness )
Power o Auto shut o saves battery life or manual o by
push button.
Weight 160g (battery included)
Dimension HWD 107 x 45 x 20 mm (4.2 x 1.8 x 1.2 inch).
Standard
Accessory
Instruction Manual
Optional
Accessories
Soft carrying case, CA-05A.
