Side 1/8

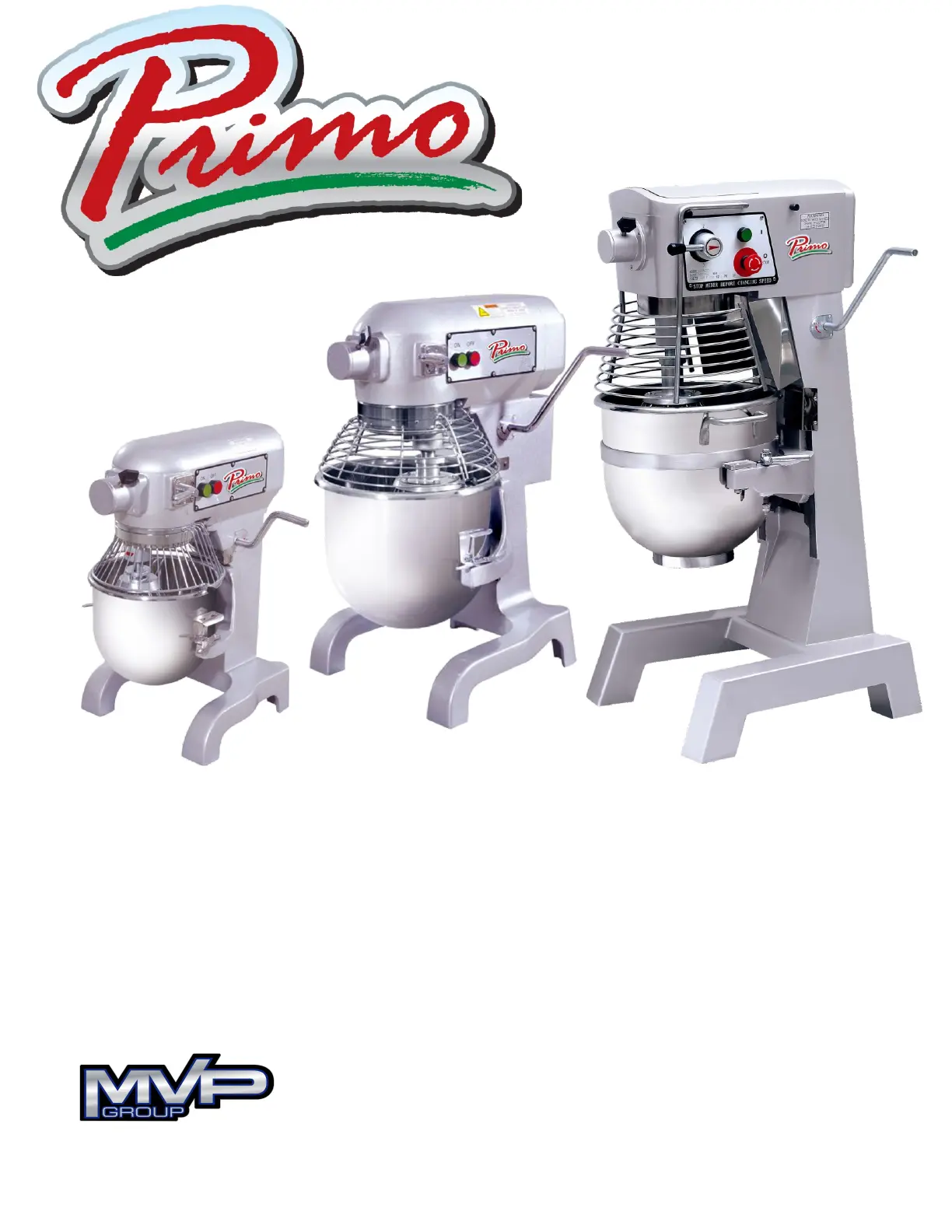

Primo Mixer Manual
FOR OPERATOR - DO NOT DISCARD
PM-10 PM-20
PM-30
3560 NW 56th St.
Fort Lauderdale, FL 33309 USA
Telephone: (786) 600-4687
Toll Free Telephone: 1-844-218-8477
Fax: (786) 661-4100
Email: service@mvpgroupcorp.com
5659 Royalmount Ave.
Montreal, QC H4P2P9 CANADA
Telephone: (514) 737-9701
Toll Free Telephone: 1-888-275-4538
Fax: (514) 342-3854
For service call 1-888-275-4538
2
IMPORTANT NOTES AND INSTRUCTIONS
TAKING POSSESSION OF YOUR MIXER
Examine your new mixer for any shipping damage. Report any such damage to the carrier for
compensation. Every mixer has left the factory fully tested and inspected. Shipping damage
which may occur during transit is the responsibility of purchaser.
Move the crated unit as close as possible to its permanent location. When ready to uncrate,
carefully remove all crating. Carefully place the mixer to a permanent position.
Unit must be installed on a solid, level surface.
INSTALLATION NOTES:
Please ensure that during shipping none of the components have loosened.
Select a location for the mixer keeping these points in mind:
-Floor or counter must be level.
-Easy access for maintenance and service.
-Clearance for operating controls, installing and removing agitators, bowl, or attachments.
-Sufficient space for adding ingredients during mixing periods.
TO AVOID SERIOUS PERSONAL INJURY:
ALWAYS install equipment in work area with adequate light and space.
ONLY operate the mixer on a solid, LEVEL, non-skid surface.
NEVER bypass, alter, or modify this equipment in any way from its original
condition. Doing so my create hazards and will void warranty.
DO NOT attempt to lift or move the mixer alone, it takes two persons to move
it.
PM-10 & PM-20
The outlet must be 110 Volts and 15 Amps (NEMA 5-15). It should be on a
dedicated circuit, and the electrical installation should be grounded. The circuit
breaker protecting this line should be adequately sized to protect the wires. The
line on which the unit is connected should not operate anything else. The use of
an extension cord is prohibited Never cut the ground pin of the plug.
PM-30
The outlet must be 110 Volts and 20 Amps (NEMA 5-20). It should be on a
dedicated circuit, and the electrical installation should be grounded. The circuit
breaker protecting this line should be adequately sized to protect the wires.
TO AVOID SERIOUS PERSONAL INJURY:
DO NOT remove the bowl guard.
DO NOT operate the mixer before reading the instruction manual first.
ALWAYS disconnect or unplug electrical power before cleaning, servicing, or
adjusting any parts or attachments.
ALWAYS keep hands, hair, and clothing away from moving parts.
www.mvpgroupcorp.com
2017-04
3
Emergency
Stop Button
Start
Button
Speed
Lever
Bowl
Lift
Safety
Cage
PM-10
PM-20
ATTACHING THE BOWL TO THE MIXER
NOTE: Install the bowl BEFORE attaching the
agitators.
1. Lower the bowl by pulling the bowl lift lever forward
and down to its resting position
2. Lift the bowl by the bowl handles and slowly
position the locking pin (located on the rear of the
bowl) into the hole in the middle rear of the cradle.
Lower the bowl onto the pins located on either side of
the bowl cradle.
3. Once the bowl is positioned on the cradle, secure
the bowl by pulling each bowl clamp
forward until the bowl is locked tight.
ATTACHING THE AGITATOR TO THE MIXER (i.e., Beater, Hook, Whip)
NOTE: It is easier to install the agitator prior to adding the ingredients into the bowl.
1. Rotate the safety cage to the left so it rests in the open position(tilt up for PM-30).
Excessive force used to open and close the safety cage may damage the spring lock and
safety cage micro-switch, and will void the warranty.
2. Slide the agitator slowly upwards onto the agitator shaft fitting the shaft pin through the
slot in the agitator.
3. Rotate the agitator clockwise to secure it onto the agitator shaft.
www.mvpgroupcorp.com
2017-04
