Side 1/9
P
R
I
NC
E
C
A
STL
E
LLC
W O R L D W I D E
Operating
Instructions
355 East Kehoe Blvd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Fax: 630-462-1460
Toll Free: 1-800-PCASTLE
www.princecastle.com
197-538rev -ENGPrinted in USA © 201009/2018
P
R
I
NC
E
C
A
STL
E
LLC
W O R L D W I D E
Vertical Contact Toaster
296 & 297 Series
Electrical Specifications
Table of Contents
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 – 8
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Volts Hz Watts Amps
230 60 1700 7.5
110/120 60 1500 15.5
220 50/60 1700 7.5
Limited Warranty
This product is warranted to be free from defects in
material and/or workmanship for a period of 1 year from
date of original installation, not to exceed 18 months
from the date of manufacture.
Any component which proves to be faulty in material
and/or workmanship will be replaced or repaired (at the
option of Prince Castle, Inc.) without cost to the
customer for parts and labor. This warranty covers on
location service (i.e. trip charges and/or mileage). Travel
mileage is limited to 100 miles (200 Kilometers) round
trip (one trip warranty) from an authorized service
agency or its sub-service agency.
This warranty is subject to the following exceptions/
conditions:
• Use of any non-genuine Prince Castle parts voids
this warranty.
• All labor to be performed during regular work hours.
Overtime premium (the incremental amount) will be
charged to the customer.
• Damage caused by carelessness, neglect and/or
abuse (e.g., dropping, tampering or altering parts,
equipment damaged in shipment, by fire, flood or an
act of God) is not covered under this warranty.
• All problems due to operation at voltages other than
that specified on equipment nameplates are not
covered by this warranty. Conversion to correct
voltage is the customer’s responsibility.
• This equipment must be serviced by Prince Castle
Authorized Service Agency or a Prince Castle
Service Technician during the warranty period.
• Normal adjustments as outlined in this manual are
not covered under warranty.
• Motors that fail due to the lack of monthly lubrication
will not be covered under warranty.
Printed in USA © 201009/2018
2
197-538rev -ENG

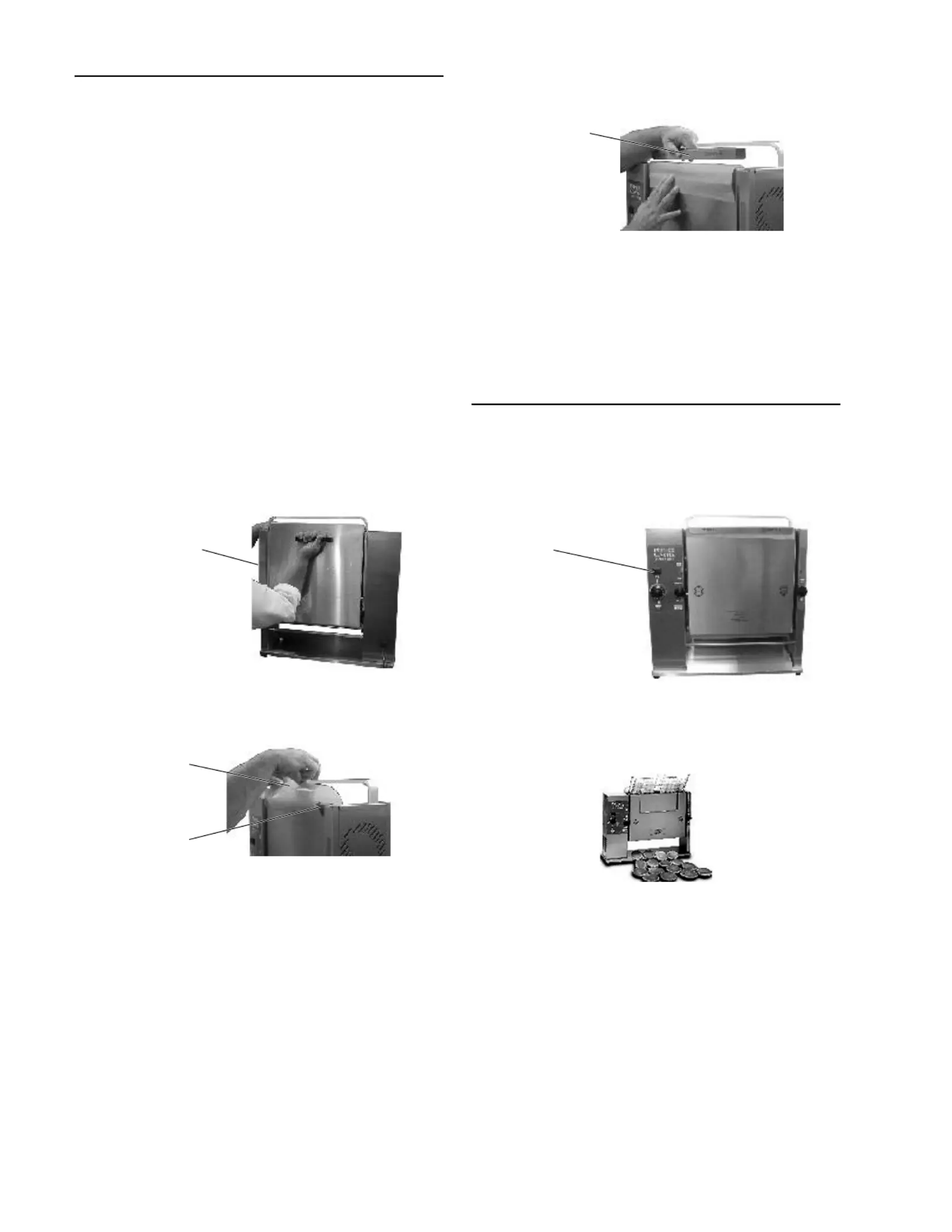

Installation
1. After you have removed the toaster from the carton,
inspect the unit for signs of damage. If there is damage
to the unit:
• Notify carrier within 24 hours after delivery.
• Save carton and packing material for inspection
purposes.
• Contact your Prince Castle dealer or the
Prince Castle Customer Sales Department at
1-630-462-8800 if purchased directly.
2. Verify that all parts have been received.
• Slim-Line Bun Toaster and conveyor assembly.
• Release Sheet Kit — located in a 14" box.
• Crumb Tray — taped to the front of the conveyor.
3. Place toaster on flat surface. Remove protective
covering.
4. Lift conveyor off conveyor guide rails and set aside.
Remove all packing materials (nylon tape, foam block,
plastic coating on sheet metal, and black rubber
packaging spacers) from conveyor and conveyor
guides.
Figure 1
5. Place the Teflon sheet over the top of the platen
housing, making sure to have three inches of overhang.
Figure 2
6. Slide the release sheet holding bracket onto the top of
the platen housing.
Figure 3
7. Attach conveyor to the toaster by sliding the four pins
(conveyor slides) on the conveyor housing into the four
conveyor guides. Lower the conveyor housing until it is
securely in place.
8. Hook the back end of the crumb tray onto the bar
located below the conveyor assembly.
9. Plug unit into a grounded receptacle.
Operation
1. Turn the Power switch to the “On” position. The orange
indicator light will illuminate. Allow 30 minutes for platen
to reach operating temperature.
Figure 4
2. Place a sample run of the product being toasted into
the top of the conveyor housing. The side to be toasted
should face the platen.
Figure 5
3. The toasted product will be dispensed automatically
from the bottom of the conveyor assembly.
4. Verify that product meets acceptable standards. If not,
see adjustment section.
Conveyor Guides
3-inch Overhang
Release Sheet
Holding Bracket
Power Switch
197-538rev -ENG
3
Printed in USA ©09/2018 2010

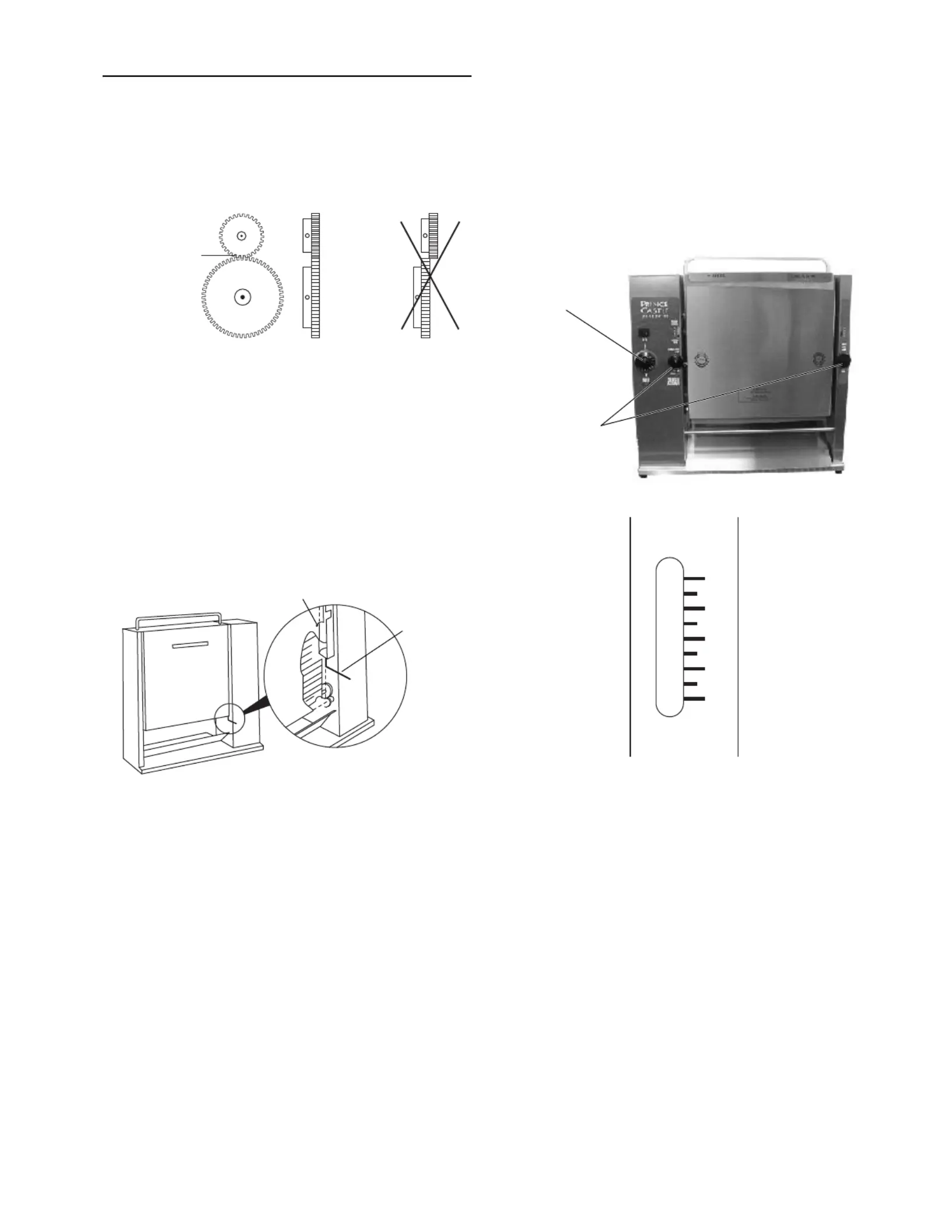

Adjustments
Conveyor and Motor Gears:
There will be a 1/64" clearance between the conveyor gear
and motor gear when properly aligned. Improper alignment
will cause the conveyor to periodically bind.
Figure 6
1. Working from the “back side” of the toaster, loosen the
2 setscrews at the bottom of the conveyor guide until
they are even with the conveyor stop. Note: the
conveyor assembly may need to be removed for easier
access.
2. Use the Allen Wrench to tighten the left setscrew (end
housing side) until the setscrew just touches the
conveyor slide.
Figure 7
3. Tighten the right setscrew (motor housing side) until
the bottom of the conveyor housing is parallel to the top
of the base.
4. Carefully tighten each setscrew another 1/2 turn.
5. Remove the conveyor assembly.
6. Apply a drop of wicking grade thread locking fluid to
each setscrew.
7. Replace conveyor assembly.
Bun Compression:
The toaster platen can be adjusted to provide the necessary
compression needed on various products.
• Turn the two platen adjustment knobs clockwise to
compensate for use on thicker bread products. Turn
the two platen adjustment knobs counterclockwise
for thinner products. The numbers on the front of the
end and motor housing will indicate the settings, 1 for
thinnest product, 5 for thickest.
Figure 8
Figure 9
Platen Temperature:
The temperature of the platen can be adjusted to
compensate for darker or lighter toasting requirements.
• Turn the thermostat adjustment knob clockwise for
darker toasting. Turn the thermostat adjustment knob
counterclockwise for lighter toasting.
IMPORTANT:
Allow 15 minutes for toaster to stabilize after
adjusting the thermostat.
Tools Needed: 3/32" Allen wrench
Wicking grade thread locking fluid
1/64" Clearance
Gears
Properly
Mesh
Top of the #10-32 Setscrew
Both Sides
3/32 Hex
Head Key
Thermostat Knob
Platen Adjustment
Knobs
THICKER
5
4
3
2
1
THINNER
