Side 1/5

SF116

v1.2

SF116 16-port switch for 16 IP cameras

Edition: 4 from 29.01.2019

Supercedes the edition: 3 from 06.06.2018

Features:

 Switch 16 ports

16 PoE ports 10/100Mb/s (data transfer

and power supply)

2 ports 10/100/1000 Mb/s (G1/TP, G2/TP ports) (UpLink)

2 ports 10/100/1000Mb/s SFP (G1/SFP, G2/SFP ports)

(UpLink)

 30 W for each PoE port, supports devices complaint with

the IEEE802.3af/at (PoE+) standard

 Supports auto-learning and auto-aging of MAC addresses

(16K size)

 LED indication

 Additional assembly elements

 warranty – 2 year from the production date

Example of use.

1. Technical description.

1.1. General description.

SF116 is a 16-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.

Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 8 ports of the switch. The G1/TP

and G2/TP ports is used for connection of another network device via RJ45 connector. The switch is fitted with SFP slots

(marked as G1/SFP and G2/SFP), the use of fiber optic module (GBIC) allows fiber optic transmission.The operating status of

the device (described in the table below) is displayed on the LED display on the front panel.

The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a

separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access

point or router.

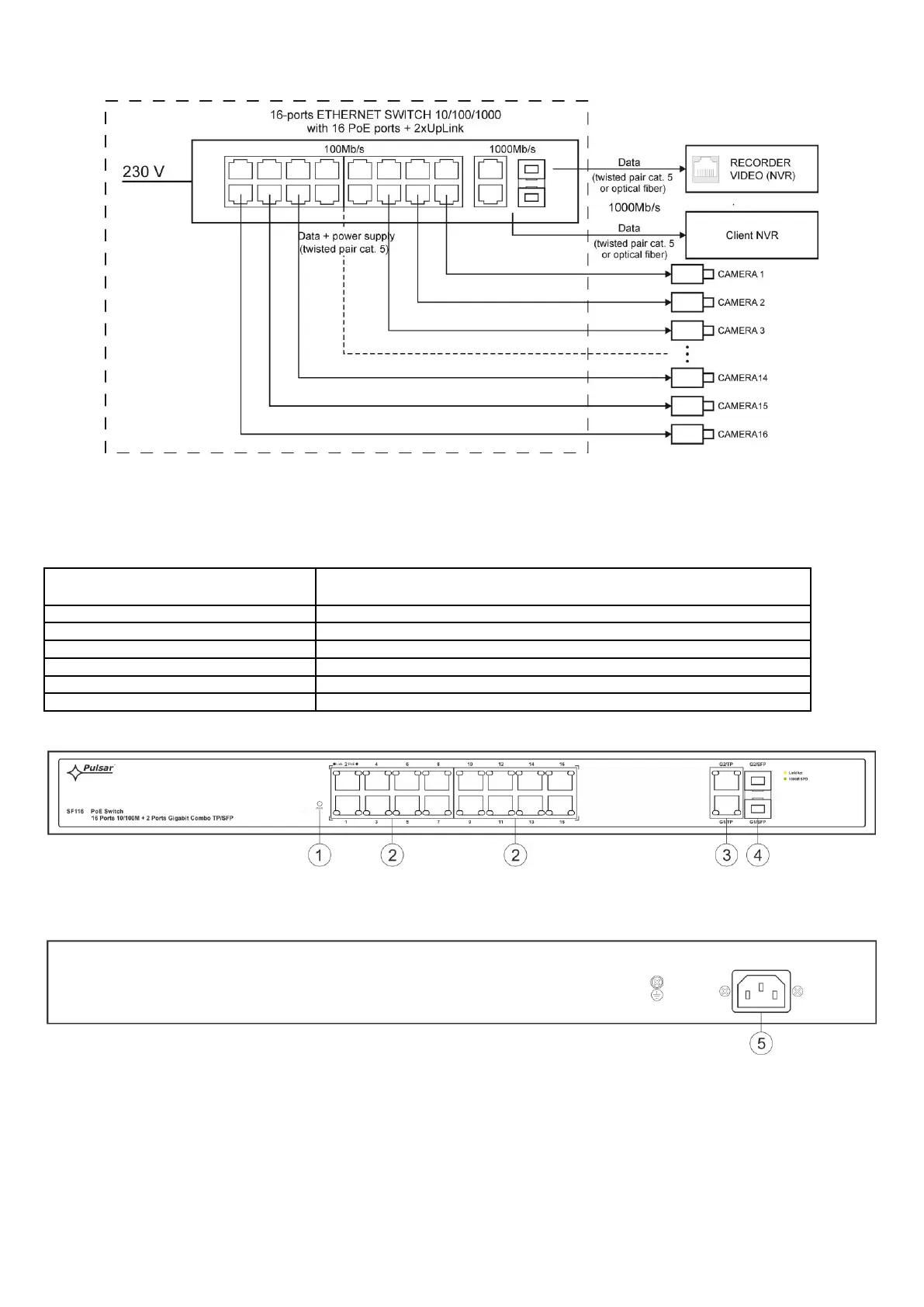

1.2. Block diagram.

Fig. 1. Block diagram.

1.3. Description of components and connectors.

Table 1. (see Fig. 2, 3 and 4)

Element no.

(Fig. 2)

Description

[1]

LED indication

[2]

16 x PoE port (1÷16)

[3]

2 x UPLINK ports (G1/TP, G2/TP)

[4]

2 x UPLINK ports (G1/SFP, G2/SFP)

[5]

Power Socket of the 230 V

[6]

Additional mounting elements

Fig. 2. The front power of the switch.

Fig. 3. Rear panel of the switch.

Fig. 4. The view switch'a.

1.4. Technical parameters

Table 2.

Ports

16 x PoE (10/100Mb/s) (RJ-45)

2 x UpLink (10/100/1000Mb/s) (RJ-45)

2 x UpLink (10/100/1000Mb/s) (SFP)

with connection speed auto-negotiation and MDI/MDIX Auto Cross)

PoE power supply

IEEE 802.3af/at (1÷16 ports), 52 V DC / 30 W at each port *

Used pairs 1/2 (+), 3/6 (-)

Protocols, Standards

IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP

Bandwidth

14,8Gbps

Transmission method

Store-and-Forward

Optical indication of

operation

Switch power supply

Link

PoE Status

Power supply

~100-240 V; 50/60 Hz; 3 A

Operating conditions

temperature -10°C ÷ 40°C,

relative humidity 5% - 90%, no condensation

Dimensions

W=442, H=44, D=224 [+/- 2mm]

Additional equipment

bracket for Rack 19”

Cable length AC

1,2m

Net/gross weight

2,7 / 3,1kg

Protection class

EN 60950-1:2007

I (first)

Storage temperatur

-20°C ÷ 60°C

Declarations

* The given value of 30 W per port is the maximum value. The total power consumption should not exceed 160 W.

Produkspesifikasjoner

Merke:	Pulsar
Kategori:	Ikke kategorisert
Modell:	SF116
Vekt:	2700 g
Bredde:	442 mm
Dybde:	224 mm
Høyde:	44 mm
LED-indikatorer:	Link, Power, Status
Pakkevekt:	3100 g
Nettverksstandard:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X:	Ja
10G støtte:	Nei
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Sort
Driftstemperatur (T-T):	-10 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Formfaktor:	1U
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Relativ luftfuktighet under drift (H-H):	20 - 90
Rack-montering:	Ja
Svitsjtype:	Håndtert
Antall Basic switching RJ-45 Ethernet-ports:	16
Basic switching RJ-45 Ethernet ports-type:	Fast Ethernet (10/100)
Størrelse på adressetabell:	- oppføringer
Ruting/svitsjekapasitet:	14.8 Gbit/s
Strømforsyning medfølger:	Nei
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt per port:	30 W
Power over Ethernet (PoE)-ports, antall:	16
Strømforsyning via Ethernet/Power over Ethernet (PoE):	52 V
Innput-strøm:	3 A
Gigabit Ethernet (kobber) antall porter:	2
Rack-montert sett:	Ja
SFP module antall spor:	2
