I n n o v a t i o n G e r m a n E n t e r p r i s e s .K n o w - H o w . Q u a l i t y . D e s i g n .

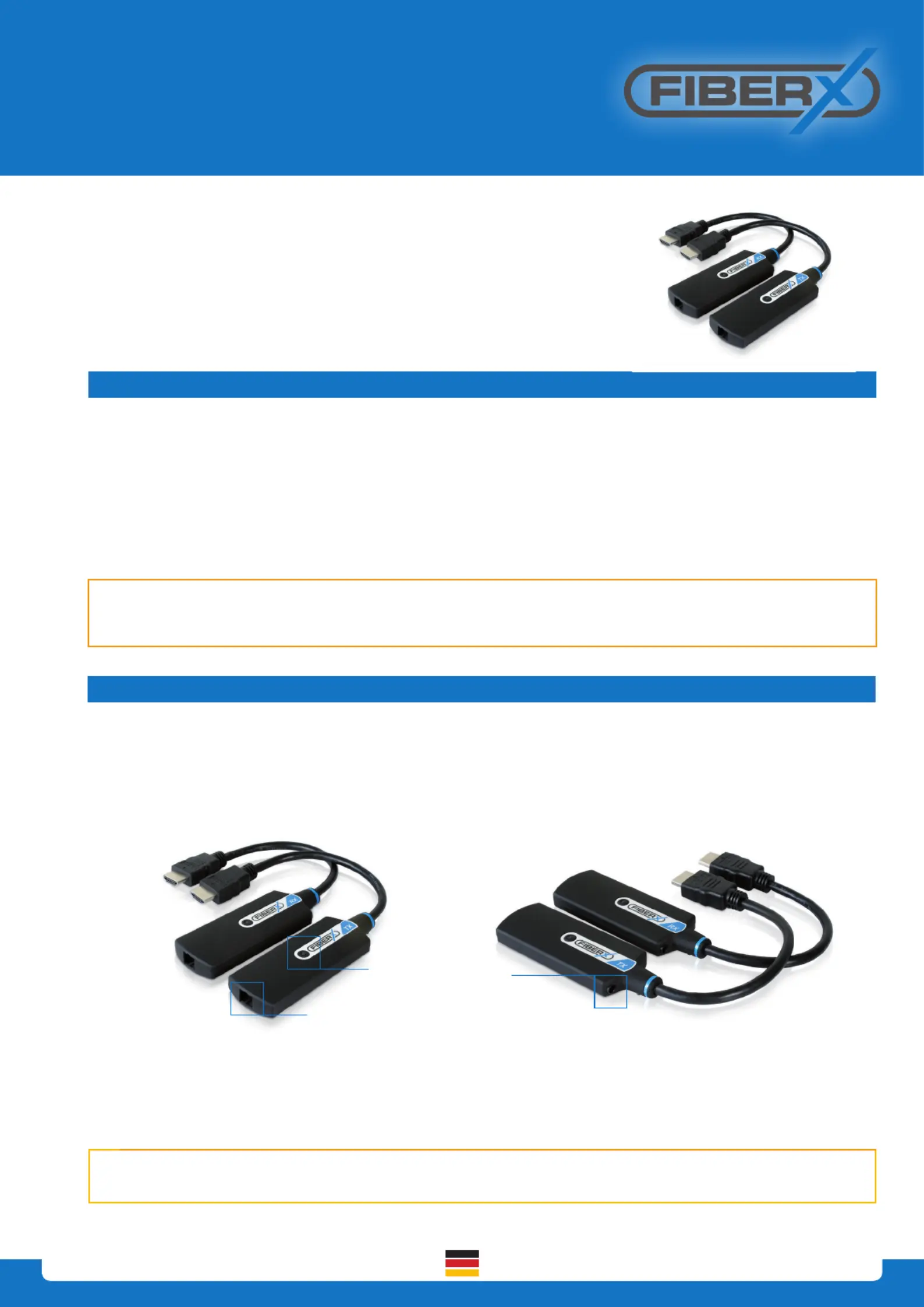

FiberX HDMI Optical Extender Pigtail User Guide

FX-P320

Thank you for purchasing FX-P320

The optical HDMI pigtail extender with HDCP support extends HDMI sig-

nals up to 300m using single strand multi-mode optical ber cable. It sup-

ports resolutions up to FullHD (1920x1080) and WUXGA (1920x1200).

Package Contents

Please make sure all of the following items are included in the package:

1 FX-P320 Transmitter & Receiver

2 +5V DC Power supply x 2pcs

3 User Guide

If any of the above items are missing, please contact your supplier for support.

Note: Package content may dier if you have placed a special order or placed order from anywhere other than

PureLink GmbH. PureLink GmbH reserves the right to make changes without further notice to a product de-

scribed herein to improve reliability, design, packaging or function.

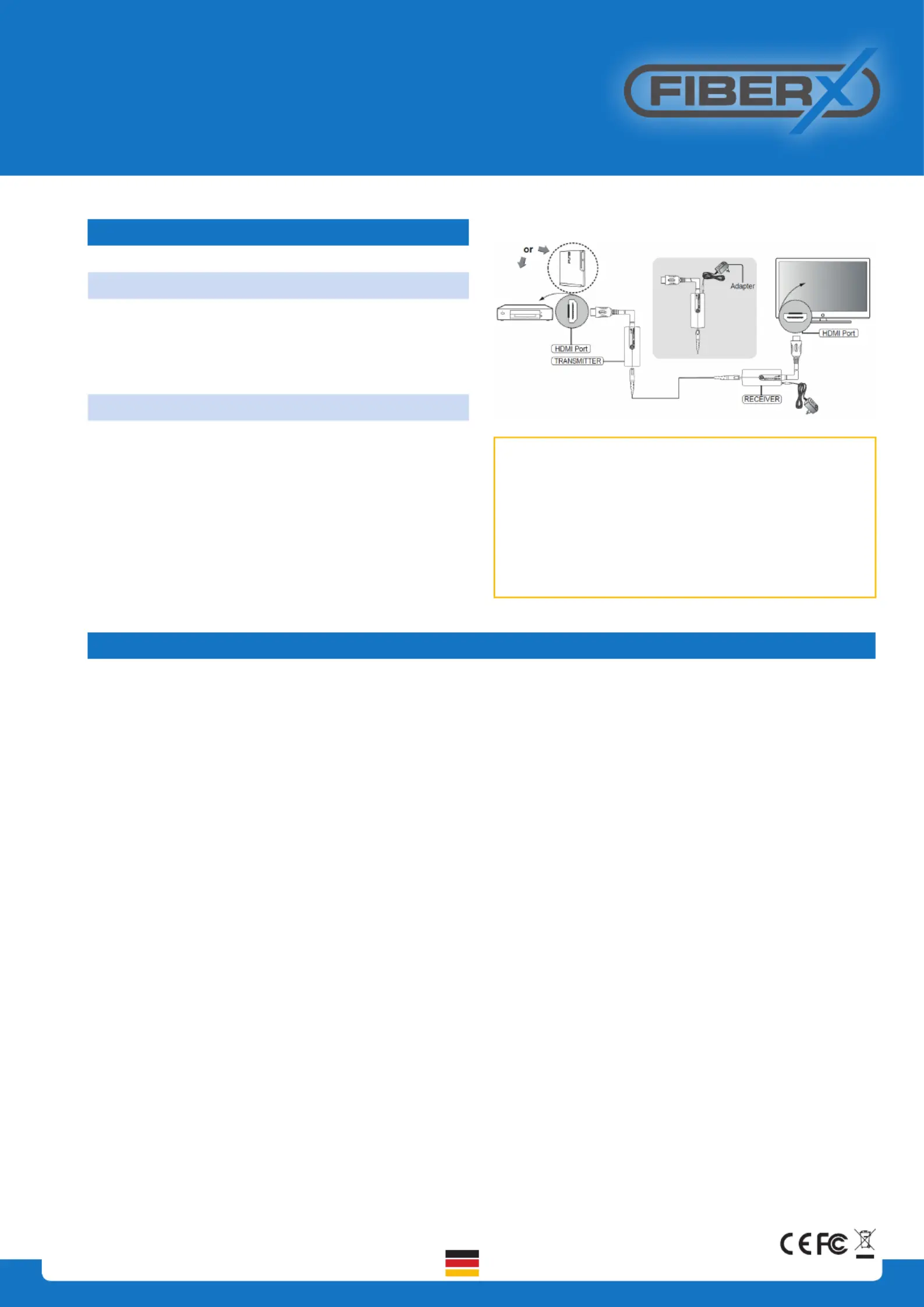

Installation

Installation Steps:

1. Connect product transmitter to the HDMI port on your source device.

2. Connect product receiver to the HDMI port on your digital display device.

3. Connect Multi-mode SC type 1 Channel standard ber-optic cable between transmitter and receiver.

4. Connect power adapter to the receiver which has been provided. *Connection of the power

adapter is otional (in case source device cannot supply full voltage from HDMI alone)

5. The Green LED will appear on the transmitter and receiver, after all the product connections

are completed.

Note: The Transmitter and the Receiver modules must be connected to the included power supplies for proper

operation. Transmitter module must be powered on rst.

LED indicator

DC +5V

Power jack

SC type optical port

Produkspesifikasjoner

Merke:	PureLink
Kategori:	AV ekstender
Modell:	FX-P320
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	1900 x 1200 piksler
Sertifisering:	CE, FCC
Materiale:	Aluminium
Fargedybde:	12 bit
Utgangsstrøm:	2 A
Båndbredde:	225 MHz
Dimensjoner (B x D x H):	300 x 33 x 12 mm
Driftsspenning:	5 V
AC-inngangsspenning:	100 - 240 V
Produktfarge:	Sort
Støttede videofunksjoner:	1080p
Driftstemperatur (T-T):	0 - 50 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 70 °C
Modell/Type:	AV-sender og -mottaker
DC-inngangskontakt:	Ja
AC-adapter bunt:	Ja
Største båndbredde for port:	3.5 Gbit/s
Maksimal overføring avstand:	300 m
Strømforbruk (sender) (maks):	1.3 W
Kraftforbruk (mottaker) (max):	1.1 W
HDCP & EDID bypass:	Ja
