www.radialeng.com
Radial Engineering Ltd.
1638 Kebet Way, Port Coquitlam BC V3C 5W9
Tel: 604-942-1001 Fax: 604-942-1010
email: info@radialeng.com
BigShot SW2
Owner’s Manual
True to the Music
Radial BigShot SW2 users guide v1.0 - Part #: R870 1165 00
Subject to change without notice
BigShot SW2 User Guide
Radial Engineering Ltd.
LIMITED THREE YEAR TRANSFERABLE WARRANTY
Radial Engineering Ltd. (“Radial”) warrants this product to be free from defects in
material and workmanship and will remedy any such defects free of charge according
to the terms of this warranty. Radial Engineering will repair or replace at its option any
defective component(s) of this product, excluding the finish, the footswitch (footswitch
is warranted for 90 days) and wear and tear from normal use, for a period of three
(3) years from the original date of purchase. In the event that a particular product
is no longer available, Radial Engineering reserves the right to replace the product
with a similar product of equal or greater value. To make a request or claim under
this limited warranty, the product must be returned prepaid in the original shipping
container (or equivalent) to Radial Engineering or to an authorized repair centre and
you must assume the risk of loss or damage. A copy of the original invoice showing
date of purchase and the dealer name must accompany any request for work to be
performed under this limited warranty. This limited warranty shall not apply if the product
has been damaged due to abuse, misuse, misapplication, accident or as a result of
service or modification by any other than an authorized repair centre.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE
HEREOF AND DESCRIBED ABOVE. NO WARRANTIES, WHETHER EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE
OF THREE YEARS.
RADIAL ENGINEERING SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING
FROM THE USE OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY
DEPENDING ON WHERE YOU LIVE.
BigShot SW2 User Guide
Radial Engineering Ltd.
1
2
3
REMOTE-1 - This ¼” jack out-
puts the switching signal when
switch R-1 is depressed.
9VDC - connection jack for
standard 9 volt power adaptors
(center tip negative).
REMOTE-2 - ¼” jack outputs
switching signals when R-2
switch is depressed.
LATCH/PULSE - Selects the
type of switching signal be-
tween latching contact type and
electronic pulse.
OPEN/CLOSED - Selects
between two switch states;
normally open, or normally
7
6
closed for compatibility with
different switching schemes.
R-1 - heavy-duty footswitch with
LED status indicator. Triggers
switching signal at REMOTE-1
output when depressed.
LINK - Three position switch
allows either footswitch to act
as a master and control both
outputs. This enables the SW2
to toggle two different devices
simultaneously by depressing a
single switch.
R-2 - heavy-duty footswitch with
LED status indicator. Triggers
switching signal at REMOTE-2
output when depressed.

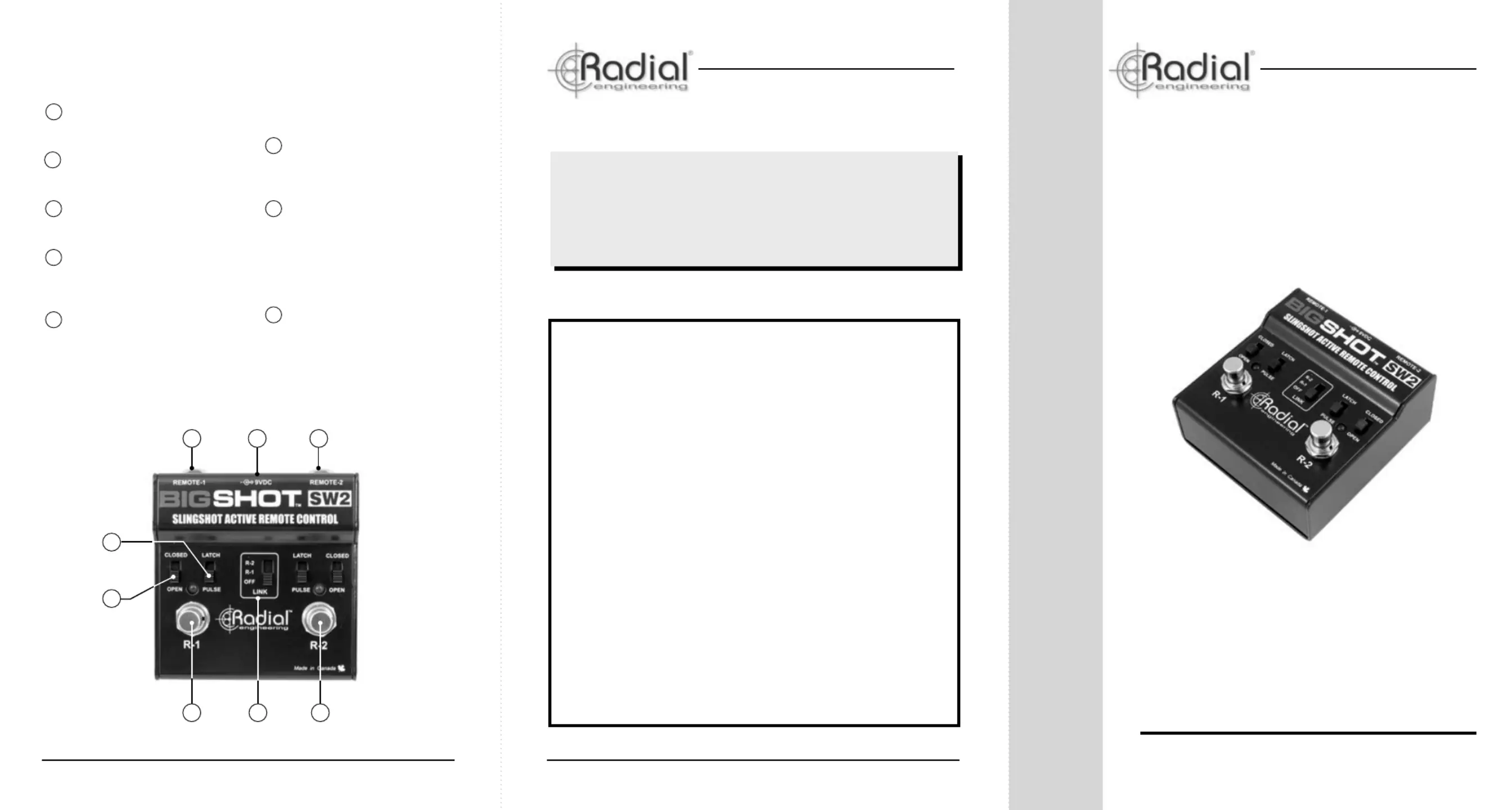

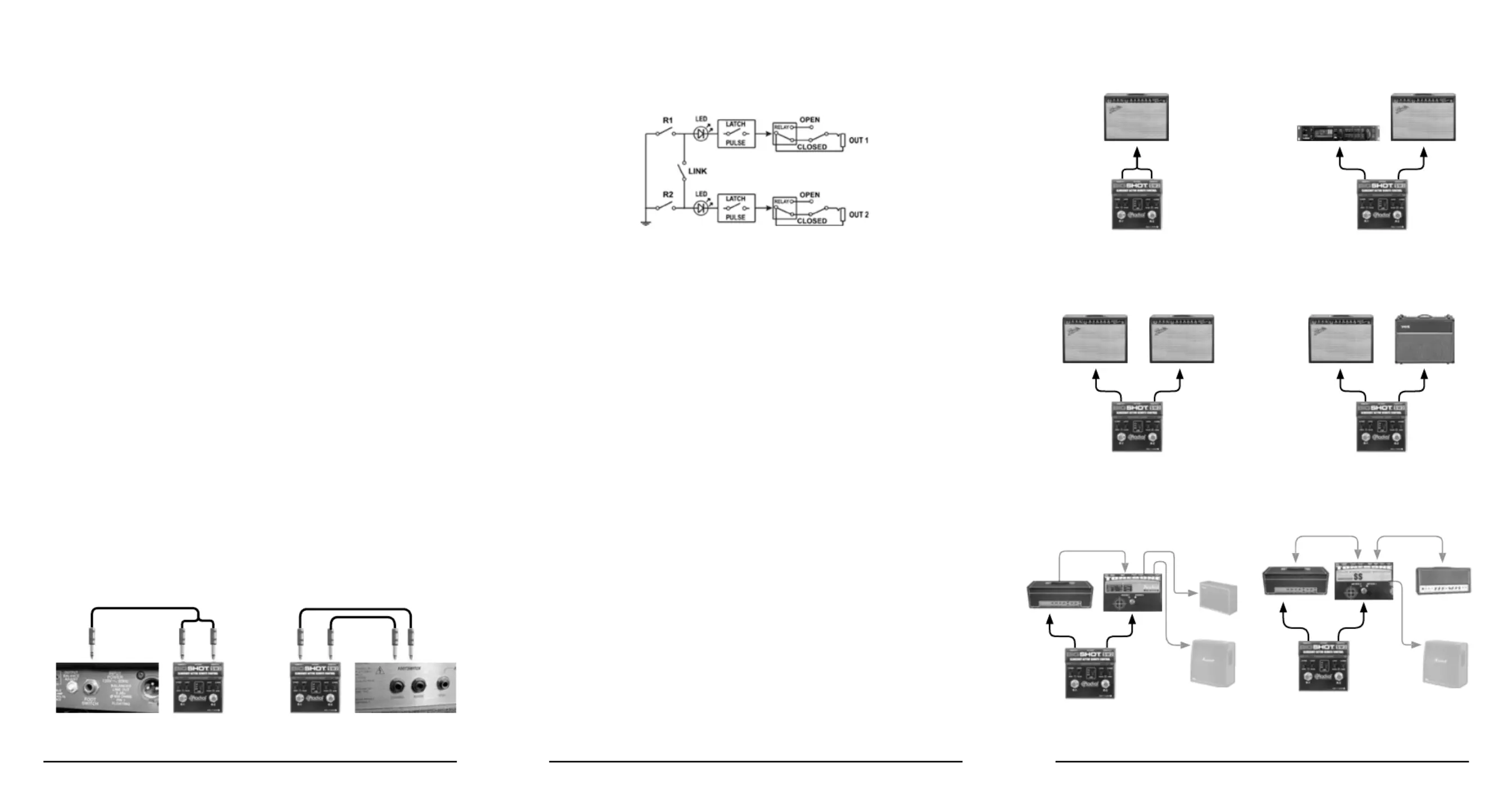

FEATURES AND FUNCTIONS
4
3
2
1
6
8
BIGSHOT SW2 SPECIFICATIONS
Connections: ...................... 2 x ¼” phone outputs
Switching: ........................... Active relays with latching & pulse modes
Power requirement ............. 9 Volt DC, center negative
Current draw: ..................... 40mA max with both LEDs on
Size: ................................... 3” x 3” x 2”
True to the Music
5
7
8
4
5
