www.radialeng.com
Radial Engineering Ltd.
Tel: 604-942-1001 • Fax: 604-942-1010
email: info@radialeng.com
Hot Shot ABi and ABo
Owner’s Manual
True to the Music
Radial HotShot ABi and ABo users guide V1.2 - Part #: R870 1170 00 / 02-2024
Subject to change without notice
Hot Shot ABo & ABi User Guide
Radial Engineering
RADIAL LIMITED THREE YEAR TRANSFERABLE WARRANTY
Radial Engineering Ltd. warrants this product to be free from defects in material and
wor man hip he original owner and will remed an de ec ree hargk s to t y y such f ts f of c e
according to the terms of this warranty. Radial Engineering will repair or replace at its
option any defective component(s) of this product, excluding the fi nish, the footswitch
(footswitch is warranted for 90 days) and wear and tear from normal use, for a period of
three (3) years from the original date of purchase. In the event that a particular product
is no longer available, Radial Engineering reserves the right to replace the product with
a similar product of equal or greater value. To make a request or claim under this limited
warranty, the produ mu be returned prepaid in the original shipping container (or ct st
equivalent) to Radial Engineering or to an authorized repair centre and you must assume
the risk of loss or damage. A copy of the original invoice showing date of purchase and
the dealer name must accompany any request for work to be performed under this limited
warranty. This limited warranty shall
not apply if the product has been damaged due to
abuse, misuse, misapplication, accident or as a result of service or modifi cation by any
other than an authorized repair centre.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE
HEREOF AND DESCRIBED ABOVE. ARRANTIES, WHET ER EXPRESSE NO W H D
OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL EXTEND
BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE OF THREE
YEARS.
RADIAL ENGINEERING LTD. SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING FROM
THE U TH PRO T. TH WA ANTY U C C L L SE OF IS DUC IS RR GIVES YO SPE IFI EGA
R H A IG TS, ND YOU MAY AL HASO VE OTHER R H WHI MAY VARY D ING IG TS, CH EPEND
ON WHERE YOU LIVE.
Hot Shot ABo & ABi User Guide
Radial Engineering

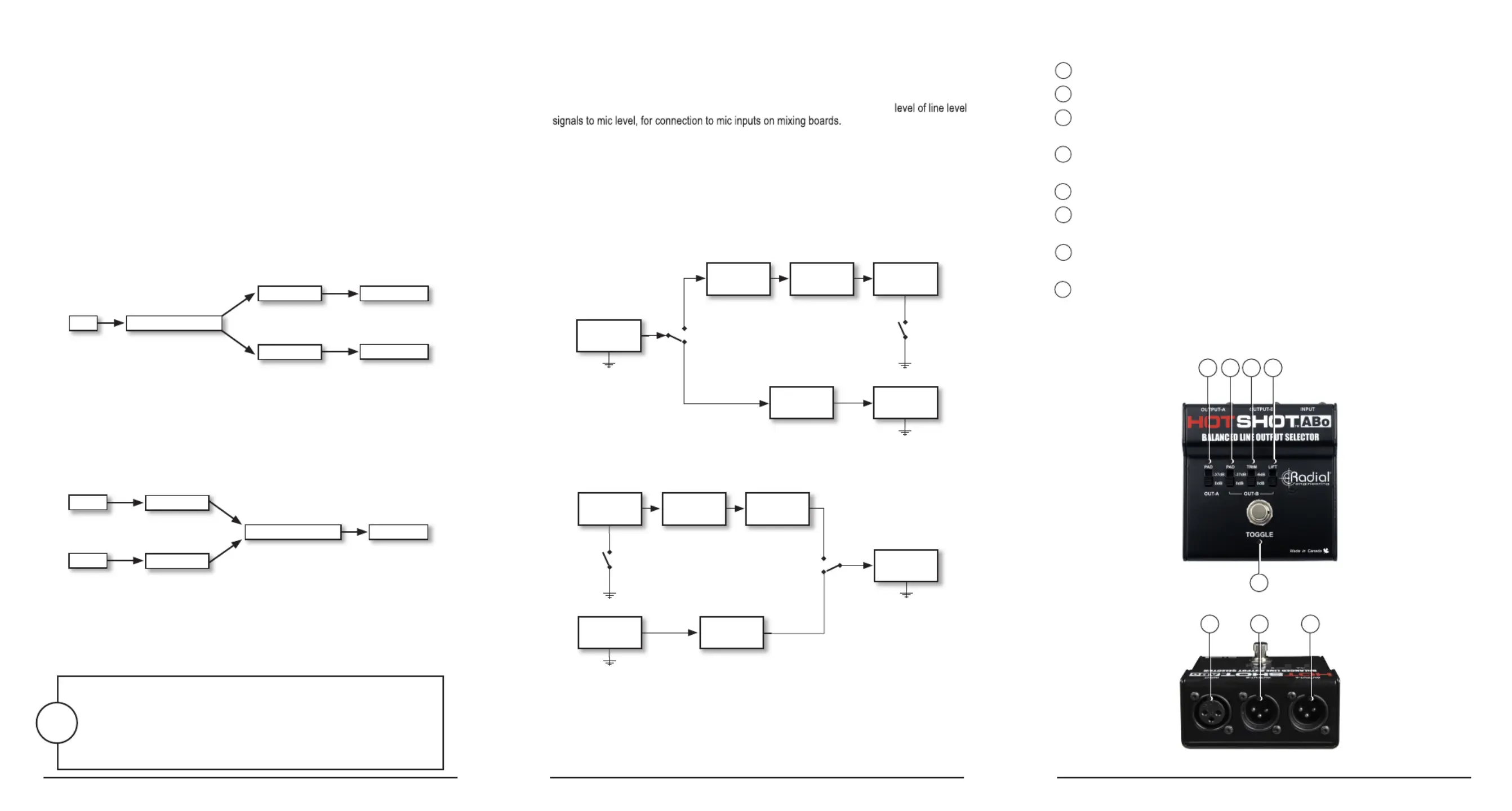

1
2
3
4
PAD (INPUT-A) inserts a -37dB PAD to lower the level of INPUT-A.
PAD (INPUT-B) inserts a -37dB PAD to lower the level of INPUT-B.
TRIM (INPUT-B) selects a -3dB reduction in level. Used to match the level of
INPUT-A.
LIFT disconnects the ground on pin-1 of INPUT-B XLR. Used to reduce buzz and
hum caused by ground loops.
TOGGLE heavy-duty latching footswitch selects between INPUT-A and INPUT-B.
OUTPUT XLR sends a balanced signal to microphone snakes and mixing
consoles. Rugged glass-fi lled nylon connector is 100% isolated from the chassis.
INPUT-B XLR receives balanced signals from a microphone or other audio source.
Rugged glass-fi lled nylon connector is 100% isolated from the chassis.
INPUT-A XLR receives balanced signals from a microphone or other audio source.
Rugged glass-fi lled nylon connector is 100% isolated from the chassis.
7
6
5
CAUTION: PLEASE READ THE IMPORTANT
NOTICE ON THE BACK COVER

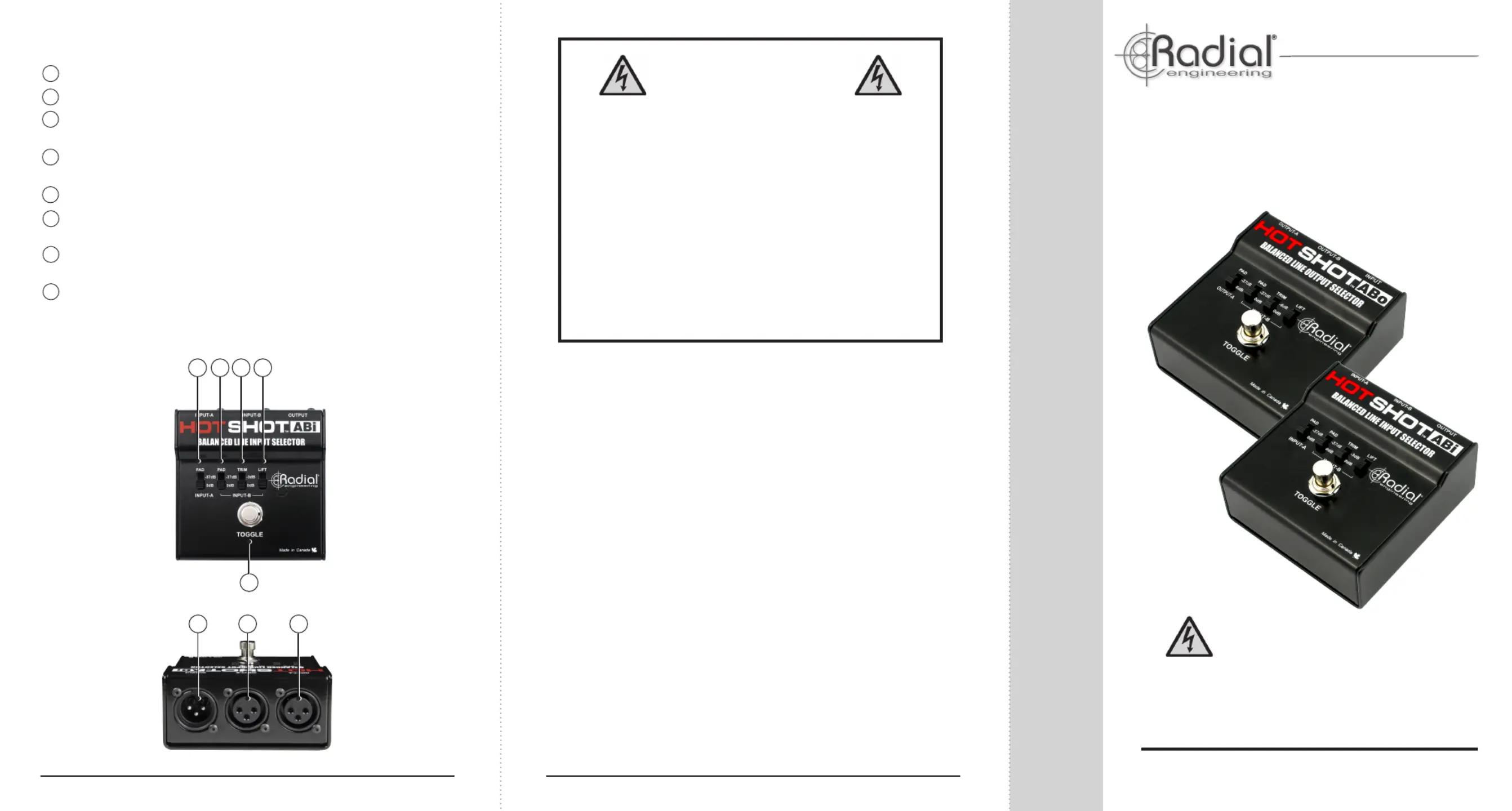

HOT SHOT ABi FEATURES AND FUNCTIONS
IMPORTANT NOTICE!
The Radial Hot Shot ABo & ABi are not intended for use with
condenser microphones or active direct boxes that use phantom
power. Phantom power puts voltage across the pins of the XLR
jack that will create a loud transient when the Hot Shot is switched.
Depending on your sound system the transient could be of signifi -
cant level to damage loudspeakers. Before you start, it is important
you know if phantom power is present and how to test your Hot
Shot after connecting. Information in this manual will guide you
how to safely use the Hot Shot ABo and ABi switchers.
You are responsible to ensure safe and proper use. Using the ABo
& ABi confi rms you have taken full responsibility. If you are not
100% sure of your actions, please consult a qualifi ed technician
for advice.
Hot Shot ABo
Order # R800 1509
Hot Shot ABi
Order # R800 1508
432
876
1
5
8
1845 Kingsway Ave, Port Coquitlam, BC V3C 0H3, Canada
