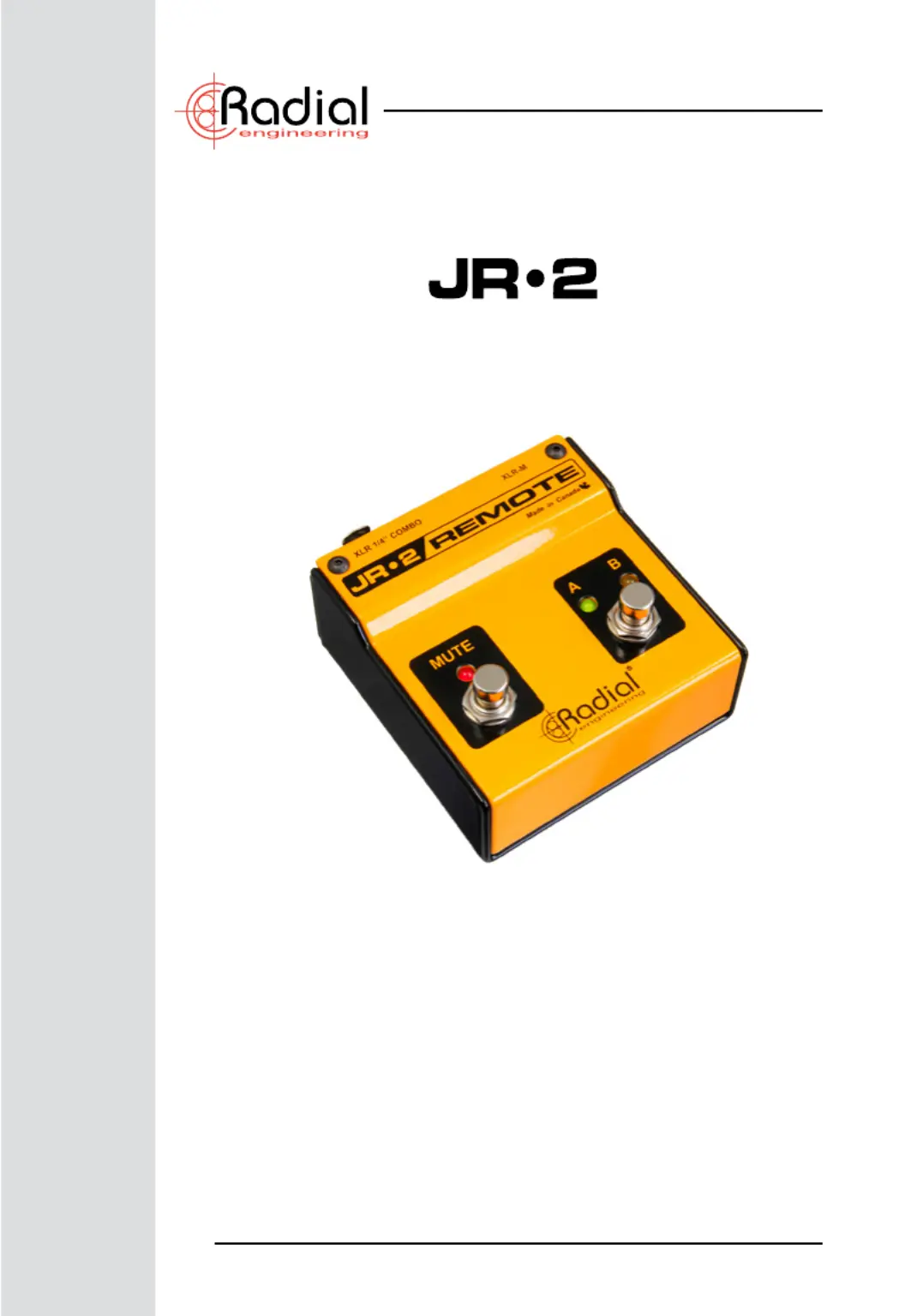

Side 1/4
www.radialeng.com
True to the Music
USER GUIDE
REMOTE
FOO TSWIT CH
®
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
tel: 604-942-1001 fax: 604-942-1010
Radial Engineering Ltd.
JR2 Remote Footswitch
True to the Music
®
FEATURE SET
INTRODUCTION
Thank you for purchasing the Radial JR2 footswitch. This handy device can be used to
remotely control various Radial devices such as the Firey tube direct box or SW8 backing
track switcher. Please take a few moments to read this short manual and familiarize yourself
with the various functions. This will help you get the most out of the JR2 as you explore its
uses. Should you have a question that is not covered in this manual, we invite you to send
us an email at info@radialeng.com and we will do our very best to reply in short order.
OVERVIEW
The Radial JR2 is a remote footswitch equipped with two footswitches that enable you to
control various functions depending on the device that is connected. The left footswitch
is designated as MUTE while the right footswitch is designated as A or B. Above each
footswitch are a series of status LEDs. These are used to provide local visual feedback when
controlling a remote device. The JR2 derives its power from the Radial device that is being
controlled, thus eliminating the need for a local power supply or batteries. Connecting to and
from the JR2 is done using a balanced cable with either XLR or TRS connectors.

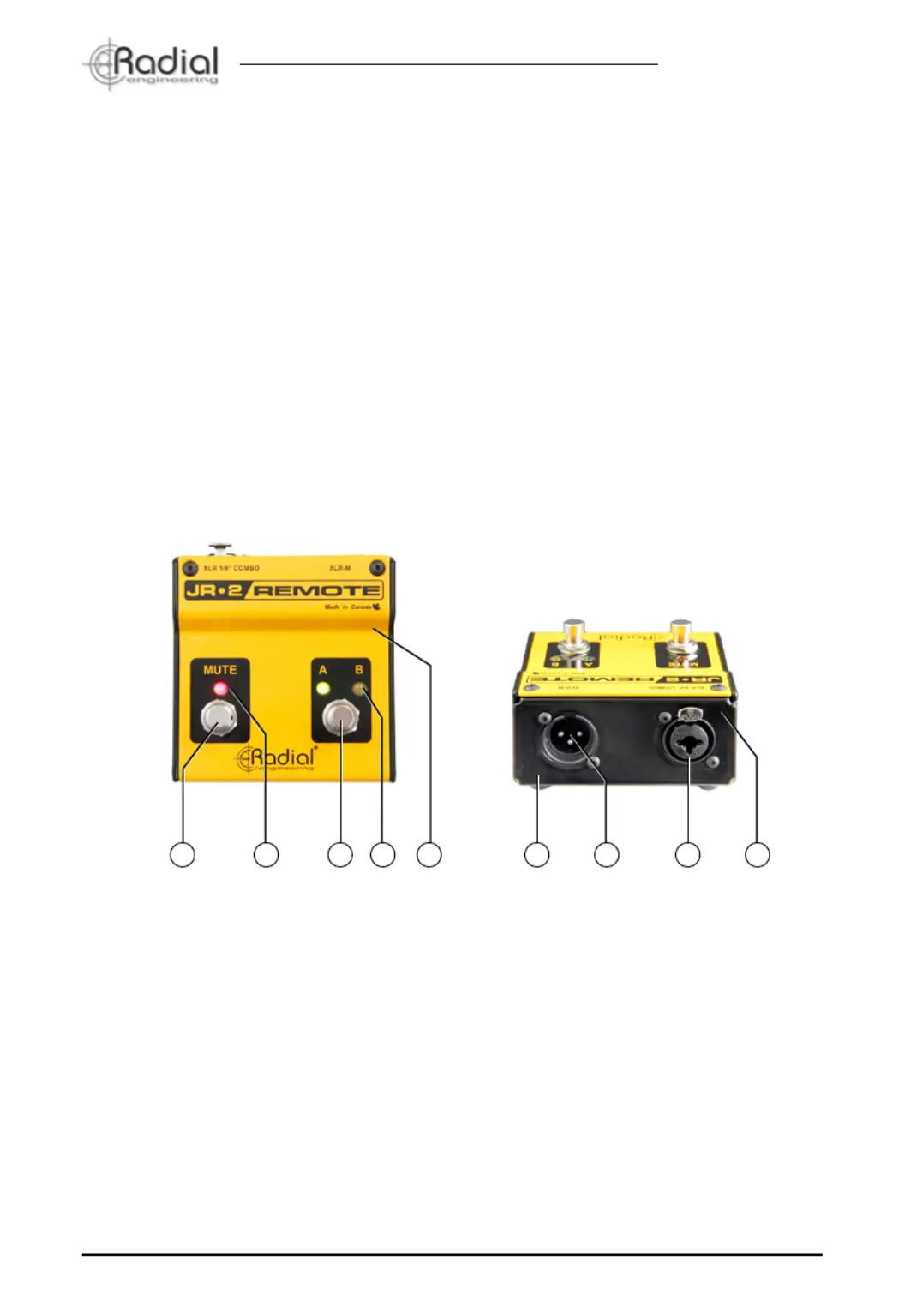

1. MUTE: Used to turn off the output from
the remotely controlled device.
2. MUTE LED: Illuminates when the mute
footswitch is depressed.
3. AB SELECT: Generally used to toggle
between two sets of inputs or outputs,
depending on the remotely controlled
device that is in use.
4. AB LEDs: Provides local visual status
of the remotely controlled device.
5. YELLOW TOP: Highly visible color
designed to be easy to see on dark
stages.
6. BLACK CASING: Designed to
be invisible form the audiences
perspective.
7. XLR-M: Used to connect to remote
device, provides alternate connection
for XLR-female cable.
8. COMBO: Used to connect to remote
device, provides locking connection for
¼" TRS or XLR-male terminated cable.
9. 14 GAUGE STEEL: Heavy duty
construction for years of trouble-free
use.
1 5 6 832 4 97
JR2 Remote Footswitch
True to the Music
®
Radial Engineering Ltd.

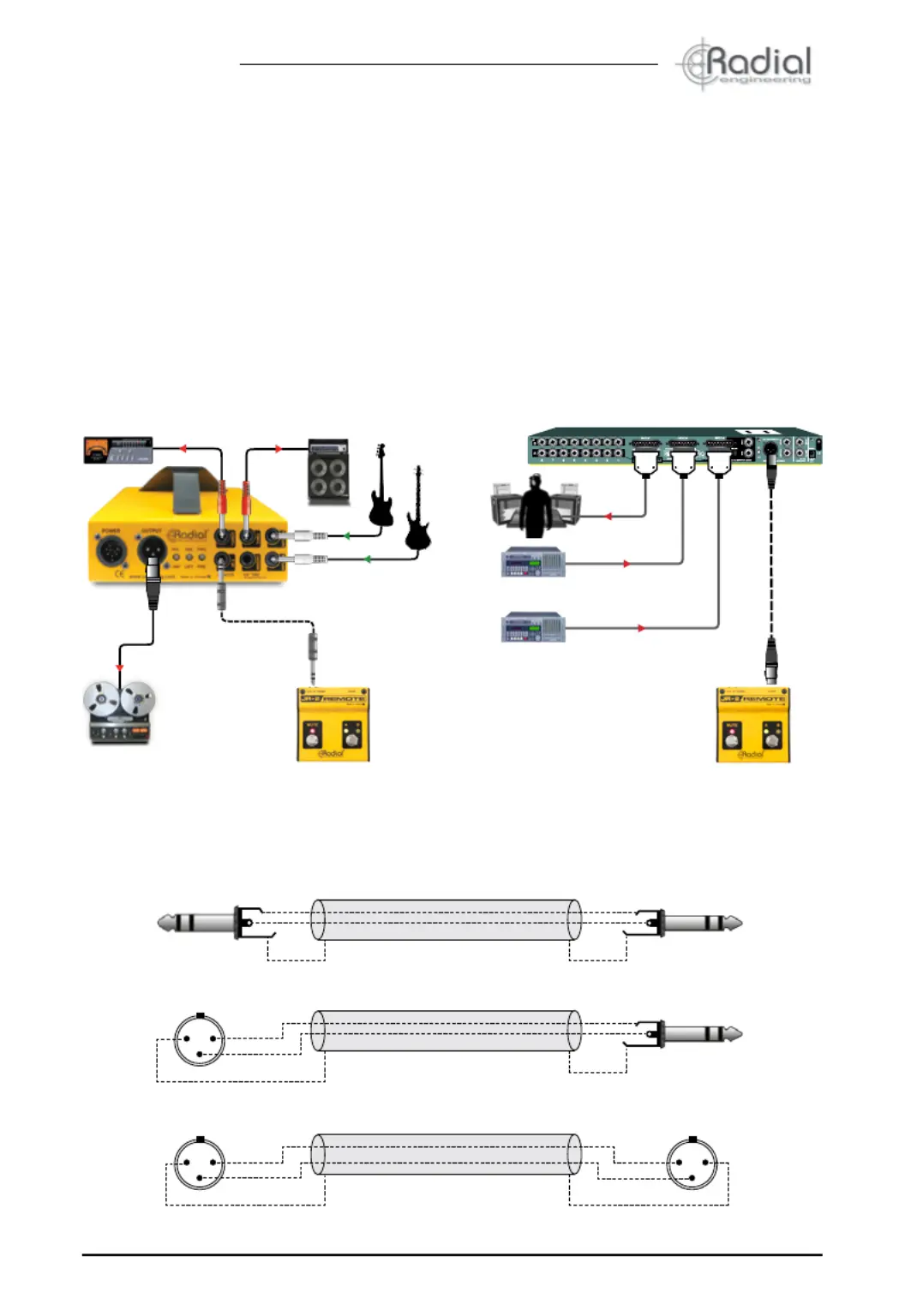

MAKING CONNECTIONS
The JR2 does not require any local power to make it work. It derives its power source from
the remotely connected Radial device and travels along the balanced cable to activate the
JR2s active circuits and illuminate the LEDs. There are two connectors to choose from. The
rst is an XLR-male, the second a combo connector with ¼" TRS and XLR-female. These
are wired in parallel to provide greater exibility, which in turn, enables the JR•2 to be used
on several different Radial devices. Only one remote output connector should be used at
a time as using two concurrently could cause a control system conict.
Simply connect using a balanced cable and the JR2 will spring to life. As the JR2 can be
used with a number of Radial devices, please consult the specic owner’s manual for details
on the appropriate cable and how the two footswitches will interact.
1 2
TIP
RING
SLEEVE
TIP
RING
SLEEVE
TIP
RING
SLEEVE
SHIELD SHIELD
3
SHIELD
SHIELD
1 2
3
12
3
SHIELD
SHIELD
¼ TRS ¼ TRS
F-XLR ¼ TRS
F-XLR M-XLR
OUTPUT TO PA OR
RECORDING SYSTEM
¼ TRS
BALANCED
CABLE
XLR BALANCED CABLE
AMP
JR2
TUNER
JR2
PRIMARY-A
MULTI-TRACK
BACKUP-B
MULTI-TRACK
WIRING DIAGRAMS
