True to the Music
www.radialeng.com
®
True to the Music
®
User Guide
www.radialeng.com
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam
British Columbia, Canada, V3C 5M5
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com

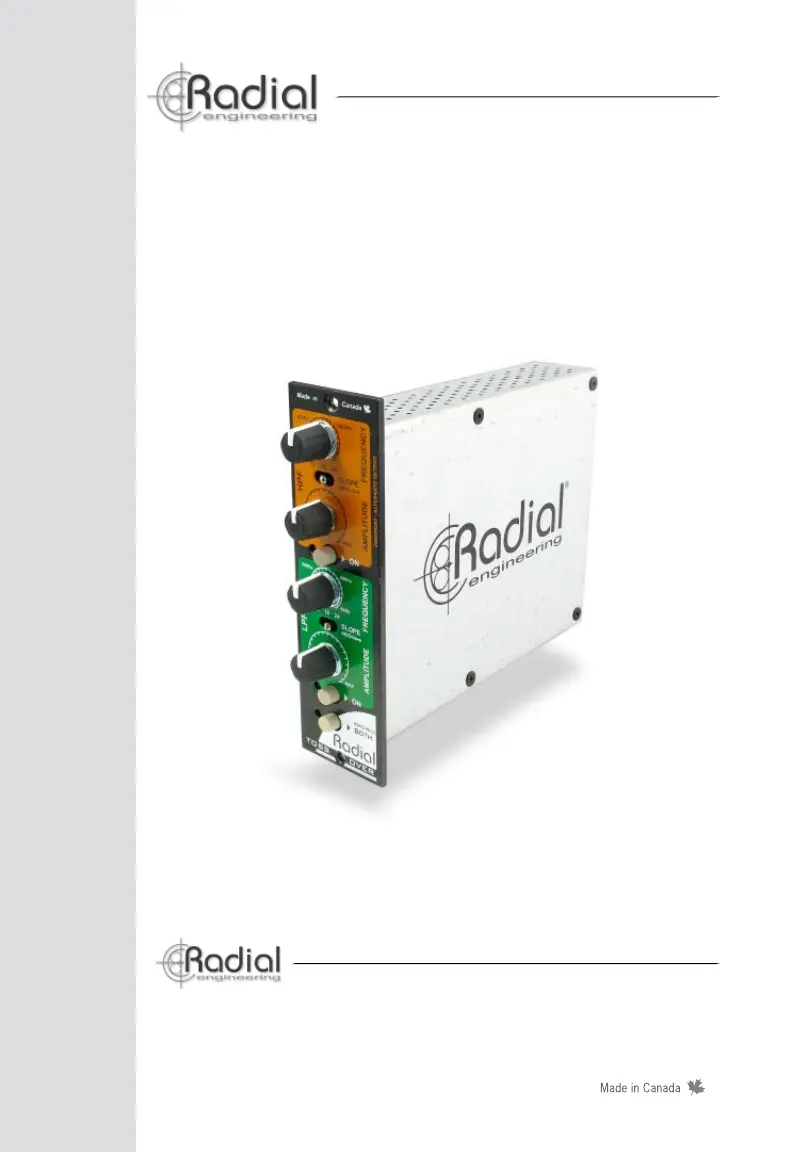

TOSSOVER
500 Series
Frequency Divider
TOSSOVER
500 Series
Frequency Divider
Table of Contents Page
Overview.......................................................................................................................1
Features .......................................................................................................................2
Getting Started & Connections .....................................................................................3
Using the Filters............................................................................................................4
Applications ..................................................................................................................5
Speci cations ...............................................................................................................7
Block diagram ...............................................................................................................7
Radial limited warranty ..................................................................................Back Cover
Congratulations on your purchase of the Radial Tossover™ - a frequency divider and band-
pass lter designed for 500 series power racks. Although the Tossover is intuitive and easy
to use, we recommend that you take a few minutes to read this short manual to make sure
you take full advantage of the many features that are built in.
Should you nd yourself asking a question that is not addressed, we invite you to view the
Tossover FAQ page on our web site. This is where we post the latest hints and of course
questions from users. If you still do not nd what you are looking for, feel free to send an
email to info@radialeng.com and we will do our very best to respond to you in short order.
Now get ready to divide and conquer audio like Napoleon!
WARNING NOTICE TO USER!
Although preventative safety measures have been designed into Radial 500 series
products we strictly advise against hot swapping modules or plugging and
unplugging them when the Workhorse or other 500 series rack is powered on. Hot
swapping can cause connection sparks at the card-edge connector that could send
damaging transients to other equipment. This also greatly reduces the life span of the
contacts. Damage due to hot swapping is not covered under warranty. There are no
user serviceable parts inside.
Radial Engineering Ltd.
Tossover™ 500 Series Module
True to the Music
®
1
OVERVIEW
The Tossover features two variable lters with selectable attenuation slopes. The rst is a
low-pass lter where all frequencies above the cut-off point are attenuated. The second is a
high-pass lter that attenuates all frequencies below the cut-off point. When both lters are
used together the Tossover becomes a band-pass lter.
LOW PASS HIGH PASS BAND PASS
-
3
5
+5
-
3
0
-
2
5
-
2
0
-
1
5
-
1
0
-
5
0
2
0
2
0
k
5
0
1
0
0
2
0
0
5
0
0
1
k
2
k
5
k
1
0
k
-
3
5
+5
-
3
0
-
2
5
-
2
0
-
1
5
-
1
0
-
5
0
2
0
2
0
k
5
0
1
0
0
2
0
0
5
0
0
1
k
2
k
5
k
1
0
k
-
3
5
+5
-
3
0
-
2
5
-
2
0
-
1
5
-
1
0
-
5
0
2
0
2
0
k
5
0
1
0
0
2
0
0
5
0
0
1
k
2
k
5
k
1
0
k
The lters can be used individually or in series. Each lter features a dedicated ON/BYPASS
control allowing individual use of the lters.
REAR
INPUT
REAR
OUTPUT
AMPLITUDE
LOW-PASS
FILTER
HIGH-PASS
FILTER
The Tossover works in all 500 series racks. When inserted in a Radial 500 series rack the
Omniport output is available and provides a second output allowing two-way operation where
high-pass and low-pass bands may be processed separately.
HIGH-PASS
FILTER
REAR
INPUT
REAR
OUTPUT
OMNIPORT
AMPLITUDE
LOW-PASS
FILTER
Applications for the Tossover include ltering out unwanted high, low or mid-range frequencies,
signal processing applied to speci c frequency regions as in multi-band compression and
creative sound design where ultimate control over a track is required.
Komit
COMPRESSOR
TossOver
FREQ DIVIDER RECORDERRECORDER
Komit
COMPRESSOR
HI-FREQ
LO-FREQ
Made in Canada
OMNIPORT - ALTERNATE OUTPUT
Radial
BOTH
BAND PASS
TOSS OVER
SLOPE
dB/Octave
BOTH
BAND PASS
Radial
24
18
12 24
18
12
140Hz
7kHz
1200Hz450Hz
ONON
MIN MAX
HPF
SLOPE
dB/Octave
LPF
250Hz
24
18
12
80Hz
MIN
AMPLITUDE
FREQUENCY
SLOPE
dB/Octave
900Hz
4kHz
MAX
ONON
AMPLITUDE
FREQUENCY
This example show the Tossover used to divide a signal for multi-band compression.
