This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.
Owner’s Guide
and
Installation Instructions

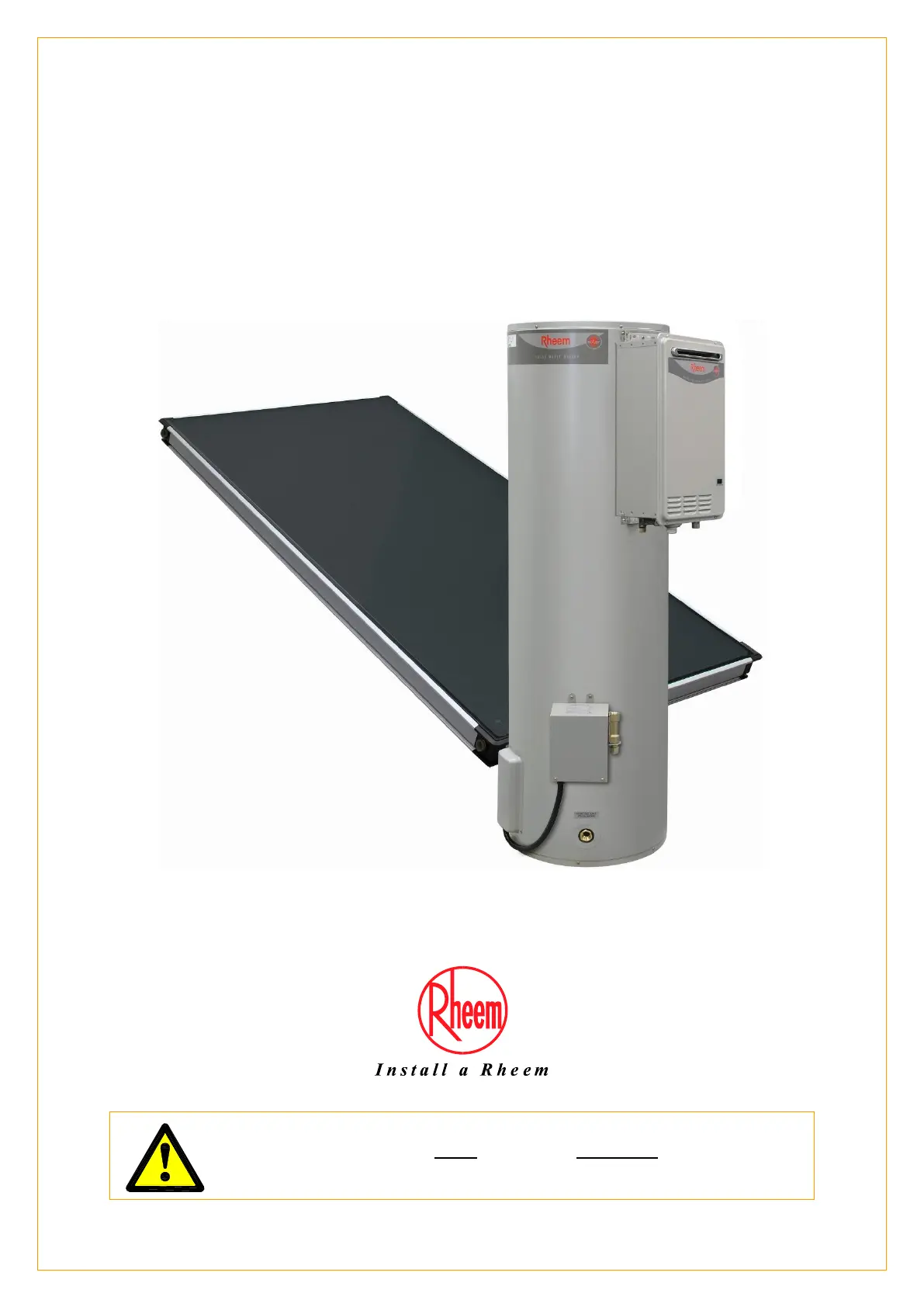

Solar 511161 Storage Tank
WARNING: Plumber – Be Aware
Use copper pipe ONLY. Plastic pipe MUST NOT be used.
It is a requirement of a solar water heater installation that all pipe work be in copper
and not plastic, due to the effects of high water temperatures and pressures.
PATENTS
This water heater may be protected by one or more patents or registered designs.
TRADE MARKS
®
Registered trademark of Rheem Australia Pty Ltd.
™ Trademark of Rheem Australia Pty Ltd.
Note: Every care has been taken to ensure accuracy in preparation of this publication.
No liability can be accepted for any consequences, which may arise as a result of its application
WARNING: Plumber – Be Aware
The solar hot and solar cold pipes between the solar storage tank and the solar collectors MUST BE
of copper. All compression fittings must use brass or copper olives.
The full length of the solar hot and solar cold pipes MUST BE insulated.
The insulation must:
be of a closed cell type or equivalent, suitable for a solar water heating application and capable of
withstanding the temperature of the water generated by the solar collectors under stagnation
conditions
The specification of the chosen insulation material should be checked with the insulation
manufacturer prior to installation as different materials may vary in temperature tolerance.
be at least 13 mm thick, however thicker insulation may be required to comply with the
requirements of AS/NZS 3500.4
be weatherproof and UV resistant if exposed
extend through any penetrations in the eaves, ceiling and roof
cover valves and fittings in the solar pipe work
be fitted up to and cover the connections on both the solar storage tank and the solar collectors.
Note: Failure to observe these requirements also increases the risk of freeze damage.
Uninsulated pipe work, including concealed in cavities and roof spaces or where it may be in contact
with a metal roof, may lead to freeze damage. The system has NO WARRANTY for freeze damage if
the solar hot and solar cold pipes are not insulated in accordance with the installation instructions.
The insulation is essential to assist in providing freeze protection, will offer protection to a metal roof
against corrosion due to water running off the copper pipes, assist in avoiding accidental contact with
the solar pipe work as very high temperature water can flow from the solar collectors to the solar
storage tank, and also reduce pipe heat losses.
The insulated copper pipe work:
should be fixed at suitable locations to prevent or reduce the possibility of noise from water
hammer and vibration from occurring
is not to be placed or installed in contact with plastic pipe work.
Likewise, plastic pipe work is not to be placed or installed in contact with the insulated copper pipe
work after the solar circuit is installed.
Plastic pipe MUST NOT be used, as it will not withstand the temperature and pressure of the water
generated by the solar collector(s) under stagnation conditions. Extremely high water temperatures of
up to 150°C for non-selective surface collector(s) and greater than 200°C for selective surface
collector(s) and high water pressures exceeding 1000 kPa can be generated under these conditions.
Plastic pipe cannot withstand these temperatures and pressures and MUST NOT be used. Failure of
plastic pipe can lead to the release of high temperature water and cause severe water damage and
flooding.
Plumber: It is important to refer to and read in full the complete
“Warning: Plumber – Be Aware” statement commencing on page 40.
3
CONTENTS
HOUSEHOLDER – We recommend you read pages 4 to 21.
The other pages are intended for the installer but may be of interest.
About Your Water Heater ............................................................................................................ 4
Maintenance Requirements ...................................................................................................... 12
Water Supplies ........................................................................................................................... 15
Save A Service Call ................................................................................................................... 18
Installation – System ................................................................................................................. 22
Installation – Solar Storage Tank ............................................................................................. 24
Installation – Solar Control Unit ............................................................................................... 33
Installation – Solar Collector(s) ............................................................................................... 36
Connections – Plumbing .......................................................................................................... 42
Connections – Electrical ........................................................................................................... 46
Commissioning .......................................................................................................................... 48
Draining The Solar Collector(s) ............................................................................................... 52
Draining The Water Heater ....................................................................................................... 52
Warranty ..................................................................................................................................... 55
