Installation Guide RIGOL
1
DP700 Rack Mount Kit
RM-1-DP700
This rack mount kit (RM-1-DP700) is designed to mount a single RIGOL DP700 series
programmable linear DC power supply into a 19-inch cabinet that conforms to the Electronic
Industries Association (EIA) standard.

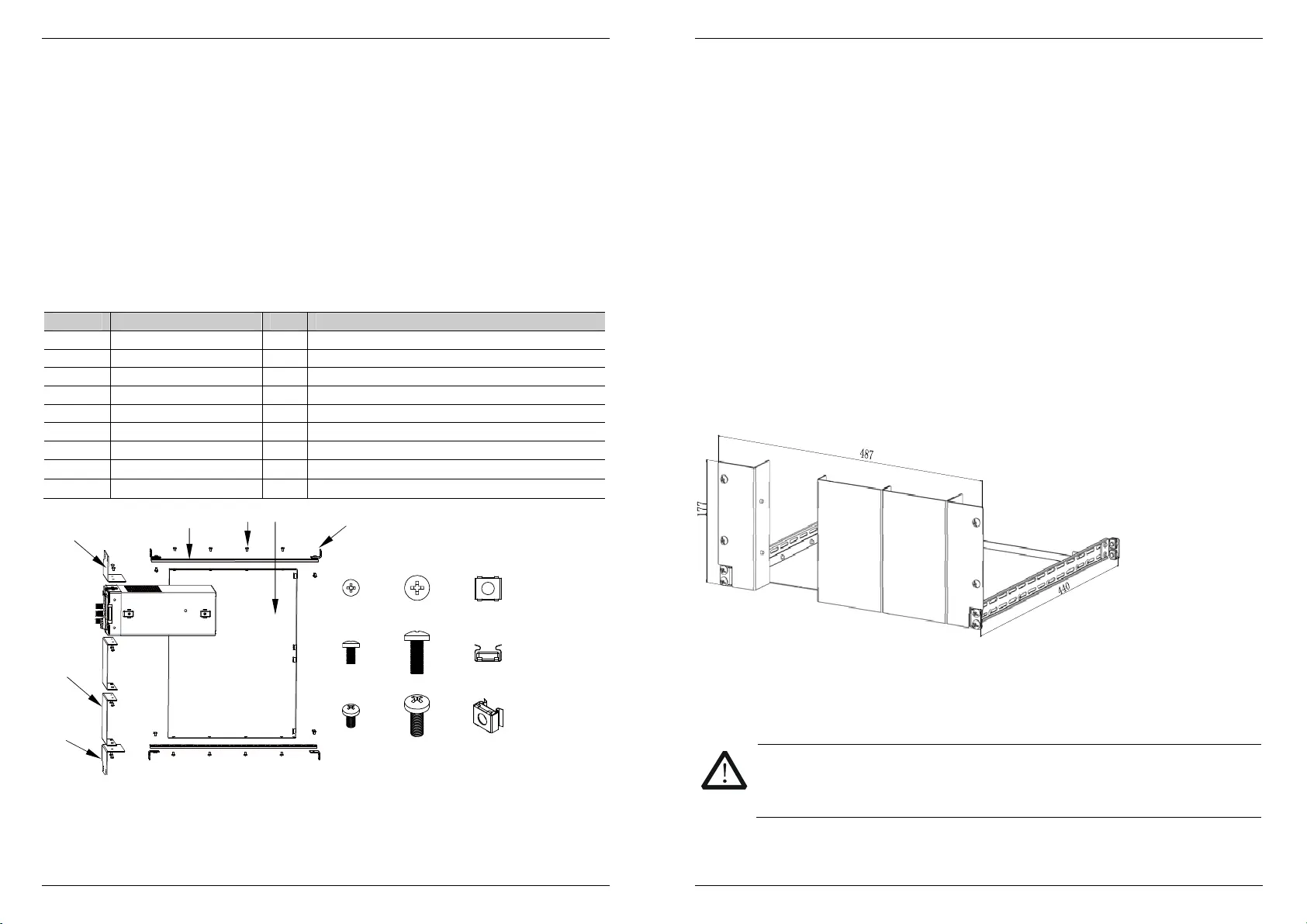

Kit Part Checklist (RM-1-DP700)
No. Name Qty. Description
1 Right Fastener 1 --
2 Filler Panel 2 --
3 Left Fastener 1 --
4 Rail 2 --
5 M4 Screw 24 M4x8 Phillips Pan Head Screw
6 Bottom Plate 1 --
7 Side Beam Fastener 4 --
8 M6 Screw 12
M6x16 Phillips Pan Head Screw
9 M6 Nut 12
M6 Square Lock Cage Nut
5 8 9
RIGOL
3
4
6
7
1
2
5
Installation Guide RIGOL
2
Installation Tool
The PH2 Philips screwdriver is recommended.
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 4U.
The depth of the cabinet should be at least 500 mm.
The dimensions of the rack are as shown below.
Unit: mm
Installation Procedures
CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
Installation Guide RIGOL
3

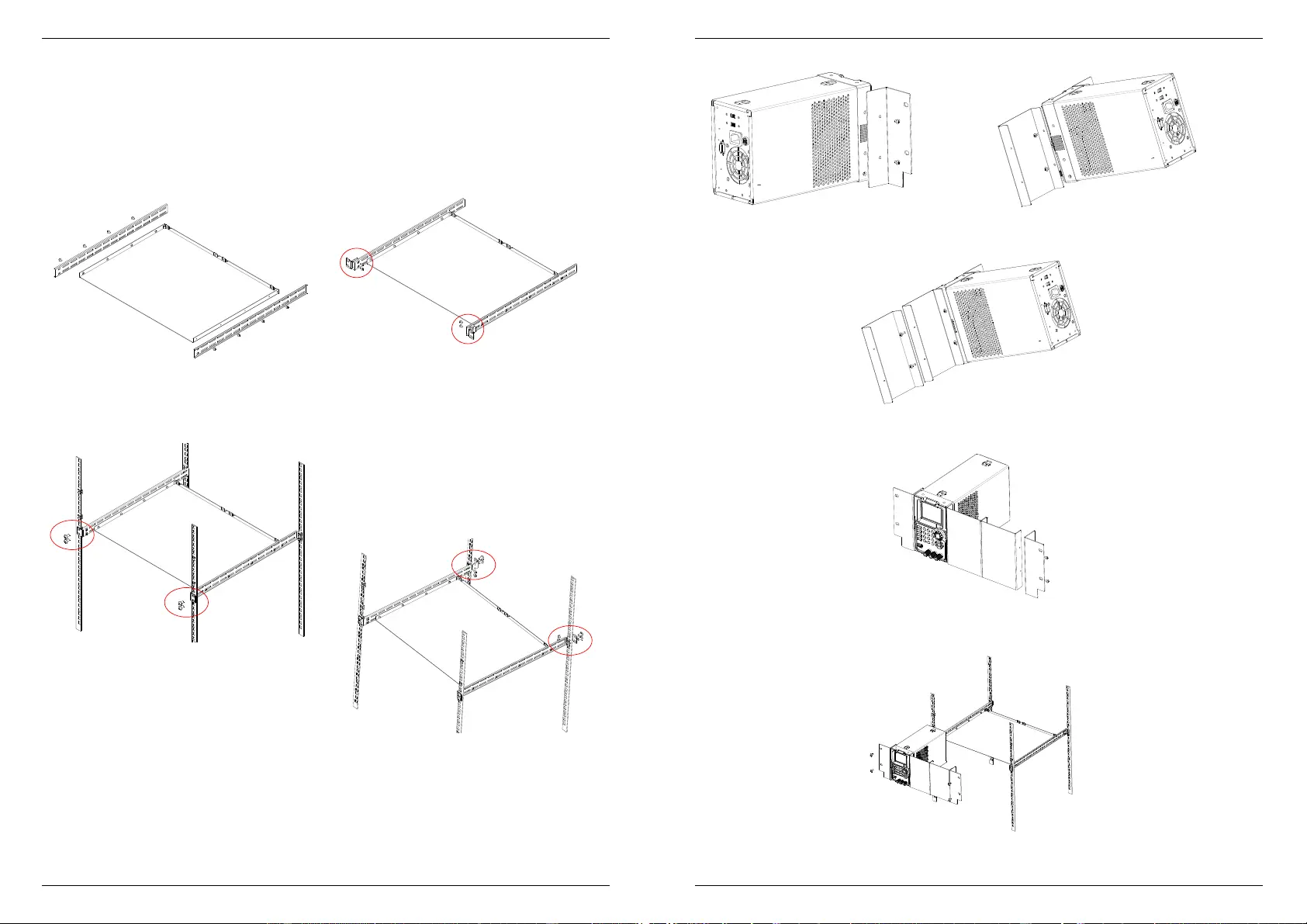

1. Remove the four rubber protective covers located at the corners of the front panel
and the four ones at the corners of the rear panel of the instrument respectively.
2. Attach two rails (with the U-channel
facing outward) to both sides of the
bottom plate, and then fasten them
with eight M4 screws.
3. Attach two side beam fasteners to
the front ends of each rail, as shown
in the figure below, and then secure
them with four M4 screws.
4. Secure the side beam fasteners to the
cabinet by using four M6 screws and
four M6 nuts.
5. Attach another two side beam
fasteners to the back ends of each
rail respectively, as shown in the
figure below, and then secure them
with four M4 screws. Use four M6
screws and four M6 nuts to secure
the side beam fasteners to the
cabinet.
6. Attach the left fastener to the left side
of the instrument, and secure it with
two M4 screws.
7. Attach one filler panel to the right
side of the instrument, and secure it
with two M4 screws.
Installation Guide RIGOL
4
8. Attach another filler panel to the right side of the first installed filler panel, and
secure it with two M4 screws.
9. Attach the right fastener to the right side of the second filler panel, and secure it with
two M4 screws.
10. Place the assembled instrument and rack onto the bottom plate. Then, secure the
left and right fasteners to the cabinet with four M6 screws and four M6 nuts.
-End-
