Installation Guide RIGOL
1
DG5000 Rack Mount Kit
This rack mount kit is designed to mount RIGOL DG5000 series function/arbitrary
waveform generator into a 19-inch cabinet that conforms to the Electronic Industries
Association (EIA) standard.

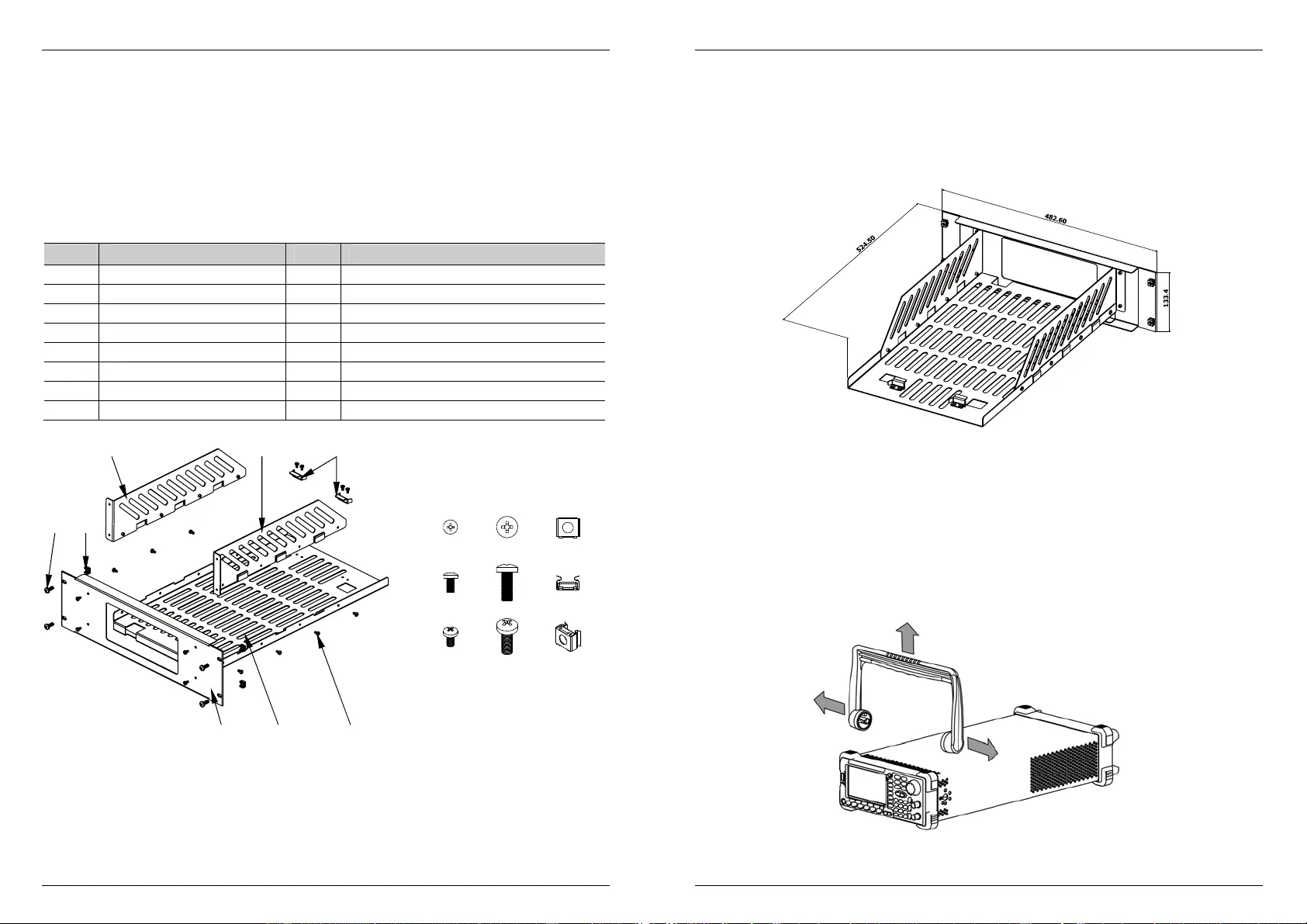

Kit Part Checklist
No. Name Qty. Description
1 Front Plate 1 --
2 Bottom Plate 1 --
3 Left Plate 1 --
4 Right Plate 1 --
5 Retaining Bracket 2 --
6 M4 Screw 16 M4x8 Phillips Pan Head Screw
7 M6 Screw 4 M6x16 Phillips Pan Head Screw
8 M6 Nut 4 M6 Square Lock Cage Nut
Installation Tool
The PH2 Philips screwdriver is recommended.
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
RIGOL
6 7 8
1 2 6
3 4 5
7 8
Installation Guide RIGOL
2
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 3U (133.5mm).
The depth of the cabinet should be at least 600mm.
The dimensions of the rack are as shown below.
Unit: mm
Installation Procedures
Note: Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
1. Dissemble the handle
Rotate the handle upright. Then, pull it out from the sides of the instrument to remove
it.
