Installation Guide RIGOL
1
RIGOL RM6041 Rack Mount Kit
This rack mount kit is designed to mount RIGOL RSA5000/RSA3000 series real-time
spectrum analyzer or MSO7000/DS7000/MSO8000 series digital oscilloscope into a standard
19-inch cabinet that conforms to the Electronic Industries Association (EIA) standard.

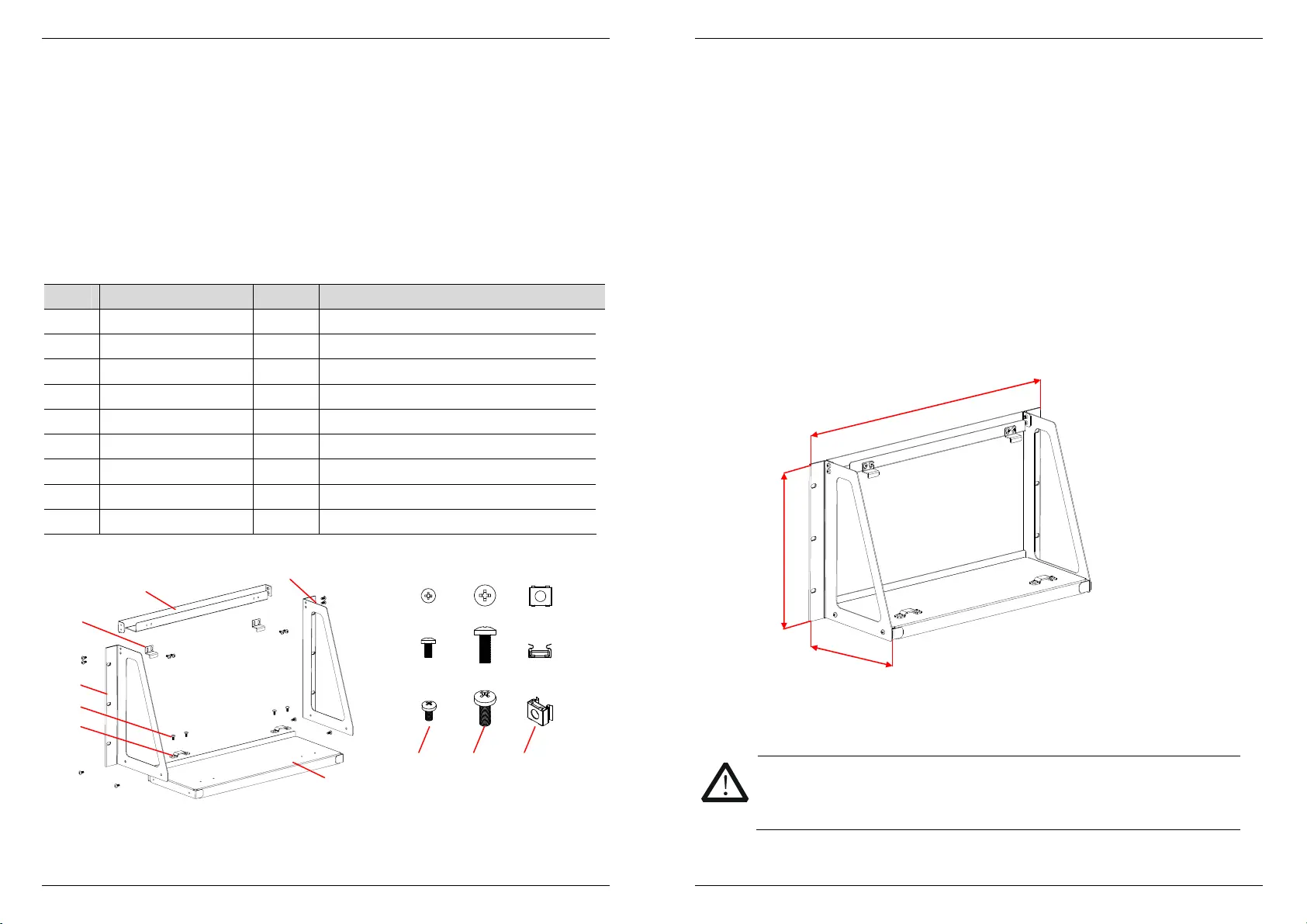

Kit Part Checklist
No. Name Qty. Description
1 Rear Bracket 2
——
2 M4 Screw 16 M4 × 6 Phillips Pan Head Screw
3 Left Plate 1
——
4 Retaining Bracket 2
——
5 Top Plate 1
——
6 Right Plate 1
——
7 Bottom Plate 1
——
8 M6 Screw 6 M6 × 16 Phillips Pan Head Screw
9 M6 Nut 6 M6 Square Lock Cage Nut
2 8 9
1
2
3
4
5
6
7
Installation Guide RIGOL
2
Installation Tool
The PH2 Phillips screwdriver is recommended.
Space Requirements
To mount the instrument into the cabinet correctly, please ensure that the following
requirements are met.
The cabinet must be a standard 19-inch one.
The available height of the cabinet should be at least 6U (266.7 mm).
The depth of the cabinet should be at least 200 mm.
The dimensions of the rack-mounted instrument are as shown below.
Unit: mm
Installation Procedures
CAUTION
Only authorized operators are allowed to perform the installation. Improper
installation might cause damage to the instrument or an installation failure.
477.9
266.7
169.5
Installation Guide RIGOL
3

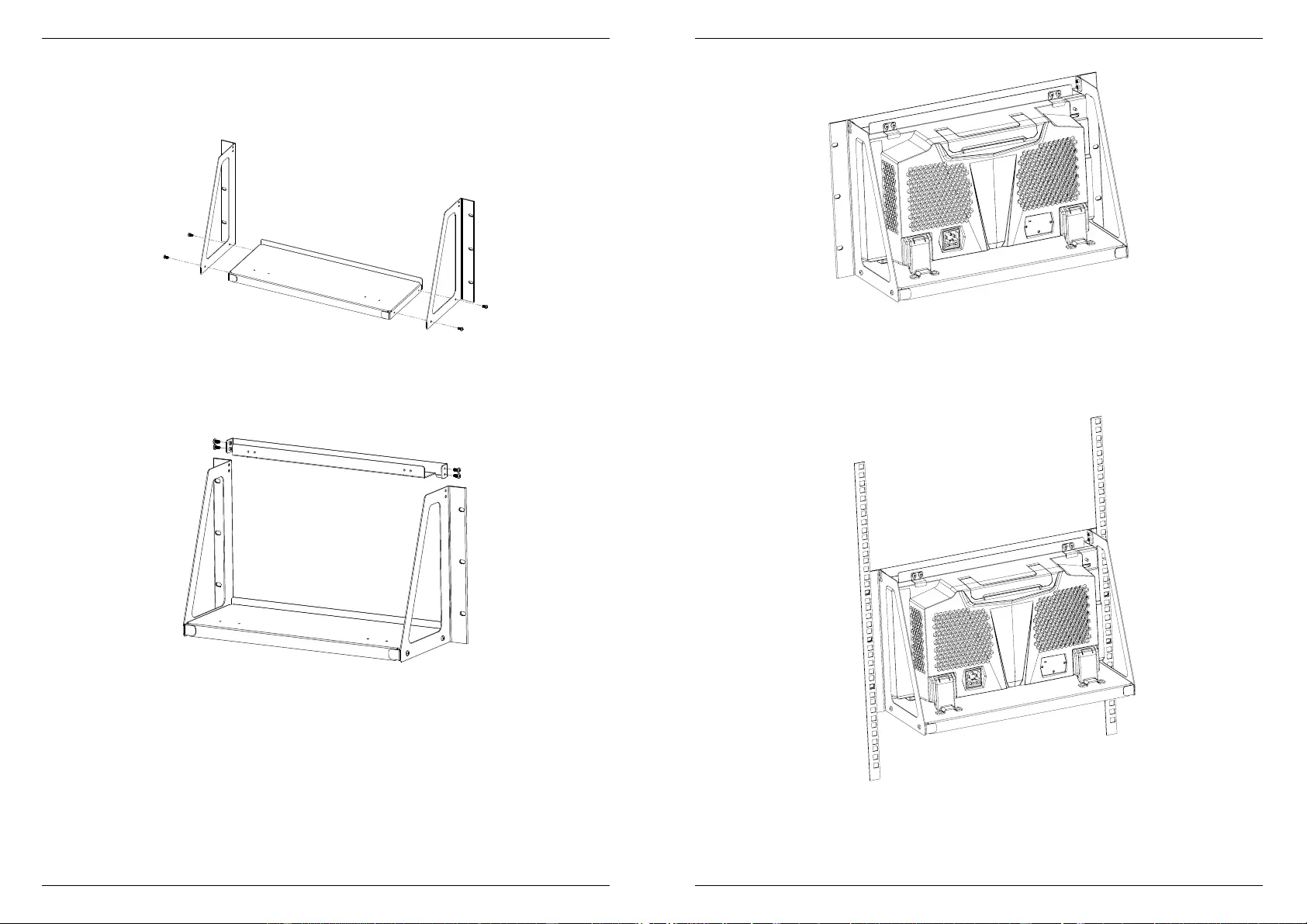

1. Mount the left and right plates
Fasten the left and right plates to the bottom plate using four M4 screws.
2. Mount the top plate
Fasten the top plate to the assembled rack using four M4 screws.
3. Place and fasten the instrument
Place the instrument into the confined position on the bottom plate. Fasten the
instrument to the rack using two rear brackets, two retaining brackets and eight M4
screws.
Installation Guide RIGOL
4
4. Get encased in the cabinet
Mount the assembled instrument and rack into a standard 19-inch cabinet using six M6
screws and six M6 nuts.
-End-
