户手
User’s Guide
文档编 Publication Number: UGE22X00-1110
RP1018H
压探
RP1018H High Voltage Probe
Sept. 2013
© 2013 RIGOL Technologies, Inc. All Rights Reserved.
-6-
1. Specification
Model RP1018H
Division Ratio 1000:1
Input Resistance 200MΩ
Input Capacitor 1.5 PF
Max. Input: DC+AC peak 18kV CAT II
Max. Input: AC RMS. 12kV CAT II
Max. Loading Current 90uA
Bandwidth DC~150MHz
Rise Time 2.4 ns
Signal / Noise > 60dB at 1kHz ; > 50dB at 1MHz
DCV Accuracy 3% Full Range
ACV Accuracy 3% at 1 kHz
Temp. Coefficient 200 PPM /
Compensation Range 10PF ~ 35PF
Safety Meets EN61010-031 CAT II
Cable Length 2M ± 0.2M
Operation Temperature Range -10 ~ 55
Humidity 85% RH or less (at 35)
Storage Temperature Range -20 ~ 70
Color: Handel/Body Black / Yellow
Weight / Volume 460g /80(W) x 80(H) X 320(L) mm
2. Safety Precautions
Thank you for purchasing RP1018H high voltage probe. High voltage probe can
prevent high voltage testers from subjecting to unexpected shocks when doing high
voltage measurement work. Before using the high voltage probe, the operator must
read and fully understand the safety rules.
In addition, this high voltage probe only for the person who are trained, experienced,
or otherwise qualified to recognize hazardous situations and who trained in the safety
precautions that necessary to avoid possible injury when using such a device.
-7-
Do not work alone when working with high voltage circuits.
For your own safety, inspect the probes for cracks and frayed or broken leads before
each use. If defects are noted, DO NOT USE the probe.
Hands, shoes, floor and work bench must be dry. Avoid making measurements under
humid, damp or other environmental conditions that might affect the safety of the
measurement situation. If possible, always turn the high voltage source off before
connection or disconnection the probe.
The probe body should be kept clean and free of any conductive contamination. The
probe is for indoor use only.
3. Operation
1) Connect the divider probe common lead (alligator clip) to a good earth ground or
reliable ground.
2) Connect the BNC connector to the BNC input of your oscilloscope.
3) Select the desired range of your oscilloscope.
NOTE
Please turn the high voltage source off before making any connections.
4. Compensation Adjustment
Connect the probe to the oscilloscope, and input a 200Hz square wave to the probe tip.
After that adjust the oscilloscope controls to display a few cycles of the waveform.
Adjust the trimmer located in the BNC plug for a flat topped square wave.

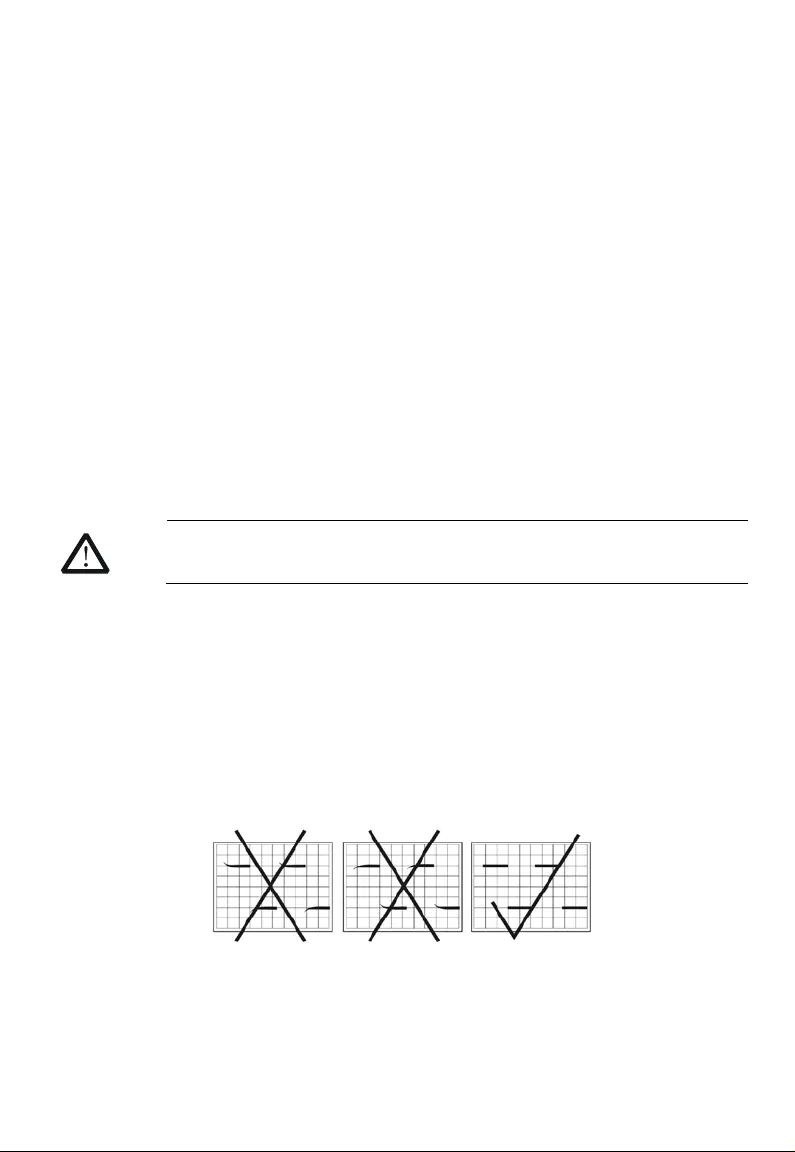

Illustration of 200Hz square wave adjustment
