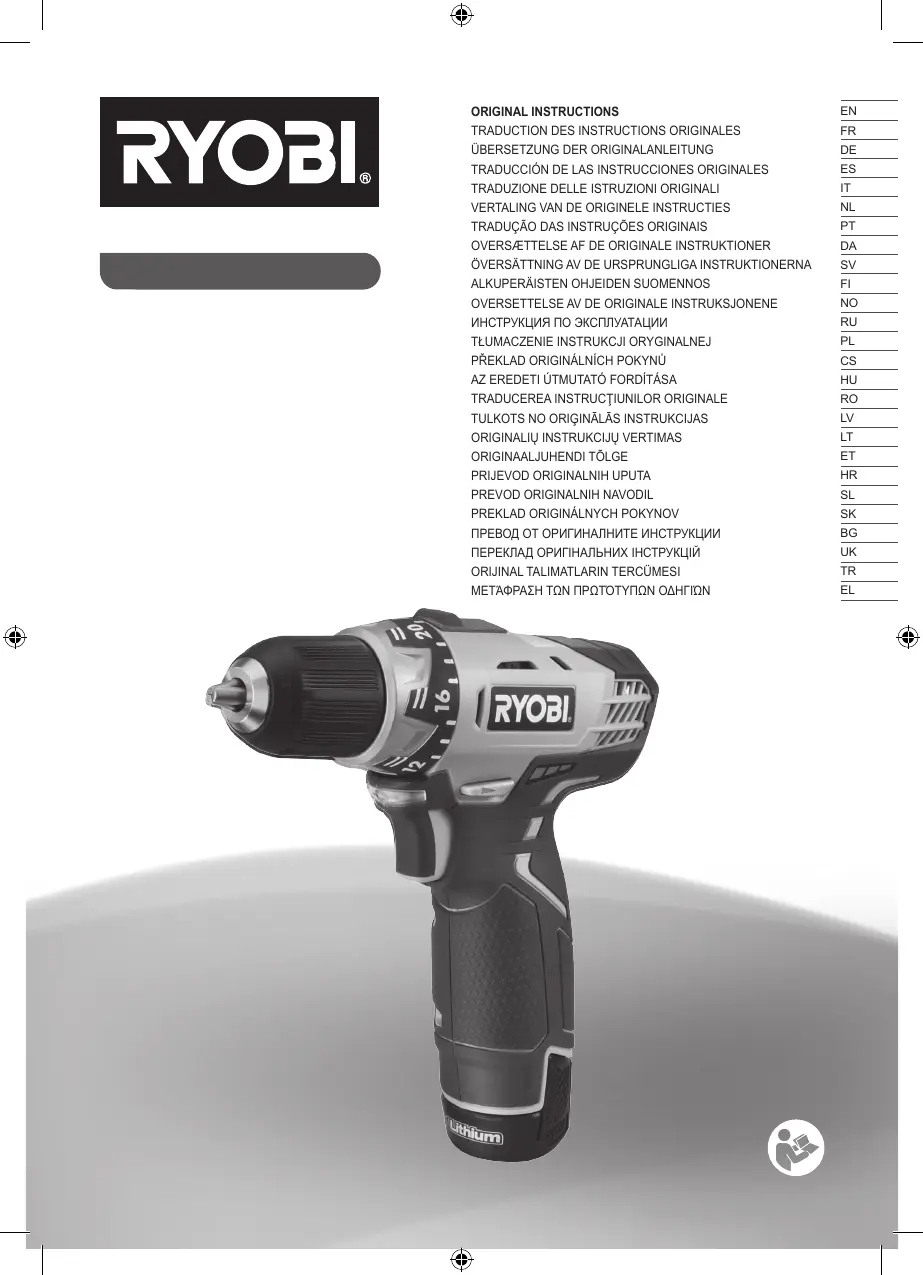

ORIGINAL INSTRUCTIONS

TRADUCTION DES INSTRUCTIONS ORIGINALES

ÜBERSETZUNG DER ORIGINALANLEITUNG

TRADUCCIÓN DE LAS INSTRUCCIONES ORIGINALES

TRADUZIONE DELLE ISTRUZIONI ORIGINALI

VERTALING VAN DE ORIGINELE INSTRUCTIES

TRADUÇÃO DAS INSTRUÇÕES ORIGINAIS

OVERSÆTTELSE AF DE ORIGINALE INSTRUKTIONER

ÖVERSÄTTNING AV DE URSPRUNGLIGA INSTRUKTIONERNA

ALKUPERÄISTEN OHJEIDEN SUOMENNOS

OVERSETTELSE AV DE ORIGINALE INSTRUKSJONENE

ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

TŁUMACZENIE INSTRUKCJI ORYGINALNEJ

PŘEKLAD ORIGINÁLNÍCH POKYNŮ

AZ EREDETI ÚTMUTATÓ FORDÍTÁSA

TRADUCEREA INSTRUCŢIUNILOR ORIGINALE

TULKOTS NO ORIĢINĀLĀS INSTRUKCIJAS

ORIGINALIŲ INSTRUKCIJŲ VERTIMAS

ORIGINAALJUHENDI TÕLGE

PRIJEVOD ORIGINALNIH UPUTA

PREVOD ORIGINALNIH NAVODIL

PREKLAD ORIGINÁLNYCH POKYNOV

ПРЕВОД ОТ ОРИГИНАЛНИТЕ ИНСТРУКЦИИ

ПЕРЕКЛАД ОРИГІНАЛЬНИХ ІНСТРУКЦІЙ

ORIJINAL TALIMATLARIN TERCÜMESI

ΜΕΤΆΦΡΑΣΗ ΤΩΝ ΠΡΩΤΌΤΥΠΩΝ ΟΔΗΓΙΏΝ

RCD1201

Important!

It is essential that you read the instructions in this manual before assembling, maintaining and operating

the product.

Attention!

Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d’assembler, d’entretenir

et d’utiliser le produit.

Achtung!

Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in

dieser Anleitung lesen.

¡Atención!

Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento

y de utilizar este producto

Attenzione!

E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere

le operazioni di manutenzione sullo stesso e metterlo in funzione.

Let op!

Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product

monteert, onderhoudt en gebruikt.

Atenção!

É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do

aparelho.

OBS!

Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og

betjener produktet.

Observera!

Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av

produkten.

Huomio!

On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.

Advarsel!

Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av

produktet

ȼɧɢɦɚɧɢɟ

ɇɟɨɛɯɨɞɢɦɨ ɩɪɨɱɢɬɚɬɶ ɢɧɫɬɪɭɤɰɢɢ ɜ ɞɚɧɧɨɦ ɪɭɤɨɜɨɞɫɬɜɟ ɩɟɪɟɞ ɫɛɨɪɤɨɣ ɨɛɫɥɭɠɢɜɚɧɢɟɦ ɢ

ɷɤɫɩɥɭɚɬɚɰɢɟɣɷɬɨɝɨɢɡɞɟɥɢɹ

Uwaga!

.RQLHF]QLH QDOHĪ\ SU]HF]\WDü LQVWUXNFMH ]DZDUWH Z W\P SRGUĊF]QLNX SU]HG PRQWDĪHP REVáXJą RUD]

NRQVHUZDFMąSURGXNWX

'ĤOHåLWp

XSR]RUQČQt

1HLQVWDOXMWHQHSURYiGČMWH~GUåEXDQLQHSRXåtYHMWHWHQWRYêUREHNGĜtYHQHåVLSĜHþWHWHSRN\Q\XYHGHQp

v tomto návodu.

Figyelem!

)RQWRV KRJ\ D WHUPpN |VV]HV]HUHOpVH NDUEDQWDUWiVD pV KDV]QiODWD HOĘWW HOROYDVVD D Np]LN|Q\YEHQ

WDOiOKDWyXWDVtWiVRNDW

$WHQĠLH

(VWH HVHQ܊LDO Vă FLWL܊L LQVWUXF܊LXQLOH GLQ DFHVW PDQXDO vQDLQWH GH DVDPEODUH HIHFWXDUHD vQWUH܊LQHULL ܈L

operarea produsului.

8]PDQƯEX

,UVYDUƯJLL]ODVƯWãƯVURNDVJUƗPDWDVLQVWUXNFLMDVSLUPVX]VWƗGƯãDQDVDSNRSHVXQSUHFHVGDUELQƗãDQDV

'ơPHVLR

3ULHãVXUHQNDQWSULåLǌULQWLUQDXGRMDQWJDPLQƳEǌWLQDSHUVNDLW\WLãLDPHYDGRYHSDWHLNWXVQXURG\PXV

Tähtis!

Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised

kindlasti läbi lugeda.

Upozorenje!

9UORMHYDåQRGDVWHSULMHVNODSDQMDRGUåDYDQMDLUDGDVRYLPSURL]YRGRPSURþLWDOLXSXWHXRYRPSULUXþQLNX

Pomembno!

3RPHPEQRMHGDSUHGPRQWDåRY]GUåHYDQMHPLQXSRUDERWHJDL]GHONDSUHEHUHWHQDYRGLODYWHPSULURþQLNX

Upzornenie!

-HG{OHåLWpDE\VWHVLSUHGPRQWiåRX~GUåERXDREVOXKRXSURGXNWXSUHþtWDOLSRN\Q\YWRPWRQiYRGH

ȼɚɠɧɨ

ɂɡɤɥɸɱɢɬɟɥɧɨɜɚɠɧɨɟɞɚɩɪɨɱɟɬɟɬɟɢɧɫɬɪɭɤɰɢɢɬɟɜɧɚɫɬɨɹɳɨɬɨɪɴɤɨɜɨɞɫɬɜɨɩɪɟɞɢɞɚɩɪɟɦɢɧɟɬɟ

ɤɴɦɫɝɥɨɛɹɜɚɧɟɩɨɞɞɪɴɠɤɚɢɥɢɪɚɛɨɬɚɫɩɪɨɞɭɤɬɚ

ȼɚɠɥɢɜɨ

Ⱦɭɠɟɜɚɠɥɢɜɨɳɨɛɜɢɩɪɨɱɢɬɚɥɢɿɧɫɬɪɭɤɰɿʀɜɰɶɨɦɭɤɟɪɿɜɧɢɰɬɜɿɩɟɪɟɞɫɤɥɚɞɚɧɧɹɦɨɛɫɥɭɝɨɜɭɜɚɧɧɹɦ

ɬɚɟɤɫɩɥɭɚɬɚɰɿɽɸɰɿɽʀɦɚɲɢɧɢ

Dikkat!

hUQQ PRQWDMÕQÕ EDNÕPÕQÕ \DSPDGDQ YH UQ oDOÕúWÕUPDGDQ |QFH EX NÕODYX]GD \HU DODQ WDOLPDWODUÕ

RNXPDQÕ]|QHPOLGLU

ȆȡȠıȠȤȒ

ǼȓȞĮȚʌȠȜȪıȘȝĮȞĲȚțȩȞĮįȚĮȕȐıİĲİĲȚȢȠįȘȖȓİȢıĲȠʌĮȡȩȞİȖȤİȚȡȓįȚȠʌȡȚȞıȣȞĮȡȝȠȜȠȖȒıİĲİıȣȞĲȘȡȒıİĲİ

ȒȜİȚĲȠȣȡȖȒıİĲİĲȠʌȡȠȧȩȞ

6XEMHFWWRWHFKQLFDOPRGL¿FDWLRQ_6RXVUpVHUYHGHPRGL¿FDWLRQVWHFKQLTXHV_7HFKQLVFKHbQGHUXQJHQYRUEHKDOWHQ_%DMR

UHVHUYDGHPRGL¿FDFLRQHVWpFQLFDV_&RQULVHUYDGLHYHQWXDOLPRGL¿FKHWHFQLFKH_7HFKQLVFKHZLM]LJLQJHQYRRUEHKRXGHQ

_&RPUHVHUYDGHPRGL¿FDo}HVWpFQLFDV_0HGIRUEHKROGIRUWHNQLVNHQGULQJHU_0HGI|UEHKnOOI|UWHNQLVNDlQGULQJDU_

7HNQLVHWPXXWRNVHWYDUDWDDQ_0HGIRUEHKROGRPWHNQLVNHHQGULQJHU_ɦɨɝɭɬɛɵɬɶɜɧɟɫɟɧɵɬɟɯɧɢɱɟɫɤɢɟɢɡɦɟɧɟɧɢɹ_

=]DVWU]HĪHQLHPPRG\¿NDFMLWHFKQLF]Q\FK_=PČQ\WHFKQLFNêFK~GDMĤY\KUD]HQ\_$PĦV]DNLPyGRVtWiVMRJiWIHQQWDUWMXN

_6XEUH]HUYDPRGL¿FDĠLLORUWHKQLFH_3DWXUDPWLHVƯEDVPDLQƯWWHKQLVNRVUDNVWXUOLHOXPXV_3DVLOLHNDQWWHLVĊGDU\WLWHFKQLQLXV

SDNHLWLPXV_7HKQLOLVHGPXXGDWXVHGY}LPDOLNXG_3RGORQRWHKQLsNLPSURPMHQDPD_7HKQLþQHVSUHPHPEHGRSXãþHQH

_3UiYRQDWHFKQLFNp]PHQ\MHY\KUDGHQp_ɉɨɞɥɟɠɢɧɚɬɟɯɧɢɱɟɫɤɢɦɨɞɢɮɢɤɚɰɢɢ_ȯɨɛ¶ɽɤɬɨɦɞɥɹɬɟɯɧɿɱɧɢɯɡɦɿɧ_

7HNQLNGH÷LúLNOLNKDNNÕVDNOÕGÕU_ȊʌȩĲȘȞİʌȚĳȪȜĮȟȘĲİȤȞȚțȫȞĲȡȠʌȠʌȠȚȒıİȦȞ

English

Safety, performance, and dependability have been given

top priority in the design of your drill driver.

INTENDED USE

The drill driver is intended to be used only by adults who

have read and understood the instructions and warnings

in this manual, and can be considered responsible for their

actions.

The product can be used for drilling into various materials,

including wood, metal, and plastics using a drill bit having

a shank diameter of less than 10 mm. The product can

be used to drive and remove screws and bolts using an

appropriate bit.

Do not use the product in any way other than those stated

for intended use.

WARNING

Read all safety warnings, instructions, illustrations

and specifications provided with this power tool.

Failure to follow all instructions listed below may result in

HOHFWULFVKRFN¿UHDQGRUVHULRXVLQMXU\

Save all warnings and instructions for future reference.

DRILL DRIVER SAFETY WARNINGS

SAFETY INSTRUCTIONS FOR ALL OPERATIONS

Ŷ Hold the power tool by insulated gripping surfaces,

when performing an operation where the cutting

accessory or fasteners may contact hidden wiring.

Cutting accessory or fasteners contacting a “live” wire

may make exposed metal parts of the power tool “live”

and could give the operator an electric shock.

SAFETY INSTRUCTIONS WHEN USING LONG DRILL

BITS

Ŷ Never operate at higher speed than the maximum

speed rating of the drill bit. At higher speeds, the

bit is likely to bend if allowed to rotate freely without

FRQWDFWLQJWKHZRUNSLHFHUHVXOWLQJLQSHUVRQDOLQMXU\

Ŷ Always start drilling at low speed and with the bit

tip in contact with the workpiece. At higher speeds,

the bit is likely to bend if allowed to rotate freely without

FRQWDFWLQJWKHZRUNSLHFHUHVXOWLQJLQSHUVRQDOLQMXU\

Ŷ Apply pressure only in direct line with the bit and do

not apply excessive pressure. Bits can bend causing

EUHDNDJHRUORVVRIFRQWUROUHVXOWLQJLQSHUVRQDOLQMXU\

ADDITIONAL SAFETY WARNINGS

Ŷ Clamp workpiece with a clamping device.

8QFODPSHG ZRUNSLHFHV FDQ FDXVH VHYHUH LQMXU\ DQG

damage.

Ŷ Ambient temperature range for tool during operation is

between 0°C and 40°C.

Ŷ Ambient temperature range for tool storage is between

0°C and 40°C.

Ŷ The recommended ambient temperature range for the

charging system during charging is between 10°C and

38°C.

ADDITIONAL BATTERY SAFETY WARNINGS

WARNING

7RUHGXFHWKHULVNRI¿UHSHUVRQDOLQMXU\DQGSURGXFW

damage due to a short circuit, never immerse your

WRROEDWWHU\SDFNRUFKDUJHULQÀXLG RU DOORZDÀXLGWR

ÀRZ LQVLGH WKHP &RUURVLYH RU FRQGXFWLYH ÀXLGV VXFK

as seawater, certain industrial chemicals, and bleach

or bleach-containing products, etc., can cause a short

circuit.

Ŷ Ambient temperature range for battery during use is

between 0°C and 40°C.

Ŷ Ambient temperature range for battery storage is

between 0°C and 20°C.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national

provisions and regulations.

Follow all special requirements on packaging and labelling

when transporting batteries by a third party. Ensure that

no batteries can come in contact with other batteries

or conductive materials while in transport by protecting

exposed connectors with insulating, non-conductive caps

or tape. Do not transport batteries that are cracked or

leaking. Check with the forwarding company for further

advice.

RESIDUAL RISKS

Even when the product is used as prescribed, it is still

impossible to completely eliminate certain residual risk

factors. The following hazards may arise and the operator

should pay special attention to avoid the following:

Ŷ Damage to hearing caused by noise

– Wear suitable hearing protection and limit exposure.

Ŷ ,QMXU\WRWKHH\HV

– Wear protective eye shields or goggles when using

the product.

Ŷ ,QMXU\FDXVHGE\YLEUDWLRQ

– Limit exposure. Follow the instructions in Risk

Reduction.

Ŷ Electric shock caused by contact with hidden wires

– Hold the product only by insulated surfaces.

Ŷ ,QMXU\FDXVHGE\GXVW

– Dust created by operating the product can cause

UHVSLUDWRU\ LQMXU\ :HDU DSSURSULDWH GXVW FRQWURO

Produkspesifikasjoner

Merke:	Ryobi
Kategori:	skrumaskin
Modell:	RCD12011L
Vekt:	1070 g
Strømkilde:	Batteri
Batterikapasitet:	1.3 Ah
Tomgangshastighet (1. gir):	715 RPM
Innebygd lys:	Ja
Mykt håndtak:	Ja
Produktdesign:	Boremaskin med pistolgrep
Batteriteknologi:	Lithium-Ion (Li-Ion)
Produktfarge:	Black, Yellow
Batterispenning:	12 V
Batteri inkludert:	Ja
Borediameter i stål (maks.):	10 mm
Boring:	Ja
Oppladingstid:	60 min
Chuck-type:	Nøkkelløs
Borediameter i treverk (maks.):	25 mm
Skrutrekkerbit:	Ja
Omveltning/motsetning/bakside:	Ja
Maksimalt dreiemoment (hardt bruk):	25 Nm
Batterilader:	Ja
Dreiemomentinnstillinger:	22
