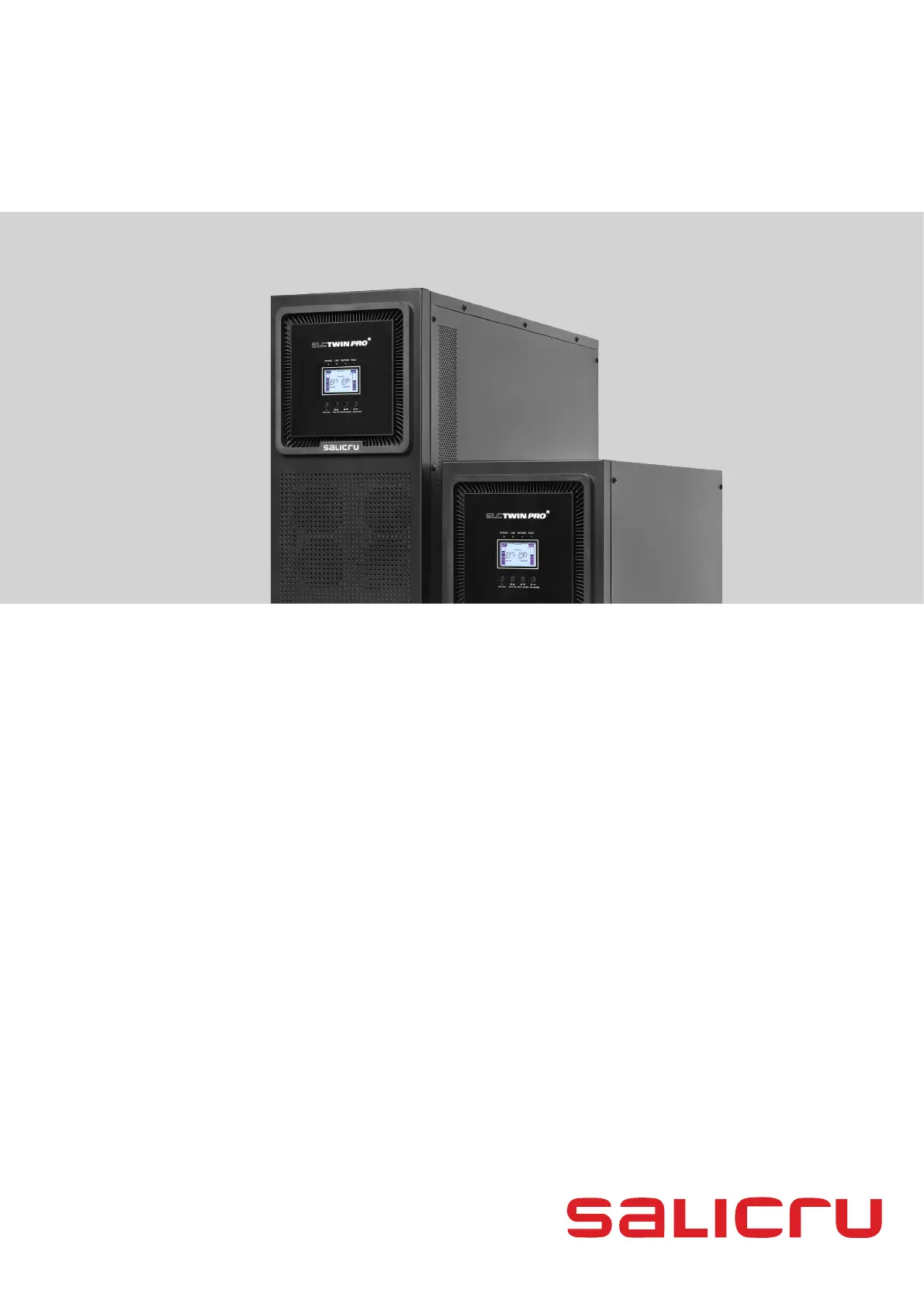

Side 1/48

SLC TWIN PRO2

4.. 20 kVA

UNINTERRUPTIBLE POWER SUPPLY (UPS)

USER'S MANUAL

2 SALICRU

General index

1. INTRODUCTION.

1.1. ACKNOWLEDGEMENT LETTER.

2. INFORMATION FOR SAFETY.

2.1. USING THIS MANUAL.

2.1.1. Conventions and used symbols.

3. QUALITY AND STANDARD GUARANTEE.

3.1. DECLARATION OF THE MANAGEMENT.

3.2. STANDARD.

3.2.1. First and second environment.

3.2.1.1. First environment.

3.2.1.2. Second environment.

3.3. ENVIRONMENT.

4. PRESENTATION.

4.1. VIEWS.

4.1.1. Views of the equipment.

4.2. PRODUCT DEFINITION.

4.2.1. Nomenclature.

4.3. OPERATING PRINCIPLE.

4.3.1. Main features.

4.4. OPTIONS.

4.4.1. Isolation transformer.

4.4.2. External manual bypass manual.

4.4.3. Communication card.

4.4.3.1. Integration into IT networks by means of the SNMP

adaptor.

4.4.3.2. RS485 Modbus.

4.4.3.3. Dry contacts.

5. INSTALLATION.

5.1. EQUIPMENT RECEPTION.

5.1.1. Reception, unpacking and contents.

5.1.2. Storage.

5.1.3. Unpacking.

5.1.4. Transport till its location.

5.1.5. Location, immobilising and considerations.

5.1.5.1. Location for single units.

5.1.5.2. Location for parallel systems.

5.1.5.3. Immobilising the equipment.

5.1.5.4. Preliminary considerations, before connecting the

equipment.

5.1.5.5. Preliminary considerations for batteries and their

protections before connecting the equipment.

5.1.5.6. Connection parts.

5.2. CONNECTION.

5.2.1. Connection of the input terminals to AC power supply.

5.2.2. Connection of load/s to the output terminals or output 1.

5.2.3. Connection of the load/s to the output terminals 2

(TWIN/3 PRO2 from 8 to 20 kVA only).

5.2.4. Connection with the external battery module and

extended back up times.

5.2.5. AC power supply for the battery charger built in the

battery module.

5.2.6. Connection of the main protective earth and

bonding earth .

5.2.7. EPO terminals (Emergency Power Off).

5.2.8. Terminals for digital Input and Output.

5.2.9. Terminals for the manual bypass auxiliary contact.

5.2.10. Parallel connection.

5.2.10.1. Introduction to the redundancy.

5.2.10.2. Parallel installation and operating.

5.2.11. Communication port.

5.2.11.1. RS232 and USB ports.

5.2.12. Intelligent slot to insert the communication card.

5.2.13. Software.

5.2.14. Considerations before commissioning with the loads.

6. OPERATING.

6.1. COMMISSIONING.

6.1.1. Checking before commissioning.

6.2. START UP AND SHUTDOWN OF THE UPS.

6.2.1. UPS start up with AC mains present.

6.2.2. UPS start up with no AC mains (Cold start).

6.2.3. UPS shutdown with AC mains present.

6.2.4. UPS shutdown with no AC mains.

6.3. MANUAL BYPASS SWITCH (MAINTENANCE).

6.3.1. Shifting to maintenance bypass.

6.3.2. Shifting to normal mode.

6.4. PARALLEL SYSTEM OPERATING

6.5. HOW UPGRADE THE PARALLEL SYSTEM WITH A NEW

UPS OR DOWNGRADE TO SINGLE MODE.

6.6. HOW TO REPLACE A FAULTY UPS FROM THE PARALLEL

SYSTEM.

7. CONTROL PANEL WITH LCD.

7.1. CONTROL PANEL.

7.2. TABLE 6 SHOWS THE INDIVIDUAL FUNCTION OF EACH

ONE OF THEM OR THEIR INTERACTION WITH OTHERS,

AS REGARDS TO THE UPS STATUS. LED FUNCTIONS.

7.2.1. Acoustic alarms.

7.2.2. Messages shown in the LCD.

7.3. MEANING OF THE ABBREVIATIONS DISPLAYED IN THE

LCD OF THE CONTROL PANEL.

7.4. SETTINGS IN THE LCD CONTROL PANEL.

7.4.1. Setting menu views, depending on the parameter 1

code.

7.5. OPERATING MODES / STATUS DESCRIPTION.

7.6. WARNING CODES.

7.7. ERROR O FAULT CODES.

7.8. WARNING INDICATORS.

8. MAINTENANCE, WARRANTY AND

SERVICE.

8.1. BATTERY MAINTENANCE.

8.1.1. Notes to replace and install the batteries.

8.2. UPS TROUBLE SHOOTING GUIDE.

8.2.1. Troubleshooting guide.

8.3. WARRANTY CONDITIONS.

8.3.1. Warranty terms.

8.3.2. Out of scope of supply.

8.4. TECHNICAL SERVICE NETWORK.

9. ANNEXES.

9.1. GENERAL TECHNICAL FEATURES.

9.2. GLOSARIO.

SLC TWIN PRO2 UNINTERRUPTIBLE POWER SUPPLY (UPS)USER'S MANUAL

Produkspesifikasjoner

Merke:	Salicru
Kategori:	uforstyrret strømtilførsel (UPS)
Modell:	SLC 4000 TWIN PRO2 B1
Vekt:	25000 g
Bredde:	250 mm
Dybde:	592 mm
Høyde:	576 mm
Støynivå:	60 dB
LED-indikatorer:	Ja
USB-port:	Ja
Innebygd vifte:	Ja
Antall USB 2.0-porter:	1
Sertifisering:	EN 62040-2 C3\nEN 62040-3\nISO-9001\nISO-14001
Utgangseffekt:	4000 W
Sikkerhet:	EN 62040-1; EN 60950-1
Utgangsspenning (maks.):	240 V
Batteriteknologi:	Blykalsium (Pb-Ca)
Batteritype:	AGM
UPS topologi:	Dobbeltkonvertering (Online)
Antall inngangsfaser:	1
Antall utgangsfaser:	1
Batteriladetid:	7 timer
Automatisk batteritest:	Ja
Inngangsspenning (maks.):	276 V
THD (lineær belastning):	1
Temperaturspenningskompensasjon:	Ja
Produktfarge:	Sort
Skjermtype:	LCD
RS-232-port:	1
Seriell grensesnittype:	RS-232
Driftstemperatur (T-T):	0 - 40 °C
Harmonisert system (HS)-kode:	85078000
Formfaktor:	Tower
Inngangsfrekvens:	50/60 Hz
I/O-porter:	Intelligent slot
Overspenningsvern:	Ja
Strømbeskyttelsesfunksjoner:	Under voltage
Driftshøyde:	0 - 5000 m
THD (ikke-lineær belastning):	4
Inngangsfrekvensomformer:	Ja
Bypass:	Hybrid, Nill
Relativ luftfuktighet under drift (H-H):	0 - 95
Parallellporter kvantitet:	3
Form for nedkjøling:	Aktiv
Antall AC outlets:	2 AC-utganger
ECO-funksjon:	Ja
AC-utgangstyper:	C13 kopling
Output strømkapasitet (VA):	4 kVA
Inngangsspenning (min.):	110 V
Utgangsspenning (min.):	208 V
Nødstrøm av (EPO):	Ja
Utgangsspenning total harmonisk forvrengning (THD):	4
Kald oppstart:	Ja
Inngangsstrømfaktor:	0.99
Crest-faktor:	3:1
Serielt grensesnitt:	Ja
Nød Kraft Av kontakt (EPO) (Emergency Power Off):	Ja
Utgangsstrømfaktor:	1
Output spenningsforskrift:	1
Inngangseffekt (THD):	4
Effektivitet (online modus):	94
Output frekvensforskrift:	4 Hz
Overbelastingskapasitet (1 minutt):	130
Synkronisering med strømnettet:	4 Hz
Synkronisering uten strømnettet:	0.1 Hz
Overbelastingskapasitet (10 minutter):	110
Maks. antall parallelle UPS-er:	3
Vedlikeholdsfri – trenger ikke smøring:	Ja
Antall utdata IEC-testkabler/IEC-forbindelsesledninger:	2
