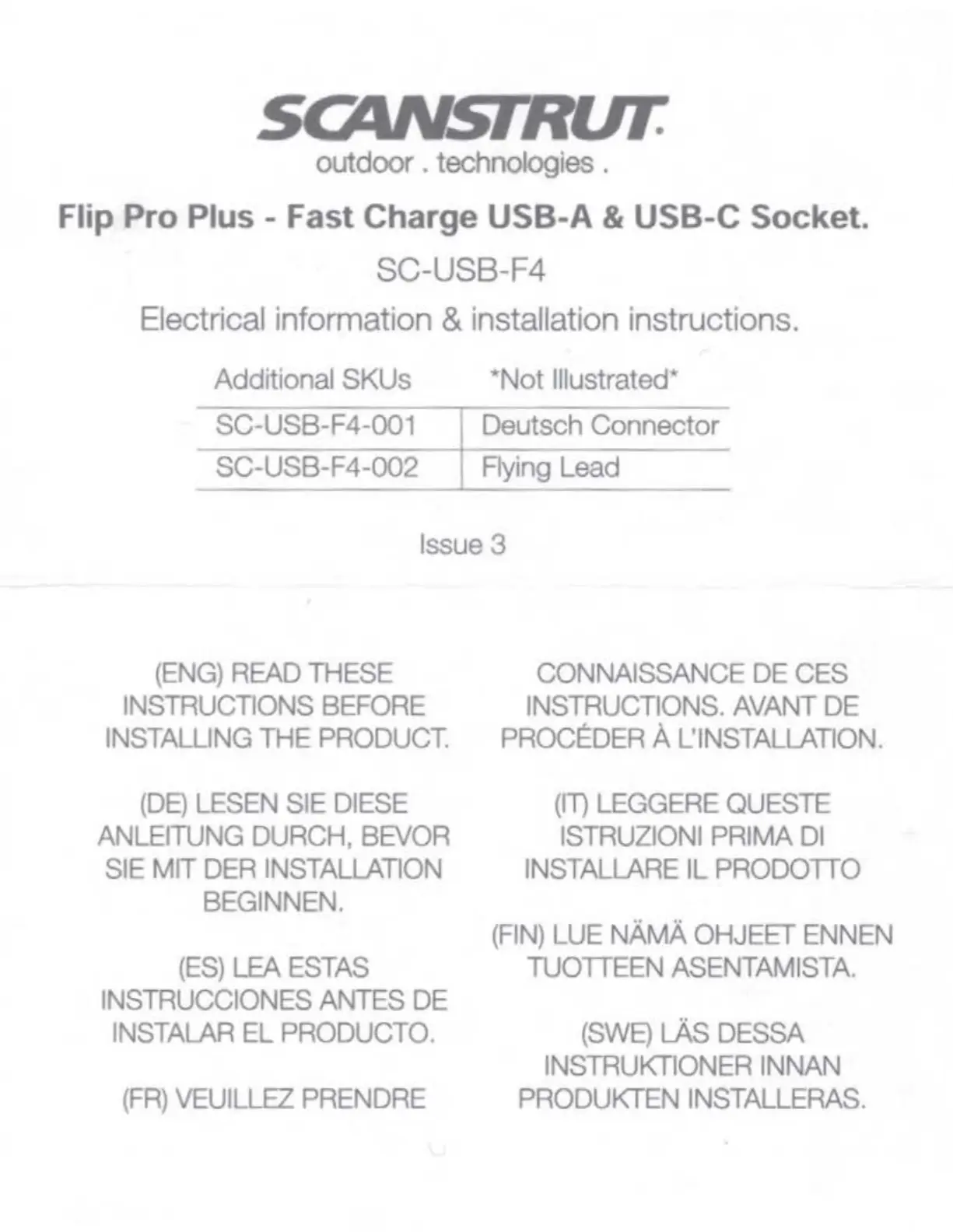

FLIP PRO PLUS - FAST CHARGE USB-A & USB-C SOCKET (SC-USB-F4)
(not illustrated)
SC-USB-F4-001 Deutsch Connector
SC-USB-F4-002 Flying Lead
17-011-2023 (Issue 1)
Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
Feed barrel through the gasket and
hole.
Use drilling template to drill ø32mm
(1 1/4”) hole.
FRONT INSTALL ONLY
Draw a centre line to align template,
ensure line is square on surface and
correct orientation.
FRONT INSTALL ONLY
Drill 2 pilot holes for front t bezel.
Ø32mm
(1.25”)
3mm (0.11”) Min
25mm (1”) Max
90°
TOP
1 2 3
4
Pilot Hole Size
Material No. 6 Screw
Soft Material e.g Plywood 2.5mm (3/32”)
Hard Material e.g Fiberglass 3mm (1/8”)
Connect to 12/24V supply, ensuring a waterproof
connection. Fuse and select cable diameter according
to input voltage and current for your specic
installation.
TOP
6 5
FRONT INSTALL ONLY
Apply silicone seal on xings and pilot holes. Place the
front t bezel over charger and x bezel in place. Make
sure the bezel orientation is correct.
REAR INSTALL ONLY
Tighten lock ring onto product until
secure.
32mm (1 1/4”) Hole saw Drill
Front install only
Drill bit 2.5mm (3/32”) or
3mm (1/8”) Pozi Screwdriver
Silicone
Tool list:
USB charger Gasket Lock ring
Front install only
Front t bezel
No.6x20mm
screws
Parts list:
x1 x1
x1
x2
x1
For latest tech info visit: www.scanstrut.com/USB
READ IMPORTANT SAFETY INFORMATION BEFORE
INSTALLING.
Technical information:
Input voltage
12/24V system
10-32V DC
Input current
max
6A
Output type
(12V system) (24V system)
USB-A USB-C USB-A USB-C
5V⎓3A,
9V⎓3A,
12V⎓3A
MAX
5V⎓3A,
9V⎓3A,
12V⎓3A
MAX
5V⎓3A,
9V⎓3A,
12V⎓3A
MAX
5V⎓3A,
9V⎓3A,
12V⎓3A,
15V⎓3A,
20V⎓3A
MAX
Standby draw < 0.1W
Waterproof
rating
IPX4 front only lid closed
