Scanstrut Ltd.
Scanstrut Ltd.
Scanstrut Ltd.
Scanstrut Ltd. Scanstrut Ltd. 1 Malt Mill, Totnes, Devon, UK TQ9 5NH Tel:
Tel:
Tel:
Tel:Tel: +44(0)1803 863800 Fax:
Fax:
Fax:
Fax:Fax: +44(0)1803 862223
e-mail:
e-mail:
e-mail:
e-mail:e-mail: technical@scanstrut.com website:
website:
website:
website:website: www.scanstrut.com

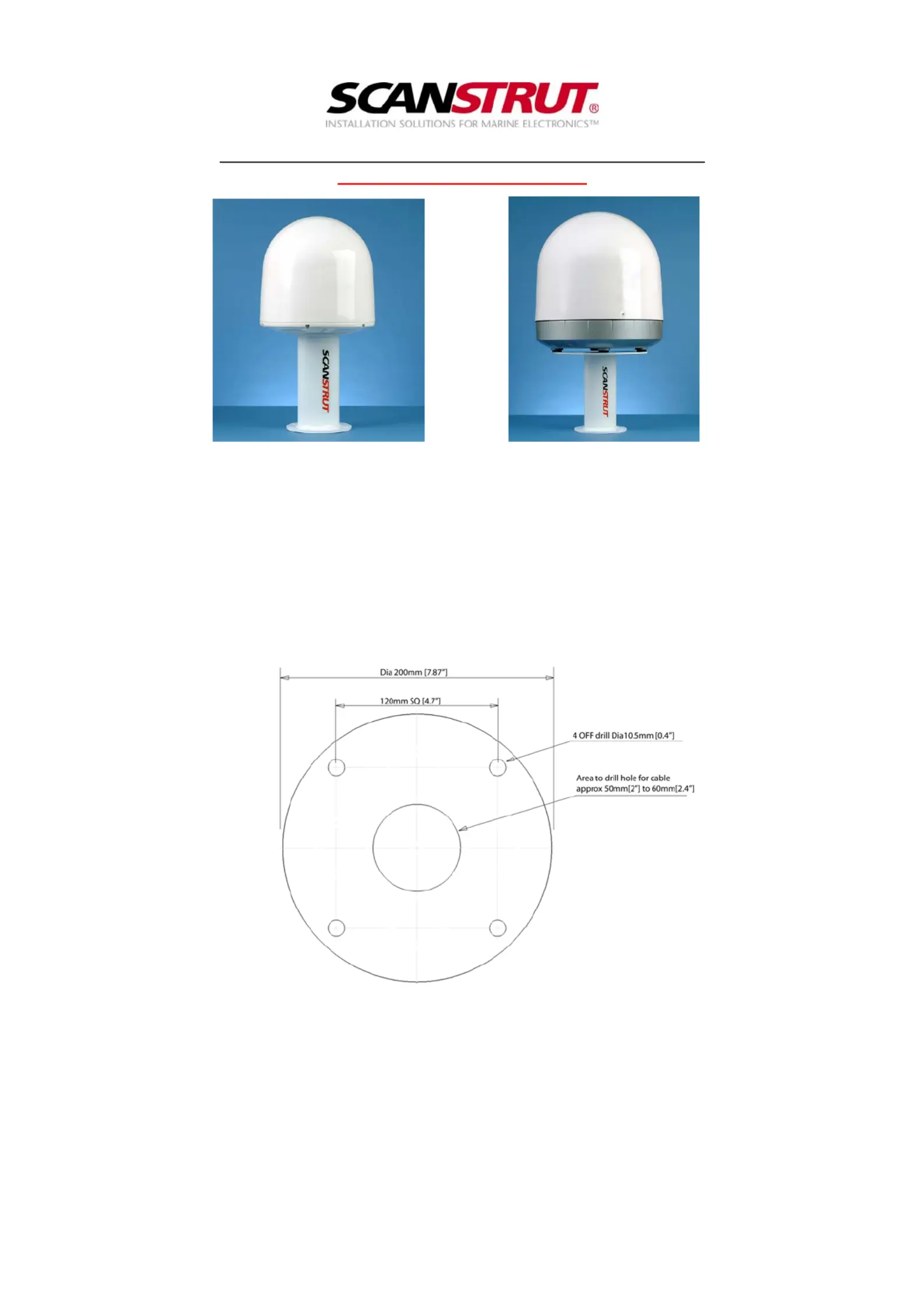

Satcom/TV PowerTower – SATPT-33, SATPT-40
Installation Instructions
SATPT kit contents
[ ] 1 x SATPT
[ ] 1 x SATPT Base Seal [19050]
[ ] 4 x Nylon Shouldered Washers [64004]
Also Required:
4 x M10 Stainless Steel bolts, large washers and nuts to attach SATPT to deck/arch.
Length to suit deck/arch thickness.
10.5mm Drill.
Hole Cutter for cable loom; approx 50[2”] or 60[2.4”]mm dia.
Drilling Guide
1:1 drilling guide
follows below.
Fitting SATPT
1. Drill holes in arch to match SATPT base and a central cable exit – See drilling guide.
2. Thread the cable loom up through the arch, base seal and into the SATPT.
3. Pull enough cable through the SATPT and through the antennas base seal to reach the
antenna.
4. Once enough cable has been pulled through fasten the SATPT to the arch, ensuring foam
Base Seal is positioned under the SATPT base.
5. With antenna sitting on it’s base seal, fasten the antenna to the top plate with the bolts
supplied and attach cable.
120mm SQ [4.7”]
4 OFF drill Dia10.5mm [0.4”]
Area to drill hole for cable
approx 50mm[2”] to 60mm[2.4”]
®
Drilling template for SATPT-33, SATPT-40 Base at 1:1
NOTE: Do not scale when printing, always print at 100%
Scanstrut Ltd.
Scanstrut Ltd.
Scanstrut Ltd.
Scanstrut Ltd. Scanstrut Ltd. 1 Malt Mill, Totnes, Devon, UK TQ9 5NH Tel:
Tel:
Tel:
Tel:Tel: +44(0)1803 863800 Fa
Fa
Fa
FaFax:
x:
x:
x:x: +44(0)1803 862223
e-mail:
e-mail:
e-mail:
e-mail:e-mail: technical@scanstrut.com website:
website:
website:
website:website: www.scanstrut.com
Satcom/TV PowerTower – SATPT-60
Installation Instructions
SATPT-60 kit contents
[ ] 1 x SATPT-60
[ ] 1 x Base Seal [19083]
[ ] 4 x Nylon Shouldered Washers [64004]
[ ] 2 x Scanstrut stickers [40113]
Also Required:
4 x M8 Stainless Steel bolts, large washers and nuts to attach SATPT to deck/arch. Length
to suit deck/arch thickness.
8.5mm Drill.
Hole Cutter for cable loom; 65mm[2.5”] dia.
Drilling Guide
Fitting SATPT-60
1. Drill holes in arch to match SATPT-60 base and a central cable exit – See drilling guide.
2. Thread the cable loom up through the arch, base seal and into the SATPT-60.
3. Pull enough cable through the SATPT-60 and through the antennas base seal to reach the
antenna.
4. Once enough cable has been pulled through fasten the SATPT-60 to the arch, ensuring
foam Base Seal is positioned under the SATPT-60 base.
5. With antenna sitting on it’s base seal, fasten the antenna to the top plate with the bolts
supplied and attach cable.
