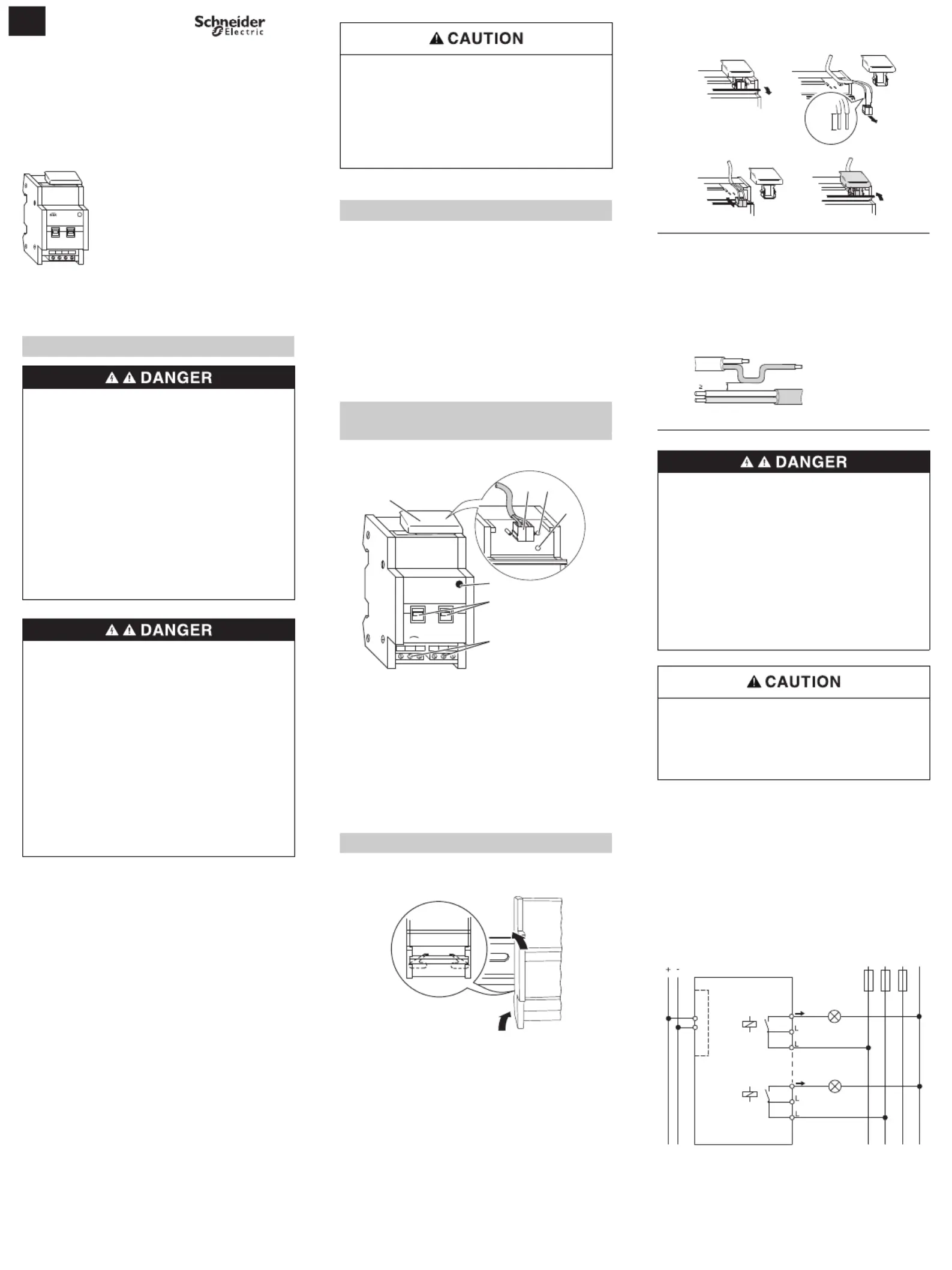

SpaceLogic KNX
Switch actuator REG-K/2x230/16 with
manual mode
Operating instructions
Art. no. MTN647393
For your safety
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR
ARC FLASH
Safe electrical installation must be carried out only by
skilled professionals. Skilled professionals must prove
profound knowledge in the following areas:
• Connecting to installation networks
• Connecting several electrical devices
• Laying electric cables
• Connecting and establishing KNX networks
• Safety standards, local wiring rules and regulations
Failure to follow these instructions will result in
death or serious injury.
RISK OF FATAL INJURY FROM ELECTRIC SHOCK
The output may carry electrical current even when the
load is switched off.
• When working on the device: Always disconnect the
device from the supply by means of the fuse in the in-
coming circuit.
• Even if the manual switch is in the „OFF“ position, a
KNX telegram can switch the connections to being
live at any time. Before working on the device, always
diconnect the fuse in the incoming circuit from the
supply.
Failure to follow these instructions will result in
death or serious injury.
en
L 2
L 1
The switch actuator REG-K/2x230/16 with manual mode
(referred to below as the actuator) can switch two loads
via separate, floating make contacts.
You can also manually switch the connected loads with
manual switches on the actuator without bus voltage.
The actuator has a bus coupler. It is installed on a DIN rail
TH 35 according to EN 60715, with the bus connection
made via a bus connecting terminal. It is supplied with
power from the bus voltage. A data rail is not required.
ABus connection terminal, max. 4 core pairs
BProgramming LED (red)
CProgramming button
DCable cover
EOperating LED „RUN“ (green)
FManual switch
GScrew terminals
1Set the actuator onto the DIN rail.
The device may be damaged!
• Always operate the product in compliance with the
specified technical data.
• Only install devices with at least basic insulation next
to the device.
Failure to follow these instruction can result in
equipment damage.
Getting to know the actuator
Connections, displays and operating
elements
Mounting the actuator
L L 2L L 1
KNX
1 2
D
C
A
B
E
F
G
1
2
2Connect KNX.
¼
WARNING
Risk of death from electric shock. The device
can become damaged.
Safety clearance must be guaranteed in accord-
ance with IEC 60664--1. There must be at least 4
mm between the individual cores of the 230 V
supply cable and the KNX line A.
3Connect the bus voltage.
4Wait at least 30 seconds.
5Switch the relays of the channels on and off manu-
ally once with the manual switches.
6Connect the load.
The cables to the loads as well as the system voltages
(L1, L2 or L3) are connected via screw terminals for max.
16 A. Every two L connections are bridged internally.
7Connect the mains voltage.
Now you can check the functionality of the actuator and
the connected loads without having to load the applica-
tion from the ETS (See the section "Operating the actua-
tor").
RISK OF FATAL INJURY FROM ELECTRIC SHOCK
Voltage may be present at the outputs when the mains
voltage is connected to the system.
If subjected to strong vibrations during transportation,
the switch contacts might change to the enabled state.
After connecting the bus voltage, set the relays of the
channels to the position desired simply by switching
„On/Off“ or by changing the manual switch to „OFF“.
Failure to follow these instructions will result in
death or serious injury.
The device may be damaged!
• Protect the switch contacts with a series-connected
16 A circuit breaker.
Failure to follow these instruction can result in
equipment damage.
1
2
3
4
5 mm
230 V
4 mm
A
1
2
KNX
16 A
L1
16 A 16 A
L2 L3 N
