Side 1/6

Industry-leading reliability

500+500W watts maximum output power (ST50GF)

420+420W watts maximum output power (ST42GF)

High efficiency with 80Plus Silver certification (ST50GF)

High efficiency with 80Plus bronze certification (ST42GF)

1+1 redundant configuration

PS2 mini redundant power

Hot swappable design

Power fault Alarm signals

Durable zinc-plated surface

Convenient pull-out handle bars

ST50GF / ST42GF

September, 2010

NO.G11212590

Always up reliability and redundancy

ST50GF / ST42GF

SPECIFICATION

SilverStone GEMINI

SST-ST50GF

SST-ST42GF

Mini Redundant Switching Power Supply

With Active PFC

500W+500W

420W+420W

1. Input Requirements

1-1. Input Voltage

The power supply shall be operated at universal input voltage defined in the following table.

1-2. Frequency

The input frequency range is from 47Hz to 63Hz.

1-3. Inrush Current

The max inrush current is 100A for 115/230VAC.

1-3-1. Cold Start

1-3-2. Warm Start

lnput Voltage NOMMIN MAX

264Voltage 90 100-240

Conditions Limits

115/230VAC, full load.

25 C ambient.

No component over stress or

damage should occur to the

power supply.

Input fuse shall not blow.

Conditions Limits

Turn off at 132/264VAC full

load for 1 sec then turn on at

the peak of the input voltage

cycle at 25 Cambient.

No component over stress or

damage should occur to the

power supply.

Input fuse shall not blow.

1-4. AC Input Current

SST-ST50GF SST-ST42GF

1-5. Efficiency

The power supply efficiency typical> 82% at 115V，full load.

1-6.Leakage current

3.5mA max, At 240Vac/60Hz.

2. Output Requirements

2-1. Output Regulations

Note:

1. The above voltage range should also include ripple and noise.

2. The output voltage should be measured at the terminals of output connector.

AC Input

115V

230V

AMPS

MAX Units AC Input

115V

230V

AMPS

MAX Units

Output

Voltage

+5V

+12V

-12V

+3.3V

+5Vsb

MIN

+4.75

+11.40

-10.80

+3.135

+4.75

Nominal

+5.00

+12.00

-12.00

+3.30

+5.00

MAX

+5.25

+12.60

-13.20

+3.465

+5.25

Units

Volts

Range

10%

ST50GF / ST42GF

2-2. DC Load Requirements

SST-ST50GF

Note :

1. The maximum continuous total DC output power shall not exceed 500 Watts.

2. The maximum continuous combined load on +5V and +3.3V outputs shall not exceed

170 Watts.

3. The maximum continuous combined load on +5V, +3.3V and +12V, outputs shall not

exceed 488 Watts.

SST-ST42GF

Note :

1. The maximum continuous total DC output power shall not exceed 420 Watts.

2. The maximum continuous combined load on +5V and +3.3V outputs shall not exceed

150 Watts.

3. The maximum continuous combined load on +5V, +3.3V and +12V, outputs shall not

exceed 404 Watts.

Output

Voltage

+5V

0.8

0.1

+12V

-12V

+3.3V

+5Vsb

NOM

12.5

0.4

12.5

1.75

MAX

0.8

3.5

Units

AMPS

MIN

+3.3V +12V -12V -5VSB+5V

0.8

0.1

+3.3V +12V -12V -5VSB+5V

1.0

0.1

Output

Voltage

+5V

+12V

-12V

+3.3V

+5Vsb

NOM

12.5

16.5

0.4

12.5

1.75

MAX

0.8

3.5

Units

AMPS

MIN

1.0

0.1

Output Voltage

+5V

+12V

-12V

+3.3V

+5Vsb

120

Ripple & Noise Max Units

2-3. Cross Regulation

The DC loads shall remain within the ranges specified in 2-2 DC Load Requirements and

the DC output voltages also shall remain within the regulation ranges specified in 2-1

Output Regulation when measured at the load end of the output connectors.

SST-ST50GF SST-ST42GF

2-4. +5V standby voltage

The +5Vsb is on whenever the AC power is present.

2-5. DC Output Voltage Ripple and Noise

Note :

1. The measurements should be made by crossing a 10uF/ electrolytic and a 0.1uF ceramic

disk capacitors at each output with measuring bandwidth from DC to 20 MHz. If ambient

temperature is under 20 C or over 30 C, the AC input should be nominal input.

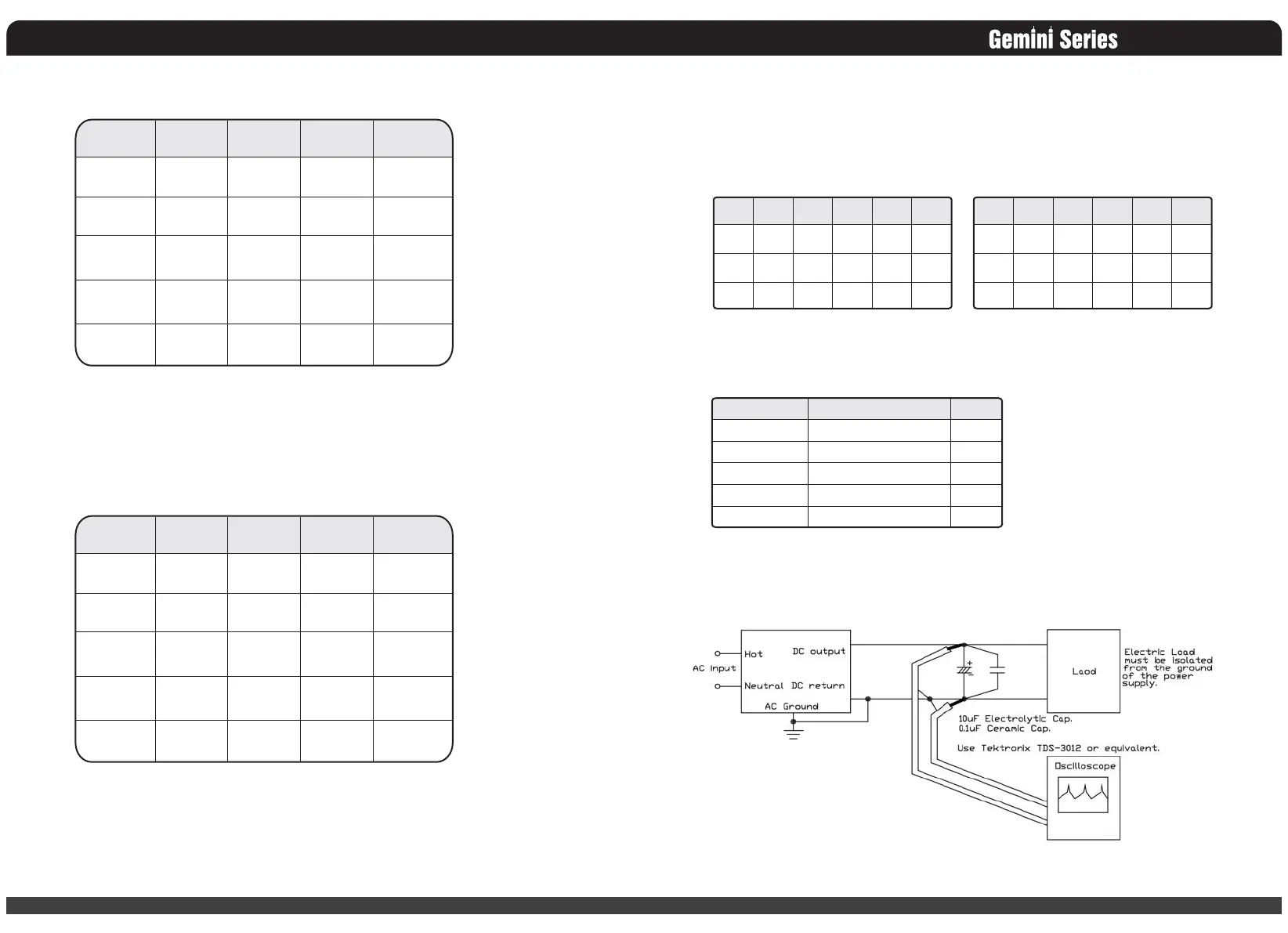

Figure 1. Differential Noise Test Setup

Produkspesifikasjoner

Merke:	SilverStone
Kategori:	Datamaskin strømforsyning
Modell:	ST42GF
Vekt:	4170 g
Støynivå:	50 dB
80 PLUS-sertifisering:	80 PLUS Bronze
Dimensjoner (B x D x H):	150 x 193 x 86 mm
Effektivitet:	80
Kombinert strøm (+12V):	396 W
Kombinert strøm (+5V):	150 W
Produktfarge:	Sølv
Driftstemperatur (T-T):	0 - 50 °C
Strømbeskyttelsesfunksjoner:	Over current, Over power, Over voltage, Short circuit
Maksimal utgangsstrøm (+12V):	33 A
Gjennomsnittstid mellom feil (MTBF):	100000 timer
Viftediameter:	40 mm
Total strøm:	820 W
Antall vifter:	2 vifter
EPS strømtilkobling (8-pin):	Ja
Strømkontakt for hovedkort:	20+4 pin ATX
Antall SATA-strømtilkoblinger:	6
Kombinert strøm (+3.3V):	150 W
Max output current (+3.3V):	25 A
Max output current (+5V):	3.5 A
Max output current (-12V):	0.8 A
Perifere (Molex) strømkontakter (4-pin):	6
Power Factor Correction (PFC) type:	Aktiv
Strømkontakt til diskettstasjon:	2
PCI Express-strømtilkobling (6-pin):	1
