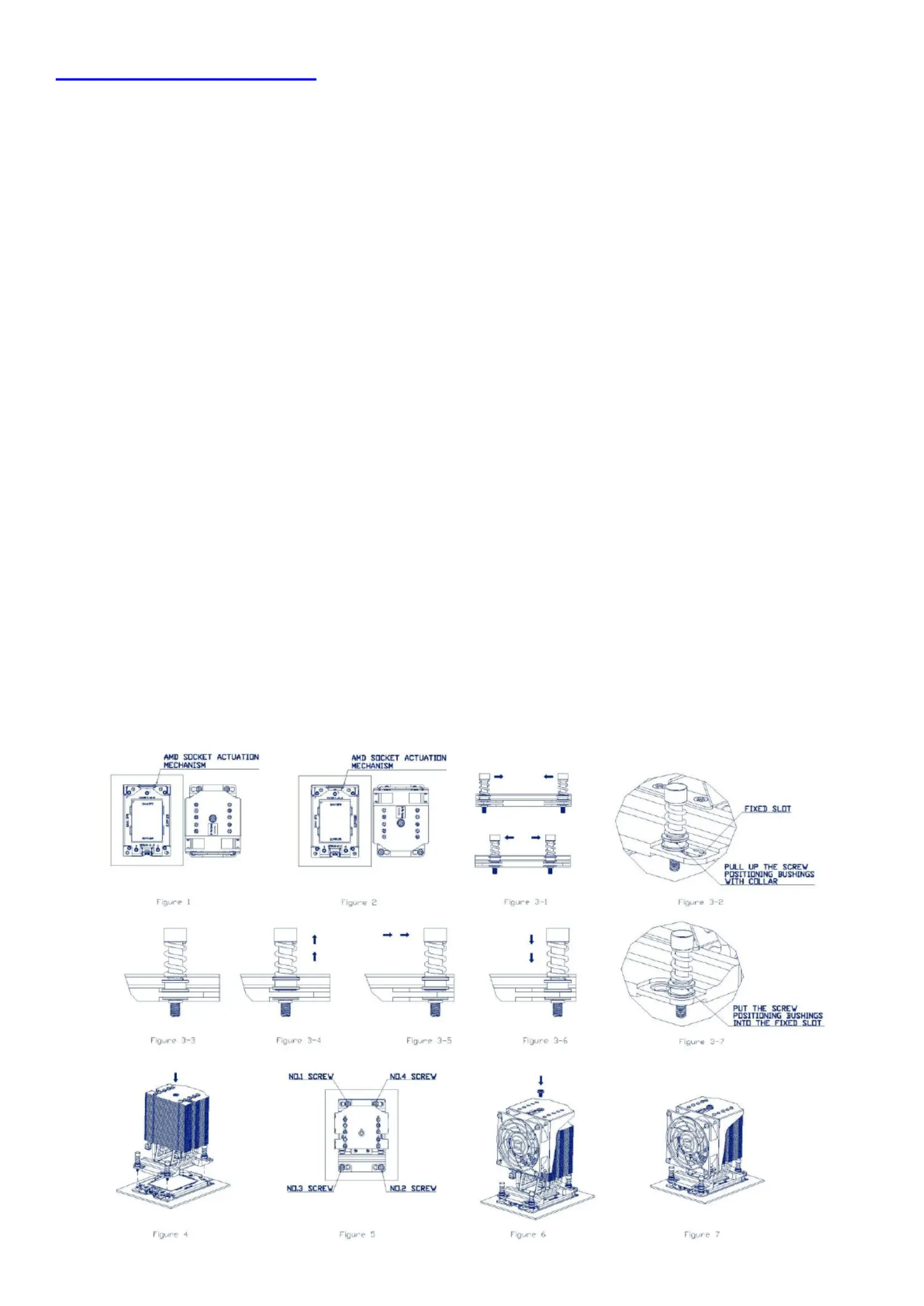

Installation Procedure

1. Take out 04-SP3 from its packing box. Before installing the heat sink, please check that heat sinkXE

must be properly oriented to the system cooling air ow direction (Figure 1 & Figure 2).

2. With the desired heat sink air ow direction, adjust the heat sink mounting screw positions so that they

can be aligned with the associated nut standos for heat sink attachment on the socket stiener frame

(Figure 3-1~3-7).

3. Remove the protection cover of thermal interface material (TIM) or thermal grease. The required amount

of TIM has been pre-applied on the bottom of the heat sink. Inspect pre-applied TIM for any damage.

4. Place the heat sink directly on top of the CPU (Figure 4) so that the four heat sink mounting screws are

aligned with and seated on the four heat sink mounting studs or nut standos on the socket stiener

frame. The heat sink must be proper orient to the system cooling air flow direction. Please note that ly ed

the heat sink cooling fan should not be attached to the heat sink body when tightening the four heat sink

mounting screws.

5. Use a screwdriver with Torx T20 bit and adjust the screwdriver torque setting to .1 kgf-cm ( .0 lbf-in). 16 14

Before turning on the screwdriver, make sure that the screwdriver bit is fully engaged in the cavity of the

heat sink mounting screw head. Keep heat sink mounting screw vertical during installations.

6. Tighten the two diagonal heat sink mounting screws i.e. the #1 and #2 screws (Figure 5 1 to 2 turns , )

until they are just snug. Do not fully tighten! Then do the same with the remaining two diagonal heat sink

mounting screws.

7. Follow the diagonal installation pattern on all four heat sink mounting screws to ensure that the bottom of

the heat sink is properly seated on the CPU and to prevent the heat sink from tilting. Finish by fully

tightening all the four heat sink mounting screws.

8. and Install the heat sink cooling fan holder assembly on the heat sink body then tighten the single and

locking screw on top of the fan holder (Figure 6 Figure 7). &

9. Connect 04-SP3 cooling fan connector to the fan header labeled for CPU on the motherboard.XE

Produkspesifikasjoner

Merke:	SilverStone
Kategori:	datakjølekomponent
Modell:	XE04-SP3
Vekt:	750 g
Bredde:	93 mm
Dybde:	119 mm
Høyde:	126 mm
Materiale:	Kopper
Antall per pakke:	1 stykker
Maksimal luftstrøm:	54 cfm
Egnet plassering:	Prosessor
Maksimalt lufttrykk:	6.8 mmH2O
Antall varmerør:	5
Viftehastighet (maks.):	3800 RPM
Lagertype:	Dobbelt kulelager
Nominell spenning:	12 V
Produktfarge:	Sort, sølv
Pakketype:	Boks
Modell/Type:	Luftkjøler
Viftestøynivå (maks.):	38 dB
Viftetilkobling:	4-pin
Antall vifter:	1 vifter
Støttede prosessorkontakter:	SP6, Socket SP3, Socket TR4
Viftens forventede levetid (MTTF):	100000 timer
Viftedimensjoner (BxDxH):	92 x 25 x 92 mm
Nominell linjestrøm:	0.385 A
Thermal Design Power (TDP):	250 W
Pulsbreddemodulerings- støtte (PWM):	Ja
Viftehastighet (min.):	1300 RPM
Varmerør, diameter:	6 mm
Finnemateriale:	Aluminium
