Read this manual carefully and keep it for future reference.

USER MANUAL

COOKER HOOD

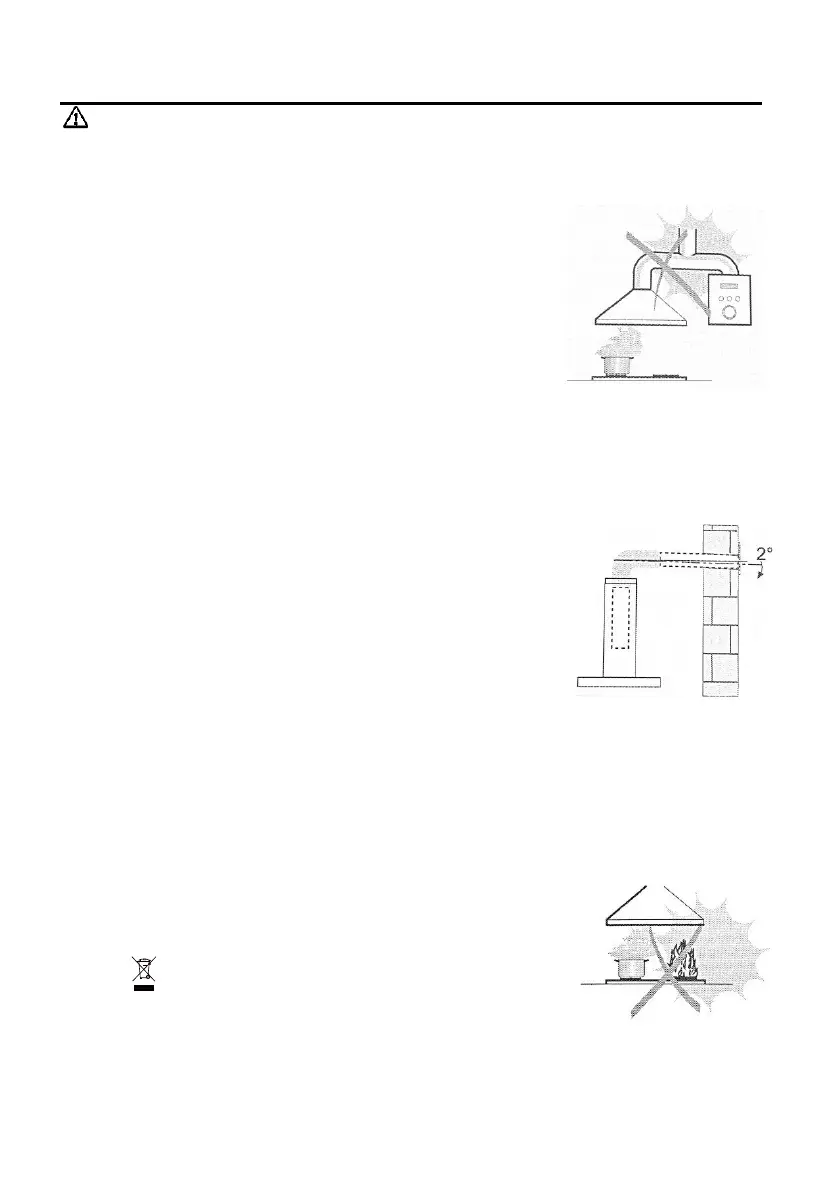

RECOMMENDATIONS AND SUGGESTIONS

The instructions for Use apply to several versions of this appliance. Accordingly, you

may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

 The manufacturer will not be held liable for any damages resulting from incorrect or

improper installation.

 The minimum safety distance between the cooker top and the extractor hood is 650

mm (some models can be installed at a lower height, please refer to the paragraphs

on working dimensions and installation).

 Check that the mains voltage corresponds to that indicated on the rating plate fixed to

the inside of the hood.

 For Class I appliances, check that the domestic power supply guarantees adequate

earthing.

 Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.

The route of the flue must be as short as possible.

 Do not connect the extractor hood to exhaust ducts carrying combustion flumes

(boilers, fireplaces, etc.).

 If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning

appliances),a sufficient degree of aeration must be guaranteed in the room in order to

prevent the backflow of exhaust gas. The kitchen must have an opening

communicating directly with the open air in order to guarantee the entry of clean air.

When the cooker hood is used in conjunction with appliances supplied with energy

other than electric, the negative pressure in the room must not exceed 0,04 mbar to

prevent fumes being drawn back into the room by the cooker hood.

 In the event of damage to the power cable, it must be replaced by the manufacturer or

by the technical service department, in order to prevent any risks.

 If the instructions for installation for the gas hob specify a greater distance specified

above, this has to be taken into account. Regulations concerning the discharge of air

have to be fulfilled.

USE

 The extractor hood has been designed exclusively for domestic use to eliminate

kitchen smells.

 Never use the hood for purposes other than for which it has been designed.

 Never leave high naked flames under the hood when it is in operation.

 Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that

it does not engulf the sides.

 Deep fat fryers must be continuously monitored during use: overheated oil can burst

into flames.

 Do not flame under the range hood; risk of fire.

 This appliance can be used by children aged from 8 years and above and persons

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

 Children should be supervised to ensure that they do not play with the appliance.

 Cleaning and user maintenance shall not be made by children without supervision.

 “CAUTION: Accessible parts may become hot when used with cooking appliances”.

MAINTENANCE

 Switch off or unplug the appliance from the mains supply before carrying out any

maintenance work.

 Clean and/or replace the Filters after the specified lime period (Fire hazard).

 Clean the hood using a damp cloth and a neutral liquid detergent.

 The appliance uses 4 hob elements at most.

The symbol is packaging indicates that this product may not be treated as household

waste. Instead it shall be handed over to the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more

detailed information about recycling of this product, please contact your local city office,

your household waste disposal service or the shop where you purchased the product.

EN-2

COMPONENTS

Ref.

Qty.

Product Components

Hood Body, complete with: Controls, Light,

Blower,Filter.

2.1

Lower Decorative Chimney ( optional )

2.2

Upper Decorative Chimney ( optional )

Flange ( optional )

Exhaust Pipe

The Activated Charcoal filter ( optional )

Ref.

Qty

Installation Components

Screws 5 x 50

Wall Plugs

12 6 Screws 4.2 x 9.5

13 2 Mounting Bracket

20 1 Hood fixing bracket ( optional )

Chimney fixing bracket (0/1 optional )

Qty.

Documentation

Instruction Manual

2.2

2.1

EN-3

Produkspesifikasjoner

Merke:	Svan
Kategori:	eksoshette
Modell:	SVCC1660N
Innebygd skjerm:	Nei
Vekt:	10000 g
Bredde:	597 mm
Dybde:	403 mm
Årlig energiforbruk:	20 kWh
Støynivå:	60 dB
Type fettfilter:	Aluminium
Høyde (min):	760 mm
Antall filtre:	1 stykker
AC-inngangsspenning:	220 - 240 V
AC-inngangsfrekvens:	50 Hz
Energieffektivitetsskala:	A+++ til D
Produktfarge:	Sort
Kontrolltype:	Berøringskontroll
Modell/Type:	Veggmonterbar
Antall pærer:	1 ampuller
Kroppsmateriale:	Glass, Stainless steel
Belysning:	250 lx
Motoreffekt:	70 W
Høyde (max):	1050 mm
Maksimal utvinningskraft:	600 m³/t
Filter til oppvaskmaskin:	Ja
Antall hastighetsnivåer:	3
Lyspæretype:	LED
Lampestyrke:	1.5 W
Fluid dynamisk effektivitet klasse:	B
Belysning efiktivitets klasse:	A
Fettfiltrering effektivitetsklasse:	D
