Side 1/7

www.sven.ѵ

OPERATION

MANUAL

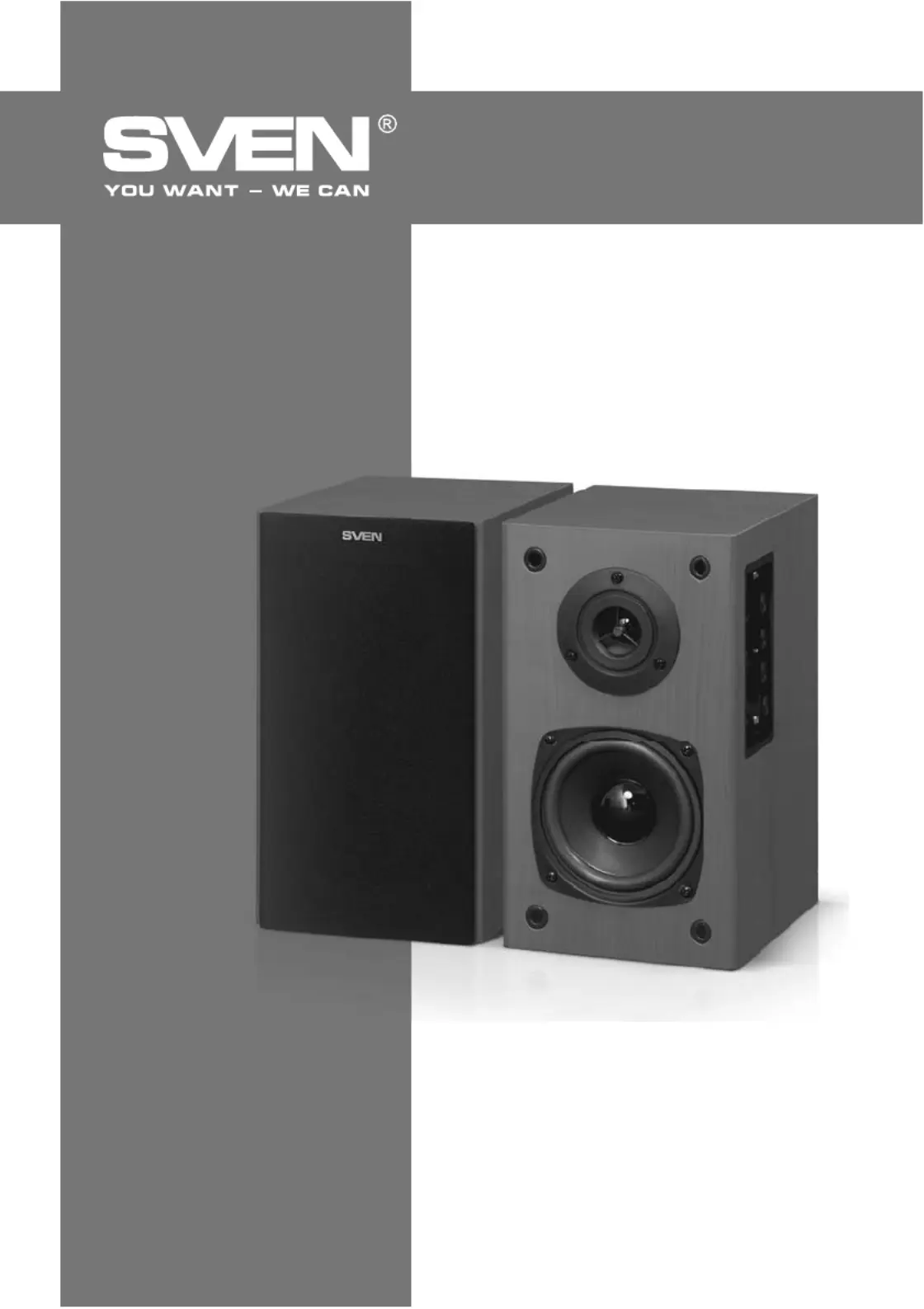

2.0 Multimedia Speaker System

SPS-611S

Congratulations on your purchase of the Sven speaker system!

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some discrepancies may occur. The

information in this Manual is given on “as is” terms. The author and the publisher do not bear any

liability to a person or an organization for loss or damage which has arisen from the information

contained in this Manual.

CONTENTS

1. BUYER RECOMMENDATIONS ..................................................

.............

2. PACKAGE CONTENTS............................................... ... ... ........

............

3. SAFETY PRECAUTIONS ..................................................

...................

4. TECHNICAL DESCRIPTION ....................................................

................

5. PREPARATION AND OPERATION ..........................................

......................

6. TROUBLESHOOTING.................................

...............................................

7. TECHNICAL SPECIFICATIONS ....................................................

...........

1. BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box. Check up the

device for damage; if the product was damaged during transportation, address the rm which ﬁ

carried out the delivery; if the product functions incorrectly, address the dealer at once.

• Check up the package contents and availability of the warranty card. Make sure the warranty card

has a shop stamp, a legible signature or the seller’s stamp and purchase date, and the goods

number corresponds to that in the warranty card. Remember: in case of warranty card loss or

discrepancy of numbers you forfeit the right for warranty repairs.

• Do not switch on the speaker system immediately after you bring it into a room from environment

with negative temperature! After unpacking, the speaker system should be kept in conditions of

room temperature for at least 4 hours.

• Before installing and using the speaker system, read this Manual carefully and keep it for future

reference.

Technical support is on www.sven. . ﬁ

ENG

Operation Manual

SPS-611S

ENG

2.0 Multimedia Speaker System

2. PACKAGE CONTENTS

• Speakers — 2 pcs

• 2RCA to mini-jack signal cable — 1 pc

• Audio cable — 1 pc

• Operation manual — 1 pc

• Warranty card — 1 pc

3. SAFETY PRECAUTIONS

• To avoid electric shock, do not open the MSS and do not perform repairs by yourself. Service and

repairs should be performed only by quali ed specialists in an authorized service center. The list of ﬁ

authorized service centers is available on www.sven. .ﬁ

• Do not allow the circuit of wires (including the grounded ones) between the speakers, on the

power ampli er or the ground, for it causes damage to the power ampli er output stage.ﬁ ﬁ

• Do not touch the MSS power cord plug pins for 2 seconds after unplugging it from the mains.

• Disconnect MSS from the mains system during a fuse replacement. Use fuses of the same type

and rated value. Do not use hand-made fuses.

• Do not put foreign objects inside the holes of the MSS.

• Protect the MSS from high humidity, water and dust.

• Protect the MSS from heating: do not place it closer than 1 m from a heat source. Do not expose

it to direct sunlight.

• Do not place any open ame sources on or close to MSS.ﬂ

• Do not place the MSS in poorly ventilated areas. Leave an air gap of 10 cm or more. When

operating the MSS, do not put any devices on it, do not cover it with cloth or other objects pre-

venting it from cooling.

• Do not use any chemical agents for cleaning. Clean it with dry soft cloth only.

4. TECHNICAL DESCRIPTION

SPS-611S 2.0 Multimedia Speaker System (MSS) is designed to play music and sound games,

movies, etc. The MSS has a built-in power ampli er allowing to connect it to virtually any audio ﬁ

source (CD/DVD-player, TV, PC, etc.) without using an additional power ampli er. One speaker is ﬁ

active (it has a built-in power ampliﬁer and a control panel), the other one is passive. The MSS can

be connected to an active subwoofer.

Special features

• Speaker system is compatible with PCs, DVD/Media-players, mobile devices and other sound

sources

• Built-in transformer power supply

• Controls on the front panel of the speaker

• Volume control

• Separate treble and bass control

• Additional output for subwoofer connection

• Magnetic shielding

• MDF speaker cabinets

Caution! High voltage inside! To avoid the risk of electric

shock do not open or touch elements inside.

Produkspesifikasjoner

Merke:	Sven
Kategori:	Høyttaler
Modell:	SPS-611S
Vekt:	4860 g
Bredde:	143 mm
Dybde:	175 mm
Høyde:	250 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Strømkildetype:	AC
Anbefalt bruk:	Universell
Impedans:	- Ω
Høyttalerplassering:	Floor, Tabletop/bookshelf
Basshøyttaler:	Ja
Forsterker:	Innebygget
Diskanthøyttaler:	Ja
AC-inngangsspenning:	220 V
AC-inngangsfrekvens:	50 Hz
Produktfarge:	Sort
Kroppsmateriale:	Tre
Lyd-utgang kanaler:	2.0 kanaler
RMS-rangert strøm/utgangseffekt:	36 W
Utjevner/frekvenskorrigerer:	Nei
Antall drivere:	2
Frekvensrekkevidde:	40 - 18000 Hz
Basshøyttalerens diameter:	100 mm
Diskant diameter:	38 mm
Magnetisk beskyttet:	Ja
Audio RCA-inngang:	1
