Side 1/10

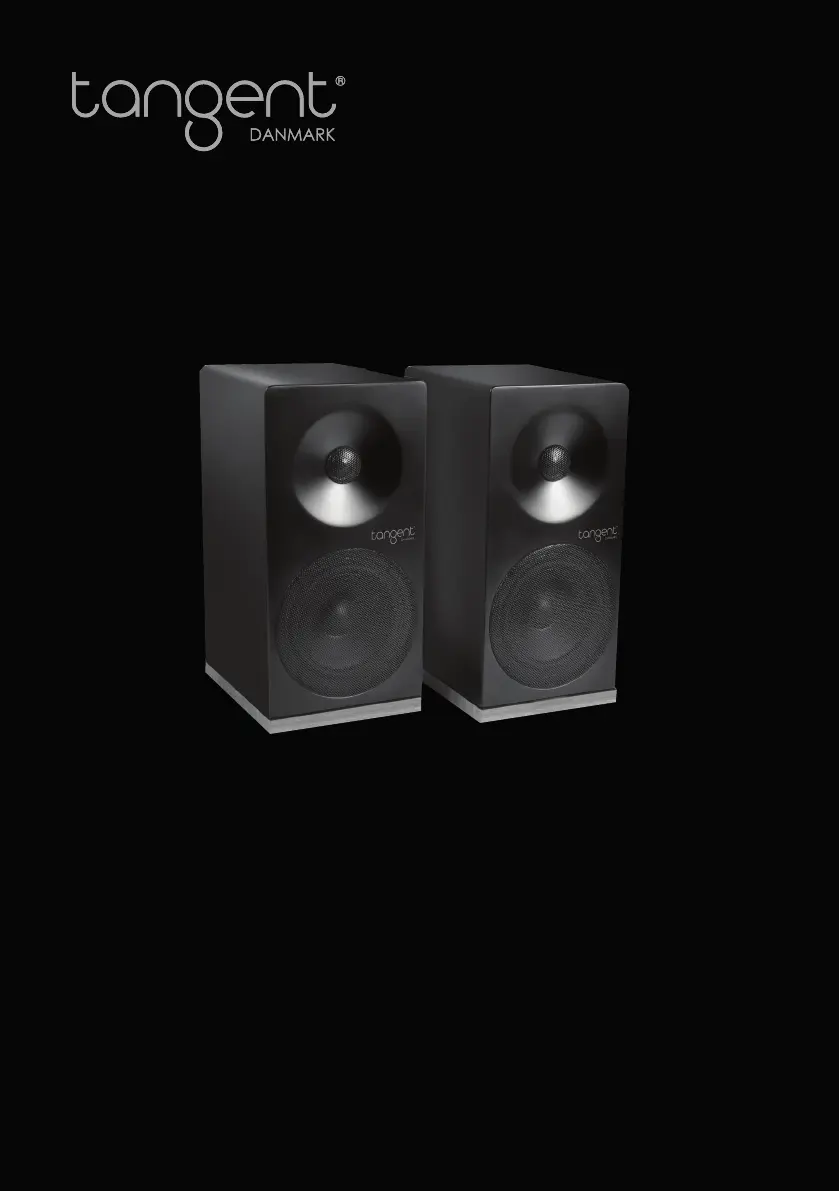

Spectrum X4

User’s manual

InstructIon manual

Thank you for purchasing Tangent loudspeakers. You have just purchased one of the best domestic hi

loudspeakers available and we hope you will enjoy the music they reproduce for many years to come.

The following notes are designed to assist you in obtaining a greater degree of musical satisfaction from

your Tangent loudspeakers. Before connecting your loudspeakers, we suggest that you read this leaets

carefully.

amplIfIer capacIty - power handlIng

Your Tangent loudspeaker system will operate satisfactorily with any good amplier designed for use

with an 4-8 Ohm impedance load. Although Tangent loudspeakers are designed to handle high power

loadings, you must remember that any loudspeaker that is abused with excessive use of volume, tone

controls and graphic equalisers is likely to cause damage to the drive-units. Be careful especially with

small ampliers constantly driven on high power levels as these may be liable to go into „clipping mode“

and

distort the signal causing possible damage. If you hear a distorted signal through the loudspeakers you

must reduce the power level.

connectIng to your amplIfIer

Some of the Tangent loudspeakers are supplied with cables, however we strongly recommend the use of

high quality speaker cables, colour coded or grooved cables are recommended to assist checking polar-

ity, your local dealer should be able to advise you on this point. Always switch OFF your amplier before

making any connections or adjustments to the system. Wire the right-hand channel cable so that the

positive (RED) terminal of your loudspeaker is connected to the positive (RED) on your amplier, and the

negative (BLACK) terminal of your loudspeaker is connected to the negative (BLACK) terminal on your

amplier. Repeat the instructions for the left-hand channel. Do NOT connect more than one loudspeaker

to one terminal on your amplier.

phasIng

Providing that you have followed the connecting instruction correctly the loudspeakers should be in

phase and provide solid stereo images. If however, you have any doubt as to the phasing of the loud-

speakers, try reversing the connections (RED & BLACK) to ONE of the loudspeakers, and play a recording

which has plenty of deep bass operating both loudspeakers simultaneously with the stereo amplier

switched to „mono“. The correct polarity is indicated by rm full bass, when incorrect, the bass will be

noticeably much weaker.

loudspeaker posItIonIng

Ideally the Tangent loudspeakers should be positioned at least 50 cm from a rear wall, 1 meter from a

side wall and at least 2 metres apart. The space between the two loud- speakers and the distance form

the listeners are important. If loudspeakers are placed too close together or too far apart, stereo images

will not be fully developed. In average living rooms, speaker spacing between 2 and 4 metres will usually

produce satisfactory results. The listeners distance from the loudspeakers should be at least equal to and

preferably greater than the distance between the loudspeakers. Tests should be made with both speech

and music before deciding upon nal locations.

servIce

No routine attention is required to the working parts of the loudspeakers and being very reliable Tan-

gent loudspeakers rarely require service. Any service problems should in the rst instance be referred to

your dealer.

Produkspesifikasjoner

Merke:	Tangent
Kategori:	Hi-fi system
Modell:	Ampster X4
Bluetooth:	Ja
Bluetooth-versjon:	4.0
Antall høyttalere:	2
Volumkontroll:	Rotasjon
Produktfarge:	Hvit
Fjernkontroll medfølger:	Ja
AUX-inngang:	Ja
Modell/Type:	Hjemmelydanlegg (mikro)
RMS-rangert strøm/utgangseffekt:	100 W
Basshøyttalerens diameter:	110 mm
Diskant diameter:	25 mm
