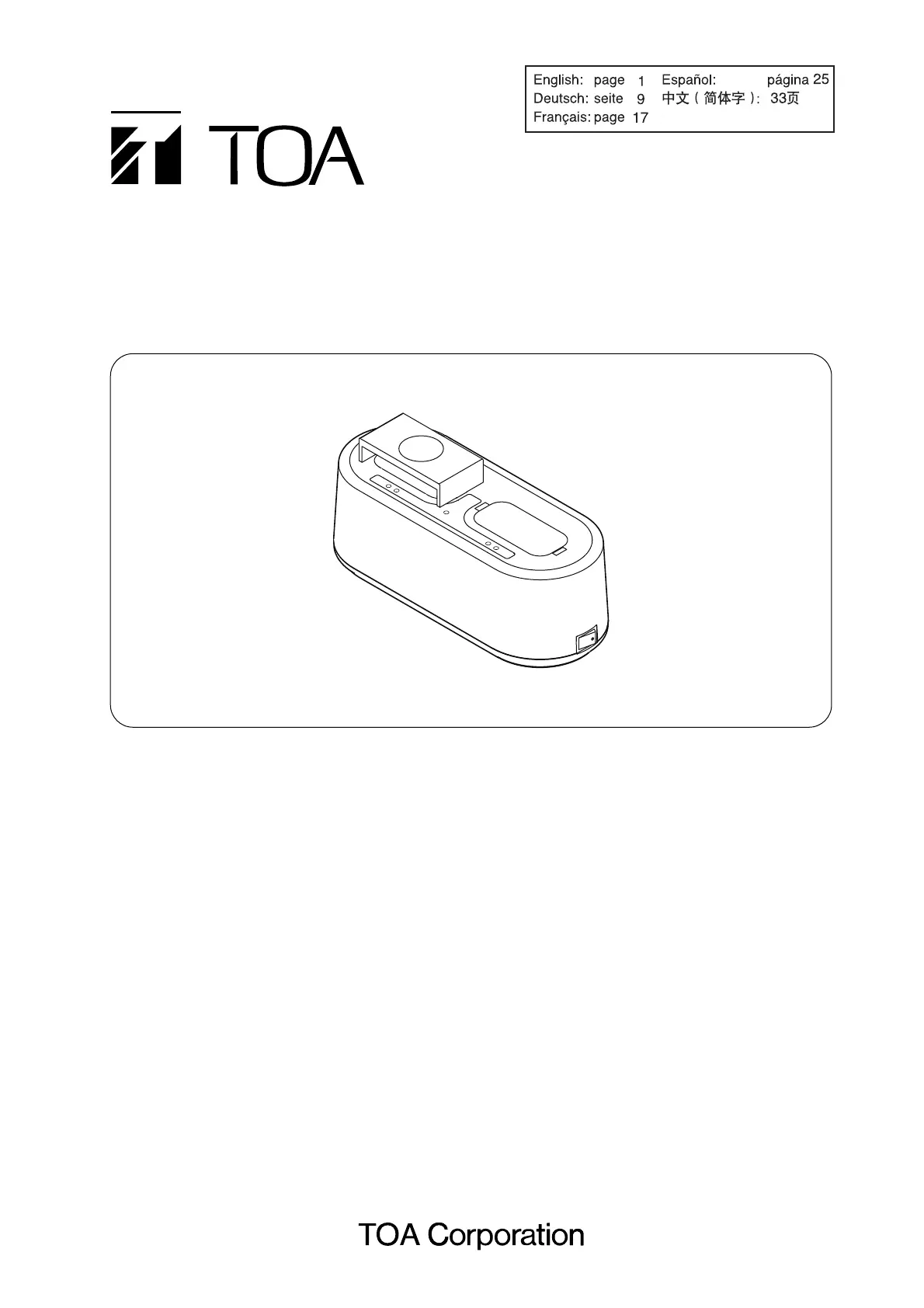

OPERATING INSTRUCTIONS
BATTERY CHARGER BC-5000-2
1. SAFETY PRECAUTIONS ........................... 2
2. GENERAL DESCRIPTION ......................... 3
3. HANDLING PRECAUTIONS ...................... 3
4. NOMENCLATURE AND FUNCTIONS ....... 4
5. CHARGING ................................................. 5
6. TROUBLESHOOTING ................................ 7
7. SPECIFICATIONS ...................................... 8
Accessories ................................................. 8
Thank you for purchasing TOA's Battery Charger.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
2
When Installing the Charger
• Do not expose the charger to rain or an
environment where it may be splashed by water or
other liquids, as doing so may result in fire or
electric shock.
• Use the charger only with the voltage specified on
the charger. Using a voltage higher than that which
is specified may result in fire or electric shock.
• Avoid installing or mounting the charger in unstable
locations, such as on a rickety table or a slanted
surface. Doing so may result in the charger falling
down and causing personal injury and/or property
damage.
When the Charger is in Use
• Should the following irregularity be found during
use, immediately switch off the power, disconnect
the AC adapter's power supply plug from the AC
outlet and contact your nearest TOA dealer. Make
no further attempt to operate the charger in this
condition as this may cause fire or electric shock.
· If you detect smoke or a strange smell coming
from the charger
· If water or any metallic object gets into the
charger
· If the charger falls, or the charger case breaks
· If the AC adapter's power supply cord is damaged
(exposure of the core, disconnection, etc.)
• To prevent a fire or electric shock, never open nor
remove the charger case as there are high voltage
components inside the charger. Refer all servicing
to your nearest TOA dealer.
• Do not place cups, bowls, or other containers of
liquid or metallic objects on top of the charger. If
they accidentally spill into the charger, this may
cause a fire or electric shock.
• Do not insert nor drop metallic objects or
flammable materials inside the battery charger or
its rechargeable unit receptacle, as this may result
in fire or electric shock.
• Do not touch a power supply plug during thunder
and lightning, as this may result in electric shock.
• Stop charging if the batteries are not fully charged
within 3 hours. Failure to do so may cause the
batteries to fire, explode, leak, or heat.
When Installing the Charger
• When moving the charger, be sure to remove AC
adapter's power supply plug from the wall outlet.
Moving the charger with the power supply cord
connected to the outlet may cause damage to the
power supply cord, resulting in fire or electric
shock.
• Avoid installing the charger in humid or dusty
locations, in locations exposed to the direct
sunlight, near the heaters, or in locations
generating sooty smoke or steam as doing
otherwise may result in fire or electric shock.
When the Charger is in Use
• Switch off the power, and unplug the AC adapter's
power supply plug from the AC outlet for safety
purposes when cleaning or leaving the charger
unused for 10 days or more. Doing otherwise may
cause a fire or electric shock.
• Use the optional AD-5000-2 AC Adapter dedicated
for the charger. Note that the use of other adapter
may cause a fire.
• Avoid charging units installed with rechargeable
batteries other than the dedicated WB-2000
battery. Charging any other than the specified
battery could result in fire or personal injury due to
battery rupture.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
• Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
• After reading, keep this manual handy for future reference.
WARNING
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.
WARNING
CAUTION
CAUTION
3
2. GENERAL DESCRIPTION
The TOA BC-5000-2 is a dedicated battery charger for the WM-5225 and WM-5265 Wireless Microphones,
WM-5325 Wireless Transmitter, and WT-5100 Portable Receiver. It works with the optional AD-5000-2 AC
Adapter.
The BC-5000-2 employs a quick charging system for nickel-metal hydride (Ni-MH) batteries, allowing up to 2
units to be fully charged within 3 hours.
3. HANDLING PRECAUTIONS
• Use the BC-5000-2 in locations where an ambient temperature ranges from 0 to 40 ºC (32 to 104 ºF).
• When cleaning the case, be sure to first switch off the power, then wipe with a dry cloth. Never use benzene,
thinner, alcohol or chemically processed towels, as these may damage the charger's components and parts.
• Clean the charging terminals on a regular basis using a dry cotton swab. Dirty terminals can cause poor
electrical contact and cause batteries to be charged incorrectly.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Any modifications made to this device that are not approved by TOA Corporation may void the authority
granted the user by the FCC to operate this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required correct the interference at his own expense.
FCC Compliance
