Toa DP-SP3 Bruksanvisning

Toa Prosessor DP-SP3

Les nedenfor 📖 manual på norsk for Toa DP-SP3 (24 sider) i kategorien Prosessor. Denne guiden var nyttig for 3 personer og ble vurdert med 4.6 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

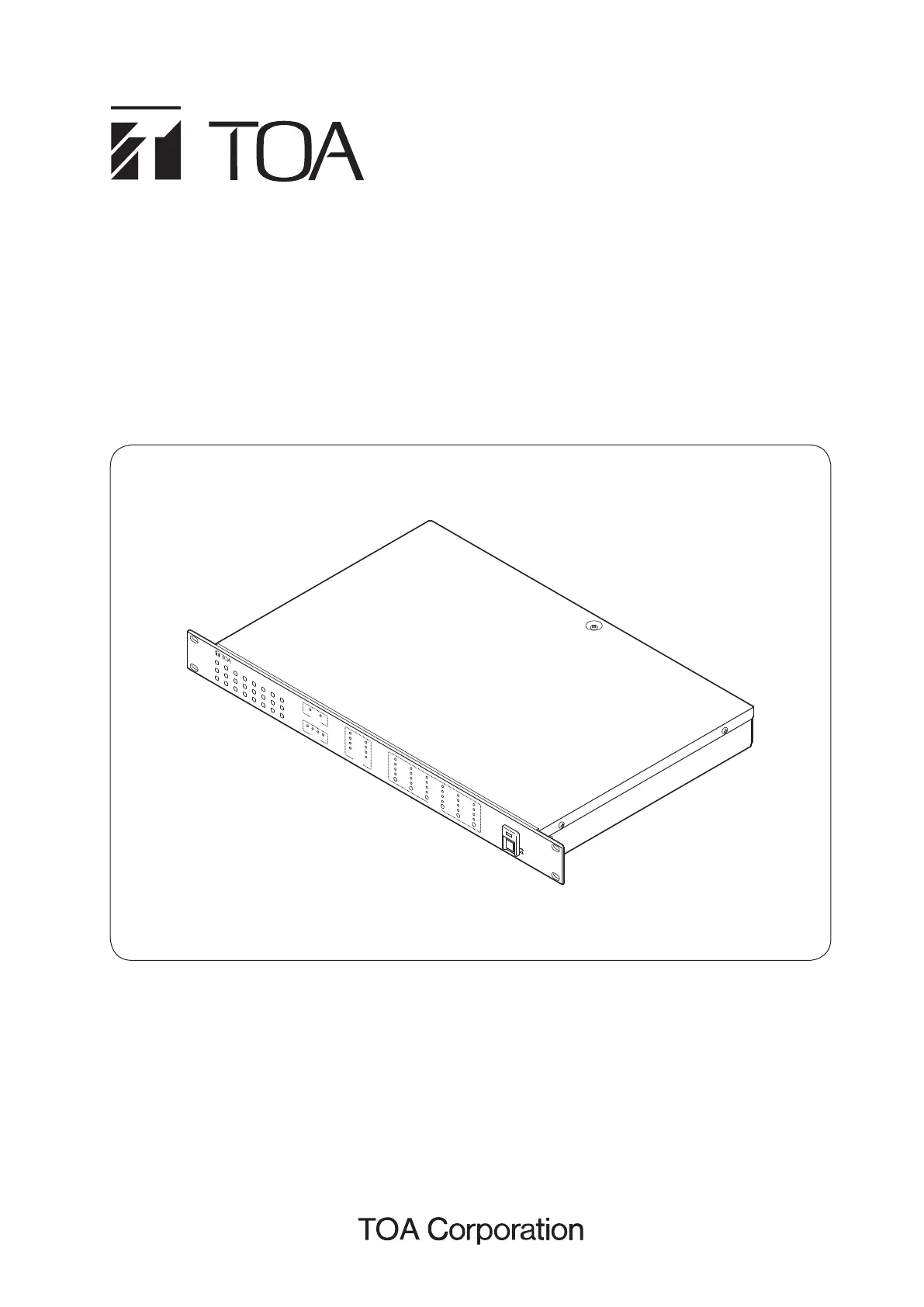

Side 1/24

DIG ITAL

SPE AKER

PRO CESSOR

DP- SP3

PRESET

STATUS

RUN

LINK

INPUTS

PEAK

+12

–

OUTPUTS

PEAK

POWER

OFF

+12

MUTE

–

OPERATING INSTRUCTIONS

DIGITAL SPEAKER PROCESSOR DP-SP3

Thank you for purchasing TOA’s Digital Speaker Processor.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS

........................................... 3

2. SAFETY PRECAUTIONS ............................................................................. 4

3. GENERAL DESCRIPTION .......................................................................... 6

4. FEATURES ............................................................................................................ 6

5. HANDLING PRECAUTIONS ...................................................................... 6

6. NOMENCLATURE AND FUNCTIONS ................................................. 7

[Front] ........................................................................................................................... 7

[Rear] ........................................................................................................................... 8

7. SYSTEM CONFIGURATION EXAMPLE ............................................. 9

7.1. Control by the External Control Device ................................................................. 9

7.2. Control by the M-864D Digital Mixer ................................................................... 10

7.3. Control by a PC ................................................................................................... 10

7.4. Control by Various Types of Devices ................................................................... 11

8. MUTE FUNCTION OPERATION ............................................................ 12

8.1. Mute Indicators .................................................................................................... 12

8.2. Turning on the Mute Function by the DP-SP3 .................................................... 13

8.3. Turning OFF the Mute Function by the DP-SP3 ................................................. 13

9. PRESET NUMBER INDICATION FUNCTION ............................... 14

10. CONTROL METHOD USING

THE CONTACT INPUT TERMINALS ............................................... 14

10.1. Preset Memory Recall ....................................................................................... 14

10.2. Output Volume Control ...................................................................................... 16

10.3. Output Mute ...................................................................................................... 16

11. FIRMWARE VERSION INDICATION ................................................. 17

12. INITIALIZING THE DP-SP3 .................................................................... 18

13. INSTALLATION .............................................................................................. 19

13.1. Installation Precautions ..................................................................................... 19

13.2. Mounting in a Rack ........................................................................................... 19

14. CONNECTION ................................................................................................ 20

14.1. Connection Example ......................................................................................... 20

14.2. Removable Terminal Plug Connection .............................................................. 21

15. BLOCK DIAGRAM ....................................................................................... 22

16. SPECIFICATIONS ........................................................................................ 22

17. DIMENSIONAL DIAGRAM ...................................................................... 24

Produkspesifikasjoner

Merke:	Toa
Kategori:	Prosessor
Modell:	DP-SP3
Vekt:	3100 g
Bredde:	482 mm
Dybde:	289 mm
Høyde:	44 mm
Strømforbruk (maks.):	25 W
Inngangsspenning:	220-240 V
Produktfarge:	Sort
Kabler inkludert:	AC
Inngangsfrekvens:	50/60 Hz
Rack-kapasitet:	1U
Rack-montering:	Ja
Lyd D/A-konverterer (DAC):	24 bit
Audio A/D-omformer (ADC):	24 bit
