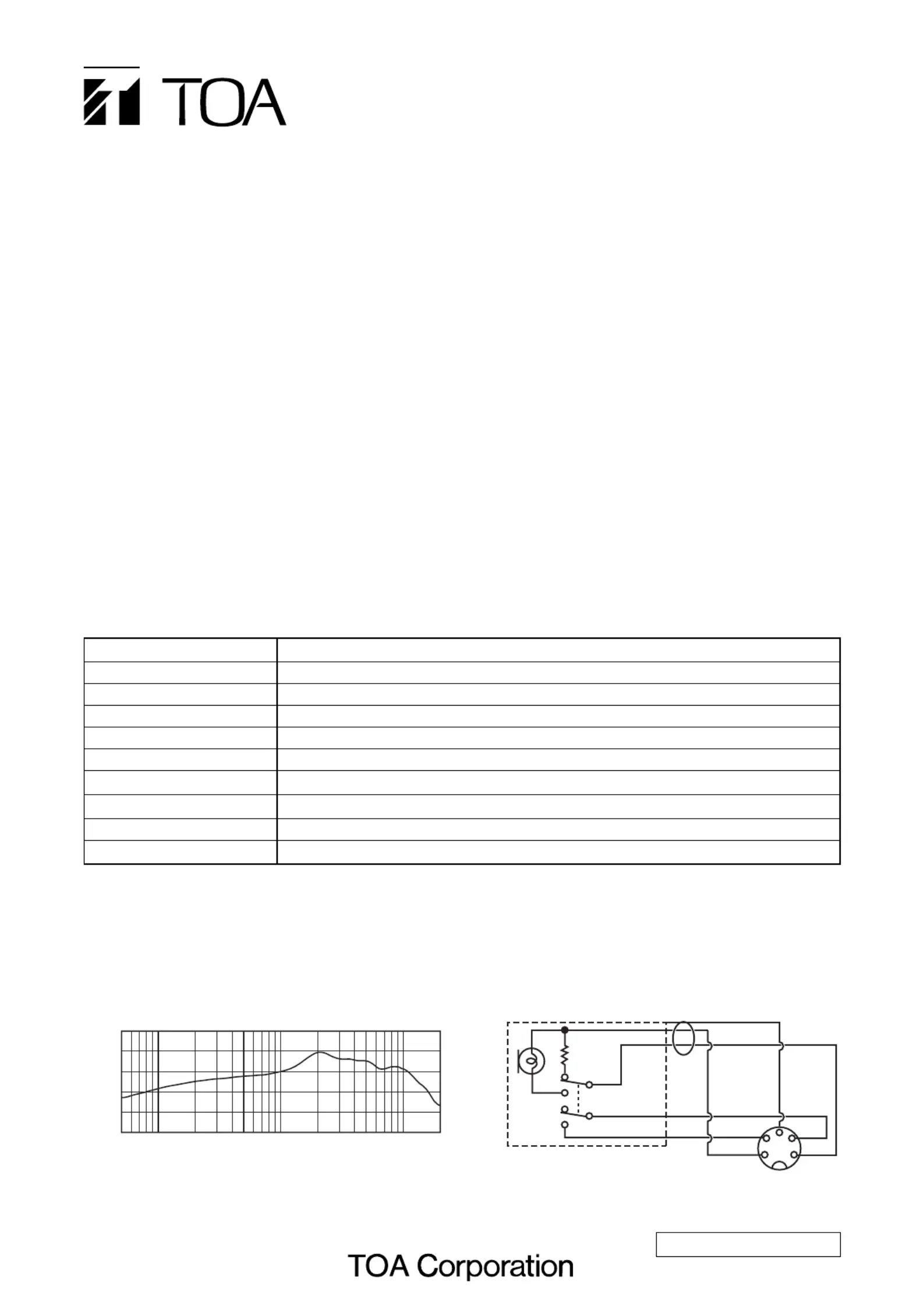

Thank you for purchasing TOA's Paging Microphone.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

PM-306DPAGING MICROPHONE

INSTRUCTION MANUAL

1. FEATURES

• Paging microphone with push-to-talk switch and make output (for muting)

• Heavy-duty metallic body, durable microphone cable, and built-in push-to-talk switch to assure excellent

durability against rough handling

• High intelligibility thanks to ambient noise-, handling noise- and pop-free design

• Two-meter coiled cable with 5-pin DIN plug for use with the TOA amplifiers

• 600 , balanced outputΩ

2. HANDLING PRECAUTIONS

• Do not drop unit from high above the floor.

• To ensure a prolonged period of use, do not install this unit in areas where it may be splashed by water or

dust accumulates.

• Speak as close to the microphone as possible.

3. SPECIFICATIONS

Type Dynamic, hand-held

Polar Pattern Omnidirectional

Output Impedance 600 Ω, balanced (at 1 kHz)

Recommended Load More than 600 Ω

Output Level (at 1 kHz) –53 dB (0 dB = 1 V/Pa)

Frequency Response 80 – 16,000 Hz

Cable Coiled cable, ø6 mm x 2 m (at a maximum extended length)

Talk Switch Push-to-talk type

Remote Control Capacity Make output of 30 V DC, 0.1 A max.

Weight 330 g

Note: The design and specifications are subject to change without notice for improvement.

• Accessory

Microphone holder ..................................... 1

4. FREQUENCY RESPONSE 5. SCHEMATIC DIAGRAM

[dB]

–10

–20

–30

50 100 500 1k 5k 10k 20k [Hz]

Frequency

Relative response

Red

Blue

Black

Shield

White

5-pin DIN plug

–

4.7 kΩ

Push-to-talk

133-04-172-3C

URL: http://www.toa.jp/

Produkspesifikasjoner

Merke:	Toa
Kategori:	Mikrofon
Modell:	PM-306D
Bredde:	40 mm
Dybde:	40 mm
Høyde:	134 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Pakkevekt:	530 g
Mikrofonretningstype:	Retningsuavhengig
Mikrofonfrekvens:	80 - 16000 Hz
Mikrofonvekt:	350 g
Produktfarge:	Grå
Enhetsgrensesnitt:	5‑pin DIN
Kroppsmateriale:	Metall
Av/på-bryter:	Ja
Antall medfølgende produkter:	1 stykker
Mikrofonsensitivitet/mikrofonfølsomhet:	-50 dB
Inngangsimpedans mikrofon:	500 Ω
