ZONE MANAGERS

OPERATING INSTRUCTIONS

ZM-9001, ZM-9002

Thank you for purchasing TOA's Zone Manager.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. GENERAL DESCRIPTION

The ZM-9001 is a remote control switch panel used with the 9000 Series amplifiers.

It adds 6 control inputs and can be mounted in a 1-gang electrical box (American type).

The ZM-9002 is a remote control switch/volume panel used with the 9000 Series amplifiers.

It adds 4 control inputs and 1 volume control, and can be mounted in a 1-gang electrical box

(American type).

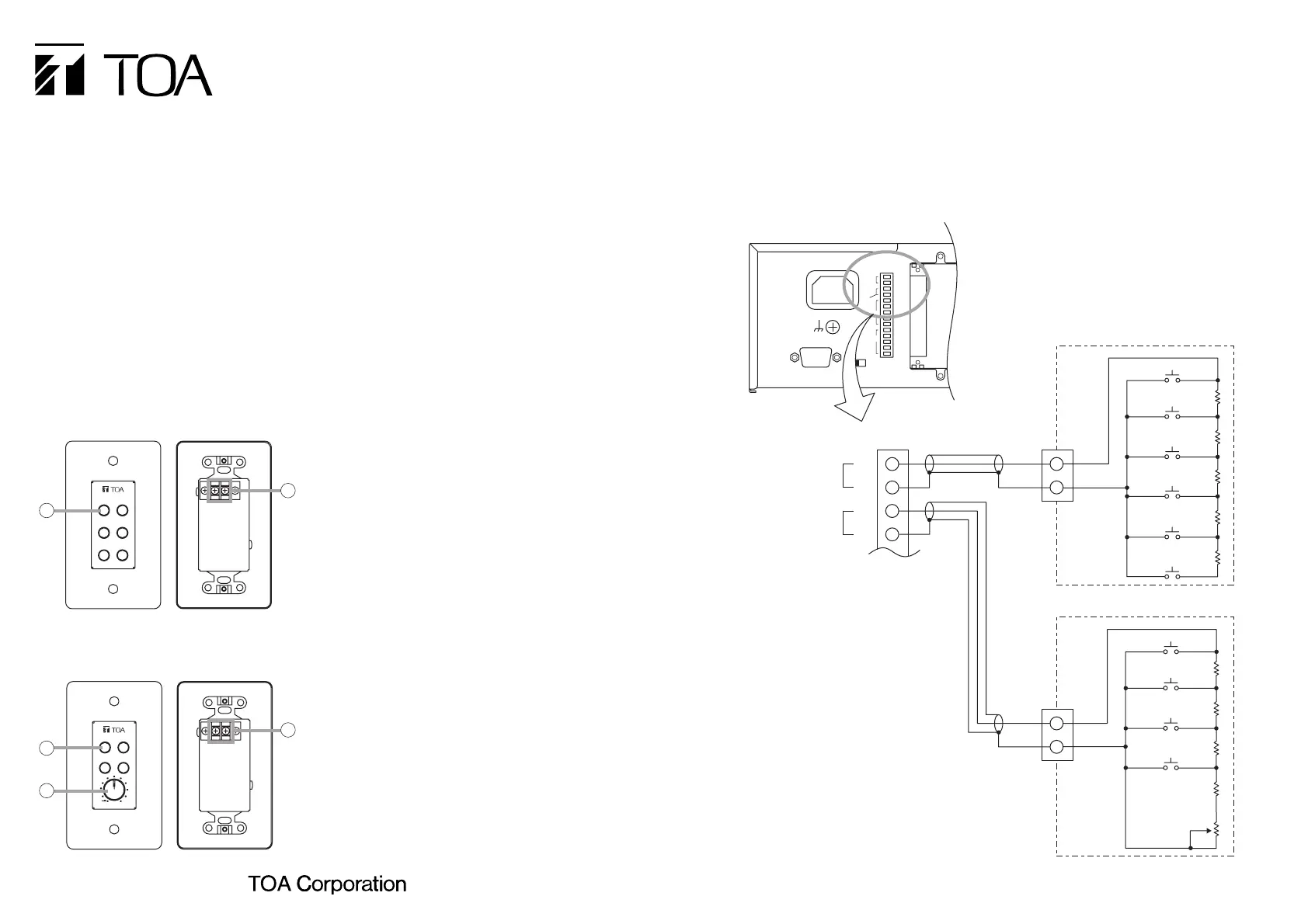

2. NOMENCLATURE AND FUNCTIONS

2.1. ZM-9001

[Front] [Rear]

E OUT

1. Control buttons [1 – 6]

Activate the function assigned to them when

pressed.

2. Control output terminal [E, OUT]

Connect this terminal to the 9000 Series

amplifier's REMT VOL terminal.

Use a shielded cable with 50 Ω or less line

resistance (per line) for this connection.

Avoid installation of this cable and power cables

in the same conduit. Separate piping.

2.2. ZM-9002

[Front] [Rear]

E OUT

3. Control buttons [1 – 4]

Activate the function assigned to them when

pressed.

4. Volume control

Adjusts the volume on the assigned input or

output channel.

5. Control output terminal [E, OUT]

Connect this terminal to the 9000 Series

amplifier's REMT VOL terminal.

Use a shielded cable with 50 Ω or less line

resistance (per line) for this connection.

Avoid installation of this cable and power cables

in the same conduit. Separate piping.

3. CONNECTIONS

Connecting the ZM-9001 Zone Manager to the 9000 Series amplifier adds 6 control inputs and

allows the equipped 6 control buttons to perform the functions assigned for input's or output's

channel volume up/down, or other functions.

Connecting the ZM-9002 Zone Manager to the 9000 Series amplifier adds 1 volume control and 4

control inputs. Volume of the input or output channels can be remotely adjusted with the volume

control, and the 4 control buttons can be assigned the same functions as those of the ZM-9001.

Function assignment to the control buttons or volume control is performed at the 9000 Series

amplifier. For the method, refer to the instruction manual supplied with the 9000 Series amplifier.

VOL2

REMT

VOL1

REMT

OUT

I/O

CTRL

REMT VOL1

(Remote volume 1)

REMT VOL2

(Remote volume 2)

OUT

ZM-9001

Volume control

ZM-9002

OUT

REMT VOL terminal

9000 Series amplifier

Note

One ZM-9001 or one ZM-9002 can be

connected to each of the REMT VOL1 and

2 terminals.

Produkspesifikasjoner

Merke:	Toa
Kategori:	Fjernkontroll
Modell:	ZM-9001
Innebygd skjerm:	Nei
Vekt:	170 g
Bredde:	72 mm
Dybde:	45 mm
Høyde:	127 mm
Merkekompatibilitet:	TOA
Antall knapper:	6
Maksimal rekkevidde:	- m
Innebygd batteri:	Nei
Kompatible produkter:	9000 series amplifiers
Justerbart volum:	Ja
Tilpassbare knapper:	Ja
Produktfarge:	Hvit
Driftstemperatur (T-T):	-10 - 40 °C
Kroppsmateriale:	Stål
Videoopptaksgrensesnitt:	Koblet med ledninger (ikke trådløs)
Inngangstype:	Trykknapper
Egnet bruk for fjernkontroll:	Lyd
